Taking the hard top off your 2020 Jeep Wrangler can open up a completely new driving experience. Fresh air, sunshine, and a sense of freedom make this upgrade worth considering, especially in warmer months. However, many new owners feel nervous about tackling this process. The hard top is heavy and awkward, and removing it incorrectly can cause damage. With clear steps and the right mindset, you can do this safely and confidently—even without a professional’s help.
What You Need Before You Start
Preparation is key for a smooth removal. Gather the following:
- Torx bit set (T50 is essential)
- Ratchet or socket wrench
- A friend or helper (the hard top is heavy)
- Protective padding or blankets
- Safe, dry storage space for your hard top
Many first-timers forget about storage space. The hard top is large and sensitive to scratches. Plan where you will keep it ahead of time. Also, avoid doing this in the rain or on very windy days.
Step-by-step Guide To Removing The Hard Top
Let’s break down the process so you don’t feel overwhelmed. Read the steps fully before starting.
1. Prepare The Interior
Remove any loose items from the cargo area. Fold the rear seats forward if possible. This gives you more room to move.
2. Remove The Freedom Panels
The Freedom Panels are the two smaller panels over the driver and passenger. These come off first.
- Flip open the six latches on each panel.
- Unscrew the center clamp.
- Lift panels straight up and out. Store them on a soft surface.
3. Disconnect Electrical And Washer Connections
Behind the rear seats on the driver’s side, you’ll find two important connections:
- Wiring harness: Squeeze the tab and pull gently.
- Washer fluid hose: Press the small ring and pull off.
Set these aside carefully to avoid damage.
4. Remove The Hard Top Bolts
There are usually eight Torx bolts holding the hard top to your Wrangler:
- Two above each door (front)
- Three on each side in the cargo area
Using your Torx bit and wrench, remove all bolts. Place them in a labeled bag so you don’t lose them.
5. Lift The Hard Top Off
This step is much easier with a helper. Open the rear door. Stand on each side, grip the lower edges, and lift the top straight up and back. Avoid tilting or twisting.
Once clear, walk it to your prepared storage spot. Set it down gently on blankets or padding.
Comparison: Hard Top Vs Soft Top Removal
Here’s how the removal process compares if you have a soft top instead:
| Aspect | Hard Top | Soft Top |
|---|---|---|
| Tools Needed | Torx set, wrench | None (usually) |
| Time Required | 20-40 minutes | 10-15 minutes |
| Helpers Needed | Recommended | Not needed |
| Storage | Large, dry space | Folds up |

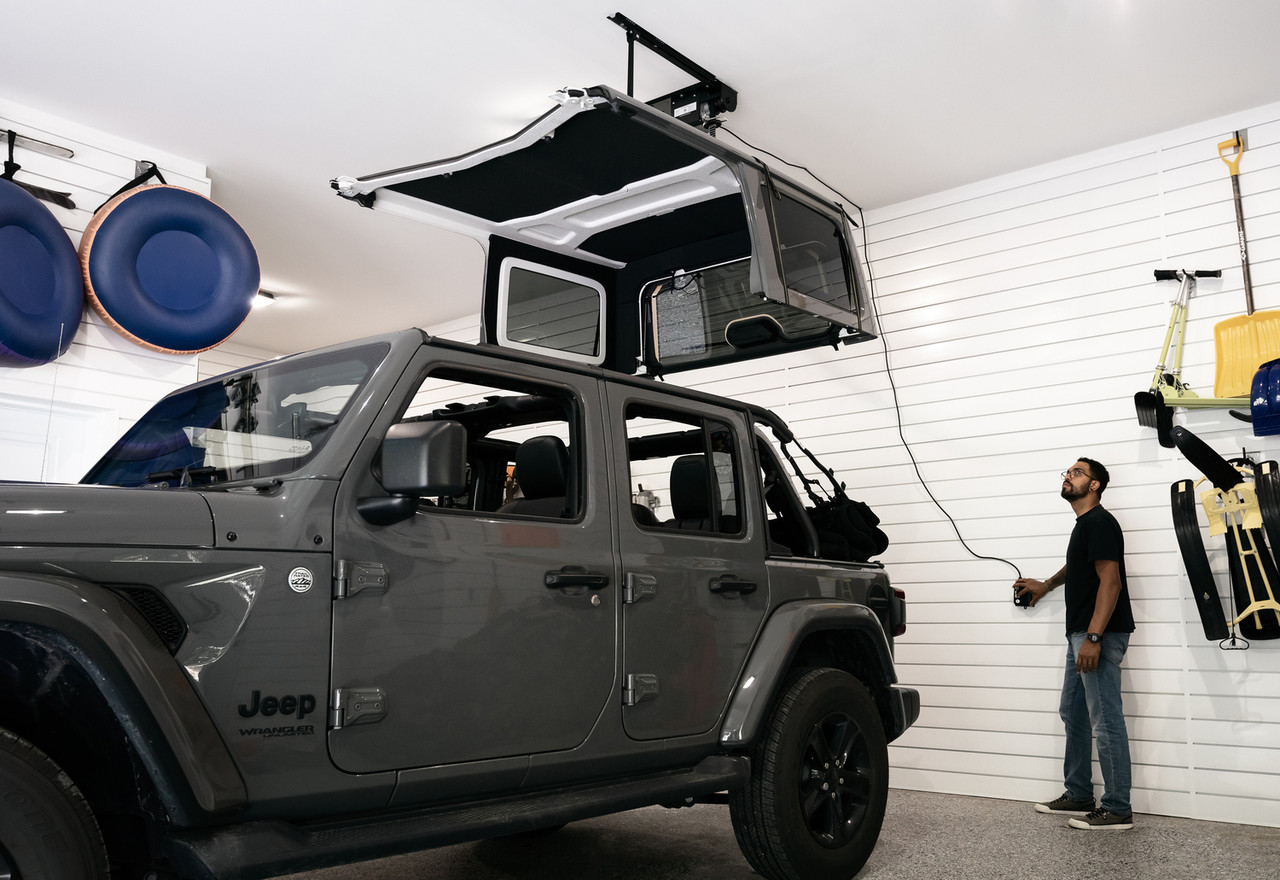

Many owners are surprised by how much heavier the hard top is compared to the soft top. If you plan to swap tops often, consider a hoist system for your garage.
Safety And Storage Tips
- Never attempt solo: The hard top weighs around 100 lbs and can easily crack or scratch if dropped.
- Protect edges: Use foam blocks or thick blankets when storing.
- Avoid direct sunlight: UV rays can fade and weaken the top’s finish over time.
- Keep bolts and hardware together: Use a small container or bag to avoid losing small pieces.
Some owners forget about reconnecting the washer and wiring when reinstalling. Mark the cables with tape if you think you’ll forget which goes where.
Common Mistakes To Avoid
- Forgetting to disconnect wiring: This can cause electrical faults or break connectors.
- Losing bolts: Always keep hardware in a labeled bag.
- Dragging or sliding the top: Always lift, never drag.
- Skipping protective padding: Even small scratches lower resale value.
Costs And Tools: What To Expect
Here’s a quick look at possible costs and tool requirements:
| Item | Estimated Cost | Essential? |
|---|---|---|
| Torx Bit Set | $15–$25 | Yes |
| Garage Hoist | $100–$250 | No (but helpful) |
| Protective Blankets | $10–$30 | Yes |
| Extra Helper | Free (friend/family) | Yes |
If you plan to remove your hard top several times a year, investing in a hoist can make the job much easier and safer.
Extra Insights For First-timers
- Don’t rush: Take time to check each latch, bolt, and connector. Mistakes can be costly.
- Check weather seals: When reinstalling, make sure all seals are clean. This prevents leaks.
- Photograph connections: Take photos of electrical and washer connections. This helps during reinstallation.
- Use two people for lifting: Even if you’re strong, it’s easier and safer with a friend.
These steps and tips will help you avoid the most common issues people face with their first hard top removal.
Taking off the 2020 Jeep Wrangler hard top can feel intimidating, but it’s manageable with the right approach. With proper tools, a helper, and some patience, you can enjoy the open-air Jeep experience. For more detailed visuals, the official Jeep website offers helpful videos and guides.
Frequently Asked Questions
How Heavy Is The 2020 Jeep Wrangler Hard Top?
The hard top weighs about 100 pounds. It’s heavy for one person, so always ask a friend to help you lift it safely.
Can One Person Remove The Hard Top Alone?
It’s not recommended. The size and weight make it awkward. Trying alone increases the risk of dropping and damaging the top or your Jeep.
Do I Need To Disconnect The Battery Before Removal?
No, you don’t need to disconnect the battery. Just unplug the wiring harness and washer hose as described. This prevents electrical or washer fluid issues.
Can I Drive With Only The Freedom Panels Removed?
Yes, you can drive safely with just the Freedom Panels off. Many Jeep owners do this for a partially open-air feel without removing the entire top.
What If It Starts Raining During Removal?
Stop immediately and put the Freedom Panels back on if you can. Water can damage the interior. Always check the weather forecast before removing your top.
With these steps and tips, you’ll be ready to enjoy your Jeep’s open-air adventure while keeping your vehicle and its parts in top shape.
