Taking the hard top off a 2019 Jeep Wrangler is a task many owners face, especially when the weather gets warm. If you’ve never done it before, it can seem a bit intimidating.
The hard top is heavy, awkward to handle, and has special bolts and connections.
But with a little guidance and the right tools, most people can do it safely in about 30 to 45 minutes. Removing the top gives your Wrangler a true open-air experience one of the reasons this vehicle is so popular.
This guide will walk you step by step through the entire process, point out common mistakes, and offer some tips for a smoother removal.
Tools And Preparation
Before you start, make sure you have the needed tools and a bit of space. The 2019 Jeep Wrangler hard top is large and can scratch easily, so you’ll want to plan where you’ll set it down. Here’s what you’ll need:
- T40 Torx bit (provided with your Jeep’s tool kit)
- Ratchet or driver
- Soft blankets or foam pads (for protecting the top and your Jeep)
- A friend (recommended but not required)
- Storage bags for hardware (included in most Wranglers)
If you don’t have the Torx tool kit, you can buy one at an auto parts store. Don’t use regular screwdrivers or pliers, as these can strip the bolts.
Step 1: Remove The Freedom Panels

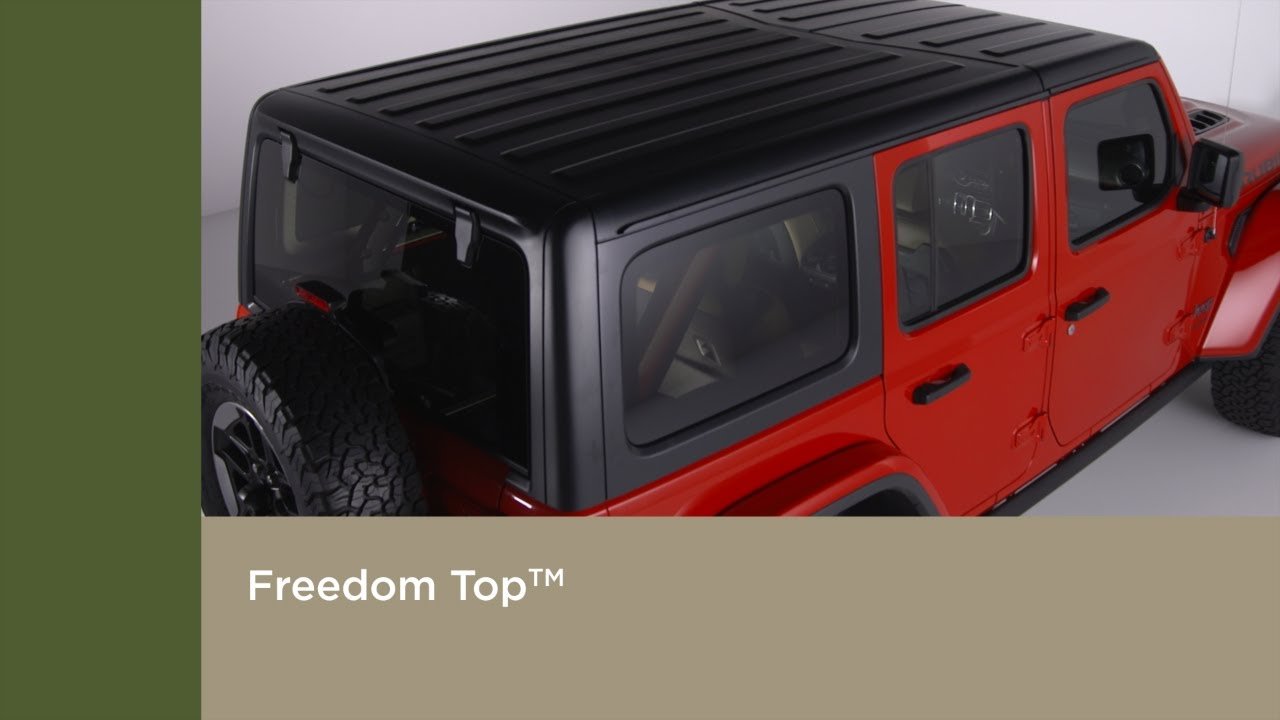

The Wrangler’s hard top is actually two pieces: two smaller front panels called Freedom Panels and the large rear section. Start with the front.
- Flip down the sun visors.
- Release the six latches securing the Freedom Panels to the windshield frame and center bar.
- Unscrew the two overhead fasteners with your fingers (no tools needed).
- Carefully lift off each panel, starting with the driver’s side. They’re light, but awkward—store them on a soft surface.
A common mistake is forgetting the center latch above the rearview mirror. If you try to remove the panel before unlatching, it can crack.
Step 2: Disconnect Electrical And Washer Connections
Before tackling the rear section, disconnect the wiring and washer fluid tube in the cargo area. These run to the rear window wiper and defroster.
- Open the tailgate.
- Locate the electrical connector on the driver’s side. Pull up on the red tab, then gently pull the plug apart.
- Next to the plug, squeeze the white washer fluid coupling and pull it apart. Have a towel ready—some fluid may drip.
Don’t force the connectors; they should come apart easily. If you forget this step, you can damage the wires when you lift the top.
Step 3: Remove The Rear Hard Top Bolts
There are eight Torx bolts holding the rear section in place—three on each side along the roll bar, and two overhead at the rear corners.
- Use the T40 Torx bit and your ratchet to remove the bolts. Keep the hardware in the provided bag so you don’t lose it.
- Set the bolts aside—you’ll need them for reinstallation.
Pro tip: Don’t overtighten these bolts when you put the top back on, as they can strip.
Step 4: Lifting Off The Rear Section
Now, the rear piece is free. It’s heavy (about 100 pounds), so it’s best if two people lift it.
- Stand on each side of the Jeep.
- Lift the top straight up, being careful not to drag it across the body.
- Walk it back and set it on your prepared blankets or foam.
If you’re alone, you can use a hoist system (sold by Jeep and aftermarket suppliers) to lift the top off in your garage.
Step 5: Storing The Hard Top Safely
The hard top can be scratched or warped if stored poorly. Place it on a soft, flat surface, away from direct sunlight.
Some owners use wall-mounted racks or rolling carts designed for Jeep tops.
Don’t lean the top against a wall it may bend. If you’re storing it for a long time, cover it with a breathable cloth.
Common Mistakes To Avoid
- Forgetting to disconnect the electrical and washer connections
- Trying to remove the top without help—can lead to dropping or scratching
- Storing the top on a rough surface
- Overtightening or stripping bolts during reinstallation
Comparing Hard Top Removal: Wrangler Vs. Other Suvs
To understand why the Wrangler’s process is unique, here’s a quick comparison with other SUV models:
| Vehicle | Hard Top Weight | Tools Needed | Time to Remove |
|---|---|---|---|
| 2019 Jeep Wrangler | ~100 lbs (rear section) | T40 Torx bit | 30-45 min |
| Ford Bronco (2021+) | ~80 lbs (rear section) | T50 Torx bit | 45-60 min |
| Chevy Blazer (Classic) | ~120 lbs | Standard socket set | 60+ min |
The Wrangler is one of the few modern vehicles designed for frequent top removal, making the process straightforward compared to older SUVs.
Practical Tips For Easier Removal
- Wear gloves to avoid pinched fingers or slipping.
- If you live in a wet climate, check the weather before removing the top.
- Mark the bolt locations with a dry erase marker for quick reinstallation.
- Consider buying a hard top hoist for solo removal—it pays for itself if you remove the top often.
Reinstalling The Hard Top
Putting the top back on is mostly the reverse, but a few details matter:
- Lower the rear section gently into place, checking alignment with the bolt holes.
- Install the Torx bolts but don’t overtighten—snug is enough.
- Reconnect the electrical and washer fluid connections firmly.
- Replace the Freedom Panels, securing all latches and fasteners.
- Test the rear wiper and defroster before heading out.
If you hear wind noise after reinstalling, check that the panels are seated evenly misalignment is the most common cause.
When To Remove The Hard Top
You might want to remove your hard top for reasons like:
- Enjoying open-air driving in spring or summer
- Hauling large cargo
- Installing aftermarket accessories (roof racks, light bars)
However, keep in mind that removing the hard top reduces theft protection and weather resistance.
Cost Of Professional Hard Top Removal
Some owners prefer to let a shop handle this task. Here’s a comparison of average prices:
| Service Type | Average Cost | Time Required |
|---|---|---|
| Dealership Removal | $75–$150 | 1–2 hours |
| Local Auto Shop | $50–$100 | 1 hour |
| DIY (At Home) | Free (if you have tools) | 30–45 min |
Doing it yourself saves money and gives you flexibility, but professional service can be worth it if you lack help or space.
Non-obvious Insights
Many beginners overlook two key factors:
- Weather Seals: The hard top’s seals can dry out or warp if the top is removed and stored in hot sun. Apply a rubber seal conditioner before storage to keep them flexible.
- Insurance Impact: Some insurance companies require you to notify them if you’re running the Jeep without the hard top for long periods. Check your policy to avoid coverage gaps, especially if you plan to drive top-off for months.
Safety Reminders
Always lift with your knees, not your back. The hard top’s size makes it easy to bump into garage walls or the Jeep itself move slowly and check your surroundings.
Never drive with bolts or connectors loose, as the top can rattle or even detach.
Resources For Further Help
If you need a visual guide, Jeep’s official site and many Wrangler forums have step-by-step videos. For more details, you can visit the Jeep official Wrangler page.
Frequently Asked Questions
How Heavy Is The 2019 Jeep Wrangler Hard Top?
The rear section weighs about 100 pounds. The front Freedom Panels are much lighter, around 12–15 pounds each. Two people can safely lift the main top, but solo removal is tricky without a hoist.
Can You Remove The Hard Top Alone?
It’s possible but not recommended unless you have a hoist system. Lifting alone can lead to damage or injury. Most owners find that a second person makes the process much safer and faster.
Do You Need To Unplug Wires Before Removing The Top?
Yes. Always disconnect the electrical plug and washer fluid line before lifting the rear section. Failing to do so can damage the connectors or wiring harness.
Will Removing The Hard Top Void The Jeep’s Warranty?
No, removing the top as described in the owner’s manual does not void the warranty. However, any damage caused during removal (such as broken connectors or stripped bolts) may not be covered.
How Long Does It Take To Remove And Reinstall The Hard Top?
For most owners, the whole process takes 30–45 minutes. With practice, it can be done faster. Reinstalling usually takes a little longer because you need to align all the bolts and connectors carefully.
Taking off your 2019 Jeep Wrangler hard top gets easier every time. With good preparation, the right tools, and attention to detail, you’ll enjoy open-air adventures without headaches.
Remember to store the top safely, keep track of your hardware, and enjoy the unique freedom your Wrangler offers.
