Installing a light bar on your Jeep Grand Cherokee’s bumper is a popular upgrade for people who want better visibility and a more rugged look.
The process can seem complicated, but with the right tools and knowledge, it’s possible to do this at home.
Whether you’re planning to drive off-road at night, or just want your Jeep to stand out, a light bar can make a big difference.
In this guide, you’ll learn step-by-step how to mount a light bar, wire it safely, and avoid common mistakes that many beginners make.
You’ll also see practical comparisons of light bar types and mounting brackets, so you can choose the best option for your needs.
Choosing The Right Light Bar
Before you start, picking the right light bar is essential. There are different sizes, brightness levels, and shapes.
Not all light bars fit every Jeep Grand Cherokee bumper, so check dimensions and compatibility.
| Light Bar Type | Best For | Typical Length | Average Lumens |
|---|---|---|---|
| Single Row | Low profile, subtle look | 20-30 inches | 6,000-12,000 |
| Double Row | Maximum brightness | 20-50 inches | 12,000-24,000 |
| Curved | Wide coverage | 30-50 inches | 10,000-22,000 |
Key factors:
- Size: Make sure your light bar fits the bumper’s width.
- Brightness: Measured in lumens. Higher lumens mean more light.
- Beam pattern: Spot beams are for distance, flood beams are for wide area.
- Waterproof rating: Look for IP67 or higher for durability.
Some beginners only look at price or brightness, but ignore beam pattern and mounting compatibility. This can lead to buying a light bar that doesn’t fit or doesn’t work well for your driving needs.
Gathering Tools And Materials
The installation process is smoother when you have all tools ready. Here’s what you need:
- Light bar (with mounting brackets)
- Wiring harness (with relay and switch)
- Socket wrench set
- Screwdrivers (flat and Phillips)
- Drill and bits (if new holes are needed)
- Measuring tape
- Zip ties or cable clamps
- Electrical tape
- Wire cutters/strippers
- Protective gloves
- Safety glasses
Some light bars include a complete wiring kit, but often you’ll need extra zip ties or cable clamps for neat installation.
Preparing Your Jeep Grand Cherokee
Before mounting the light bar, inspect your bumper and decide where to place it. Most people install the light bar on the lower or upper part of the bumper.
Measure the area to ensure the light bar fits and is centered.
Steps:
- Clean the mounting area thoroughly.
- Check for any existing holes or brackets you can use.
- If you need to drill new holes, mark them precisely before drilling.
- Disconnect the vehicle battery for safety.
Tip: Some Grand Cherokee bumpers have hidden plastic covers or trim pieces. Remove them carefully to expose mounting points.
Mounting The Light Bar
Now it’s time to attach the light bar. Mounting brackets usually come with adjustable angles. Follow these steps:
- Place the brackets on the bumper and align the light bar.
- Mark the hole locations using a pencil or marker.
- Drill holes if necessary, using the correct size bit.
- Secure the brackets to the bumper using bolts and nuts.
- Attach the light bar to the brackets. Adjust the angle for best coverage.
- Tighten all bolts securely, but avoid over-tightening.
Common mistake: Beginners sometimes mount the light bar too low or too high, causing poor visibility or blocking airflow. Measure carefully and ensure the bar is centered.
| Mount Position | Visibility | Effect on Airflow | Ease of Wiring |
|---|---|---|---|
| Lower Bumper | Good for road | Minimal | Easy |
| Upper Bumper | Best for off-road | May block grille | Moderate |

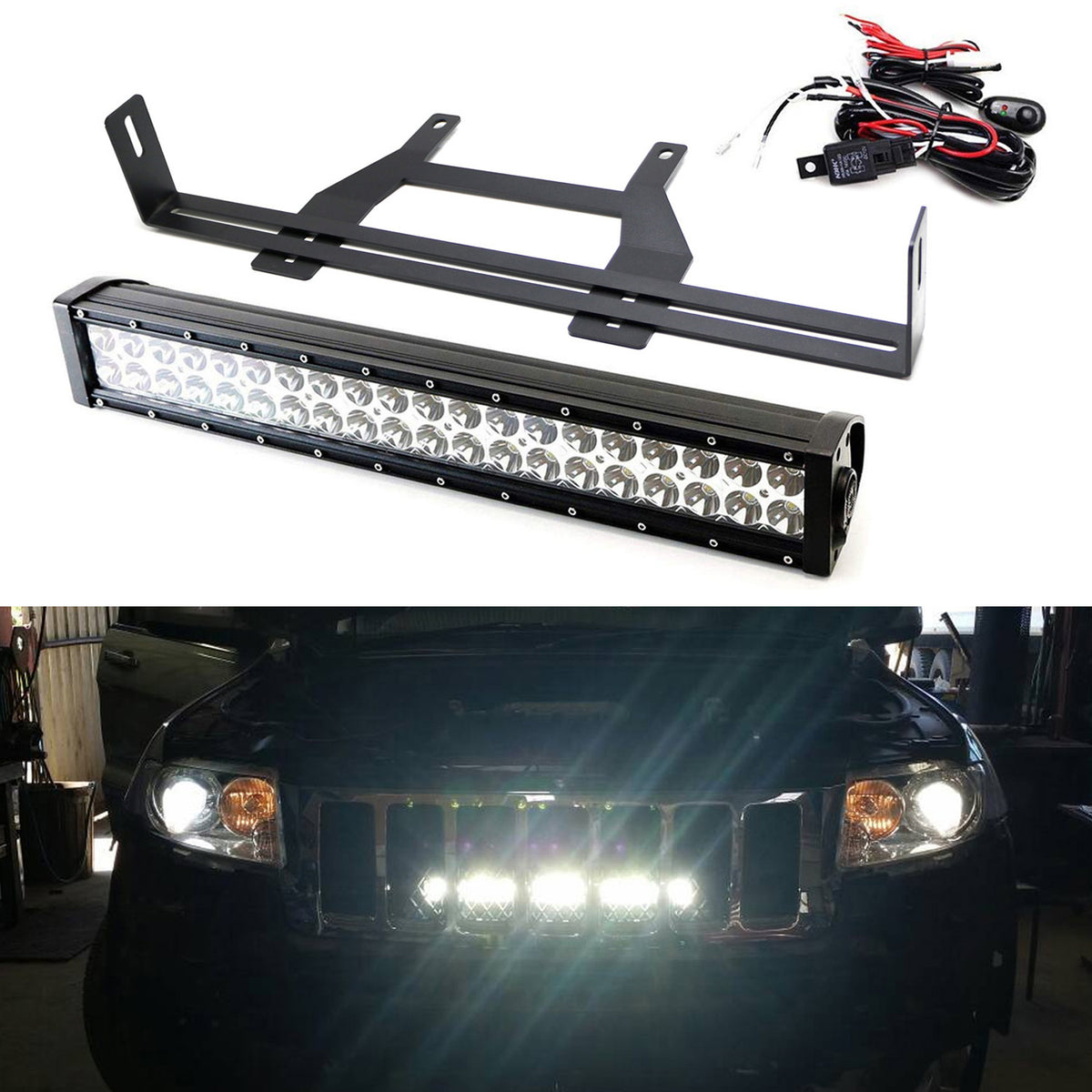

| Behind Grille | Hidden look | Possible heat issues | Difficult |
Wiring The Light Bar
Proper wiring is critical for safety and performance. Most light bars need a relay and dedicated switch to avoid overload.
Wiring Steps
- Connect the light bar power wire to the relay harness.
- Route the wires through the engine bay, avoiding moving parts and hot surfaces.
- Secure wires with zip ties or clamps to prevent sagging.
- Connect the relay to the battery positive terminal.
- Ground the relay and light bar to a solid metal point on the vehicle.
- Mount the switch inside the cabin (usually near the dashboard).
- Connect the switch wire through the firewall, using a rubber grommet to prevent damage.
- Test the system before finalizing installation.
Tip: Always use the wiring harness provided by the manufacturer. It’s designed to handle the current safely. Don’t use thin wires or skip the relay; this can cause electrical failures.
Some Jeep owners make the mistake of connecting the light bar directly to the headlight circuit. This can overload the system and cause blown fuses.
Testing And Adjusting The Light Bar
Once installed and wired, it’s time to test and fine-tune your light bar.
- Reconnect the battery.
- Turn on the switch. The light bar should illuminate immediately.
- Check for any flickering or dimming. If so, inspect wiring connections.
- Adjust the angle of the light bar for the best coverage. Tighten bolts once satisfied.
- Take your Jeep for a short drive at night and observe the lighting pattern.
Non-obvious insight: Many people forget to check the beam pattern after installation. If the light bar is angled incorrectly, it can cause glare for other drivers or poor visibility for you.
Practical Tips For A Professional Installation
You want your light bar to last and perform well, not just look good. Here are some practical tips:
- Seal all wire connections with electrical tape or heat shrink to prevent moisture.
- Route wires away from moving parts like fans or belts.
- Avoid sharp bends in wiring; this can cause breakage over time.
- Use cable clamps for a neat installation.
- Check local laws: Some states require covers for off-road light bars when driving on public roads.
- If you’re unsure, consult a professional or refer to your Jeep’s manual.
Expert advice: After installation, check the light bar’s mounting bolts every few months. Vibration from driving can loosen them, leading to rattling or even falling off.
Comparing Light Bar Brands And Mounting Kits
Choosing the right brand and mounting kit affects both durability and ease of installation. Here’s a comparison:
| Brand | Warranty | Build Quality | Mounting Hardware Included | Price Range |
|---|---|---|---|---|
| Rigid Industries | Lifetime | Premium | Yes | $250–$600 |
| Auxbeam | 2 Years | Good | Yes | $80–$200 |
| Nilight | 1 Year | Average | Yes | $60–$150 |
Non-obvious insight: Some cheaper brands offer attractive prices, but their mounting brackets may be weak. Always check the strength and material of the brackets, not just the light bar itself.
Maintaining Your Light Bar
After installation, regular maintenance keeps your light bar shining bright and prevents problems.
- Clean the lens with a soft cloth and mild cleaner every month.
- Check wiring for wear or damage.
- Inspect bolts and brackets for rust or loosening.
- If water gets inside, reseal and dry immediately.
Tip: Dust and mud can reduce brightness by up to 30%. Regular cleaning makes a noticeable difference.
Common Mistakes To Avoid
Installing a light bar isn’t difficult, but many Jeep owners make errors that lead to poor results or safety risks.
- Skipping the relay: Causes electrical overload.
- Poor wire routing: Leads to wire damage or short circuits.
- Wrong mounting location: Reduces light effectiveness.
- Ignoring waterproofing: Moisture ruins electronics.
- No regular maintenance: Can cause early failure.
By paying attention to these mistakes, you can enjoy your light bar for years without issues.
How Long Does It Take To Install A Light Bar On A Jeep Grand Cherokee Bumper?
For most people, the installation takes 2–4 hours. If you’re new to wiring or need to drill holes, expect closer to 4 hours. Having all tools ready and reading instructions carefully saves time.
Do I Need Professional Help To Install A Light Bar?
You can install a light bar yourself if you’re comfortable with basic tools and wiring. If you’re unsure about electrical connections, it’s safer to ask a professional.
Incorrect wiring can damage your Jeep or cause safety issues.
Will Installing A Light Bar Void My Jeep’s Warranty?
Usually, adding a light bar does not void the warranty unless you damage the electrical system during installation. Always follow manufacturer guidelines and use a proper wiring harness.
What Is The Best Light Bar Size For A Jeep Grand Cherokee Bumper?
Most Jeep Grand Cherokee bumpers fit 20–30 inch light bars easily. Double row bars provide more brightness, but single row bars offer a cleaner look. Measure your bumper before buying.
Are There Legal Restrictions On Using Light Bars?
Many US states require light bars to be covered when driving on public roads. Check your local laws before using your light bar. Some areas only allow off-road use.
Installing a light bar on your Jeep Grand Cherokee bumper is a practical upgrade that improves visibility and adds style. By choosing the right light bar, preparing carefully, and following safe wiring practices, you’ll get reliable performance without risking your vehicle’s safety. Regular maintenance and checking mounting hardware keep your light bar working for years. If you need more detailed specs or want to compare popular brands, visit Car and Driver for expert recommendations. With the right approach, your Jeep will be ready for any adventure, day or night.
