Installing trailer lighting on your Jeep Liberty 2006 makes towing safer and legal. Many drivers find the process confusing, but with the right guidance, you can do it yourself and avoid costly mistakes. This article walks you through every step, explains the tools you need, and helps you understand wiring basics. Whether you want to haul a boat, camper, or utility trailer, getting the lighting right is essential for visibility and meeting US road regulations.
Understanding Trailer Lighting Requirements
Before you start, know what your trailer lighting system must include. In the US, trailers need brake lights, turn signals, tail lights, and sometimes reverse lights. Each light must connect to your Jeep Liberty’s electrical system so that when you signal or brake, the trailer responds the same way.
Federal law requires trailers over 80 inches wide to have extra clearance lights. If your trailer is smaller, you only need the basic lights. Check your state’s rules for extra requirements. Missing or malfunctioning lights can lead to fines or accidents.
Tools And Materials You Need
Having the right tools helps you work efficiently and avoid damaging your Jeep’s wiring. Here’s what you’ll need:
- Trailer wiring harness (compatible with Jeep Liberty 2006)
- Wire cutters/strippers
- Electrical tape
- Screwdrivers (flat and Phillips)
- Test light or multimeter
- Zip ties
- Heat shrink connectors
- Drill (if mounting hardware is needed)
- 12V trailer light kit (if your trailer doesn’t have lights)
You’ll also need your Jeep Liberty’s manual or wiring diagram. This helps you find the correct wires for connection.
Choosing The Right Wiring Harness
A wiring harness connects your Jeep’s electrical system to your trailer. There are two main types:
| Harness Type | Features | Recommended For |
|---|---|---|
| Plug-and-Play | Easy installation, no cutting, uses factory connectors | Beginners, quick installation |
| Universal | Requires splicing wires, fits multiple vehicles | Experienced DIYers, custom setups |
For most Jeep Liberty 2006 owners, plug-and-play harnesses are easier and safer. They connect directly to your Jeep’s taillight wiring, reducing the risk of mistakes.
Step-by-step Installation Guide
Getting the trailer lighting installed on your Jeep Liberty 2006 involves several steps. Follow these carefully for the best results.
1. Locate The Taillight Wiring
Open your Jeep’s rear hatch and remove the taillight assemblies. Usually, you need to unscrew two bolts and gently pull out the lights. Behind the taillights, you’ll find the wiring harness with connectors. Identify the wires for brake, turn, and tail lights.
Your manual or a wiring diagram will show the color codes.
2. Install The Wiring Harness
If you have a plug-and-play harness, connect its ends to the factory connectors behind each taillight. Make sure each connector clicks into place. If you use a universal harness, strip the wires and splice them into the correct factory wires. Use heat shrink connectors for a secure, weatherproof connection.
3. Route The Harness To The Hitch
Run the harness along the inside of your Jeep’s rear bumper, toward the hitch. Use zip ties to secure the harness so it doesn’t hang or rub against sharp edges. Avoid routing the wires near exhaust pipes or moving parts.
4. Connect The Trailer Plug
Most trailers use a 4-pin flat connector. Attach the connector to the harness and mount it near the hitch. Some kits include a mounting bracket you can screw or bolt to the bumper. Make sure the plug is easy to reach and won’t drag on the road.
5. Test The Trailer Lights
Before you finish, test each function:
- Brake lights: Press the pedal and check if trailer lights activate.
- Turn signals: Switch left and right signals, observe trailer lights.
- Tail lights: Turn on headlights, check trailer lights.
- Reverse lights (if included): Put Jeep in reverse, check trailer.
If any light doesn’t work, use a test light or multimeter to check connections. Fix any loose or wrong wires.
6. Secure And Protect The Wiring
Wrap exposed wires with electrical tape. Tuck excess wiring away from moving parts and heat sources. Use extra zip ties for safety.
7. Final Assembly
Reinstall the taillight assemblies and tighten bolts. Double-check all connections. Clean up tools and packaging.
Common Mistakes To Avoid
Many beginners make errors that cause trailer lights to fail or short out. Here are the most common:
- Wrong wire connections: Misreading wire color codes leads to incorrect signals.
- Loose connectors: Not pressing connectors fully can cause intermittent lighting.
- No weatherproofing: Exposed wire splices rust or fail quickly.
- Ignoring ground wire: Trailer lights need a solid ground; missing this causes flickering.
- Routing wires near hot parts: Heat melts insulation, leading to shorts.
Always double-check your wiring and use heat shrink connectors and electrical tape to protect your work.
Jeep Liberty 2006 Electrical Specs
Knowing your Jeep’s electrical limits helps prevent overloads. The factory wiring can handle trailer lights, but avoid adding high-power accessories. Here are key figures:
| Function | Wire Color | Max Current (Amp) |
|---|---|---|
| Brake Lights | White/Red | 5A |
| Turn Signals | Green | 3A |
| Tail Lights | Brown | 5A |
| Reverse Lights | Purple | 3A |
If your trailer uses LED lights, the current draw is lower and safer for your Jeep’s system.
Practical Tips For Trouble-free Towing
Some tips make your installation more reliable:
- Use dielectric grease on connectors to prevent corrosion.
- Check trailer lights before every trip; minor issues can become major.
- Carry spare bulbs and fuses in your Jeep.
- Upgrade to LED trailer lights for longer life and less power draw.
- If your Jeep’s battery is weak, avoid using trailer lights for long periods with the engine off.
Many drivers forget about the ground connection. Both Jeep and trailer need a clean metal contact. Rust or paint can block electricity, so scrape the contact point if needed.
Real-world Example: Installing On A Used Jeep Liberty
Let’s look at a real example. Mark bought a used Jeep Liberty 2006 to tow his fishing boat. He chose a plug-and-play harness, took about 45 minutes for the install, and used zip ties and electrical tape for neat wiring.
When he tested the trailer, only the left turn signal worked. He found the right connector wasn’t fully pressed in. After fixing it, all lights worked perfectly.
Mark learned two things:
- Always double-check every connector.
- Test trailer lights before leaving home, not at the lake.
Cost Breakdown
The total cost depends on parts and tools. Here’s a typical price range:
| Item | Estimated Cost (USD) |
|---|---|
| Plug-and-Play Harness | $30–$50 |
| Trailer Light Kit | $25–$60 |
| Tools and Supplies | $15–$30 |
| Professional Install (optional) | $100–$200 |
DIY installation usually costs less than $100, but professional installs can reach $200 or more.
Safety And Legal Considerations
Proper trailer lighting isn’t just about convenience it’s required by law. If your lights don’t work, police can stop you, and insurance won’t cover accidents. Make sure your trailer lights match your Jeep’s signals and always use the right connector.
If you’re unsure about your state’s requirements, visit the NHTSA Lighting Regulations for official information.
Frequently Asked Questions
How Do I Know If My Jeep Liberty Needs A Special Wiring Harness?
Most Jeep Liberty 2006 models require a plug-and-play harness for the taillight wiring. If your Jeep has a factory tow package, check if a harness is already installed.
Can I Connect Trailer Lights Without A Harness?
It’s possible but not recommended. Direct splicing can cause electrical problems and void your Jeep’s warranty. Always use a harness for safety.

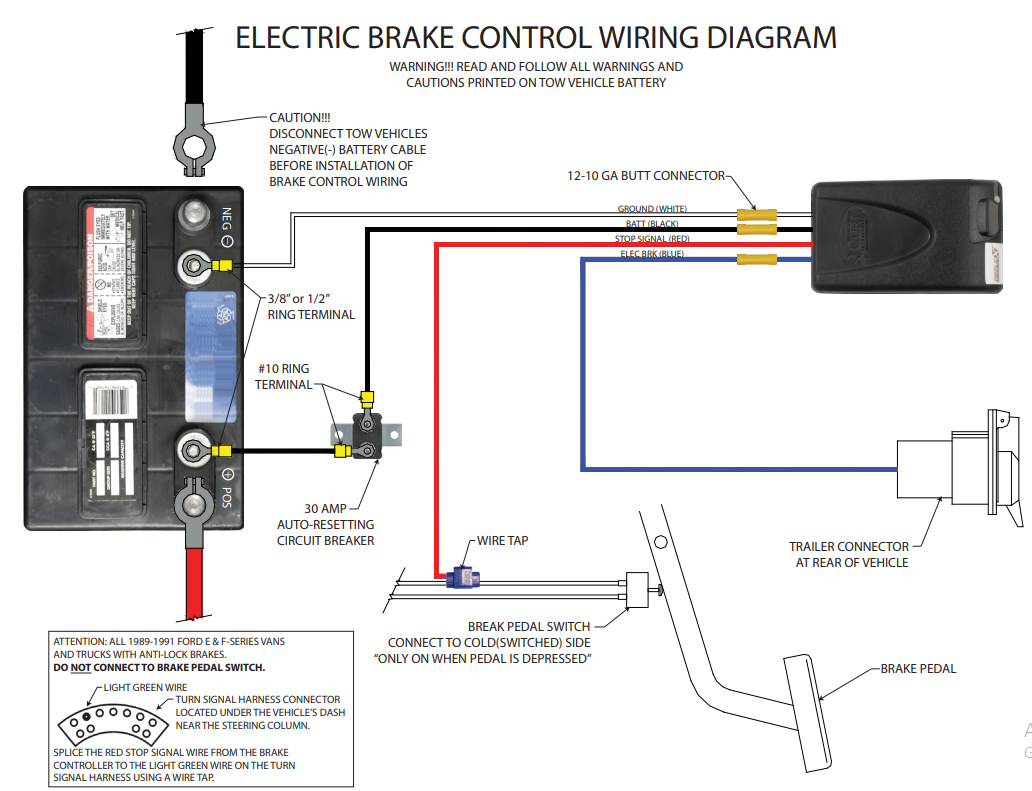

What If My Trailer Uses A 7-pin Connector?
You’ll need a 4-to-7 pin adapter. Plug the Jeep’s 4-pin harness into the adapter, then connect the trailer’s 7-pin plug. This lets you use extra functions like trailer brakes.
How Often Should I Check My Trailer Lights?
Test your trailer lights before every trip. Bulbs can burn out, wires can loosen, and connections can corrode over time.
Can I Use Led Trailer Lights With My Jeep Liberty 2006?
Yes, LED lights are compatible and draw less power. They’re a good upgrade for durability and safety.
Proper installation of trailer lighting on your Jeep Liberty 2006 will make towing safer and easier. Take your time, follow each step, and test your work. With the right tools and a careful approach, you can save money and avoid frustration.
Remember, safe towing starts with visible, reliable lights.
