Thinking about upgrading the look and safety of your Jeep Wrangler 2010? Installing new fog lights is a practical way to boost visibility in bad weather and add a modern touch to your vehicle. While it may sound technical, with the right tools and guidance, most Jeep owners can handle this upgrade at home. This guide will walk you through every step, share tips to avoid common mistakes, and help you choose the right fog lights for your needs.
Why Upgrade Your Fog Lights?
Fog lights are important for driving safely in fog, rain, snow, and dust. The stock fog lights on a 2010 Jeep Wrangler are decent, but many drivers notice they aren’t bright enough for extreme conditions. Upgrading can:
- Improve your visibility in poor weather.
- Make your Jeep more visible to other drivers.
- Enhance the appearance and value of your vehicle.
Many aftermarket fog lights are also more energy-efficient and durable, especially LED fog lights. Before you start the installation, let’s look at what you’ll need.
What You Need Before You Start
Before you begin, gather all necessary tools and parts. Here’s a checklist:
- New fog lights (make sure they fit your 2010 Wrangler’s bumper or mounting points)
- Wiring harness (often included with new lights)
- Basic hand tools: Phillips and flat-head screwdrivers, ratchet and socket set (commonly 7mm, 10mm, 13mm), pliers
- Trim removal tool (optional, but helps avoid scratches)
- Electrical tape or heat shrink tubing
- Wire connectors (if not included)
- Zip ties for clean wiring
- Owner’s manual (for wiring diagrams and fuse info)
Tip: Read the installation instructions from the fog light manufacturer. Some wiring details or mountings may differ.
How To Choose The Right Fog Lights
Not all fog lights are equal. Here’s a quick look at your options:
| Type | Pros | Cons | Cost Range |
|---|---|---|---|
| Halogen | Affordable, easy to find | Shorter lifespan, less bright | $30–$80/pair |
| HID | Very bright, modern look | More expensive, can be tricky to install | $80–$200/pair |
| LED | Long-lasting, energy efficient, very bright | Higher upfront cost | $60–$300/pair |
LED fog lights are popular for the 2010 Wrangler because they last longer and use less power. Make sure to check:
- Size and fit for your bumper.
- Color temperature (yellow/white is best for fog).
- Waterproof rating (look for IP67 or better).
- DOT approval if you want street-legal lights.
Don’t forget to check reviews and warranty cheap lights often have poor light patterns or fail quickly.
Step-by-step Installation Guide
Let’s get to work. This guide covers the most common installation steps for bumper-mounted fog lights on a Jeep Wrangler 2010.
1. Prepare Your Jeep
Park your Jeep on a flat surface. Turn off the engine and remove the keys. For safety, disconnect the negative battery terminal with a 10mm wrench—this prevents accidental short circuits.
2. Remove The Old Fog Lights
Most stock fog lights are mounted in the front bumper.
- Use a Phillips screwdriver or socket to remove the screws or bolts holding the fog light in place (usually from behind the bumper).
- Disconnect the wiring plug from the back of the fog light.
- Carefully slide the old light out.
Non-obvious insight: If your bumper has a plastic cover, use a trim removal tool to avoid damaging the clips.
3. Test Fit The New Lights
Before wiring, check that the new fog lights fit the mounting holes. Some aftermarket models may need a small bracket or adapter (often included).
If the fit isn’t perfect, do not force them double-check the product number.
4. Wiring The New Fog Lights
Wiring can be simple or advanced, depending on your lights and kit.
Using The Stock Wiring Harness
- If your new lights have a plug that matches the factory harness, just plug them in.
- Secure the wires with zip ties, making sure nothing hangs near moving parts.
Installing A New Wiring Harness

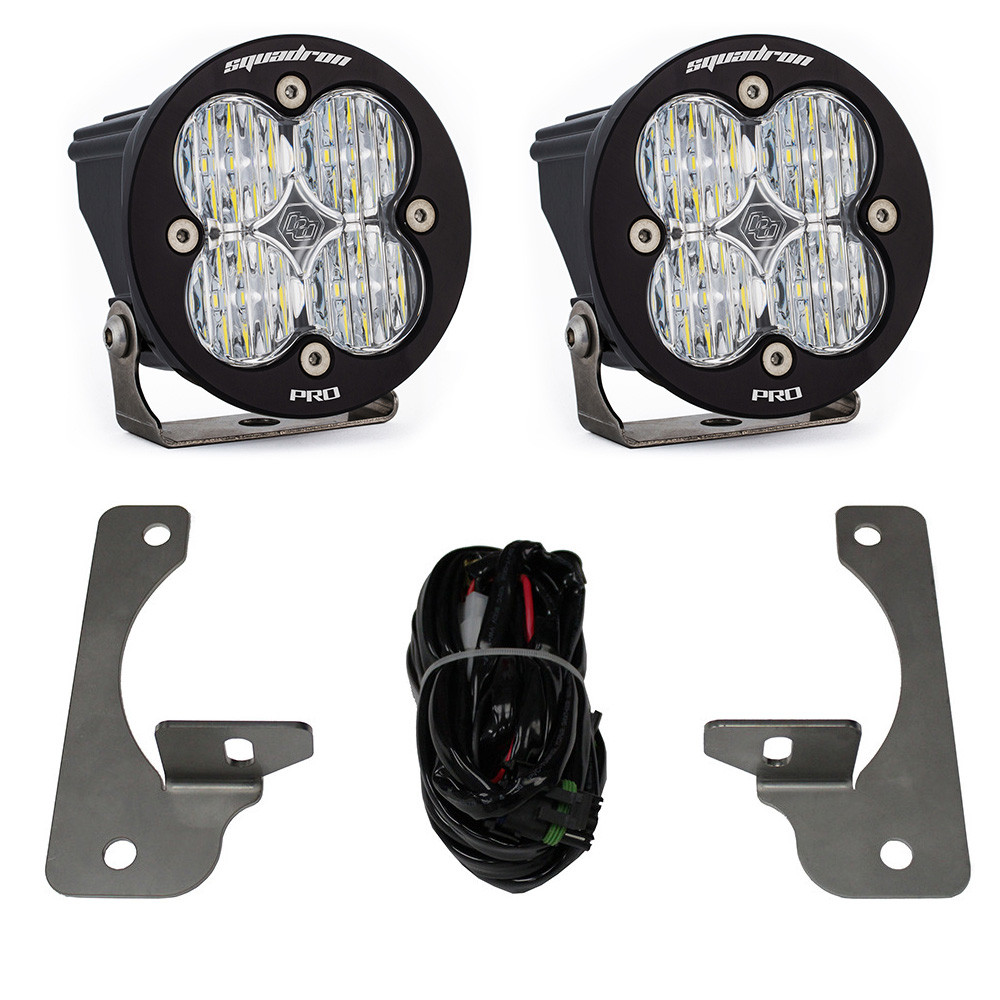

If your lights come with a separate wiring harness (often for LED or HID upgrades):
- Route the new wires from the lights to the engine bay, following the path of the factory wiring.
- Connect the positive (red) wire to the fog light fuse or relay (see your owner’s manual for location).
- Connect the negative (black) wire to a clean metal ground.
- For added safety, use heat shrink tubing or electrical tape on all connections.
Tip: Use the supplied relay and switch if your lights draw more power than stock. This prevents blown fuses or melted wiring.
5. Mount The New Fog Lights
- Slide the new fog light into the bumper opening.
- Secure it with the screws or bolts you removed earlier.
- Adjust the angle so the light points slightly downward (to avoid blinding other drivers).
Pro insight: Aim your fog lights about 25 feet from a wall. The top of the beam should be below the headlight beam.
6. Test Your Installation
Reconnect the negative battery terminal. Start your Jeep and switch on the fog lights. Check:
- Both lights turn on.
- Light beams are even and aimed correctly.
- No flickering or error messages.
If you notice issues, double-check connections and fuses. If one light doesn’t work, swap the bulbs to see if the problem follows the bulb or stays with the wiring.
7. Tidy Up
Use zip ties to secure loose wires away from hot or moving parts. Replace any plastic covers or trim you removed. Clean your bumper and lens with a soft cloth.
Common Problems And Solutions
Most installations go smoothly, but here are some issues Jeep owners face:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fog light won’t turn on | Loose connection, bad ground, blown fuse | Check wiring, ground, and replace fuse if needed |
| Flickering light | Poor connection, low-quality bulb, voltage issue | Secure all connectors, consider higher quality bulbs |
| Water in the fog light | Poor seal, low IP rating | Replace with sealed, waterproof unit |
| Blinding oncoming traffic | Fog lights aimed too high | Re-aim downward; check local laws |
Non-obvious insight: Aftermarket fog lights may trigger error messages on your Jeep’s dashboard. This happens if the lights draw less current than the original bulbs. A simple fix is adding a load resistor (available at auto parts stores).
Safety And Legal Tips
- Only use fog lights in bad weather or low visibility. Using them in clear conditions can blind other drivers and may be illegal.
- Make sure your fog lights are DOT approved (Department of Transportation). Non-approved lights can fail vehicle inspections.
- Don’t splice into other lighting wires unless you know what you’re doing—incorrect wiring can cause electrical problems.
Cost Breakdown
Wondering how much this upgrade will set you back? Here’s a typical cost summary for a DIY install:
| Item | Estimated Cost |
|---|---|
| LED fog lights (pair) | $80–$150 |
| Wiring harness/relay kit | $20–$40 |
| Basic tools | $0 (if you already own) |
| Professional installation (optional) | $60–$120 |
Most Jeep owners can finish this project for under $200 if they do the work themselves.
Tips For A Better Installation
- Take pictures of the old wiring before removing anything. This helps you remember the correct connections.
- If your Jeep has aftermarket bumpers, check with the bumper manufacturer for compatible fog lights.
- Don’t overtighten mounting screws—plastic housings can crack.
- Test the new lights before reassembling the bumper, so you don’t have to take it apart twice.
- Store your old fog lights in case you want to revert to stock for resale or inspection.
When To Get Professional Help
If your Jeep has complex wiring (such as factory DRLs or auto-lighting systems), or if you’re not comfortable with basic electrical work, it’s smart to ask for help. A shop can usually install fog lights in about an hour.
This might also be a good idea if you want custom switches or light bars.
More Resources
For more technical details, wiring diagrams, and Jeep community advice, you can check the official Jeep website or active forums like Wrangler Forum.
What Size Fog Lights Fit A 2010 Jeep Wrangler?

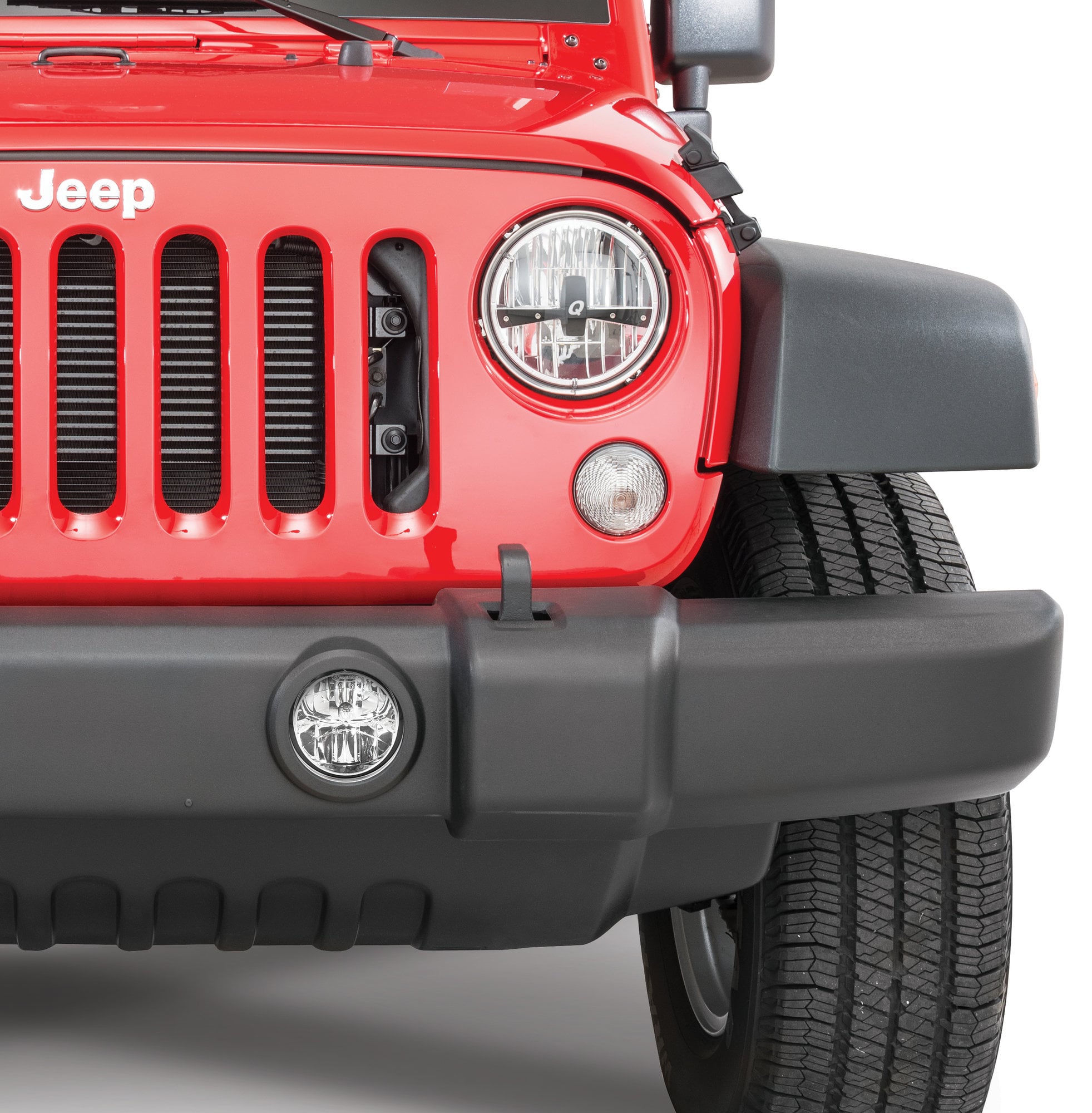

Most 2010 Jeep Wranglers use a 4-inch round fog light mounted in the front bumper. Always check your bumper’s opening and mounting points before ordering.
Can I Install Led Fog Lights Without A Relay?
You can use the stock wiring for some low-wattage LED fog lights, but a relay is recommended for higher power units. This prevents wiring from overheating and ensures a stable voltage.
Will New Fog Lights Void My Warranty?
Fog light upgrades usually don’t void your warranty if installed correctly and you don’t cut or damage the factory wiring. For leased vehicles or under warranty, check with your dealer before making changes.
How Do I Aim Fog Lights Correctly?
Park 25 feet from a wall and turn on the fog lights. The top edge of the beam should be below the center of the fog light housing and not higher than the headlights. Adjust using the screw on the back of the light.
Can I Use Fog Lights As Daytime Running Lights?
Some drivers use fog lights as daytime running lights (DRLs), but this depends on your local laws. In most states, fog lights are for low visibility conditions only.
Upgrading your Jeep Wrangler 2010 fog lights is a rewarding project that makes driving in bad weather safer and more comfortable. With careful planning, the right parts, and a little time, you’ll enjoy better lighting and a fresh look for your Jeep.
