Installing a light bar on your Jeep bumper can transform nighttime driving, off-roading, or camping adventures. It boosts visibility, safety, and even the rugged look of your vehicle.
Still, many Jeep owners feel unsure about how to do it right.
This guide will help you install a light bar step by step, avoid common mistakes, and choose the best setup for your needs. Whether you’re a beginner or have some experience, you’ll find practical advice here.
Why Install A Light Bar On Your Jeep?
A light bar is more than just an accessory; it’s a functional upgrade. Jeep owners often drive in tough conditions—mud, rocks, forests, and uneven roads. Factory headlights can struggle in these environments. A light bar gives you a wider, brighter beam, making it easier to spot hazards, animals, or obstacles.
Data shows that adding extra lighting can reduce accident rates by up to 20% on rural roads. Some off-road clubs require light bars for night events.
Besides safety, a well-installed light bar can add value to your Jeep and attract attention at car meets.
Choosing The Right Light Bar
Not all light bars are equal. Picking the right one is crucial for performance, durability, and legal compliance. Consider these factors:
- Size: Most Jeep bumpers fit 20”–30” light bars. Measure your bumper space before buying.
- Beam Pattern: Choose between spot, flood, or combo beams. Spot beams shine far ahead; flood beams spread wide. Combo bars do both.
- Lumens: Lumens measure brightness. For off-roading, 10,000–20,000 lumens is typical.
- Wattage: Higher watts mean more power. Make sure your Jeep’s electrical system can handle it.
- IP Rating: Look for bars rated IP67 or higher—they resist water and dust.
- Brand Reliability: Top brands include Rigid Industries, KC HiLiTES, and Baja Designs.
Here’s a quick comparison of three popular light bars:
| Brand | Length | Lumens | IP Rating | Warranty |
|---|---|---|---|---|
| Rigid Industries | 20″ | 17,000 | IP68 | Lifetime |
| KC HiLiTES | 24″ | 12,000 | IP67 | 5 Years |
| Baja Designs | 30″ | 22,050 | IP69K | Limited Lifetime |
Non-obvious insight: Many beginners forget about beam color. White beams are common, but amber beams cut through fog better.
Tools And Materials Needed
Before starting, gather these tools and materials:
- Socket set
- Screwdrivers (flat and Phillips)
- Wire stripper/crimper
- Drill and bits (if your bumper needs new holes)
- Mounting brackets (usually included with the light bar)
- Wiring harness with relay and switch
- Zip ties
- Electrical tape
- Safety glasses and gloves
Practical tip: Check your Jeep’s owner manual for fuse ratings and wiring diagrams. This saves time and prevents electrical mistakes.
Preparing Your Jeep Bumper
A clean, solid bumper is key. If your bumper is rusty or cracked, repair it before installing the light bar.
Wash the area and dry it well. Some Jeeps have pre-drilled holes for light bar mounts if yours doesn’t, you’ll need to drill.
Beginner mistake: Don’t mount a light bar on plastic or weak surfaces. Only use metal parts of the bumper.
Step-by-step Installation Guide
Follow these steps to install your light bar safely and effectively.
1. Position The Light Bar

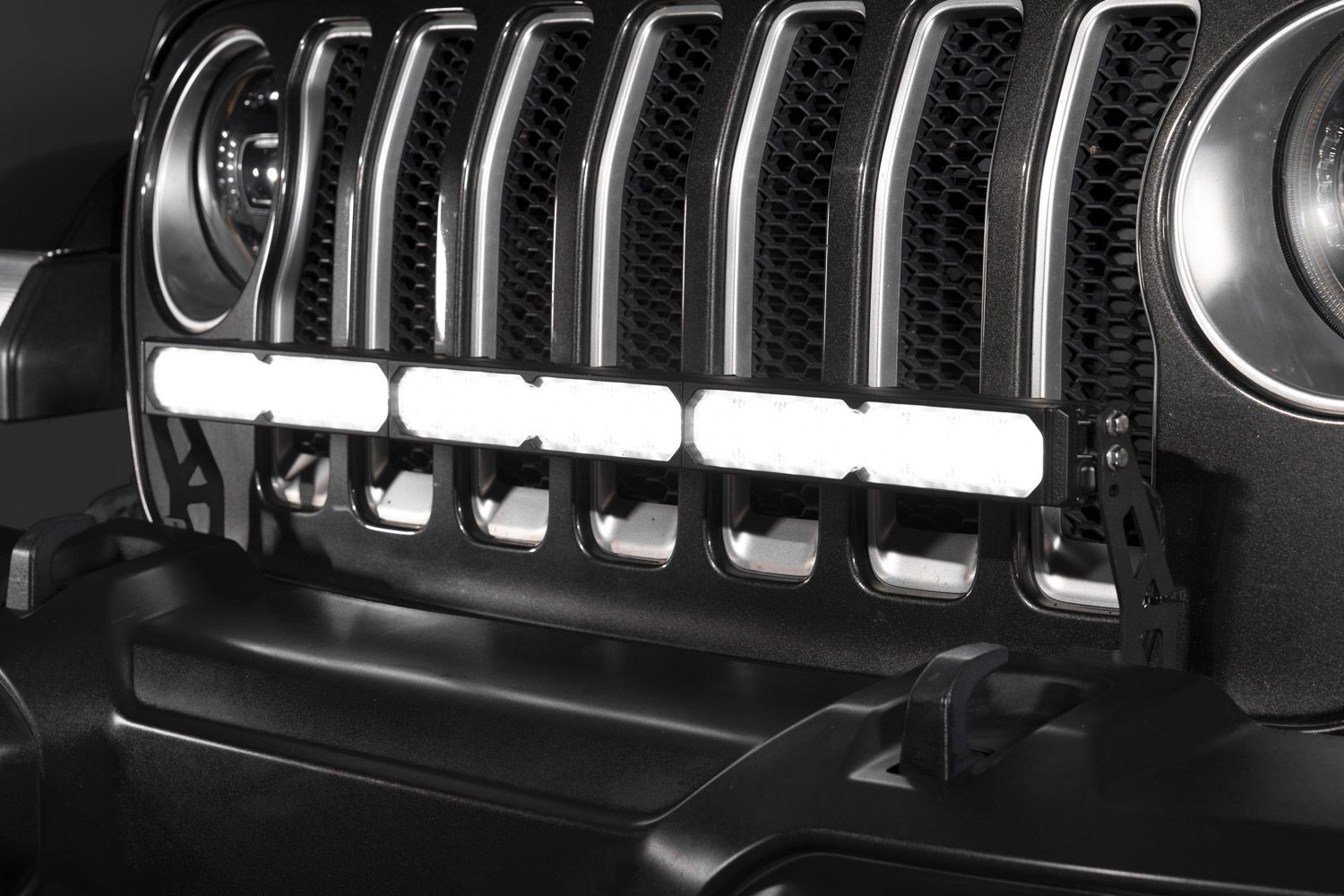

Unpack your light bar and mounting brackets. Place the bar on your bumper where you want it.
Adjust for the best balance between looks and function. Most people center the bar above the license plate or between bumper hooks.
Mark the spots for mounting holes using a pencil or masking tape.
2. Drill Mounting Holes
If your bumper doesn’t have holes, use a drill to make them. Start with a small bit, then move to the size needed for your bolts. Wear safety glasses to protect your eyes.
Non-obvious insight: Use a drop of oil on the drill bit to avoid overheating and damaging your bumper.
3. Attach Mounting Brackets
Bolt the brackets onto the bumper using washers and lock nuts. Tighten them firmly, but don’t over-tighten this can crack the metal or strip the threads.
Then, attach the light bar to the brackets. Make sure the bar can tilt up and down.
Adjust for your preferred beam angle before fully tightening.
4. Wiring The Light Bar
Wiring is often the hardest part for beginners. Most light bars come with a wiring harness, which includes a relay, fuse, and switch.
- Route the harness from the light bar to your Jeep’s battery and cabin.
- Connect the positive (red) wire to the battery’s positive terminal.
- Connect the negative (black) wire to a metal grounding point.
- Mount the switch inside the cabin, near the dashboard or steering wheel.
- Secure wires with zip ties. Avoid placing wires near moving parts or heat sources.
Check your fuse rating. If your light bar draws 10 amps, use a fuse rated slightly higher (12 15 amps).
Here’s a comparison of two common wiring methods:
| Wiring Method | Difficulty | Reliability | Common Use |
|---|---|---|---|
| Direct to battery | Easy | High | Most light bars |
| To factory fuse box | Moderate | Medium | OEM-style installs |
Practical tip: Use a relay to prevent overheating and protect your Jeep’s electrical system.
5. Testing The Light Bar
Before you finish, test the light bar:
- Turn on your Jeep.
- Flip the switch. The light bar should glow brightly.
- Check for flickering or dimness—these may signal loose connections or bad wiring.
If the bar doesn’t work, check the fuse, relay, and wire connections.
Adjusting And Aiming The Light Bar
Proper aiming matters as much as installation. Misaligned light bars can blind other drivers or shine where you don’t need light.
- Park your Jeep on level ground.
- Aim the light bar slightly downward, so the beam covers the road, not the sky.
- Tighten the mounting bolts once you find the right angle.
Non-obvious insight: Some states have laws about how high or low your light bar can be. Check local regulations before finalizing the position.
Common Mistakes And How To Avoid Them
Even experienced Jeep owners make mistakes when installing light bars. Here are some to watch out for:
- Skipping the relay: Direct wiring can damage your electrical system.
- Poor grounding: Always ground the light bar to bare metal, not painted surfaces.
- Loose bolts: Use lock washers to keep bolts tight over rough terrain.
- Ignoring waterproofing: Seal any exposed wires with electrical tape.
- Blocking air vents: Don’t mount the bar where it blocks airflow to the radiator.
Practical Tips For Better Results
- Use dielectric grease on electrical connections to prevent corrosion.
- If your Jeep has a winch, make sure the light bar doesn’t block access.
- Buy a light bar cover for legal compliance during daytime.
- Keep extra fuses and zip ties in your glove box for quick fixes.
Maintenance And Troubleshooting
A light bar is tough, but it needs care. Clean the lens regularly with a damp cloth.
Check brackets for rust or loosening. Inspect wires for wear, especially after off-road trips.
If your light bar stops working:
- Check the fuse first.
- Inspect all connections.
- Test the switch and relay.
- Replace any damaged wires.
Here’s a quick maintenance frequency table:
| Task | Recommended Frequency | Notes |
|---|---|---|
| Clean lens | Every 2 weeks | More often after mud or rain |
| Check bolts | Monthly | Especially after rough rides |
| Inspect wiring | Every 3 months | Look for cracks or loose parts |
Legal And Safety Considerations
Light bars are powerful sometimes too powerful for street use. Many US states limit when and how you can use them.
Most require covers during daytime driving. Some restrict beam height or brightness.
Check the National Highway Traffic Safety Administration (NHTSA) rules. Using a light bar improperly can lead to fines or accidents.
For more details on legal requirements, visit the NHTSA Lighting Equipment page.
How Long Does It Take To Install A Light Bar?
Most Jeep owners spend 1 2 hours on installation, including wiring and aiming. If you’re new, plan for extra time to check your work and avoid mistakes.
Do I Need Professional Help?
Many people install light bars themselves. If you’re uncomfortable with wiring or drilling, a mechanic can help.
Professional installs cost $100 $300, depending on complexity.
Will A Light Bar Drain My Battery?
A properly installed light bar with a relay and the right fuse won’t drain your battery while driving. But running the light bar for hours without the engine on can cause problems.
Are There Waterproof Light Bars?
Yes, most quality light bars are rated IP67 or higher. This means they’re safe in rain, mud, and dust. Always check the rating before buying.
Can I Use My Light Bar On Public Roads?
In most states, you must keep the light bar off or covered on public roads. Check your local laws and use the bar only off-road or in emergencies.
Installing a light bar on your Jeep bumper is a smart upgrade for night driving and off-road adventures. By choosing the right bar, using quality tools, and following safe wiring practices, you’ll enjoy better visibility and style.
Remember to check legal rules, aim your bar carefully, and maintain it for long-term performance.
With these steps, your Jeep will be ready for any adventure day or night.
