Want to make your Jeep Wrangler TJ stand out and see better at night? Installing an LED light bar is a practical upgrade that improves visibility on and off-road. Many Jeep owners tackle this project themselves, but a few steps require careful attention. This guide walks you through the process, explains the tools you’ll need, and shares pro tips to help you avoid common mistakes.
Choosing The Right Led Light Bar
Not all light bars are the same. Choosing the right one for your Jeep Wrangler TJ can save you headaches later.
| Feature | Why It Matters | Common Options |
|---|---|---|
| Length | Must fit your mounting location | 10″, 20″, 32″, 50″ |
| Beam Pattern | Affects how light spreads | Spot, Flood, Combo |
| Waterproof Rating | Survives rain and mud | IP67, IP68 |
| Wiring Harness | Simplifies installation | Included/Not included |
Non-obvious tip: Measure your windshield or bumper before buying—many beginners order the wrong size. Also, check if your state has restrictions on aftermarket lighting.
Tools And Parts You’ll Need
Gathering the right tools before starting makes the job much smoother.
- LED light bar (correct size for your Jeep)

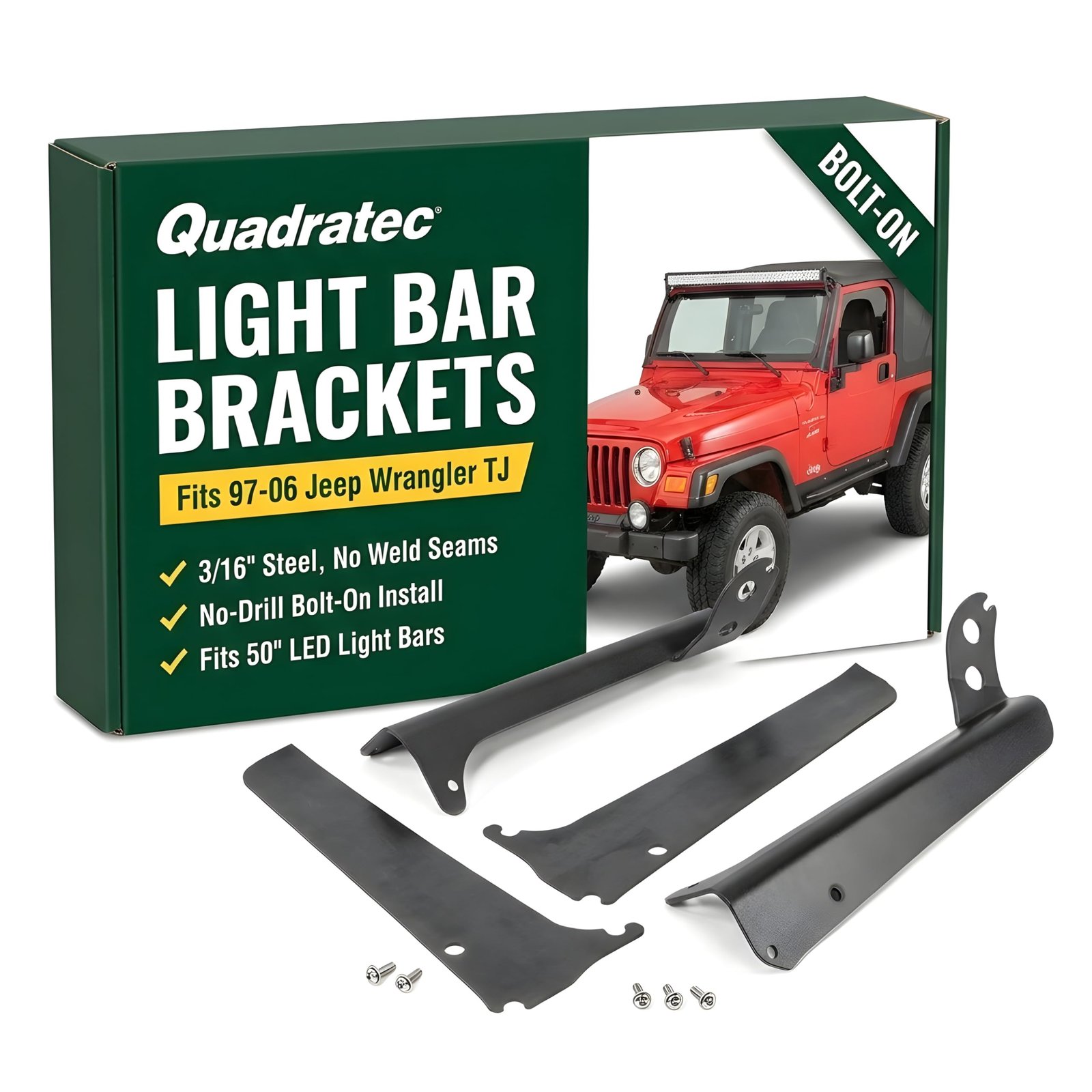

- Mounting brackets (windshield, bumper, or hood style)
- Wiring harness with relay and fuse
- Switch (usually included with harness)
- Socket set and wrenches
- Screwdrivers
- Drill (if your Jeep does not have pre-drilled holes)
- Allen keys (for bracket bolts)
- Wire crimper and strippers
- Electrical tape or heat shrink tubing
- Zip ties
Practical insight: Some brackets bolt directly to existing holes. Avoid drilling unless necessary—drilling incorrectly can lead to leaks or rust.
Step-by-step Installation Guide
Let’s break down the installation into clear steps. These instructions apply to most Jeep Wrangler TJ models (1997–2006).
1. Prep Your Jeep
Park on a flat surface and disconnect the negative battery terminal. This step is essential for safety and prevents short circuits.
2. Install Mounting Brackets

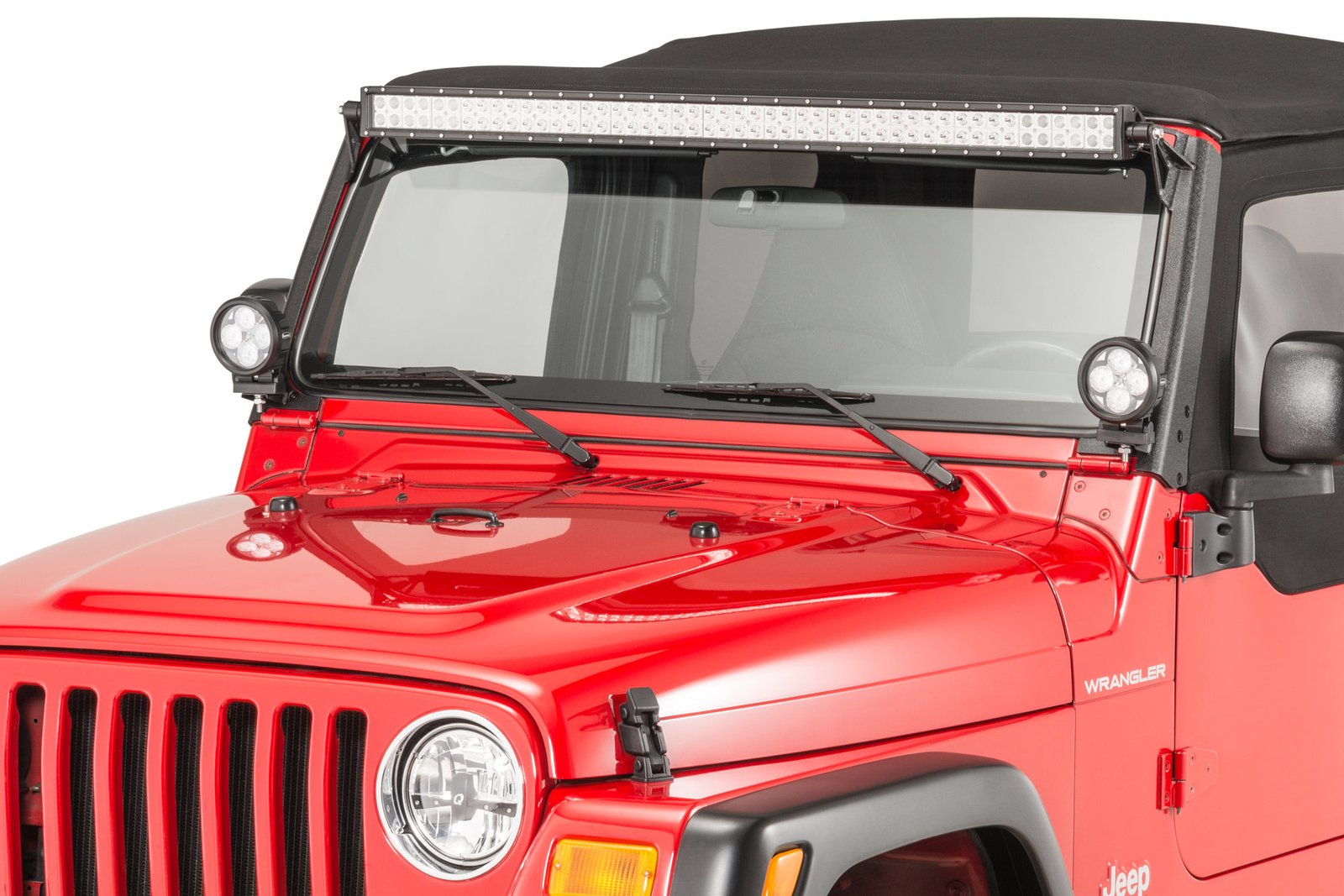

Most light bars mount above the windshield, but some go on the bumper or hood.
- Hold the brackets in position.
- Use existing bolts on the windshield frame if possible.
- If needed, drill carefully—measure twice, drill once.
- Tighten brackets firmly but don’t overtighten (can crack paint or metal).

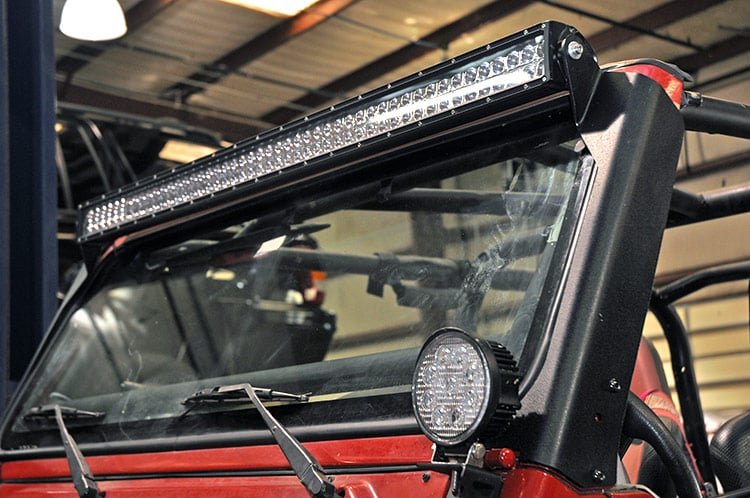

Example: A 50″ light bar typically uses brackets that fit the windshield frame bolts.
3. Attach The Light Bar
Lift the light bar into place (it helps to have a friend for this step).
- Secure the light bar to the brackets using the supplied hardware.
- Adjust the angle before final tightening.
- Make sure the bar doesn’t block windshield wipers or hood opening.
Tip: Test fit before fully tightening—sometimes small adjustments are needed.
4. Route The Wiring
Run the wiring harness from the light bar to the engine bay.
- Follow the windshield frame down to the engine compartment.
- Use zip ties to secure wiring away from moving parts and heat sources.
- Pass wires through the firewall grommet if mounting the switch inside the cabin.
Overlooked detail: Protect wire edges with a rubber grommet if passing through metal to avoid cuts and shorts.
5. Connect Power And Ground
Most harnesses have labeled wires.
- Connect the red wire (power) to the positive battery terminal.
- Connect the black wire (ground) to a clean, unpainted metal surface.
- Attach the switch wire through the firewall into the cabin.
Pro tip: Use heat shrink tubing for all connections. It’s more reliable than just tape.
6. Mount The Switch
Find a convenient, dry spot inside the cabin often near the steering wheel or below the dash.
- Drill a small hole if needed.
- Snap the switch into place and connect the wires.
7. Test The Light Bar
Reconnect the battery. Turn on your Jeep and test the light bar.
Make sure it turns on and off using the new switch.
- Check for flickering or dimming (signs of poor connections).
- Adjust the light bar angle as needed for best coverage.
Common Mistakes And How To Avoid Them
Many DIY installers make small errors that can cause problems down the road.
| Mistake | Result | How to Avoid |
|---|---|---|
| Skipping battery disconnect | Risk of electrical shock | Always disconnect negative terminal first |
| Loose wiring | Wires get damaged over time | Secure with zip ties every 6–8 inches |
| Poor grounding | Light may not work or flicker | Scrape paint for clean metal contact |
| Improper aiming | Blinds other drivers or poor lighting | Test at night and adjust downward if needed |
Maintenance And Legal Considerations
LED light bars last a long time, but a few simple steps keep them bright and legal.
- Clean the lens regularly to prevent dirt buildup.
- Check wiring for damage after off-road trips.
- Be aware: Some states only allow light bars to be used off-road. Cover the bar when driving on public roads if required.
Extra insight: Many owners forget to check mounting hardware after several months—re-tighten bolts periodically to prevent rattles or loss.
For more details on vehicle lighting laws, see the National Highway Traffic Safety Administration.
Frequently Asked Questions
How Long Does Installation Take?
Most people can install an LED light bar in 2 to 4 hours. If you’re handy with tools, it may take less time. Allow extra time if you need to drill new holes or run wires inside the cabin.
Do I Need To Use A Relay?
Yes, a relay is important. It keeps high current away from your switch and prevents electrical fires. Most quality wiring harnesses include a relay for safety.
Will Installing A Light Bar Void My Jeep’s Warranty?
Usually, adding a light bar does not void the entire warranty. However, if your wiring causes electrical problems, those repairs may not be covered. Always follow safe wiring practices.
Can I Install The Light Bar Without Drilling?
In most cases, yes. Many brackets use factory holes in the windshield frame or hood.
If your Jeep has an unusual setup or aftermarket parts, you might need to drill.
What Beam Pattern Is Best For A Jeep Wrangler Tj?
For most drivers, a combo beam (spot and flood) gives the best mix of distance and wide coverage. If you use your Jeep mainly off-road, a flood pattern offers more side visibility.
Upgrading your Jeep Wrangler TJ with an LED light bar isn’t just about style it’s about safer, more confident driving at night.
With the right tools and careful planning, you can finish the job in an afternoon and enjoy better visibility on every adventure.
