Installing halo lights on a Jeep Wrangler YJ is a popular way to upgrade both style and visibility. Many Jeep owners want their ride to stand out, and halo lights—sometimes called “angel eyes”—give a modern, unique look.
But the process can seem tricky, especially if you’re new to car mods. This guide walks you through every step, from choosing the right halo lights to wiring and safety checks.
You’ll learn where beginners often make mistakes, how to avoid them, and what matters most for a clean, reliable install. Whether you want brighter headlights or a custom look, you’ll finish with confidence and a Jeep that turns heads.
Understanding Halo Lights For Jeep Wrangler Yj
Halo lights are circular LED rings that fit around your headlights. They provide a distinctive glow, often in white or RGB colors. For the Jeep Wrangler YJ (produced 1987–1995), halo lights must fit the classic 7-inch round headlight housing.
Benefits Of Halo Lights
- Improved visibility: LEDs are brighter than stock halogen bulbs.
- Custom style: Halos add a modern touch to the YJ’s classic front end.
- Energy efficiency: LEDs draw less power and last longer.
Types Of Halo Lights
There are several kinds to consider:
| Type | Features | Estimated Cost |
|---|---|---|
| Single-color LED | White or amber halos, simple wiring | $60–$120 per pair |
| RGB Color-changing | Remote/app control, multiple colors | $100–$250 per pair |

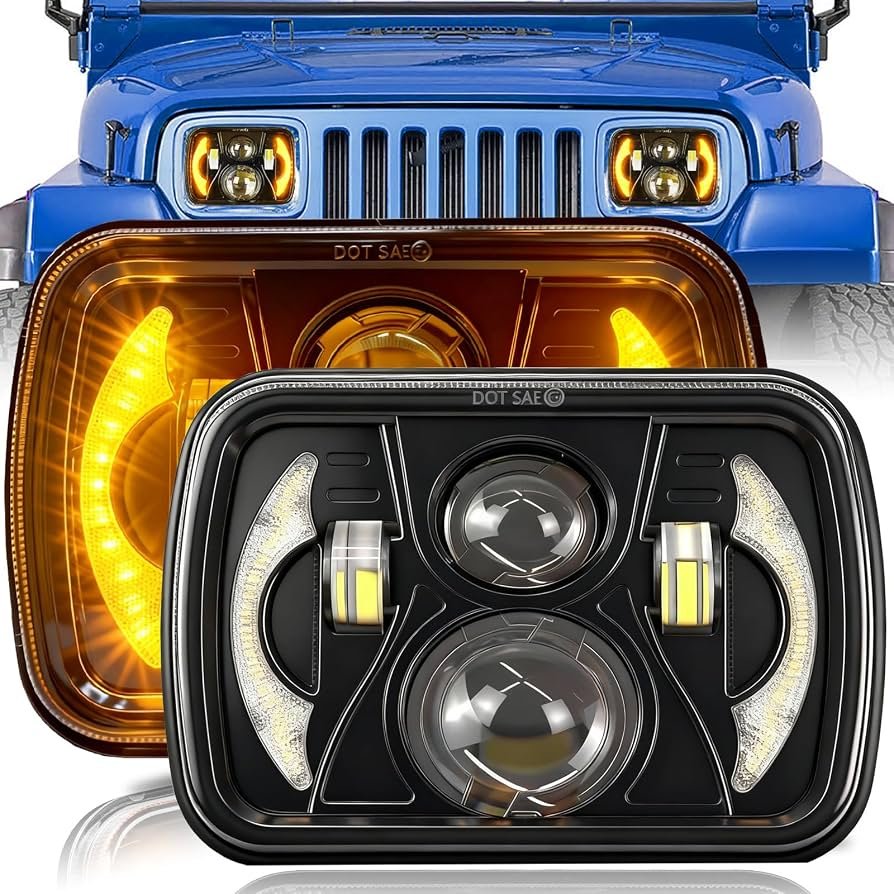

| Projector halo headlights | Integrated projector beam, built-in halos | $150–$350 per pair |
Projector halo headlights are easiest for beginners, as they combine everything in one unit. Separate halo rings require more manual work and precise alignment.
Choosing The Right Halo Lights
Your choice depends on budget, style, and technical skill. Here’s what to consider:
- Compatibility: Ensure the halo lights fit 7-inch round headlight openings.
- Brightness: Check lumens rating; 2,000–4,000 lumens per bulb is ideal for clear visibility.
- Weather resistance: Look for IP67 or IP68 rated products. These resist water and dust—important for off-road driving.
- Wiring type: Plug-and-play kits are simpler, but some require splicing wires.
- Warranty and reviews: Choose brands with at least a 1-year warranty and good user feedback.
| Feature | Why It Matters |
|---|---|
| IP Rating | Protects against rain, mud, and dust |
| Warranty | Covers defects and early failures |
| Plug-and-play design | Speeds up installation, avoids mistakes |
Non-obvious insight: Many buyers overlook the IP rating. If you drive off-road, water-resistant lights prevent electrical issues and fogging.
Tools And Materials Needed
Before starting, gather all tools and materials. Missing tools can slow down the install or cause mistakes.
- Halo light kit (compatible with Jeep Wrangler YJ)
- Screwdrivers: Phillips and flathead
- Socket wrench set
- Wire strippers and crimpers
- Electrical tape
- Zip ties
- Multimeter (for checking voltage)
- Heat shrink tubing (optional for better insulation)
- Gloves and safety glasses
- Owner’s manual (for wiring diagram)
Many kits include basic connectors, but always check before you start.
Step-by-step Installation Process
Let’s break down the process so it’s easy to follow even if you’re new to car electrical work.
Step 1: Remove The Stock Headlights
- Open the hood and locate the back of the headlights.
- Use a Phillips screwdriver to unscrew the headlight bezel (the metal ring around the headlight).
- Carefully pull the headlight forward and disconnect the wiring harness.
Tip: Take a photo of the wiring before disconnecting. It helps later if you forget which wire goes where.
Step 2: Prepare The Halo Lights
- Unbox your halo lights and check for damage.
- If installing separate halo rings, test-fit them inside the headlight housing.
- Use the multimeter to check the voltage on the halo ring wires. It should match your Jeep’s electrical system (usually 12V).
Common mistake: Skipping this voltage check. If the halo rings are not 12V, they may burn out quickly or cause wiring problems.
Step 3: Install The Halo Rings
If you bought projector headlights with built-in halos, skip to Step 4.
For separate rings:
- Attach the halo ring to the headlight lens using the adhesive or clips provided.
- Route the halo wires out the back of the housing, making sure they don’t pinch or rub.
- Use heat shrink tubing for extra wire protection.
Step 4: Wiring The Halo Lights
Wiring is the trickiest part. Here’s how to do it safely:
- Identify the parking light or DRL (Daytime Running Light) wire. Most people connect halos to these, so the rings turn on with the parking lights.
- Use wire strippers to expose about 1/2 inch of the parking light wire.
- Splice the halo wire into the parking light wire using a crimp connector or solder joint.
- Wrap the connection with electrical tape or use heat shrink tubing for a secure seal.
- Connect the ground wire from the halo to a metal bolt or the factory ground wire.
Tip: Use a multimeter to confirm the parking light wire is live when the switch is on.
Non-obvious insight: Many beginners connect halos directly to the battery. This drains the battery if you forget to turn them off. Using the parking light wire solves this problem.
Step 5: Reinstall The Headlights
- Reconnect the main headlight harness.
- Place the headlight back into the housing.
- Screw the bezel back in place.
- Tuck all wires neatly behind the housing. Use zip ties to secure any loose wires.
Step 6: Test The Halo Lights
- Turn on your parking lights or DRL switch.
- Check that the halo rings light up evenly and brightly.
- Test high/low beams and turn signals to ensure all functions work.
If the halos don’t turn on, check your wiring connections and ground points.
Practical Tips For A Smooth Installation
- Work in daylight: Good lighting helps spot wiring mistakes.
- Take breaks: Rushing leads to errors.
- Wear gloves: Protects hands from sharp edges and hot bulbs.
- Double-check connections: Faulty wiring can cause flickering or shorts.
- Plan wire routes: Avoid wires touching moving parts or hot surfaces.
Troubleshooting Common Issues
Even careful installers face problems. Here’s how to handle the most common issues:
- Halo lights won’t turn on: Check all connections, fuses, and the ground wire.
- Flickering halos: Usually caused by loose wires or bad connectors.
- Condensation inside headlights: Ensure the housing is sealed. Add silicone around the edges if needed.
- Headlights dim after install: Check for wire shorts or excessive draw from the halo lights.
Safety And Legal Considerations
- Check local laws: Some states restrict certain halo colors (like red or blue).
- Use DOT-approved headlights: Ensures legal compliance and road safety.
- Never wire halos to high beam only: This limits visibility during normal driving.
For more on legal requirements, see the NHTSA Headlight Regulations.
Maintenance And Longevity
Halo lights last longer than standard bulbs, but they still need care.
- Clean lenses regularly: Dirt reduces brightness.
- Check for moisture: Water inside housing can damage LEDs.
- Inspect wiring yearly: Look for frayed wires or loose connectors.
Most high-quality halo kits last 30,000–50,000 hours. RGB kits may need extra maintenance due to more complex circuits.
Jeep Wrangler Yj Headlight Comparison
To help you see the upgrade’s value, here’s a comparison between factory headlights and popular halo options:
| Headlight Type | Brightness | Energy Use | Estimated Lifespan |
|---|---|---|---|
| Stock Halogen | 1,000 lumens | 55W per bulb | 2,000 hours |
| Single-color LED Halo | 2,500–4,000 lumens | 20–30W per bulb | 30,000 hours |
| RGB Halo Headlights | 2,000–3,500 lumens | 20–35W per bulb | 40,000 hours |
Halo lights not only improve style but also boost safety at night and in bad weather.
Frequently Asked Questions
How Long Does It Take To Install Halo Lights On A Jeep Wrangler Yj?
Most DIY installers need 2–4 hours for the full process. If you’re new to wiring, allow extra time for careful work. Having the right tools and a clear plan makes the job faster.
Can I Install Halo Lights Without Cutting Any Wires?
Many modern kits offer plug-and-play connectors, so you won’t need to cut factory wires. Check product details before buying. If your kit requires splicing, use crimp connectors or solder for reliability.
Are Halo Lights Safe For Off-road Driving?
Yes, as long as the halo lights are IP67 or IP68 rated. These ratings mean they resist water, mud, and vibration. Avoid cheap kits with poor sealing, as moisture can damage LEDs.
Will Halo Lights Drain My Battery?
If wired correctly using the parking light circuit halo lights will not drain your battery. Avoid wiring directly to the battery unless you add a switch or relay.
Always turn off lights when parked for long periods.
Can I Change The Color Of My Halo Lights After Installation?
RGB halo kits allow you to change colors with a remote or smartphone app. Single-color kits are fixed (usually white or amber). Changing color after install requires replacing the rings or headlight units.
Installing halo lights on your Jeep Wrangler YJ is a rewarding project. You gain a brighter, safer ride and a cool, custom look. With careful planning, the right tools, and attention to wiring, you can avoid common mistakes and enjoy reliable performance. Take your time, follow the steps, and soon your Jeep will shine—day or night.
