Installing a light bar on your Jeep Wrangler is one of the most popular upgrades among off-road enthusiasts and adventure seekers. A light bar adds serious illumination for night driving, trail runs, and camping trips. But for many Jeep owners, the idea of drilling into their vehicle or working with electrical wiring can feel intimidating. The good news? With the right tools, clear instructions, and a bit of patience, you can install a light bar yourself—even if you’re not an experienced mechanic.
This guide walks you through everything: choosing the right light bar, understanding mounts, wiring it safely, and tips to avoid common mistakes. By the end, you’ll have the confidence and knowledge to give your Wrangler a new look and better visibility for any adventure.
Choosing The Right Light Bar For Your Jeep Wrangler
Light bars come in many shapes, sizes, and power levels. Picking the right one depends on your driving needs and Wrangler model.
- Size: Most Jeep owners choose either a 50-inch light bar for the roof or a 20-inch bar for the hood or bumper. Check your available mounting space before buying.
- Type: There are single row (sleeker, less light) and double row (brighter, bulkier) bars.
- Beam Pattern: Spot beams shine farther, while flood beams spread light wider. Combo bars offer both.
- LED Power: Measured in watts or lumens. More lumens mean brighter light, but also more power draw.
- Waterproof Rating: Look for an IP67 or IP68 rating for best durability in rain or mud.
Non-obvious insight: Not all light bars are street-legal. Many states require covers or ban certain brightness levels for on-road use. Check your local laws before buying.
Popular Light Bar Brands
Some top-rated brands for Jeep Wranglers include Rigid Industries, Baja Designs, and KC HiLiTES. These brands offer reliable warranties and better weatherproofing.
Essential Tools And Materials
Gather these items before starting your installation:

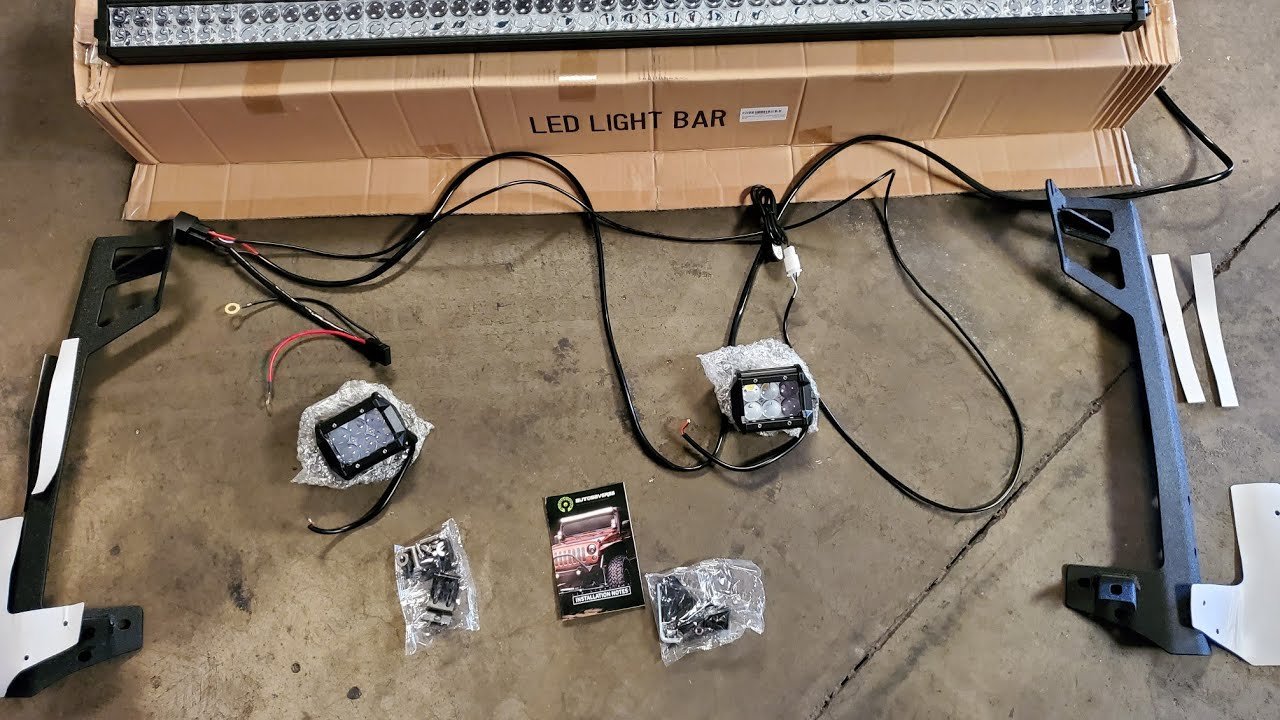

- Light bar kit (should include bar, mounting brackets, wiring harness, and hardware)
- Wrenches (metric and standard sizes)
- Socket set and ratchet
- Drill and drill bits (if your Jeep doesn’t have pre-drilled holes)
- Screwdrivers (Phillips and flathead)
- Wire stripper and crimper
- Electrical tape or heat shrink tubing
- Zip ties or cable clips
- Safety glasses and gloves
Pro tip: Some Wrangler models (especially JK and JL) have pre-threaded holes on the windshield frame for easy mounting. If your Jeep has these, you may not need to drill.
Understanding Mounting Locations
You can mount a light bar in several places. Each spot offers different lighting benefits and installation challenges.
| Mounting Location | Visibility Gain | Installation Difficulty | Common Size |
|---|---|---|---|

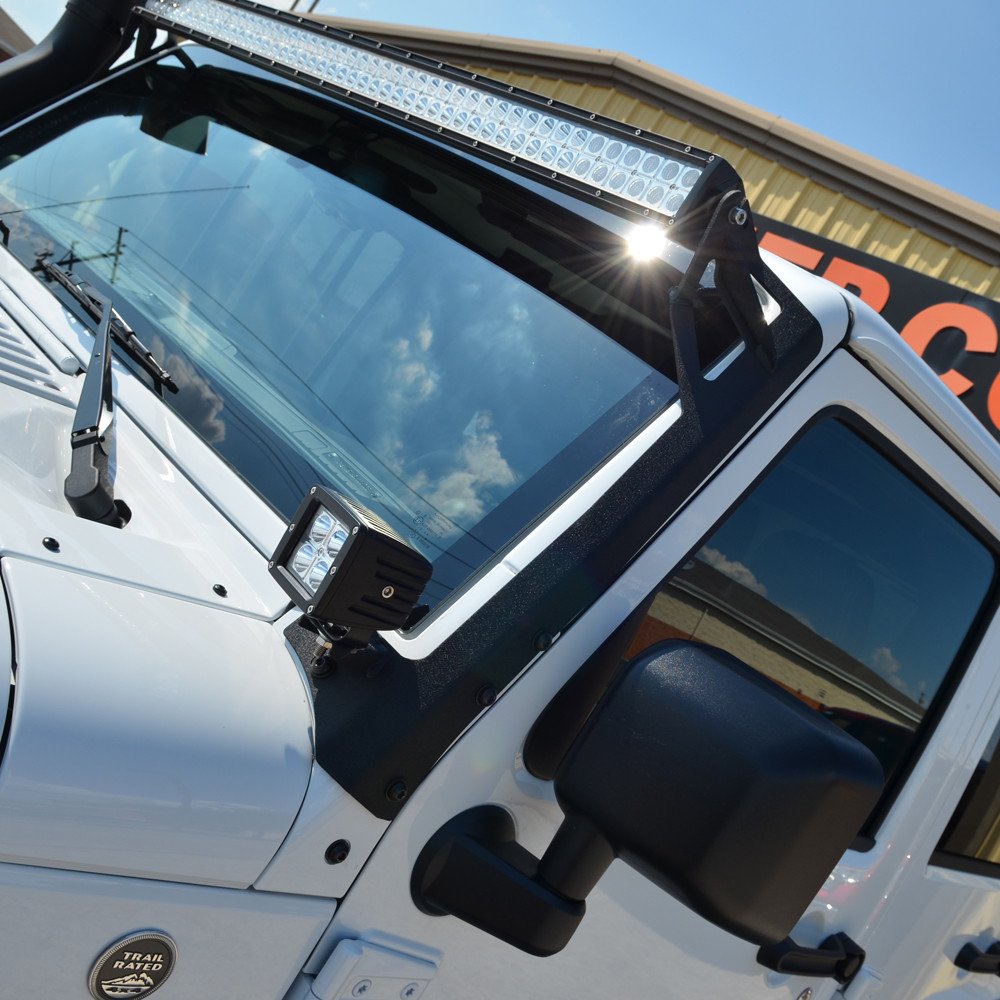

| Roof (Windshield Top) | Wide & Far | Medium | 50-inch |
| Hood/Lower Windshield | Medium & Focused | Easy | 20-inch |
| Bumper/Grille | Spot & Flood | Medium | 10–20-inch |
| Pillar (A-Pillar/Side) | Side Illumination | Easy | Small Pods |
Experience-based tip: Roof-mounted bars can sometimes cause wind noise. Hood or bumper bars are quieter but may reflect glare onto the hood if aimed incorrectly.
Step-by-step Installation Guide
Let’s break the installation into clear steps. These instructions focus on a typical roof or hood-mounted LED light bar, which are the most common for Jeep Wranglers.
1. Test Fit Your Light Bar
Before drilling or wiring, hold the light bar and brackets in place. Make sure:
- The bar fits the mounting spot.
- The brackets do not block windshield wipers or washer nozzles.
- You can open and close the hood/doors freely.
This avoids problems later.
2. Attach The Mounting Brackets
If your Wrangler has factory mounting holes:
- Line up the brackets with the holes.
- Use the bolts provided, tightening them firmly but not over-tightening.
- If there are rubber gaskets, use them to protect your paint.
If you must drill new holes:
- Mark bracket locations with a marker.
- Double-check alignment.
- Drill slowly using a drill bit slightly smaller than your bolt diameter.
- Add a small amount of silicone sealant around holes to prevent rust.
Non-obvious insight: Always check for wires or airbags behind the drilling area—especially near the windshield frame.
3. Secure The Light Bar
Once brackets are set, bolt the light bar onto the mounts. Adjust the angle so the light points where you want it—usually slightly downward for best road/trail coverage.
- Tighten all bolts and check for movement.
- Some bars use lock washers or thread-locking fluid for extra security.
4. Plan Your Wiring Route
Decide the cleanest path from the light bar to your Jeep’s battery and interior (for the switch). Most owners run wires:
- Along the windshield pillar (using zip ties or inside the weather strip)
- Through the firewall using an existing grommet (never drill the firewall if you can avoid it)
Keep wires away from hot engine parts and moving hinges.
5. Connect The Wiring Harness
Most light bar kits include a wiring harness with a relay, fuse, and switch.
Basic steps:
- Connect the harness’s positive (red) and negative (black) wires to the battery terminals.
- Run the switch wire through the firewall and mount the switch inside (usually on the dashboard).
- Connect the harness plug to your light bar.
Pro tip: Use heat shrink tubing or electrical tape on all connections to prevent corrosion.
6. Test The Light Bar
Before closing up, test your setup:
- Turn on the switch and check that the light bar works.
- Wiggle wires gently to ensure no flickering (a sign of loose connections).
- If nothing happens, check the fuse and battery connection.
7. Finish Up
- Tidy up wires with zip ties.
- Reinstall any trim or covers you removed.
- Apply a small bead of silicone to any holes you drilled, inside and out.
Wiring Safety And Best Practices
Electrical safety is critical. A poor connection or wrong fuse can cause shorts or even fires.
| Wiring Mistake | Potential Problem | Prevention Tip |
|---|---|---|
| Direct to battery, no fuse | Fire risk | Always use an inline fuse |
| Loose ground wire | Light flicker/off | Check/tighten all grounds |
| Exposed wire ends | Corrosion/short | Use heat shrink or tape |
| Poor routing (hot parts) | Melted wires | Keep clear of exhaust/manifolds |
Common mistake: Skipping the relay. Light bars draw lots of power—running them straight through a switch can burn out your switch and wiring. Always use the relay included in your kit.
Adjusting And Aiming Your Light Bar
Proper aim is important—not just for best visibility, but also to avoid blinding other drivers.
- Park your Jeep on a flat surface facing a wall or garage door.
- With the bar on, adjust the angle so the hotspot lands about 25–30 feet in front of the Jeep.
- For roof bars, a slight downward tilt helps prevent glare and wasted light.
Experience-based guide: If you drive mostly on-road, keep the bar covered except when off-road. This avoids legal trouble and unwanted attention.
Cleaning, Maintenance, And Longevity
A good light bar can last for years with basic care:
- Clean the lens regularly with mild soap and water.
- Check mounting bolts every few months for tightness.
- Inspect wiring for cracks, abrasion, or loose connectors.
- If you use your Wrangler in salty or muddy conditions, rinse the bar and mounts after every trip.
Pro tip: Apply a thin layer of dielectric grease to electrical connectors to keep out moisture.
Troubleshooting Common Problems
Even with careful installation, you might face issues. Here’s how to solve the most common ones:
- Light bar won’t turn on: Check the fuse, battery terminals, and switch connections.
- Flickering light: Usually a loose ground wire—tighten all ground points.
- Water inside the bar: This means a failed seal. High-quality bars offer better waterproofing, but if yours leaks, dry it out and reseal with silicone.
- Wind noise: If you hear whistling at highway speeds, try a light bar wind deflector or rubber gasket under the bar.
Cost Breakdown And Value
Installing a light bar isn’t just about brightness—it’s also an investment. Here’s an example cost breakdown for a typical Jeep Wrangler setup:
| Item | Estimated Cost |
|---|---|
| 50-inch Light Bar Kit | $120–$400 |
| Mounting Brackets | $40–$90 |
| Wiring Harness (if not included) | $20–$40 |
| Professional Installation (optional) | $100–$250 |
| Total (DIY) | $180–$530 |
DIY is much cheaper, and most Jeep owners tackle this project themselves with success.
Final Thoughts
Adding a light bar to your Jeep Wrangler transforms both its appearance and your night-driving experience. The process is straightforward if you break it down step by step—test fit, mount, wire, and adjust. Always prioritize safety, double-check your wiring, and use high-quality parts for the best results.
If you’re unsure about any step, ask for help on Jeep forums or watch detailed videos. And remember: the best upgrades are the ones you install with confidence and pride. For more about Jeep modifications, visit the official Jeep Accessories page.
Frequently Asked Questions
What Size Light Bar Fits A Jeep Wrangler Best?
Most Jeep Wranglers use a 50-inch bar on the roof or a 20-inch bar on the hood or bumper. Always measure your mounting space before buying, as sizes can vary by generation (JK, JL, etc.).
Is It Legal To Use A Light Bar On The Road?
Usually, driving with a light bar ON is illegal on public roads. Most states require you to use covers when not off-road. Always check your state’s laws to avoid tickets or fines.
Can I Install A Light Bar Without Drilling Holes?
Yes! Many newer Wranglers have factory mounting points for light bars. For older models, aftermarket brackets that use existing bolts are available. Drilling is rarely needed unless you want a custom position.
Will A Light Bar Drain My Jeep’s Battery?
A typical LED light bar draws less power than old halogen lights, but leaving it on for hours with the engine off can drain your battery. Always wire through a relay and fuse, and turn it off when parked.
How Do I Reduce Wind Noise From My Light Bar?
Wind noise is common, especially with roof-mounted bars. Use a wind deflector or install a rubber gasket between the bar and roof. Adjusting the angle or adding foam can also help reduce whistling.
Installing a light bar is a rewarding project that brings both style and function to your Jeep Wrangler. Take your time, follow these steps, and enjoy safer, brighter adventures on and off the road.
