Mounting a light bar on your Jeep can transform nighttime driving and off-road adventures. A good light bar improves visibility, safety, and the rugged look of your vehicle. But with so many options and installation methods, many Jeep owners feel unsure about where to start. This guide will walk you through everything you need to know about hooking a light bar to your Jeep, from choosing the right bar to wiring it safely and securely.
Why Add A Light Bar To Your Jeep?
Light bars are more than just stylish accessories. They provide strong, wide beams that standard headlights can’t match. Whether you’re camping, working at night, or navigating tricky trails, a light bar gives you better control. According to off-road safety studies, extra lighting can reduce accident risk by up to 30% in dark or foggy conditions. Another benefit is customization—light bars come in many shapes and sizes, so you can pick one that fits your needs and personal style.
Choosing The Right Light Bar
Before you buy, think carefully about your needs. Light bars aren’t all the same, and picking the wrong one can lead to wasted money or even legal trouble.
Types Of Light Bars
- Single Row: Slim, lower profile, usually with fewer LEDs. Good for subtle looks or smaller Jeeps.
- Double Row: Brighter, but bulkier. Great for maximum visibility.
- Curved: Follows the curve of your windshield or roof for wider light spread.
- Straight: Standard look, fits most mounting spots.
Led Vs. Halogen
Most light bars today use LEDs because they last longer and use less power. Halogen bars are cheaper but need more energy and don’t last as long.
Key Factors To Consider
- Size: Measure where you want to mount the bar (roof, bumper, hood) and choose a light bar that fits.
- Brightness: Measured in lumens. For off-road use, 10,000–30,000 lumens is common.
- Beam Pattern: Flood, spot, or combo. Flood lights spread wide, spot lights shine far, and combos do both.
- Waterproof Rating: Look for IP67 or IP68 for best weather protection.
- Street Legality: Some states limit how and where you can use light bars. Check your local laws.
Comparing Light Bar Features
Here’s a quick comparison of important light bar features:
| Feature | LED Light Bar | Halogen Light Bar |
|---|---|---|
| Brightness | Very High | Moderate |
| Energy Use | Low | High |
| Lifespan | 30,000+ hours | 1,000–2,000 hours |
| Cost | Higher upfront | Lower upfront |
Gathering Tools And Materials
You’ll need a few basic tools and supplies to install your light bar. Double-check your Jeep’s manual for any unique requirements.
Tools Needed:
- Socket set (metric and standard)
- Screwdrivers (Phillips and flathead)
- Drill and bits (if new holes are required)
- Wire cutters/strippers
- Electrical tape or heat shrink tubing
- Wrenches
Materials:

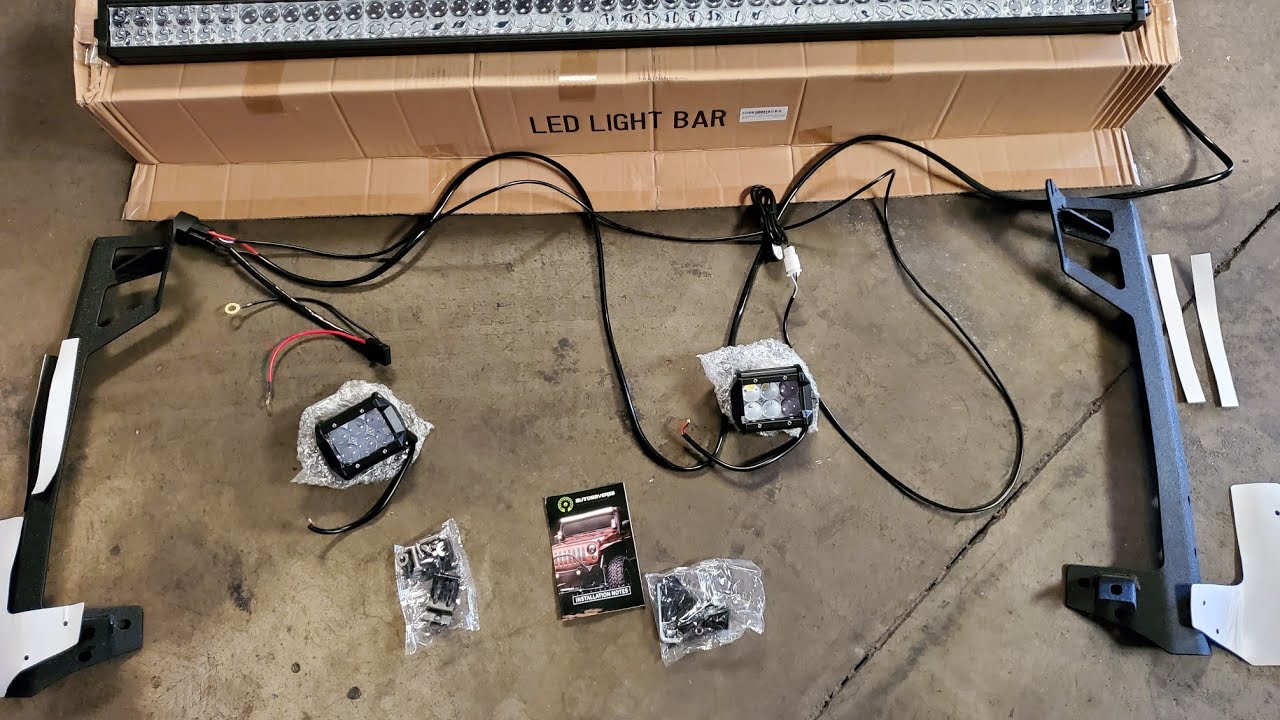

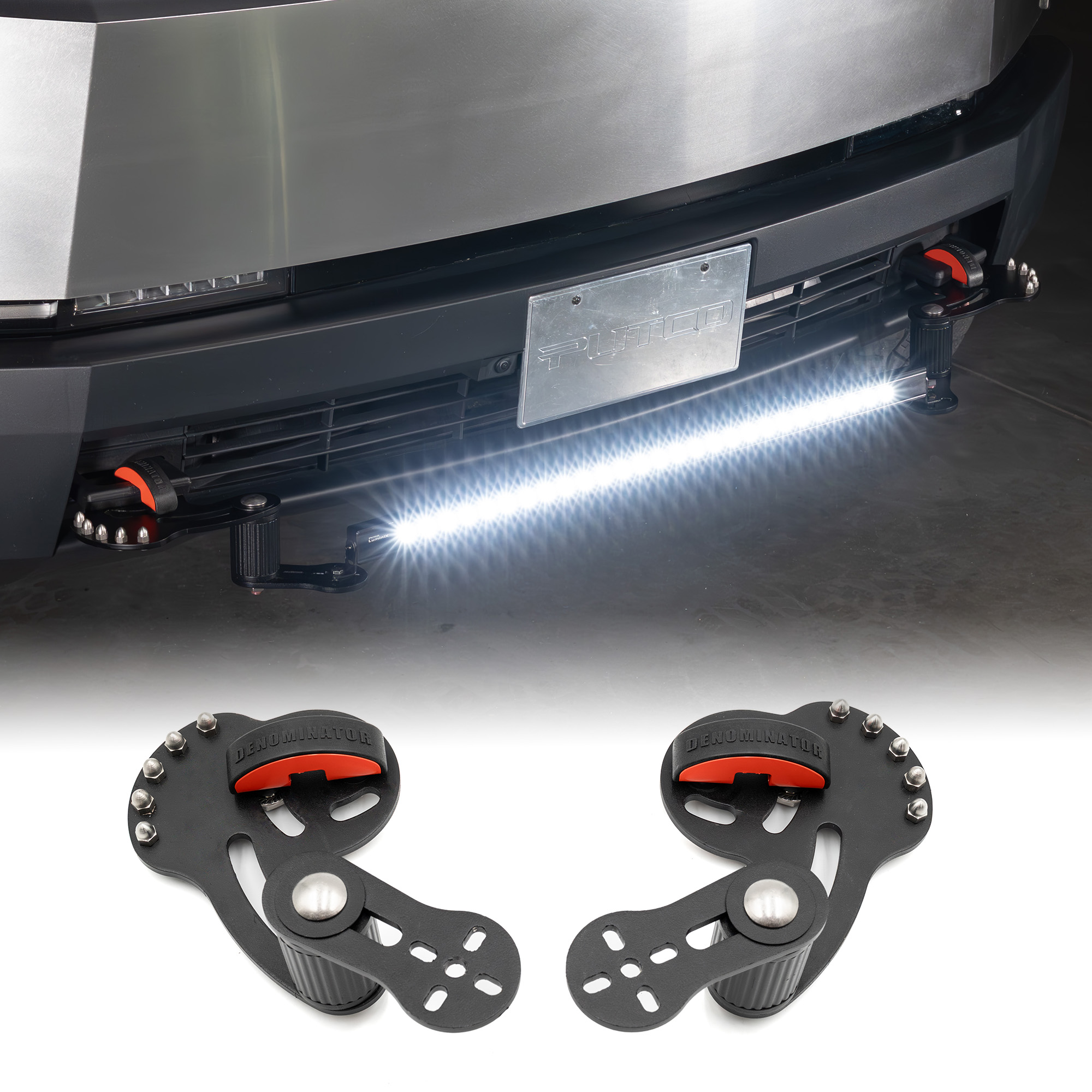

- Light bar kit (should include mounting brackets, wiring harness, relay, switch, and hardware)
- Mounting brackets (specific to your Jeep model if not included)
- Zip ties
Pro Tip: Always buy a complete wiring harness. This ensures safe installation and includes a relay, fuse, and switch.
Planning Your Mounting Location
Choosing where to place your light bar is key for both performance and safety. The most common spots are:
- Roof: Offers the widest spread. Good for trail driving.
- Front bumper: Easy to wire. Great for spot beams.
- Windshield/hood: Popular for smaller light bars or pods.
Measure twice before drilling any holes. Make sure the bar won’t block your vision or the hood’s opening.
Mount Location Pros And Cons
| Location | Pros | Cons |
|---|---|---|
| Roof | Widest light spread, less glare | More wind noise, can hit low branches |
| Bumper | Easy access, less wind drag | Lower angle, possible road glare |
| Windshield | Good for small bars, easy wiring | May block some view, less wide |
Step-by-step Installation Guide
Let’s walk through the most common way to hook up a light bar on a Jeep using a complete wiring harness and mounting brackets. These steps work for most models, but always check your Jeep’s manual and the light bar instructions.
1. Test Fit The Light Bar
Before drilling or wiring, hold the light bar and brackets in place. Make sure everything lines up.
Check for hood clearance, wipers, and roof racks. Mark drill points with a marker.
Non-obvious tip: Use masking tape on your paint before marking or drilling. It prevents scratches and helps you see your marks better.
2. Install The Mounting Brackets
Most Jeep-specific mounting kits use existing holes (like windshield hinge bolts or bumper mounts). If drilling is required, use a small pilot bit first, then the final size.
- Attach brackets firmly but don’t fully tighten yet.
- Place the light bar on the brackets and adjust until it’s level.
Double-check for leaks if drilling into the roof. Seal holes with silicone to prevent rust.
3. Mount The Light Bar
Set the light bar onto the brackets. Use the provided bolts and washers.
- Don’t overtighten the bolts—just snug enough to hold the bar steady.
- Adjust the bar’s angle before locking it down.
4. Route The Wiring Harness
Run the wiring harness from the light bar to your Jeep’s battery and inside to your switch. Try to follow existing wiring paths for a clean look.
- Use zip ties to secure the harness.
- Avoid sharp edges and moving parts.
- Pass wires through grommets, not bare metal holes.
Hidden Insight: Some Jeeps have extra firewall grommets you can use to pass wires through, saving time and making for a cleaner install.
5. Connect The Wires
Most harnesses have labeled plugs:
- Red wire to battery positive.
- Black wire to battery negative or frame ground.
- Switch wire to a location inside the cab.
Install the relay and fuse close to the battery. This protects your Jeep from electrical shorts.
6. Mount The Switch
Pick a spot that’s easy to reach but won’t be bumped by accident. Common spots:
- Under the dash
- Next to the steering wheel
- On the center console
Drill a small hole if needed, or use double-sided tape for stick-on switches.
7. Test The System
With everything connected, test your light bar:
- Turn on the switch.
- Check for bright, steady light.
- Wiggle wires to make sure there are no loose connections.
If the bar doesn’t light up, check the fuse, relay, and all connections.
Practical Examples
Let’s look at two different setups:
Example 1: You have a 2018 Jeep Wrangler JL and want a 50-inch curved LED bar on the roof.
- Use Jeep-specific roof brackets (no drilling needed).
- Run the harness along the windshield pillar, under the weather stripping.
- Mount the switch in a spare dash slot.
Example 2: You have a Jeep Cherokee XJ and want a 20-inch light bar on the bumper.
- Use universal brackets and drill small holes in the steel bumper.
- Route wires behind the grill, zip-tied to existing harnesses.
- Mount the switch under the steering wheel.
Common Mistakes And How To Avoid Them
- Skipping the relay: Direct wiring to the switch can cause overheating or fire. Use a relay every time.
- Poor ground connection: A weak ground means dim or flickering lights. Sand the contact spot clean.
- Not sealing holes: Water leaks can rust your Jeep’s body. Always seal drilled holes with silicone.
- Ignoring local laws: Some states require covers on light bars while driving on public roads.
- Untidy wiring: Loose wires can get caught, wear through, or look messy. Use zip ties and follow factory paths.
Maintenance And Troubleshooting
A good light bar should last years, but regular checks help avoid problems.
- Clean the lens with mild soap and water. Avoid harsh chemicals.
- Check mounts for looseness after rough trips.
- Inspect wiring every few months for wear or damage.
- Replace fuses if the bar stops working, but check for shorts if it blows more than once.
If you see water inside the bar, dry it out and reseal with fresh silicone.
Legal And Safety Tips
- Only use your light bar off-road or where it’s legal. On highways, most states require you to keep it off or covered.
- Never point the bar directly at other drivers—it’s blindingly bright and can cause accidents.
- Securely mount all parts to prevent them from coming loose during rough rides.
For more info on lighting laws, check your local DMV website or the National Highway Traffic Safety Administration.
Cost Breakdown
How much will you spend? Here’s a typical cost guide:
| Item | Low Cost | High Cost |
|---|---|---|
| LED Light Bar (20-50 in.) | $40 | $400 |
| Mounting Brackets | $20 | $100 |
| Wiring Harness Kit | $15 | $50 |
| Professional Install | $75 | $250 |
How Long Does It Take To Install A Light Bar On A Jeep?
Most people can complete the installation in 2 to 4 hours. If you’ve never worked on wiring before, give yourself extra time and don’t rush.
Is It Safe To Install A Light Bar Myself?
Yes, if you follow the instructions and use a complete wiring harness with a relay and fuse. If you’re unsure about electrical work, ask a friend with experience or hire a pro.
Will A Light Bar Drain My Jeep’s Battery?
A properly installed LED light bar uses little power and won’t drain your battery if the engine is running. Never leave the bar on with the engine off for long periods.
Can I Use My Light Bar On Public Roads?
Usually, no. Most states only allow light bars for off-road use or require them to be covered on public streets. Always check your local rules.
What Size Light Bar Is Best For My Jeep?
It depends on your needs and where you’ll mount it. 50-inch bars are popular for roofs, while 20-inch bars fit well on bumpers. Measure your space before you buy.
Adding a light bar to your Jeep is a great way to improve safety and style, but only if you install it correctly. Take your time, use the right parts, and check all connections.
Soon you’ll be lighting up the trails like a pro, ready for any adventure after dark.
