If you own a Jeep Wrangler, you know how important safety and visibility are—especially when driving off-road or in low-light conditions. One feature that’s often overlooked is the spare tire brake light.
Many Jeep owners upgrade their wheels or move their spare tire, but forget to reconnect or upgrade the third brake light.
If you’re searching for a clear, step-by-step guide (and want to see how it’s done on video), this article will show you exactly how to connect a spare tire brake light on your Jeep Wrangler.
We’ll cover the tools you need, the common wiring methods, and share practical tips that most beginners miss. Plus, you’ll find real data, comparison tables, and answers to common questions Jeep owners have.
Why You Need A Spare Tire Brake Light
The spare tire brake light, also called the third brake light, sits above or inside your spare tire. Its job is simple: when you brake, it lights up, making your Jeep more visible from behind. This is especially important if you’ve installed larger tires or an aftermarket tire carrier, which can block the factory third brake light. In some US states, the third brake light is required by law. Driving without it can lead to tickets or even accidents.
Some statistics show that vehicles with a working third brake light are 23% less likely to get rear-ended. For Jeep owners, who often carry extra gear or drive in tough conditions, that extra visibility matters.
Tools And Parts You Will Need
Before you start the installation, gather these tools and parts. Having everything ready will save you time and frustration.
- Spare tire brake light kit (designed for your Jeep Wrangler model)
- Screwdrivers (Phillips and flathead)
- Wire stripper/crimper
- Electrical tape or heat shrink tubing
- Zip ties
- 10mm socket and ratchet
- Multimeter (for troubleshooting)
Some kits include all necessary wiring and connectors. Double-check your kit contents before starting.
Choosing The Right Spare Tire Brake Light Kit
Not all brake light kits are the same. The right choice depends on your Jeep Wrangler model, the size of your spare tire, and whether you want an LED ring or a traditional light. Here’s a quick comparison of popular kit types:
| Kit Type | Fits Tire Size | Brightness (Lumens) | Ease of Install |
|---|---|---|---|
| LED Brake Light Ring | up to 37″ | ~1,000 | Easy |
| Factory-Style Light | up to 33″ | ~650 | Medium |
| Custom Mount Light | Any | Varies | Hard |

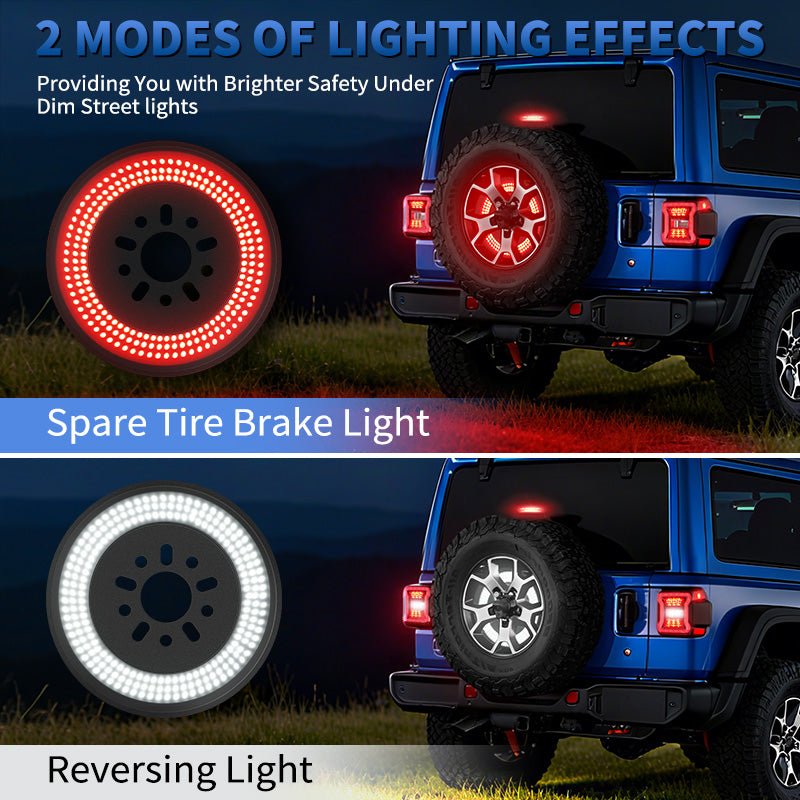

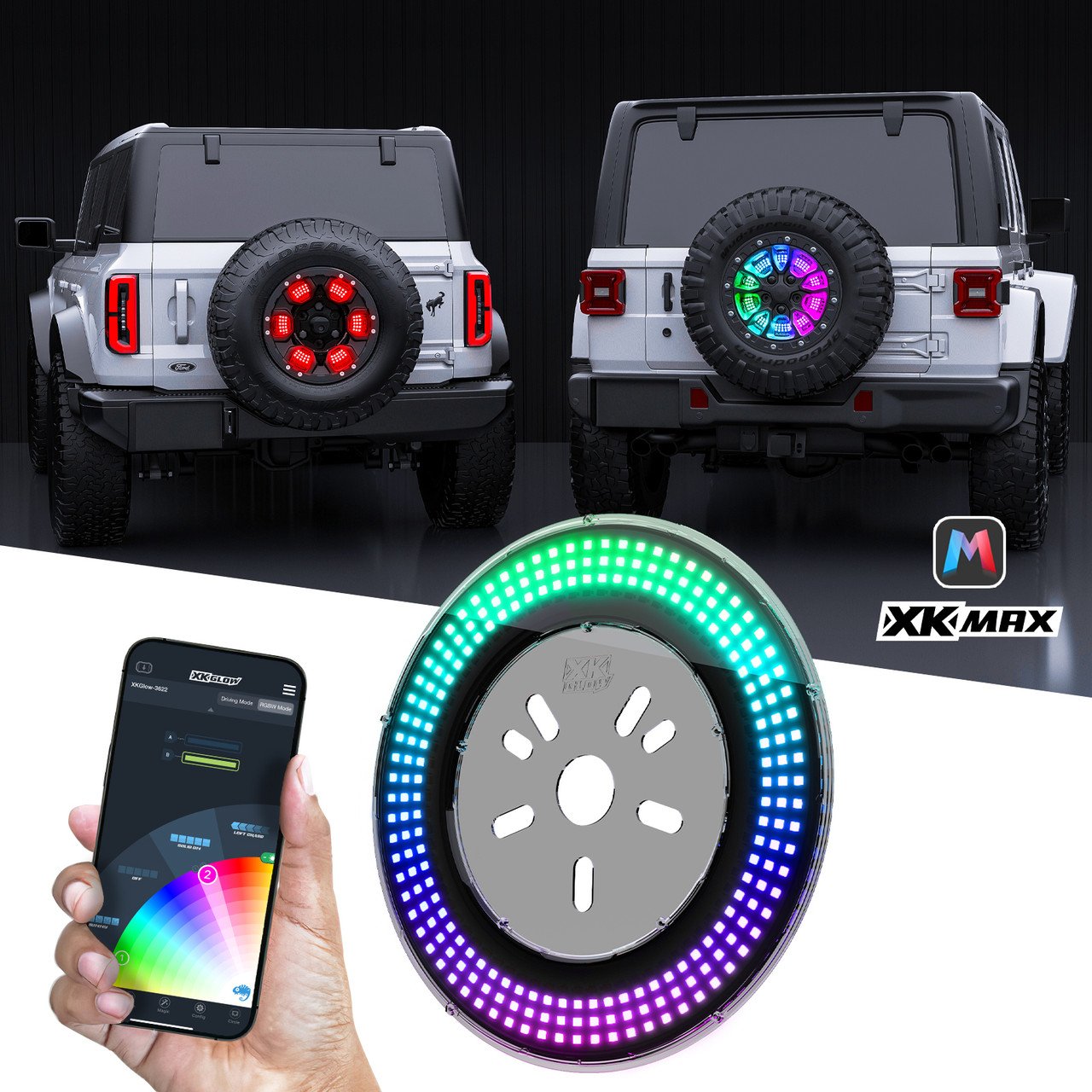

LED rings are popular because they fit behind the spare tire and provide bright, even light. Factory-style lights are best if you want a stock look. Custom mount lights are for unique setups, but need more work.
Step-by-step Installation Guide
Connecting a spare tire brake light is straightforward if you follow the steps. This guide works for most Jeep Wrangler models, including JK, JL, and older TJs.
1. Remove The Spare Tire
First, use your 10mm socket to remove the spare tire from the carrier. Place it on a soft surface to avoid scratches.
2. Prepare The Brake Light Kit
Unpack your kit. If you’re using an LED ring, position it behind the mounting plate so the wires face down or to the side. This keeps the wires hidden and protected.
3. Route The Wires
Carefully route the wires through the factory hole in the tire carrier. Avoid sharp edges or moving parts that could cut the wire.
Use zip ties to secure the wiring to the carrier.
4. Connect To The Brake Light Wiring
Find the factory third brake light wire. On JK and JL Wranglers, you’ll find it behind the spare tire carrier. Use your wire stripper to remove a small section of insulation. Attach the new brake light wires using:
- Wire tap connectors (easy, no cutting)
- Soldering (best connection, but requires more skill)
- Butt connectors (quick and reliable)
Double-check the positive and negative wires. A multimeter helps if you’re unsure.
5. Test The Light
Before putting everything back, press the brake pedal (ask a friend to help) and check if the new light works. If not, check your connections and make sure the ground wire is secure.
6. Reinstall The Spare Tire
Once you’re sure the light works, reinstall the spare tire. Make sure the wires are not pinched.
7. Secure And Hide Wires
Tuck away any extra wire and secure it with zip ties. Use electrical tape or heat shrink tubing to cover all connections.
8. Watch An Installation Video
Sometimes, seeing the process is easier than reading it. Here’s a helpful video from a Jeep expert showing each step on a Wrangler JL:
- [How to Install a Spare Tire Brake Light (YouTube)](https: //www.youtube.com/watch?v=5_OoXnUQKAs)
Watching a video can help you avoid common mistakes and give you confidence before starting.
Common Installation Mistakes (and How To Avoid Them)
Many beginners make small mistakes that can cause big problems later. Here’s how to avoid them:
| Mistake | What Happens | How to Avoid |
|---|---|---|
| Wrong wire connection | Light doesn’t work or blows fuse | Check wire colors and test with a multimeter |
| Poor weatherproofing | Corrosion and short circuits | Use heat shrink or tape on all connections |
| Loose wires | Light flickers or fails | Secure with zip ties and check before finishing |
A non-obvious tip: If you drive in wet or salty areas, spray a bit of dielectric grease on the connections for extra protection.
Troubleshooting Tips
If your new spare tire brake light doesn’t work, don’t panic. Here’s a simple process for finding and fixing the issue:
- Check the fuse: Your Wrangler’s third brake light has its own fuse. If it’s blown, replace it with the same rating.
- Test for power: Use a multimeter to confirm voltage at the connection when the brake pedal is pressed.
- Ground connection: A weak or missing ground will stop the light from working. Check that your ground wire is attached to bare metal.
- Inspect the bulb or LED: Even new parts can be faulty. Test the light directly with 12V power.
- Look for pinched wires: If you crushed the wire during reinstallation, it could short out.
Upgrading To Led Vs. Halogen Brake Lights
Many kits now use LEDs instead of halogen bulbs. Why does this matter? Here’s a quick comparison:
| Feature | LED Brake Light | Halogen Brake Light |
|---|---|---|
| Brightness | High (up to 1,000 lumens) | Medium (400-700 lumens) |
| Lifespan | 50,000+ hours | 2,000-5,000 hours |
| Power draw | Low | Higher |
| Cost | Higher | Lower |
LED lights are brighter and last much longer. They cost more up front, but you rarely have to replace them. If you’re upgrading your Wrangler, LED is the smart choice.
Safety And Legal Considerations
In the US, most states require a working third brake light on vehicles made after 1986. If police see your light missing or not working, they can pull you over.
More importantly, if you get rear-ended and your third brake light was not working, insurance may not cover the damage.
A non-obvious detail: If you install a larger spare tire, make sure your brake light is not blocked. The law says it must be visible from 300 feet behind your vehicle.
For more details about vehicle lighting laws, visit the NHTSA Lighting Requirements.
Practical Tips For A Clean, Long-lasting Install
- Use weatherproof connectors: Even if your kit includes basic connectors, upgrading to weather-sealed ones can prevent corrosion.
- Label your wires: If you plan more upgrades later, labeling helps you remember which wire does what.
- Run wires inside the carrier: Whenever possible, hide wires inside the tire carrier for a clean look and added protection.
- Check light alignment: Make sure the light is centered in the spare and not aimed too high or low.
- Keep the manual: Store the kit’s instructions in your glove box for future reference.
When To Call A Professional
If you’re not comfortable with wiring or don’t have the right tools, it’s okay to ask for help. Many auto shops can install a spare tire brake light in less than an hour.
Expect to pay $50 $100 for professional installation.
This is a good choice if your Jeep has custom wiring or you want a warranty on the work.
Frequently Asked Questions
How Do I Know If My Wrangler Needs A New Spare Tire Brake Light?
If your third brake light is blocked by a larger tire, not working, or missing after a tire carrier upgrade, you need a new kit. Check your state’s laws, but it’s smart for safety regardless.
Can I Use The Factory Wiring For An Aftermarket Brake Light?
Yes, most kits are designed to tap into or replace the factory wiring. This makes installation easier and avoids extra drilling or running wires to the front of the Jeep.
Will Installing A Spare Tire Brake Light Void My Warranty?
No, as long as you don’t cut factory wires or damage the vehicle’s electrical system. Many kits are “plug and play” and are made specifically for Jeeps.
Is A Video Guide Necessary Or Are Written Instructions Enough?
Most people find a video guide helpful for visualizing wire routing and mounting. Written instructions are fine if you’re comfortable with basic wiring, but a video can clarify tricky parts.
What Should I Do If My New Brake Light Flickers Or Doesn’t Work?
Check all connections for tightness and corrosion. Make sure the ground wire is attached to bare metal.
If the problem continues, test the kit with a 12V source to rule out a faulty part.
Upgrading or reconnecting your spare tire brake light on a Jeep Wrangler is a simple way to increase safety and meet legal requirements. With the right kit, tools, and this guide (plus a video for extra help), you can finish the job in an afternoon—even if you’re new to car wiring. Take your time, double-check your connections, and enjoy safer adventures on and off the road.
