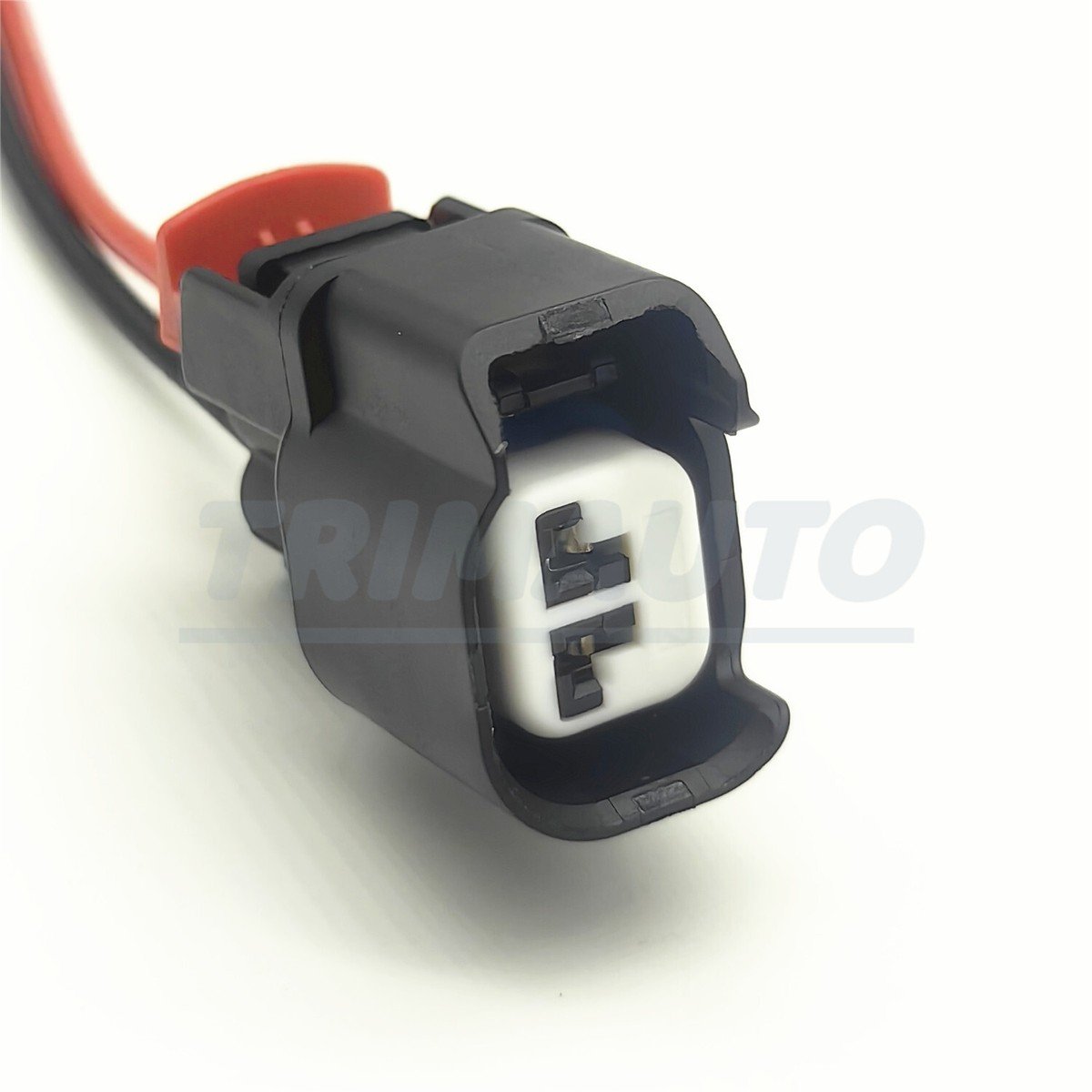

If your Jeep Patriot’s tail light is not working, there’s a good chance the tail light pigtail needs replacement. The pigtail is the short wiring harness that connects the light to the vehicle’s electrical system. It can get damaged by moisture, corrosion, or accidents, causing flickering or dead tail lights. Fixing it yourself can save money and keep your vehicle safe on the road.
Changing a tail light pigtail may sound technical, but with the right steps and some basic tools, most car owners can do it at home. This guide explains everything in clear, simple terms no electrical skills required.
What You’ll Need
Before you start, gather these items:
- Replacement pigtail (make sure it matches your Jeep Patriot’s year/model)
- Screwdriver (Phillips or flathead, depending on your car)
- Wire stripper and crimper
- Electrical tape
- Socket wrench set
- Heat shrink connectors or wire nuts (for a secure connection)
- Work gloves
- Test light or multimeter (optional, for checking circuits)
Tip: Check your Jeep’s manual or look up your exact tail light pigtail part number. Getting the wrong connector is a common mistake.
Removing The Old Tail Light Pigtail
Start by parking your Jeep on a flat, safe spot. Turn off the ignition and remove the keys. Open the rear hatch for easy access.

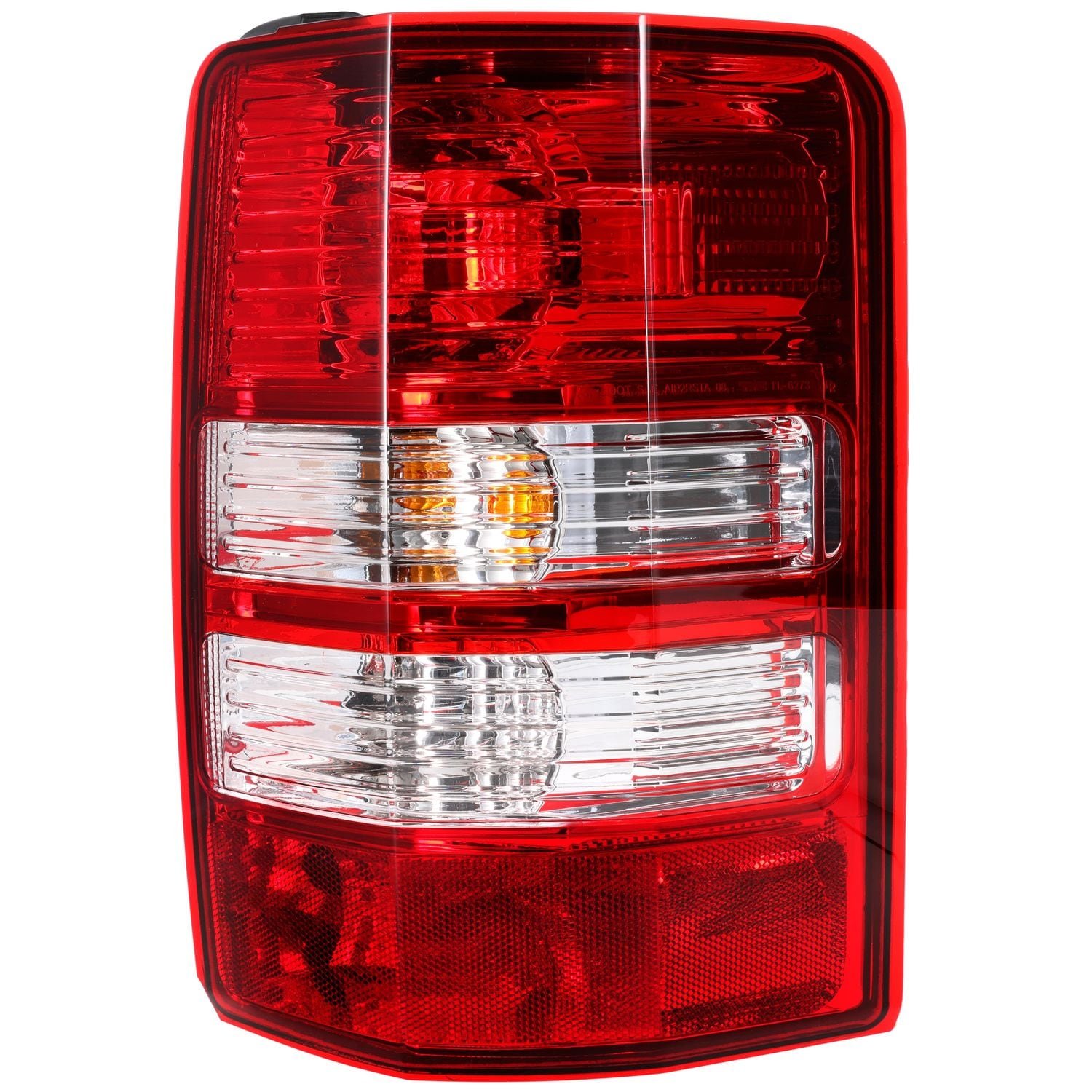

1. Remove The Tail Light Assembly:
Open the hatch. Locate and remove the screws holding the tail light in place.
Gently pull the tail light away from the body.
Non-obvious insight: There are sometimes plastic clips in addition to screws. Pry carefully to avoid breaking them.
2. Unplug The Pigtail:
Find the connector at the back of the tail light. Press the release tab and pull the pigtail out.
3. Check For Damage:
Look for burnt wires, melted plastic, or green corrosion. These are signs of electrical problems that may have caused your issue.
4. Cut The Old Pigtail:
Use the wire stripper to cut the pigtail wires, leaving a little length on the vehicle side.

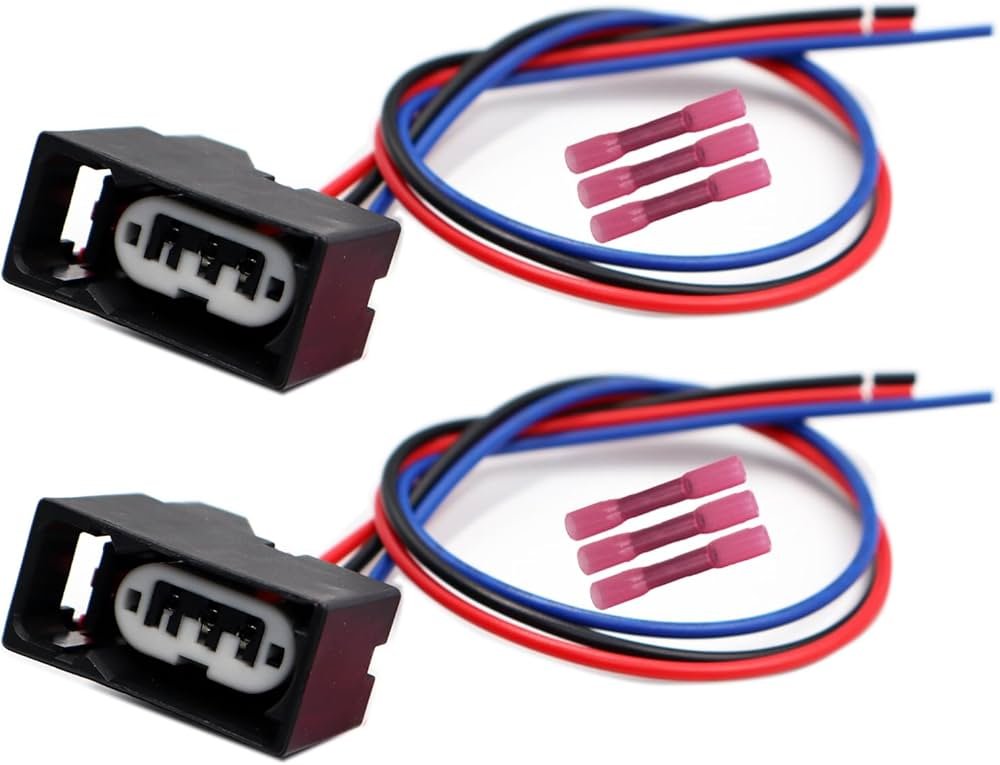

Installing The New Pigtail
Replacing the pigtail involves connecting the new wires to the existing harness. The process is simple but needs attention to detail.
Match The Wire Colors
Most Jeep Patriots use three to four wires for the tail light: ground, tail, brake, and turn.
Important: Wire colors may not always match exactly. Check the wiring diagram for your year.
Here’s a basic comparison of common wire colors:
| Function | Original Wire Color | Pigtail Wire Color |
|---|---|---|
| Ground | Black | Black |
| Tail/Running | Brown | Brown or White |
| Brake/Turn | Yellow/Green | Yellow or Red |
Non-obvious insight: Sometimes aftermarket pigtails use different color codes. Always double-check before connecting.
Connecting The Wires
1. Strip The Wire Ends:
Remove about half an inch of insulation from each wire.
2. Join The Wires:
Twist the wires together by matching their functions. Use heat shrink connectors for a waterproof seal or wire nuts if you plan to tape over them.
3. Secure The Connection:
If using heat shrink, use a lighter or heat gun to seal. For wire nuts, wrap thoroughly with electrical tape.
4. Test The Connection:
Before reassembling, reconnect the battery (if disconnected) and turn on the lights.
Use a test light or multimeter to check all functions: tail, brake, and turn signals.
| Test | Expected Result | Common Issue |
|---|---|---|
| Tail Light | Steady glow | No light—check ground |
| Brake Light | Bright when pedal pressed | Flicker—bad connection |
| Turn Signal | Blinks normally | Fast blink—wrong bulb/wire |
Tip: If something doesn’t work, double-check your wiring. A swapped ground or signal wire is a frequent cause.
Reinstalling The Tail Light
- Reconnect the pigtail to the tail light bulb base.
- Carefully fit the tail light back into the body.
Line up any clips and push gently.
- Reinstall the screws.
- Test all functions again.
Make sure everything works before closing the hatch.
Practical Tips For A Lasting Fix
- Seal connections: Moisture is the main enemy. Always use heat shrink or tape to keep water out.
- Use dielectric grease: A small dab inside the connector can prevent future corrosion.
- Check the bulb: Sometimes the bulb fails, not just the wiring. Replace both if you’re unsure.
- Avoid pulling on wires: Always pull connectors, not wires, to avoid hidden damage.
When To Get Professional Help
If you notice:
- Multiple lights failing at once
- Burn marks or melting
- Blown fuses after replacement
These are signs of a deeper electrical issue. In these cases, it’s best to have a mechanic check your Jeep’s wiring. Safety comes first.
Common Mistakes To Avoid
- Mixing up wires: Don’t rely only on color—confirm each wire’s function.
- Skipping the test: Always check lights before putting everything back together.
- Ignoring corrosion: Clean off any green or white buildup before installing the new connector.
- Using the wrong part: Even small differences in connectors can cause loose fits or shorts.
Cost And Time Estimate
Changing a tail light pigtail on a Jeep Patriot usually takes 30–45 minutes for a beginner.
Parts typically cost $10–$35, depending on brand and quality.
| Expense | Cost Range | Notes |
|---|---|---|
| Pigtail Connector | $10–$25 | OEM or aftermarket |
| Basic Tools | $0–$10 | If not already owned |
| Labor (shop) | $50–$100 | If you hire a mechanic |
Final Thoughts
Fixing a tail light pigtail on your Jeep Patriot is a simple DIY job if you follow these steps. A working tail light keeps you visible and legal on the road. Take your time, double-check your wiring, and make sure everything is sealed against weather. If you ever feel unsure, don’t hesitate to ask a mechanic.
For more details on car wiring repairs, see the official Automotive Lighting page.
Frequently Asked Questions
Can I Use Any Pigtail For My Jeep Patriot?
No, you need a pigtail connector made for your Jeep Patriot’s model year. Using the wrong one may not fit or work properly.
What If My New Tail Light Still Doesn’t Work?
Check the fuse, the bulb, and your wiring connections. If all seem fine, you may have a deeper electrical issue.
Do I Need To Disconnect The Battery?
It’s a good safety step, especially if you’re new to wiring. It prevents accidental shorts.
How Do I Know If My Pigtail Is Bad?
Look for cracks, broken wires, or green corrosion. Flickering or dead tail lights are common symptoms.
Is It Safe To Drive With A Bad Tail Light Pigtail?
No. Tail lights are required for safety and legality. Fix the problem before driving, especially at night or in bad weather.
