If your Jeep’s climate control system is acting strange—blowing hot air when you want cold, or vice versa—the blend door actuator may be the culprit. This small motor controls the airflow and temperature inside your vehicle. When it’s out of sync, your AC and heater can seem broken. Luckily, calibrating the blend door actuator can often fix these issues without expensive repairs.
Understanding The Blend Door Actuator

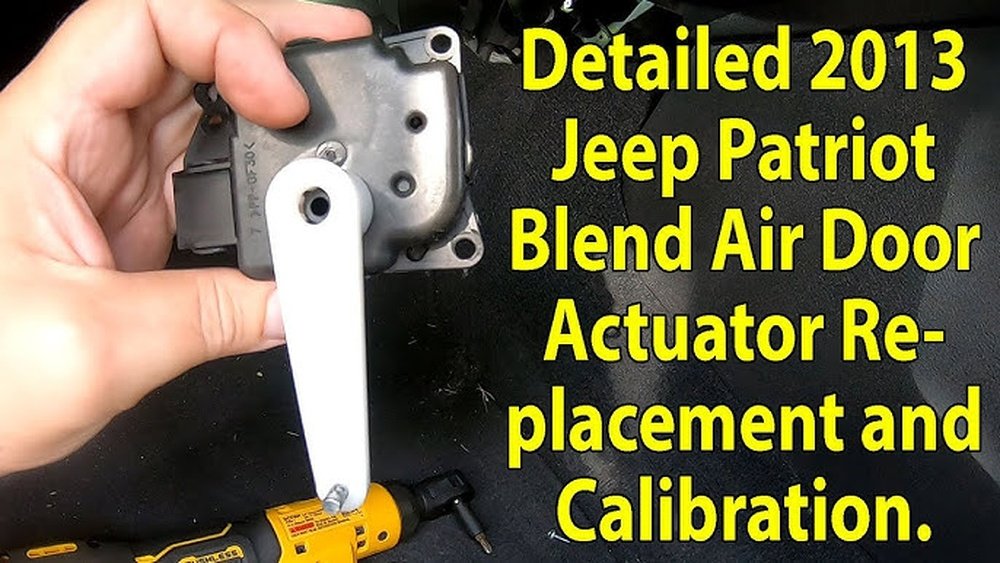

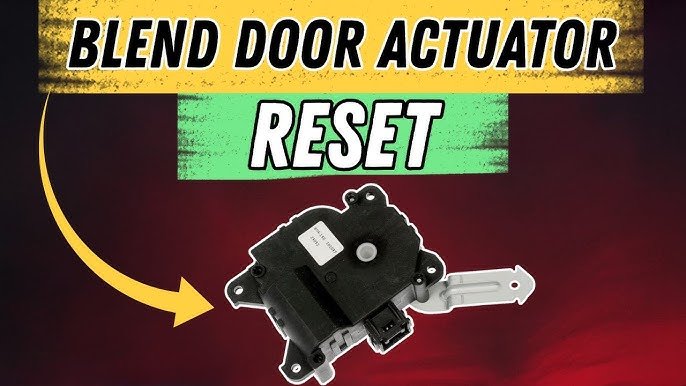

The blend door actuator is a device behind your dashboard. It moves the doors that mix warm and cool air. When you select a temperature, the actuator responds and sets the right mix. If the actuator loses its position, your controls may not work properly. Calibration helps it “learn” its correct range.
Jeep models like the Wrangler, Grand Cherokee, and Liberty often use electric actuators. These can sometimes get confused after battery changes, repairs, or even software glitches. Resetting and calibrating the actuator restores normal operation.
Symptoms Of A Bad Or Miscalibrated Actuator
Look for these signs before calibrating:
- Incorrect air temperature from vents
- Strange clicking noises behind the dashboard
- Airflow stuck—cannot switch between hot and cold
- AC or heat not responding to controls
If you notice these, calibration is a good first step. However, if calibration fails, the actuator may need replacing.
Preparing For Calibration
Before you begin, gather:
- Basic tools: Screwdriver, flashlight
- Jeep manual (for fuse locations and specifics)
- Safety gloves
Park your Jeep in a safe spot. Turn off the engine. Disconnect the battery if you plan to work near electrical parts.
Calibration Methods For Jeep Blend Door Actuator
There are two main ways to calibrate: manual reset and computer-aided reset. Most Jeep owners use the manual method, but newer models may require a scan tool.
Manual Calibration Steps
Follow these steps to calibrate the actuator without special equipment:
- Turn off the ignition and remove the key.
- Disconnect the battery (wait 5-10 minutes). This resets the actuator’s memory.
- Reconnect the battery.
- Switch ignition to ON (do not start the engine).
- Set climate controls to OFF.
- Wait 60 seconds. The actuator should cycle through its range.
- Set the climate controls to MAX HEAT, then MAX COOL. Wait 10 seconds between changes.
- Start the engine and check if the air temperature responds.
If your Jeep responds correctly, calibration is complete. If not, repeat the steps or try the scan tool method.
Common Mistakes During Calibration
Many beginners rush the process or skip steps. Here are two mistakes to avoid:
- Not waiting long enough after reconnecting the battery. The actuator needs time to reset.
- Skipping the OFF position before switching between heat and cool. This step is vital for proper calibration.
Computer-aided Calibration
Some newer Jeeps (2015+) require a scan tool like OBD-II to calibrate the actuator. Mechanics use this tool to send commands to the actuator. You can buy basic OBD-II tools, but advanced calibration needs a professional device.
Steps Using A Scan Tool
- Plug in the OBD-II device under the dash.
- Access climate control settings.
- Select “blend door actuator calibration.”
- Follow on-screen prompts.
- Wait for confirmation.
If your Jeep is older, stick to manual calibration.
Comparing Manual Vs Computer-aided Calibration
Here’s a quick comparison to help you choose:
| Method | Tools Needed | Time Required | Models Supported |
|---|---|---|---|
| Manual Reset | Basic tools | 10-20 minutes | Most Jeeps (pre-2015) |
| Scan Tool | OBD-II device | 5-15 minutes | Newer Jeeps (2015+) |
How To Know If Calibration Worked
Test your climate controls:
- Change temperature from cold to hot.
- Switch air direction (floor, dash, defrost).
- Listen for smooth movement (no clicking).
If everything works, the actuator is calibrated.
If you hear clicking or the temperature is wrong, check for mechanical issues or a faulty actuator.
Jeep Blend Door Actuator: Useful Data
Here’s some typical actuator info by Jeep model:
| Model | Actuator Location | Typical Price (USD) | Calibration Needed After Replacement |
|---|---|---|---|
| Wrangler (JK) | Behind glove box | $30–$80 | Yes |
| Grand Cherokee | Under dashboard center | $40–$120 | Yes |
| Liberty | Near heater core | $25–$75 | Yes |
Extra Tips For Smooth Calibration
- Always check for blown fuses before calibration. A bad fuse can mimic actuator problems.
- If you’ve replaced the actuator, calibration is mandatory. Otherwise, the new part won’t work correctly.
- Unusual noises after calibration usually mean a mechanical issue, not a software problem.
When To Seek Professional Help
If calibration fails more than twice, or you notice other electrical issues, consult a mechanic. Sometimes, the actuator gears are broken, or the wiring is damaged. Professional tools can diagnose these problems quickly.
Also, if your Jeep has dual climate zones, the process may differ. Check your owner’s manual or visit an official dealer for guidance.
For more details on actuator systems, see Wikipedia.
Frequently Asked Questions
Why Does My Jeep Blow Hot Air When I Want Cold?
This usually means the blend door actuator is out of position or malfunctioning. Calibration often fixes this, but sometimes the actuator needs replacement.
Can I Calibrate The Actuator Without Removing Parts?
Yes, most Jeeps allow calibration through battery reset and climate control steps. Only in rare cases must you access the actuator directly.
How Long Does Calibration Take?
Manual calibration takes about 10–20 minutes. Using a scan tool is faster, around 5–15 minutes.
Will Calibration Fix All Actuator Problems?
No. Calibration solves software or position errors. If the actuator is physically broken, calibration will not help.
Is It Safe To Drive With A Bad Blend Door Actuator?
You can drive, but your climate control may not work. If the actuator jams, it could affect defrosting, which is unsafe in cold weather.
Getting your Jeep’s blend door actuator working is easier than many people expect. With careful calibration, most problems can be fixed at home. Take your time, follow the steps, and your climate system should respond as it should. If not, don’t hesitate to seek expert help—sometimes a faulty actuator needs more than just calibration.
