If you own a Jeep, you may have heard about the SKIM system. SKIM stands for Sentry Key Immobilizer Module. This security feature helps prevent car theft by making sure only authorized keys can start your Jeep. But what happens if your SKIM fails, or you lose your programmed keys? Many Jeep owners run into situations where bypassing the SKIM seems like the only way to get back on the road. In this guide, you’ll learn what SKIM does, why you might need to bypass it, and what methods are available. You’ll also see clear comparisons and practical advice, so you can make informed choices.
What Is The Skim System In Jeeps?

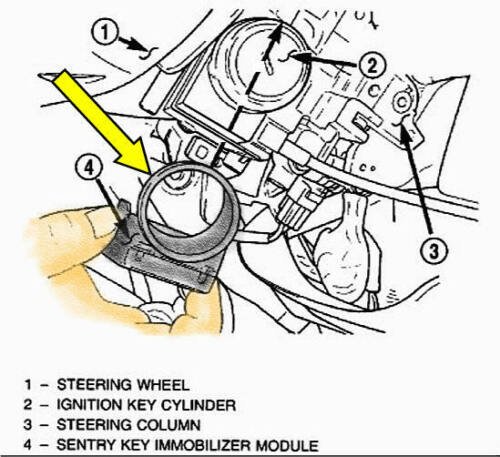

The SKIM system is a type of immobilizer. It works with a special chip inside your Jeep’s key. When you insert the key and turn it, the SKIM module checks if the chip is valid. If it’s not, your Jeep won’t start. This system first appeared in the late 1990s and became standard on many models, including the Wrangler, Grand Cherokee, and Liberty.
Why Does Skim Matter?
- Prevents theft: Only keys with the right chip can start the engine.
- Can cause issues: Lost keys or SKIM failure can leave you stranded.
A surprising number of Jeep owners discover their SKIM system is the reason their Jeep won’t start, not a dead battery or starter problem.
Common Reasons To Bypass Skim
Bypassing SKIM is not usually a first choice. However, there are situations where it becomes necessary:
- Lost all keys: Without a working key, you can’t start the Jeep.
- SKIM module failure: The immobilizer may stop working, even with the correct key.
- Key programming costs: Dealer key replacement and programming can cost $200–$400 per key.
- Aftermarket engine swaps or ECUs: New engines or ECUs often need SKIM bypass to function.
Bypassing SKIM is a technical process. It should only be done legally and ethically, usually after proving ownership.
How To Bypass Skim In A Jeep
Bypassing SKIM requires technical knowledge, some tools, and sometimes replacement parts. Here are the main methods:
1. Using A Skim Delete Service Or Module

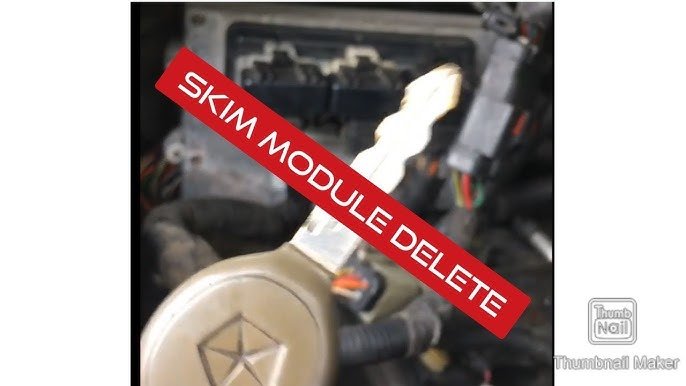

Some companies sell SKIM delete modules or offer ECU reprogramming services. They remove the immobilizer function from your ECU, so it no longer checks for the key chip.
Steps:
- Remove the ECU from your Jeep.
- Ship it to a specialist for SKIM removal.
- Reinstall the ECU after modification.
This is the most reliable method, but it requires time and sometimes shipping costs.
2. Ecu Swapping
Swapping your ECU with a pre-programmed SKIM-free ECU is another option. These are often available for popular Jeep models.
Steps:
- Buy a compatible, SKIM-free ECU.
- Replace your existing ECU.
- Ensure proper fit and function.
This method is fast but can be expensive.
3. Key Emulator Devices
A key emulator tricks the SKIM module into thinking the correct key is present. These devices plug into the wiring harness between the key reader and SKIM.
Steps:
- Install the emulator according to instructions.
- Test the Jeep for normal starting.
Emulators are less reliable and sometimes trigger error codes.
4. Software-based Solutions
Advanced users with the right software and cables can sometimes reprogram the ECU directly. This method is complex and not recommended for beginners.
Steps:
- Connect to the ECU with a programming tool.
- Use software to disable SKIM.
- Save and test the ECU.
This method risks damaging the ECU if done incorrectly.
Comparison Of Skim Bypass Methods
Here’s a quick comparison to help you choose:
| Method | Skill Level | Cost | Reliability |
|---|---|---|---|
| SKIM Delete Service | Medium | $$ | High |
| ECU Swapping | Low-Medium | $$$ | Very High |
| Key Emulator | Medium | $ | Medium |
| Software Reprogramming | High | $ | Low-Medium |
What To Watch Out For
Bypassing SKIM can cause side effects. Here are some things many first-timers miss:
- Check engine light: Some bypass methods trigger warning lights.
- Insurance issues: Disabling factory security may affect claims.
- Resale value: A bypassed system might lower your Jeep’s resale value.
Another hidden risk: if the SKIM system is not bypassed correctly, you could lose power to important features like the radio or remote locks.

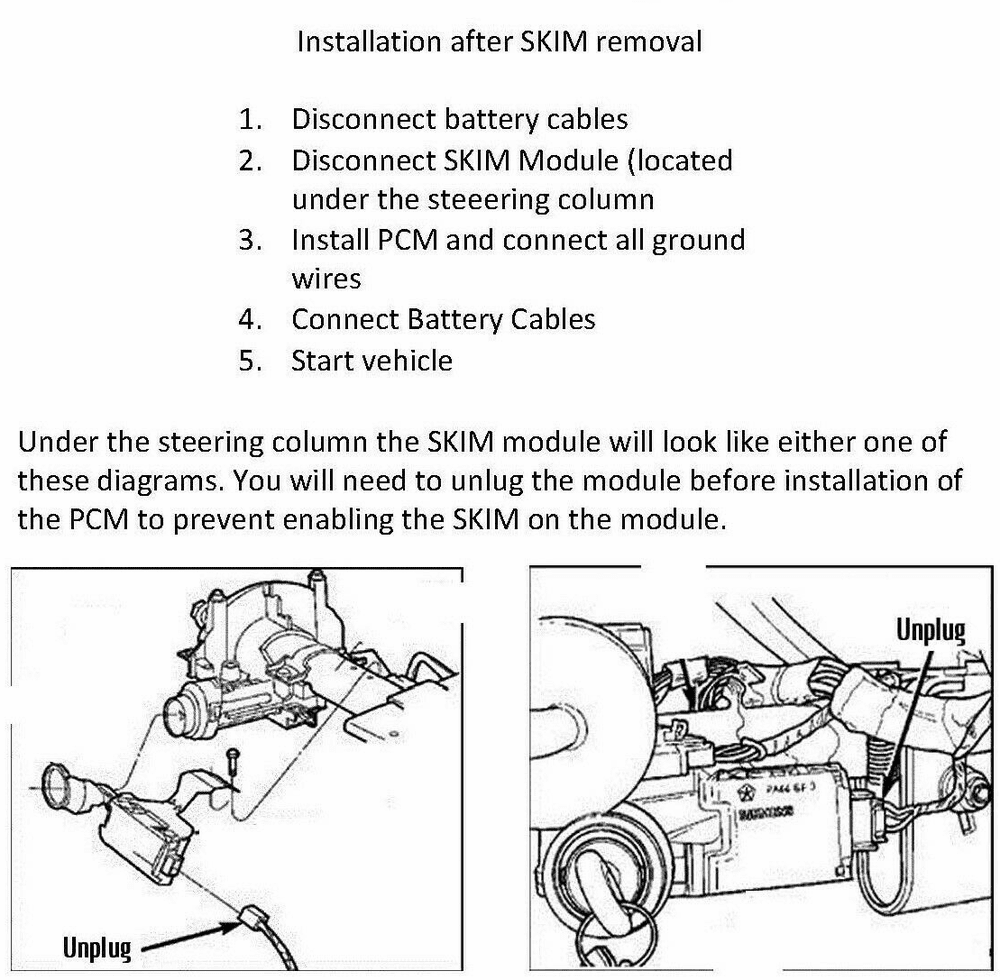

Step-by-step: Typical Skim Delete Process
Let’s look at a simplified process for a SKIM delete using a service:
- Disconnect battery: Always start by removing the negative terminal.
- Remove ECU: Usually found under the hood, attached with a few bolts.
- Label connectors: Mark wiring connectors for easy reinstallation.
- Ship ECU: Send your ECU to a trusted SKIM delete service.
- Wait for return: Most services take 2–5 days.
- Reinstall ECU: Attach wiring and bolts, reconnect the battery.
- Test Jeep: Try starting with your key. The Jeep should start, even with an unprogrammed key.
Many owners forget to label connectors, which can lead to mistakes during reinstallation.
Data: Cost Of Skim Bypass Vs Dealer Key Replacement
To see if bypassing SKIM makes sense, here’s a cost comparison:
| Option | Average Cost | Time Required |
|---|---|---|
| Dealer Key Programming | $200–$400 per key | 1–2 days |
| SKIM Delete Service | $100–$250 | 5–7 days |
| ECU Swap | $300–$500 | 1–2 hours |
As you can see, bypassing SKIM is often cheaper than buying a new programmed key, especially if you’ve lost all keys.
Legal And Security Considerations
Bypassing SKIM is legal only when you own the Jeep and can prove ownership. Never use these methods for illegal purposes.
If you plan to sell your Jeep, always inform the buyer about the modification. Some insurance companies may not cover vehicles with bypassed immobilizers.
For more details on immobilizer systems, see this Wikipedia article.
Practical Tips For Success
- Use gloves and disconnect the battery before handling the ECU.
- Take photos of wiring and connectors.
- Keep all removed bolts and parts organized.
- Research SKIM delete services before shipping your ECU.
- If you’re unsure, ask a trusted mechanic for help.
Frequently Asked Questions
What Jeep Models Use The Skim System?
Most Jeep models from the late 1990s onward use the SKIM system, including Wrangler, Cherokee, Grand Cherokee, Liberty, and Commander. Always check your manual or VIN for details.
Can I Bypass Skim Without Special Tools?
Most bypass methods require at least basic tools, like screwdrivers and socket wrenches. ECU programming and key emulators need more advanced tools.
Will Bypassing Skim Affect My Jeep’s Performance?
Bypassing only disables the immobilizer. Engine performance stays the same, but you may see warning lights if the bypass isn’t perfect.
Is A Skim Bypass Reversible?
In most cases, yes. You can reinstall a factory ECU or re-enable SKIM with dealer programming. Keep your original parts for easy reversal.
Will Bypassing Skim Void My Warranty?
Yes, bypassing SKIM usually voids any factory or extended warranty related to security or electronics.
Bypassing the SKIM system in a Jeep can be a practical solution if you’ve lost all keys or the module fails. Still, consider the risks, costs, and legal side before making any changes.
If you’re not confident, consult a professional to help you get your Jeep running again safely and legally.
