Adjusting your Jeep Wrangler’s headlights is not just about making your vehicle look good it’s about safety. Well-aligned headlights help you see clearly at night and make sure you don’t blind other drivers.
Whether you’ve installed new headlights or noticed your lights aiming too high or too low, learning how to adjust them is a skill every Jeep owner should master.
This guide will show you how to adjust headlights on Jeep Wrangler models, with practical steps, clear tips, and useful data that even beginners can follow.
Why Headlight Adjustment Matters
Many Jeep Wranglers come off-road ready, but their headlights can shift after rough driving or upgrades. Misaligned lights can reduce your night vision by up to 40% and increase accident risk. The National Highway Traffic Safety Administration (NHTSA) reports that over 50% of fatal crashes happen at night, often due to poor visibility. Proper adjustment keeps your Jeep safe and legal.
Tools And Preparation
Before you start, gather these tools:
- Phillips screwdriver
- Tape measure
- Masking tape
- Flat surface (garage floor or driveway)
- Blank wall (at least 25 feet from Jeep)
Some newer models may require a Torx screwdriver. Always check your owner’s manual for your Jeep Wrangler’s year.
Step-by-step Headlight Adjustment
Follow these steps for accurate adjustment:
1. Find A Level Surface
Park your Jeep on a flat area facing a blank wall. Make sure your tires are properly inflated and your Jeep is loaded as it usually is.
2. Measure And Mark
Use the tape measure to find the distance from the ground to the center of your headlights. Mark this height on the wall using masking tape, directly in front of each headlight.
3. Position Your Jeep
Move your Jeep so the headlights are 25 feet from the wall. This distance is standard for headlight aiming.
4. Turn On The Headlights
Switch on your low beams. You’ll see two light spots on the wall.
5. Adjust Vertical Aim

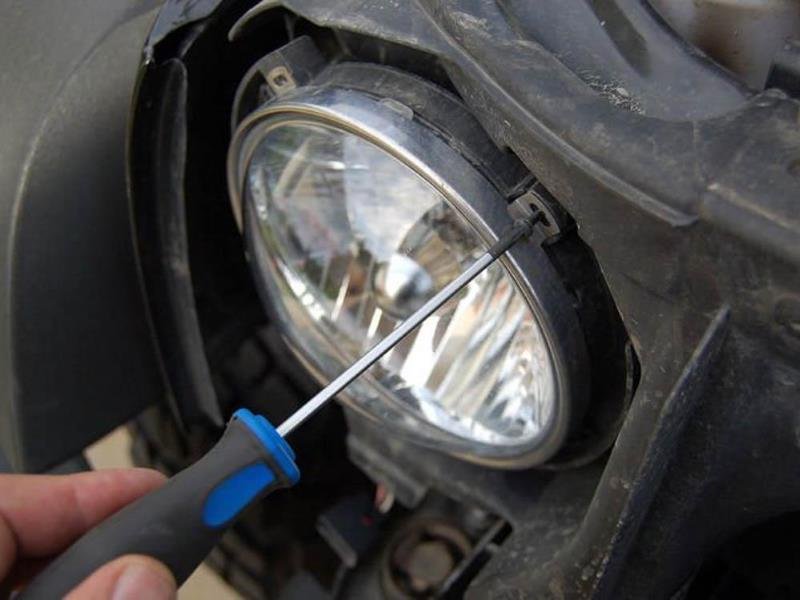

Open the hood. Find the vertical adjustment screw, usually located above or beside each headlight housing.
Turn the screw to move the beam up or down. The top of the brightest part of the beam should be at or just below the tape line.
6. Adjust Horizontal Aim
Find the horizontal adjustment screw (sometimes behind the headlight). Turn it to shift the beam left or right.
The center of the beam should line up with the tape mark for each headlight.
7. Check And Repeat
Test both headlights. If needed, repeat the steps to fine-tune the aim.
Common Mistakes
Many Jeep owners forget to check tire pressure or adjust for normal load. This can cause wrong measurements.
Also, some people only adjust one headlight, leaving the other misaligned. Always check both sides for best results.
Jeep Wrangler Headlight Adjustment Data
Below is a comparison of headlight adjustment screws for different Jeep Wrangler generations:
| Model Year | Adjustment Screw Type | Location |
|---|---|---|
| 1997-2006 (TJ) | Phillips | Above and beside headlight |
| 2007-2017 (JK) | Torx | Back of headlight housing |
| 2018-Present (JL) | Phillips | Side of headlight |
Comparing Factory Vs Aftermarket Headlights
Many Jeep owners upgrade to aftermarket headlights for brighter, whiter light. However, these often require extra adjustment. Let’s see how factory and aftermarket headlights compare:
| Headlight Type | Brightness (Lumens) | Adjustment Needed |
|---|---|---|
| Factory Halogen | 900 | Minimal |
| Aftermarket LED | 2000-3000 | High |
| Aftermarket HID | 2500-3500 | High |
If you switch to LED or HID lights, double-check alignment. These are much brighter and can blind others if misaligned.
Headlight Alignment Standards
Each state has its own rules, but most follow federal standards. Headlights should not shine more than 2 inches above the headlight center line at 25 feet. This keeps beams low enough to avoid blinding others.
Here’s a quick summary of typical legal limits:
| Beam Height (at 25 ft) | Legal Status |
|---|---|
| Below Center Line | Legal |
| At Center Line | Legal |
| 2+ Inches Above | Illegal |
Check your local laws if you’re unsure.
Practical Tips For Accurate Adjustment
- Adjust headlights when it’s dark for best results.
- Use masking tape for clear marks.
- Always adjust with normal cargo/passengers inside.
- Test on the road after adjustment—look for proper road lighting and no glare for oncoming drivers.
Some Jeep owners also use apps or laser tools for more precision, but manual adjustment is usually enough.
Frequently Asked Questions
How Often Should I Adjust My Jeep Wrangler’s Headlights?
Adjust headlights once a year or after any major suspension, tire, or headlight change. Off-roading can also shift alignment, so check after rough trips.
Can I Adjust Headlights Without Tools?
You need at least a screwdriver (Phillips or Torx). Some models allow hand adjustment, but tools give better control.
What If My Headlights Are Still Too Dim After Adjustment?
Check for dirty lenses, old bulbs, or electrical issues. Upgrading to LED or HID bulbs can improve brightness, but always align them properly.
Is It Legal To Use Aftermarket Headlights?
Yes, but they must meet federal and state brightness and alignment standards. Improperly aimed headlights can result in fines. See official rules at NHTSA.
Why Does One Headlight Aim Higher Than The Other?
Often caused by uneven adjustment or worn suspension. Recheck measurements, adjust both sides, and inspect for mechanical issues.
Getting your Jeep Wrangler’s headlights aligned may seem tricky, but with the right steps, tools, and a little patience, it’s a simple job that boosts safety and performance.
A well-adjusted light lets you drive confidently, whether you’re cruising city streets or exploring off-road trails.
Remember, a few minutes spent now can prevent problems and keep you and others safe every night.
