Changing the tail light on a Jeep Patriot might sound like a small task, but it’s essential for your safety and staying legal on the road. Many drivers put off replacing a broken tail light, thinking it’s complicated or expensive. In reality, with a few tools and the right steps, you can do it yourself in less than an hour—even if you’re not a car expert. This guide will walk you through the process, highlight common mistakes, and give you some insider tips that will make the job even easier.
Why Tail Lights Matter On Your Jeep Patriot
Tail lights are more than just red glass at the back of your car. They let other drivers see you at night, in the rain, or fog.
If a tail light is out, other drivers may not notice you braking or turning, increasing the risk of an accident.
Police can also fine you for broken or missing tail lights. For the Jeep Patriot known for its practical design and everyday reliability keeping your tail lights working is an easy way to keep your vehicle safe and roadworthy.
Signs Your Jeep Patriot Tail Light Needs Changing
Sometimes, it’s obvious when you need to change a tail light. But not all problems are easy to spot right away. Here are a few signs to watch for:
- The light is completely out when you turn on your headlights or brake.
- The tail light lens is cracked or broken, letting water or dirt inside.
- The light is dim or flickering instead of shining steadily.
- You notice condensation inside the tail light assembly.
- Other drivers, or even police, signal you about a faulty light.
A quick way to check is to turn on your vehicle, activate the lights, and walk around the back. If you see any of the issues above, it’s time for a change.
What You’ll Need To Change A Jeep Patriot Tail Light
Before you begin, gather these tools and materials:
- Replacement tail light bulb (double-check the part number in your owner’s manual)
- Screwdriver (usually Phillips, but some years may need Torx)
- Socket wrench set
- Gloves (optional, to avoid skin oils on the bulb)
- Clean cloth
You may also need a new tail light assembly if the plastic is broken. Always check your parts before starting you don’t want to take things apart and realize you’re missing something.
Step-by-step Guide: Changing The Tail Light Bulb
1. Turn Off The Vehicle
Always start with your Jeep Patriot turned off and the keys out of the ignition. This prevents accidental shocks or short circuits.

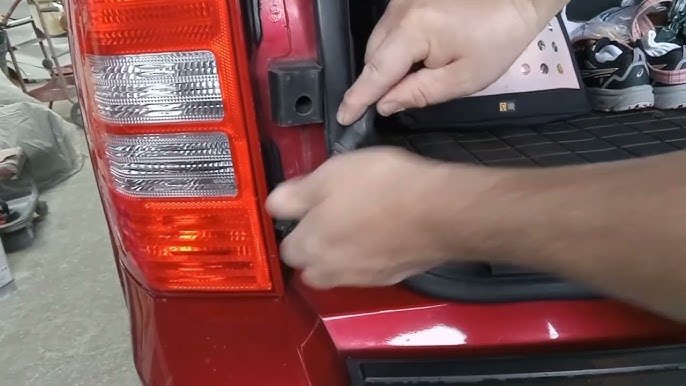

2. Open The Rear Hatch
Lift the back hatch to access the screws holding the tail light assembly. In most Jeep Patriots, these screws are visible along the side of the tail light.

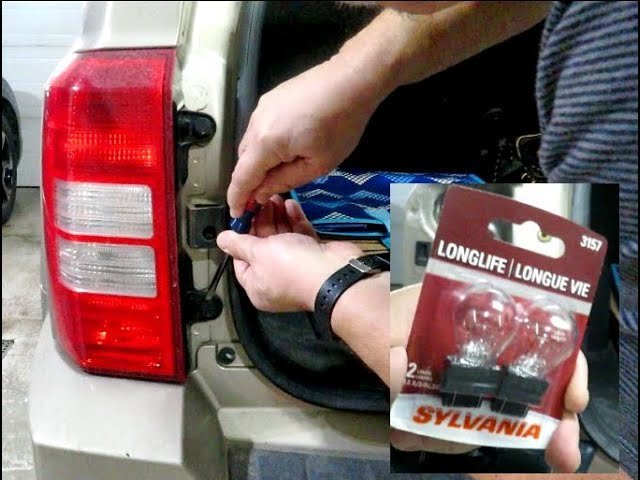

3. Remove The Tail Light Assembly
Use your screwdriver or socket wrench to remove the screws. Place the screws in a safe spot you’ll need them to reattach the assembly later.
Gently pull the tail light assembly away from the body. If it feels stuck, wiggle it gently.
Don’t use too much force; you could crack the plastic.
4. Disconnect The Wiring Harness
Behind the assembly, you’ll see a wiring harness. Squeeze the tab and pull the connector out.
This step is crucial never try to change the bulb with the assembly still connected.
5. Remove And Replace The Bulb
Find the bulb holder (usually a twist-and-pull design). Remove the old bulb.
Check the socket for corrosion or dirt clean it if needed. Insert the new bulb, making sure it sits firmly in the socket.
6. Test The New Bulb
Reconnect the wiring harness and, before reattaching the assembly, ask someone to turn on the vehicle and lights. Check if the new bulb works.
If it doesn’t, double-check the connection and the bulb’s fit.
7. Reassemble Everything
Once you’re sure the new bulb works, reconnect the wiring harness, fit the tail light assembly back into place, and tighten the screws. Close the hatch and check the lights one more time.
Replacing The Whole Tail Light Assembly
If your tail light assembly is cracked, broken, or letting in water, it’s best to replace the whole unit. The steps are almost the same as for a bulb change, except:
- After removing the screws and wiring harness, take out the old assembly completely.
- Fit the new assembly into place, making sure it lines up with the screw holes.
- Reconnect the wiring harness and test all lights—brake, turn signal, and running light.
- Tighten everything securely.
Here’s a comparison of when you need to change only the bulb versus the whole assembly:
| Situation | Change Bulb Only | Replace Assembly |
|---|---|---|
| Bulb is out, lens is fine | ✓ | |
| Cracked or broken lens | ✓ | |
| Water inside assembly | ✓ | |
| Socket is corroded | ✓ |
Choosing The Right Tail Light Bulb Or Assembly
Jeep Patriot models (2007–2017) may use slightly different bulbs and assemblies. Always check your owner’s manual for the exact part number. If you buy online, match the part number and check the reviews. Here’s a quick look at some common options:
| Model Year | Bulb Type | Assembly Part Number |
|---|---|---|
| 2007–2010 | 3157 (dual filament) | 5113332AA |
| 2011–2017 | 3157K (long life) | 68272612AA |
Non-obvious tip: Some aftermarket assemblies come with bulbs included, while others don’t. Always double-check before buying, so you don’t get stuck with missing parts.
Common Mistakes When Changing Tail Lights
Even a simple job like this can go wrong if you’re not careful. Here are mistakes people often make:
- Touching the new bulb with bare fingers. The oil from your skin can cause the bulb to burn out faster. Use gloves or a cloth to handle the bulb.
- Forgetting to test the bulb before closing everything up. Save time by testing the lights before reattaching the assembly.
- Using the wrong bulb type. Always match the bulb to your model year and trim.
- Over-tightening screws. This can crack the assembly or strip the screw holes.
- Not checking the fuse if the new bulb doesn’t work. Sometimes, a blown fuse is the real problem.
Tail Light Troubleshooting: When A New Bulb Doesn’t Fix It
If you’ve changed the bulb and the tail light still doesn’t work, don’t panic. Here are a few troubleshooting steps:
- Check the fuse box. Look for the tail light fuse (see your manual for the exact location). If the fuse is blown, replace it with one of the same rating.
- Look for corroded or dirty sockets. Clean with electrical contact cleaner if needed.
- Check wiring connections. Loose or frayed wires can stop the light from working.
- Switch the working bulb to the non-working side. This helps you figure out if it’s a socket or wiring problem.
If none of these solve the issue, it may be time for a mechanic. Some wiring issues are best left to the pros.
How Much Does It Cost To Change A Jeep Patriot Tail Light?
Costs vary depending on whether you’re replacing just the bulb or the whole assembly, and if you do it yourself or go to a mechanic.
| Part / Service | Do It Yourself | Mechanic / Dealer |
|---|---|---|
| Bulb | $5–$10 | $25–$50 (with labor) |
| Assembly | $40–$120 | $100–$300 (with labor) |
Insider tip: Online auto parts stores often have better prices than local shops, but shipping can take longer. Planning ahead saves money.
Practical Tips For Success
- Work in daylight or use a bright LED work light. Shadows make it easy to miss screws or drop small parts.
- Take a photo before removing any wiring. This helps you remember where each wire or connector goes.
- Keep small parts in a cup or magnetic tray. Lost screws are a common headache.
- Test all rear lights (brake, turn, reverse) after reassembly, not just the tail light.
- Check for recalls. Sometimes, manufacturers recall lights for safety reasons. You can check your Jeep’s VIN on the official NHTSA website.
When To Ask For Professional Help
Most Jeep Patriot owners can handle a tail light change, but some situations need a pro:
- The light still doesn’t work after changing the bulb and checking the fuse.
- There’s visible damage to the wiring.
- The assembly doesn’t fit or align correctly.
- You’re uncomfortable working with car electronics.
A skilled mechanic can diagnose and fix deeper issues, especially if water or rust has damaged the wiring.
Keeping Your Tail Lights Working Longer
To avoid frequent replacements:
- Check your lights monthly.
- Avoid cheap bulbs. They can burn out faster or fit poorly.
- Clean the tail light lens if you notice dirt or fogging.
- Seal any small cracks with clear tape until you can replace the assembly.
- Park in a garage or use a cover if possible to reduce sun and water damage.
Frequently Asked Questions
How Often Do Jeep Patriot Tail Light Bulbs Burn Out?
Most tail light bulbs last 3 5 years, but heavy use or bumpy roads can shorten their life. If you replace one bulb, it’s smart to check the other side the second bulb often fails soon after the first.
Can I Use Led Bulbs Instead Of Standard Bulbs?
Yes, you can upgrade to LED bulbs for longer life and brighter light, but make sure they’re compatible with your Jeep Patriot’s socket and electronics. Some LED bulbs may need a special resistor to prevent flickering or warning lights.
Is It Legal To Drive With One Tail Light Out?
No, it’s illegal in most states to drive with any tail light not working. Police can issue a ticket, and insurance claims may be affected if you’re in an accident with broken lights.
Do I Need To Disconnect The Battery Before Changing The Bulb?
It’s not required for a simple bulb change, but if you’re replacing the whole assembly or working with wiring, disconnecting the negative battery cable is a safe step. This prevents accidental shorts.
Where Can I Find Official Replacement Parts For My Jeep Patriot?
You can find genuine parts at Jeep dealerships or trusted online retailers. For more details on part numbers and fitment, visit the Mopar Parts Catalog.
Changing your Jeep Patriot tail light isn’t just about fixing a small issue it’s about keeping your car safe, legal, and reliable. With the right tools, a little patience, and the steps above, you’ll be back on the road in no time.
