If your Jeep Grand Cherokee shows the U0403 00 trouble code, it can be confusing because the symptoms often feel like a transmission problem. You may notice warning lights, rough shifting, delayed response, trouble switching drive modes, or a Service 4WD System message.
In most cases, though, U0403 00 does not mean the transmission itself has failed. This code usually points to a communication problem involving the Transfer Case Control Module, also called the TCCM.
The transfer case is the part of your Jeep’s drivetrain that helps send power to the front and rear wheels. When the control module receives bad, missing, or confusing data from this system, it stores the U0403 00 code.
Below, you’ll learn what this code means, what causes it, how to diagnose it step by step, and which OBD2 scanners can help you fix it faster.
What Does U0403 00 Mean on a Jeep Grand Cherokee?
The U0403 00 code usually means:
Invalid data received from the Transfer Case Control Module.
In simple words, one of your Jeep’s computers is getting information from the transfer case system, but that information does not look correct.
Your Jeep has several control modules that constantly communicate with each other. These include the engine module, transmission module, ABS module, body control module, and transfer case module.
When one module sends data that is missing, delayed, corrupted, or outside the expected range, the Jeep stores a communication code like U0403 00.
This is why the problem can feel serious. The Jeep may not know exactly what position the transfer case is in, or it may not trust the data coming from the 4WD system.
Is U0403 00 a Transmission Problem?
Not usually.
Many drivers call it a transmission issue because the symptoms can feel like slipping, hesitation, or harsh shifting. But U0403 00 is more commonly related to the transfer case, 4WD system, wiring, sensors, shift motor, battery voltage, or control module communication.
That said, the transmission and transfer case work closely together. If the transfer case system sends bad data, the Jeep may change how the transmission behaves to protect the drivetrain.
Common Symptoms of U0403 00
Your Jeep Grand Cherokee may show one or more of these symptoms:
- Check engine light
- Service 4WD System warning
- Traction control light
- ABS warning light
- Jeep stuck in 2WD, 4WD High, or 4WD Low
- Drive mode selector not responding
- Rough shifting or delayed engagement
- Clunking when changing drive modes
- Limp mode or reduced power
- Poor throttle response
- Warning lights that appear and disappear
- No response from terrain select modes
Sometimes the Jeep may drive normally, then show the warning again after restarting. This often happens when the issue is intermittent, such as a weak battery, loose connector, or damaged wiring.
Can You Drive With U0403 00?
You may be able to drive a short distance if the Jeep feels normal, but you should not ignore the code.
If the transfer case system is not communicating correctly, your Jeep may not switch drive modes properly. That can be risky in rain, snow, mud, or off-road conditions.
It can also leave the vehicle stuck in the wrong range.
Avoid towing, off-roading, hard acceleration, and unnecessary 4WD mode changes until the problem is diagnosed.
Most Common Causes of U0403 00
1. Weak Battery or Low Voltage
A weak battery is one of the most overlooked causes of communication codes.
Modern Jeep Grand Cherokees depend heavily on stable voltage. If the battery is weak, old, or undercharged, modules may stop communicating correctly.
This can trigger U-codes even when the module itself is not bad.
Before replacing expensive parts, always test the battery first.
2. Bad Alternator or Charging Problem
Even if the battery is good, the alternator must keep voltage stable while the engine runs.
If charging voltage is too low or jumps around, the transfer case module may send bad data or drop offline. This can cause intermittent U0403 00 warnings.
3. Damaged Wiring
Wiring near the transfer case is exposed to heat, water, road salt, mud, and vibration.
A rubbed wire, broken harness, or loose connector can interrupt communication between the transfer case module and other systems. This is especially common on vehicles used off-road or driven in wet climates.
4. Corroded Connectors
Corrosion inside connectors can block signals or create resistance.
Even a small amount of green corrosion on a pin can cause the module to send incorrect data. The connector may look fine outside but be dirty or wet inside.
5. Bad Ground Connection
Control modules need clean power and clean ground.
A rusty, loose, or contaminated ground point can make the transfer case system act strangely. Bad grounds can cause warning lights, module communication failures, and intermittent codes.
6. Faulty Transfer Case Shift Motor
The shift motor moves the transfer case between drive ranges.
If the shift motor sticks, fails, or moves too slowly, the module may not receive the expected position signal. This can make the Jeep think something is wrong with the transfer case system.
7. Bad Transfer Case Position Sensor or Encoder
The position sensor tells the Jeep which mode the transfer case is in.
If this sensor sends the wrong signal, the control module may report invalid data. The Jeep may then store U0403 00 and show a Service 4WD warning.
8. Faulty Transfer Case Control Module
The Transfer Case Control Module itself can fail, but this should not be your first guess.
A module replacement can be expensive and may require programming. Always check battery voltage, wiring, fuses, grounds, and sensors first.
9. Software Issue
Some communication problems can be caused by outdated module software.
A dealer or qualified shop may be able to update the control module software. This is often called a flash update or reprogramming.
10. Internal Transfer Case Problem
In less common cases, the transfer case may have an internal mechanical problem.
If the shift motor is working but the transfer case cannot physically move into the correct range, the system may set a fault code. This usually requires deeper inspection by a mechanic.
Tools You Need
To diagnose U0403 00 properly, you may need:
- OBD2 scanner with all-system diagnostics
- Digital multimeter
- Battery tester
- Basic socket set
- Fuse tester or test light
- Electrical contact cleaner
- Dielectric grease
- Jack stands, if inspecting underneath
- Wiring diagram for your Jeep’s model year
A basic code reader may only show the engine code. For this repair, a better scanner is helpful because you may need to read the transfer case module, transmission module, ABS module, and body control module.
Recommended OBD2 Scanners for U0403 00
For this code, choose a scanner that can read all vehicle systems, not just the engine computer.

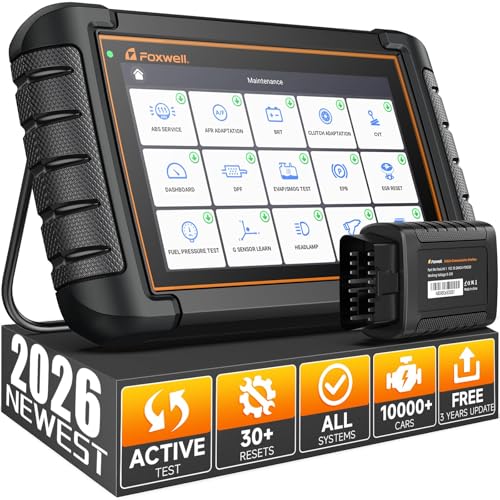

Foxwell NT809BT
The Foxwell NT809BT is a good option for Jeep owners who want full-system diagnostics and bi-directional testing. It can help you scan more than just the check engine light and may help you inspect transfer case-related modules.
- 【🚀𝗡𝗧𝟴𝟬𝟵𝗕𝗧 | 𝗞𝗲𝘆 𝗙𝗲𝗮𝘁𝘂𝗿𝗲𝘀】 ✅ Wireless & AutoVIN: 65ft range, full makes, supports CAN-FD/DOIP/FCA Auth ✅ 30+ Special Functions: ABS…
LAUNCH CRP919 MAX
The LAUNCH CRP919 MAX is a stronger choice for serious DIY users. It supports wide vehicle coverage, active tests, and service functions. For a U0403 00 diagnosis, this can help you check whether modules are communicating and whether components respond correctly.
- 【2026 Most-cost-effective LAUNCH Scanner】 LAUNCH X431 CRP919XBT, upgraded from CRP919X, includes a VCI for wireless data transmission (3Mbps max). ✅HARDWARE: MTK’s chip + doubled memory…
Autel MaxiCOM MK808BT Pro
The Autel MaxiCOM MK808BT Pro is another solid all-system scanner. It can read and erase codes from available vehicle systems, view live data, and perform active tests on supported vehicles.
- 👨🎓Tips Before Order: 🚩All function are vehicle-specific – send VIN(17 digits)/Make/Model/Year & needed function via 📞auteldirect @ outlook . com📞 to check before order. 🚩Register…
OBDLink MX+
The OBDLink MX+ is a Bluetooth scanner that works with a phone or tablet. It is useful for quick checks, live data, and basic code reading. It is easy to keep in the glove box.
However, for U0403 00, it may not replace a professional all-system scanner if you need transfer case active tests or deeper module access.
- Turn your iPhone, Android device, or Windows PC into a professional grade diagnostic scan tool.
Buying tip: Before purchasing, confirm that the scanner supports your exact Jeep Grand Cherokee year, engine, drivetrain, and any FCA secure gateway requirements.
Step-by-Step Guide to Fix U0403 00
Step 1: Check the Battery
Start with the battery because low voltage can create false communication codes.
Turn the Jeep off and check battery voltage with a multimeter. A healthy, fully charged battery should usually read around 12.6 volts. If it reads closer to 12.0 volts or lower, the battery may be weak or discharged.
Then start the engine and check charging voltage. With the engine running, voltage should usually be around 13.5 to 14.7 volts.
If the battery is old, weak, or fails a load test, replace it before continuing diagnosis.
Step 2: Scan All Modules
Do not scan only the engine computer.
Use an all-system scanner and check these modules:
- Engine control module
- Transmission control module
- Transfer case control module
- ABS module
- Body control module
- Drivetrain control modules
Write down every code before clearing anything. If you see multiple communication codes, the issue may be voltage, wiring, ground, or CAN bus communication.
Clear the codes only after recording them. Then restart the Jeep and see which codes return first.
Step 3: Check Fuses and Relays
A blown fuse can stop the transfer case module or shift motor from working.
Find the fuse box diagram for your Jeep’s model year and check fuses related to the drivetrain, 4WD system, transfer case, transmission, and control modules.
Do not rely only on a visual inspection. Use a fuse tester or multimeter.
A fuse can look normal but still fail under load.
If a fuse blows again after replacement, there may be a short circuit.
Step 4: Inspect Wiring Under the Jeep
Look closely at the wiring near the transfer case.
Check for:
- Broken wires
- Loose connectors
- Corroded pins
- Water inside connectors
- Melted insulation
- Harness rubbing against metal
- Mud, salt, or oil buildup
This area takes a lot of abuse from road debris and moisture. If you find damaged wiring, repair it properly before replacing sensors or modules.
Step 5: Clean the Connectors
Disconnect the transfer case-related connectors carefully.
Look for green corrosion, bent pins, moisture, dirt, or loose terminals. Spray the connector with electrical contact cleaner and let it dry completely.
After cleaning, reconnect it firmly. A loose connector can cause intermittent problems that come and go randomly.
Step 6: Check the Grounds
Bad grounds can make good parts act badly.
Find the ground points related to the drivetrain and transfer case system. Remove the bolt if accessible, clean the metal contact surface, and tighten it securely.
A rusty ground can interrupt module communication and trigger U0403 00.
Step 7: Test the Transfer Case Shift Motor
The shift motor is responsible for physically changing transfer case modes.
If it fails, the Jeep may not shift into the requested drive range. You may hear clicking, grinding, or no sound at all when selecting a mode.
With a capable scan tool, command the shift motor and watch live data. The requested position and actual position should match.
If the motor does not respond, but power and ground are good, the shift motor may need replacement.
Step 8: Test the Position Sensor or Encoder
The position sensor tells the module where the transfer case is.
If the sensor reports the wrong position, the Jeep may think the transfer case is in one mode when it is actually in another. This can trigger U0403 00 and Service 4WD warnings.
A mechanic can test the sensor’s voltage or resistance and compare it with factory specifications.
Step 9: Check for Software Updates
If all physical parts test good, the issue may be software-related.
A Jeep dealer or qualified repair shop can check for module updates. A software update may improve communication between the transfer case module, transmission module, and powertrain system.
Step 10: Clear Codes and Test Drive
After fixing the problem, clear the codes with your scanner.
Then test drive the Jeep carefully. Check normal acceleration, low-speed turns, and drive mode changes.
If safe and appropriate, test 4WD High and 4WD Low according to the owner’s manual.
After the drive, scan the Jeep again. If U0403 00 does not return, the repair was likely successful.
When Should You Replace the Transfer Case Control Module?
Replace the TCCM only after checking everything else.
Before replacing it, confirm:
- Battery voltage is good
- Alternator output is stable
- Fuses are good
- Grounds are clean and tight
- Wiring is not damaged
- Connectors are clean
- Shift motor works correctly
- Position sensor tests properly
- Software updates have been checked
A new control module may need programming, so guessing can get expensive fast.
Quick Diagnosis Checklist
Use this order to save time:
- Test battery voltage.
- Test alternator charging voltage.
- Scan all modules.
- Record all codes.
- Check fuses and relays.
- Inspect transfer case wiring.
- Clean connectors.
- Check ground points.
- Test the shift motor.
- Test the position sensor.
- Check for software updates.
- Clear codes and test drive.
Conclusion
The U0403 00 code on a Jeep Grand Cherokee usually points to a transfer case communication issue, not a failed transmission. The problem can be as simple as a weak battery or dirty connector, or it can involve the shift motor, position sensor, wiring, or transfer case control module.
Start with the easy checks first. Battery, fuses, wiring, connectors, and grounds should always be inspected before replacing expensive parts.
Fixing U0403 00 early helps protect your 4WD system, prevents bigger drivetrain problems, and keeps your Jeep ready for daily driving, towing, bad weather, and off-road use.
