Pro Comp Wheels Jeep XJ: Ultimate Off-Road Upgrade

The Jeep Cherokee XJ is a legend. For many off-road enthusiasts, it represents a perfect blend of capability, affordability, and compact size.

When it comes to upgrading this iconic vehicle, one of the most impactful changes you can make is to swap out the stock wheels for something more robust and stylish.

Pro Comp wheels are a popular choice for XJ owners, offering a wide range of designs and durable construction built for the demands of the trail.

Choosing the right wheels is more than just an aesthetic decision; it’s about performance, fitment, and how they’ll handle the abuse of off-roading. Pro Comp has a long history in the aftermarket wheel and suspension industry, and their offerings for the Jeep Cherokee XJ are designed with specific needs in mind.

Whether you’re looking for increased ground clearance, better tire fitment, or just a tougher look, understanding the options available from Pro Comp can help you make the best choice for your build. This guide will explore the various Pro Comp wheel options for the Jeep XJ, discussing key features, fitment considerations, and what makes them a go-to brand for many Jeep owners.

What’s Inside show

Understanding Wheel Specifications For Your Jeep Xj

Before diving into specific Pro Comp models, it’s crucial to understand the language of wheels. Incorrect specifications can lead to rubbing, poor handling, or even unsafe driving conditions. For a Jeep Cherokee XJ, several key specifications are vital:

Bolt Pattern: The XJ uses a 5×4.5-inch (or 5×114.3mm) bolt pattern. This means there are five lug nuts arranged in a circle with a diameter of 4.5 inches. It’s essential to ensure any wheel you choose has this exact pattern.
Center Bore: This is the hole in the center of the wheel that fits over your Jeep’s hub. While not always a critical factor if using hub-centric rings, a matching or slightly larger center bore is preferred.
Offset/Backspacing: This is perhaps the most critical spec for fitment.
Offset is the distance from the wheel’s mounting surface to the centerline of the wheel. A negative offset pushes the wheel outward, while a positive offset pushes it inward.
Backspacing is the distance from the back of the wheel mounting surface to the outer lip of the wheel.

For the Jeep XJ, a common and desirable setup for larger tires (31-33 inches) is a negative offset or low backspacing (typically around 3.75 to 4 inches). This helps move the tire away from the suspension components and fenders, reducing rubbing issues. Stock XJs usually have a positive offset or higher backspacing.

Diameter and Width: Common wheel diameters for the XJ range from 15 inches to 17 inches. Larger diameters (like 17s) allow for larger brake upgrades, while smaller diameters (like 15s) are often preferred for maximum tire sidewall flex off-road. Wheel width typically ranges from 7 to 9 inches. A wider wheel generally provides better support for wider tires.

Pro Comp offers wheels that cater to these specifications, often designed with enthusiasts in mind. They provide options that allow for aggressive stances and the fitment of larger, more capable tires without excessive modification.

Popular Pro Comp Wheel Series For The Jeep Xj

Pro Comp offers several wheel series that are well-suited for the Jeep Cherokee XJ. Each series has its own distinct style and construction, catering to different aesthetic preferences and performance needs.

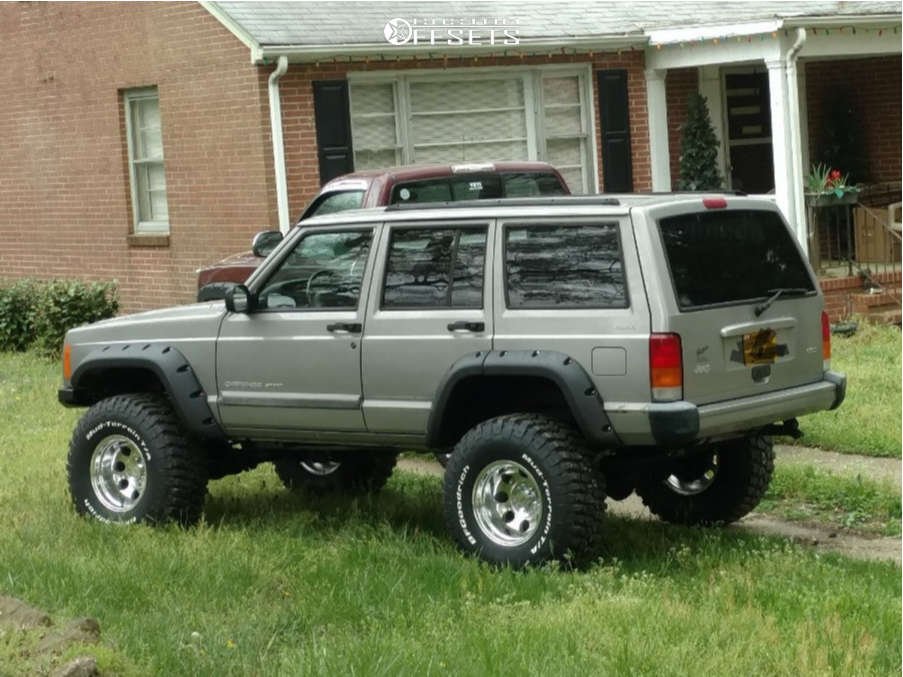

Pro Comp 69 Series (vintage Crawler)

The Pro Comp 69 Series is a classic choice, often referred to as the “Vintage Crawler.” This wheel features a rugged, multi-spoke design that harks back to older off-road rigs.

Design: It has a clean, utilitarian look with a simulated beadlock outer ring. This design not only looks tough but can also offer some protection to the wheel’s edge.
Construction: These wheels are typically made from cast aluminum, offering a good balance of strength and weight.
Fitment: Pro Comp commonly offers the 69 Series in sizes like 15×8 and 15×10 with the correct 5×4.5 bolt pattern and favorable backspacing (often around 3.75 inches for 15×8) for the XJ, making them a direct fit for many builds aiming for a classic off-road aesthetic.
Pros: Affordable, classic looks, good backspacing for larger tires.
Cons: Cast aluminum might be less durable under extreme rock-crawling stress compared to forged wheels.

Pro Comp 7069 Series (rock Crawler)

A close relative to the 69 Series, the Pro Comp 7069 Series offers a similar aesthetic but with some design tweaks. It’s another very popular choice for Jeep owners.

Design: This wheel also features a simulated beadlock look, but the spoke pattern is slightly more intricate. It maintains a strong, functional appearance.
Construction: Like the 69 Series, it’s typically constructed from cast aluminum.
Fitment: Available in common XJ sizes such as 15×8 and 17×9, with appropriate bolt patterns and backspacing for accommodating larger tires. The 17-inch options are great for those wanting to run larger brake kits or prefer the look of a smaller sidewall.
Pros: Aggressive styling, good value, widely available in suitable sizes.
Cons: Similar to the 69 Series, cast aluminum might not be the top choice for extreme rock crawling.

Pro Comp 05 Series (rogue)

The Pro Comp 05 Series, often called the “Rogue,” presents a more modern and aggressive design. This wheel is for those who want their Jeep to stand out.

Design: It features a split-spoke design with sharp angles and a deep lip, giving it a bold, contemporary look. The simulated beadlock ring is more pronounced here, adding to its rugged appeal.
Construction: These are also typically made from cast aluminum.
Fitment: Available in various sizes, including 17-inch diameters, which are popular for their ability to clear larger brake calipers and allow for a wider range of tire sizes. Proper backspacing is crucial for XJ fitment, and Pro Comp usually offers options around 4.75 inches for 17×9 wheels, which can work well with fender modifications or mild lifts.
Pros: Modern, aggressive styling, good for larger brake upgrades.
Cons: The design might be too flashy for some traditionalists; requires careful backspacing selection for XJs.

Pro Comp 83 Series (rogue)

Another variation in the “Rogue” line, the Pro Comp 83 Series offers a slightly different take on the modern, aggressive wheel.

Design: This wheel often features a mesh-like or intricate multi-spoke pattern with a simulated beadlock. It can appear more complex and detailed than the 05 Series.
Construction: Again, typically cast aluminum.
Fitment: Available in popular sizes like 17×9, with backspacing considerations similar to the 05 Series. The key is to ensure it doesn’t push the tire too far out or rub on the UCA (Upper Control Arm) at full lock.
Pros: Unique, detailed design, good for custom builds.
Cons: Can be a bit busy for some tastes; backspacing is key for XJ fitment.

Pro Comp Wheels Jeep XJ: Ultimate Off-Road Upgrade

Key Considerations When Choosing Pro Comp Wheels For Your Xj

Beyond the specific series, several factors are crucial when selecting Pro Comp wheels to ensure they perform well and fit correctly on your Jeep Cherokee XJ.

Tire Size And Lift Height Synergy

The wheels and tires you choose must work together, and their combination often dictates the need for a suspension lift.

Tire Size: For a Jeep XJ, 31-inch tires are often considered the maximum that can be fitted with minimal or no lift (perhaps with fender trimming). For 32-inch or 33-inch tires, a 2-inch to 4.5-inch lift is typically required to prevent significant rubbing on fenders, body panels, and suspension components.
Wheel Diameter: While 15-inch wheels are popular for their ability to maximize tire sidewall for off-road articulation, 16-inch and 17-inch wheels are also common. 17-inch wheels are often chosen to accommodate larger brake kits, which can be a significant upgrade for older vehicles like the XJ.
Pro Comp’s Role: Pro Comp offers wheels in various diameters and widths designed to accommodate these popular tire sizes. Their focus on off-road applications means they often provide wheels with suitable backspacing that aids in clearing suspension and bodywork when larger tires are installed.

Material And Durability

Pro Comp wheels are predominantly made from cast aluminum. This material offers a good compromise between strength, weight, and cost.

Cast Aluminum: It’s strong enough for most off-road use, including trails and moderate rock crawling. It’s also relatively lightweight, which can help with unsprung weight, potentially improving handling and fuel economy slightly.
Forged Wheels: For extreme rock crawling or competitive off-roading where ultimate strength and impact resistance are paramount, forged aluminum wheels are superior. However, they are significantly more expensive and less common from brands like Pro Comp for the XJ. For the vast majority of XJ owners, Pro Comp’s cast aluminum wheels are more than sufficient.
Steel Wheels: While not typically offered by Pro Comp in their main lines for the XJ, steel wheels are known for their extreme durability and repairability off-road, but they are considerably heavier.

Aesthetics And Finish

Pro Comp offers wheels in various finishes to complement your Jeep XJ’s look:

Satin Black: A very popular choice, offering a stealthy, rugged appearance that hides brake dust and dirt well.
Gloss Black: For a shinier, more striking look.
Machined/Gray Finishes: Often combined with black accents, these offer a more complex, premium look.
Chrome: Less common on modern off-road wheels but still an option for some styles.

The simulated beadlock ring on many Pro Comp models adds an aggressive, functional aesthetic, even if it’s not a true beadlock designed for extreme tire pressures.

Fitment And Installation: What To Expect

Getting the right fitment is crucial. When ordering Pro Comp wheels for your Jeep XJ, always double-check the specifications against your vehicle’s needs and any modifications you’ve made.

Backspacing And Rubbing

As mentioned, backspacing is key. A lower backspacing (e.g., 3.75 inches on a 15×8 wheel) pushes the wheel and tire further out from the hub. This is generally good for XJs as it helps clear the UCA and fender. However, too little backspacing can cause the tire to rub excessively on the fender flares or the firewall at full steering lock.

Pro Tip: For a Jeep XJ with a mild lift (2-3 inches) and aiming for 31-inch tires, a 15×8 wheel with 3.75 inches of backspacing is often a sweet spot. For larger tires (33 inches) and more lift (4+ inches), you might still run into rubbing issues, especially at the rear of the front fender well, requiring further trimming or adjustment.

Tire Pressure Monitoring System (tpms)

If your Jeep XJ came equipped with a TPMS, you’ll need to ensure the new wheels can accommodate the sensors. Most aftermarket wheels, including Pro Comp’s, are designed to work with factory TPMS sensors, but it’s always wise to confirm.

You may need to purchase new sensors or transfer your old ones.

Lug Nuts

Aftermarket wheels often require different lug nuts than stock wheels. Pro Comp wheels typically use tapered (conical) seat lug nuts. Ensure you purchase the correct type and size for your Pro Comp wheels and your XJ’s studs.

Hub-centric Rings

While not always mandatory, using hub-centric rings is recommended. These plastic or metal rings fit between the wheel’s center bore and your Jeep’s hub, ensuring the wheel is perfectly centered. This reduces vibrations and stress on your wheel studs. Pro Comp wheels can accommodate these rings if needed.

Pro Comp Wheel Performance On The Trail

Pro Comp wheels are designed with off-road performance in mind, and this translates to the Jeep XJ experience.

Handling And Ride Quality

The choice of wheel diameter and width, combined with tire size, impacts handling.

15-inch Wheels: These allow for more sidewall on the tire. More sidewall means the tire can compress and flex more easily over obstacles, providing better traction and a smoother ride on rough terrain. However, they can sometimes feel less precise on paved roads due to tire flex.
17-inch Wheels: These require tires with shorter sidewalls. While this can offer more responsive steering on-road and better protection against tire damage from sharp rocks, it reduces the tire’s ability to absorb impacts off-road, potentially leading to a harsher ride and less flex.

Pro Comp’s offerings in various sizes allow XJ owners to tune their ride quality and handling based on their priorities.

Strength And Durability Under Load

While Pro Comp wheels are cast aluminum, they are engineered to withstand the rigors of off-roading. The simulated beadlock designs, in particular, add a layer of protection to the outer rim, which is often the first part of the wheel to encounter impacts on the trail.

Example: Imagine driving over a rocky trail. The wheel’s lip can easily contact sharp rocks. A reinforced lip, like the simulated beadlock on Pro Comp 69 or 7069 series, can help deflect impacts and prevent catastrophic damage, allowing you to continue your journey.

Weight Considerations

Lighter wheels can contribute to better acceleration, braking, and fuel efficiency. While Pro Comp wheels are not the lightest on the market, their cast aluminum construction is a significant improvement over heavier steel wheels and offers a good balance for daily driving and off-road use.
