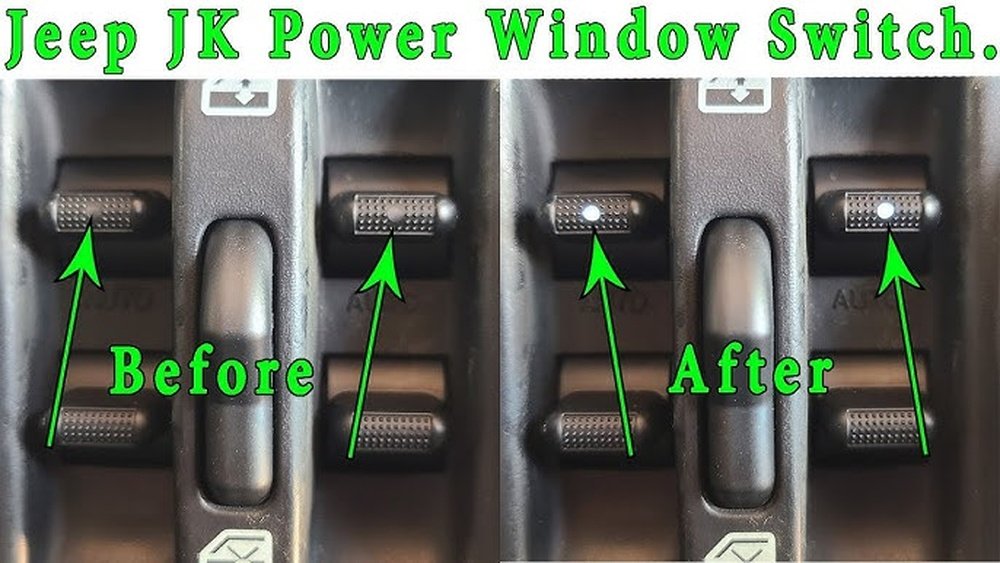

If your Jeep Wrangler window switch stops working, it’s more than a small annoyance. Power windows are important for comfort, safety, and sometimes even for fresh air when off-roading. Many owners experience window switch issues after years of use or due to water and dust getting inside the door. Replacing the window switch is a straightforward repair you can do at home with some basic tools. This guide explains everything you need to know to replace your Jeep Wrangler’s window switch quickly and correctly.
When To Replace Your Jeep Wrangler Window Switch
Not all window problems are caused by the switch. Before you start, watch for these clear signs that point to a faulty window switch:
- The window doesn’t move when you press the switch, but other windows work fine.
- The switch feels loose or gets stuck.
- The window works only from the driver’s or passenger’s side, not both.
- The switch works sometimes, but not always.
Other problems, like blown fuses or failed motors, can cause similar symptoms. Always check your owner’s manual for fuse location and test the window from both driver and passenger controls.
Tools And Parts You’ll Need
Changing a window switch does not require advanced tools. Most Jeep Wrangler models (JK, JL, TJ) use similar switches and panel designs, but always confirm your model year. Here’s what you’ll need:
- Replacement window switch (match your Wrangler’s year and trim)
- Flathead screwdriver or plastic trim removal tool
- Phillips screwdriver
- Needle-nose pliers (optional)
- Small flashlight
A genuine Mopar switch is often the safest choice, but quality aftermarket switches are available for less.
Step-by-step Window Switch Replacement
1. Disconnect The Battery
Before working with electrical parts, disconnect the negative terminal. This prevents accidental short circuits.
2. Remove The Window Switch Panel
Insert your trim tool or flathead screwdriver gently under the switch panel. Pry up slowly, starting at one corner. The panel will pop free with a little pressure. Be careful not to crack the surrounding trim.
3. Unplug The Old Switch
Once the panel is loose, locate the wiring connector underneath. Press the release tab and pull the connector out. Some models have multiple connectors—note their positions.
4. Install The New Switch
Plug the connectors into the new switch. Make sure they click firmly into place. Line up the switch in its slot.
5. Reattach The Panel
Press the panel back into position until it snaps in. Double-check for gaps or loose edges.
6. Reconnect The Battery And Test
Reconnect the battery. Test all window functions before finishing. Try each switch for up, down, and auto functions if available.
Typical Time Needed
Most DIYers can finish this job in 15-30 minutes. The process is similar for both driver and passenger switches, but the main switch cluster on the driver’s side may have extra wiring.
Comparing Oem And Aftermarket Window Switches
Choosing the right replacement switch matters for performance and durability. Here’s a quick comparison:
| Feature | OEM Switch | Aftermarket Switch |
|---|---|---|
| Fit & Finish | Perfect match | Varies, may differ |
| Warranty | 12-24 months | 6-12 months |
| Price | Higher ($50-$120) | Lower ($20-$60) |
| Longevity | OEM-level | Can vary |
OEM (original equipment manufacturer) switches cost more but guarantee a perfect fit and finish. Quality aftermarket brands can save money but always check reviews and return policies.
Common Mistakes And How To Avoid Them
Many Jeep owners make simple errors when replacing window switches:
- Forgetting to disconnect the battery. This can cause blown fuses or accidental airbag deployment in rare cases.
- Breaking trim pieces. Always use a plastic tool, not a metal screwdriver, to avoid scratches.
- Mismatched parts. Double-check your Wrangler’s year and trim before buying a switch. Some switches look similar but won’t fit.
- Not testing before full reassembly. Always test the new switch before snapping the panel back in.
If your new switch doesn’t work, make sure the connectors are fully seated and the fuses are good. Sometimes, the problem is in the wiring, not the switch.
What If The New Switch Still Doesn’t Work?
If you install a new switch and the window remains dead, consider these possibilities:
- Blown fuse – Check your fuse box and replace any blown fuses.
- Faulty window motor – If you hear no noise at all, the motor may be bad.
- Broken wiring harness – Especially in older Wranglers, wires in the door can break after years of flexing.
In rare cases, a deeper electrical issue is to blame. You may need a multimeter to test for voltage at the switch. If you’re not comfortable with wiring diagrams, a professional mechanic can diagnose the problem.
Cost To Replace A Jeep Wrangler Window Switch
DIY replacement is usually much cheaper than a shop visit. Here’s a quick cost comparison:
| Replacement Method | Estimated Cost (Parts & Labor) | Time Required |
|---|---|---|
| DIY | $20-$120 | 15-30 min |
| Dealership | $120-$250 | 1-2 hrs |
| Independent Shop | $90-$200 | 1 hr |
Most owners find the DIY route saves money and is simple enough for beginners.
Practical Tips For Long-lasting Switches
- Avoid letting water or mud get inside the doors, especially after off-road trips.
- Clean around the switches regularly to prevent dust buildup.
- If a switch feels sticky, use a small amount of compressed air to clean it—never spray liquids directly.
Pro insight: Some Jeep owners install rubber switch covers for extra protection during trail rides. These are inexpensive and keep dust out.
When To Seek Professional Help
If your Wrangler has power window problems that remain after switch replacement, it’s time to see a pro. Modern electrical systems are complex, and chasing wiring faults can be frustrating. Also, if you’re not comfortable removing door panels or working with car electronics, a trusted mechanic can do the job safely.
For official Jeep Wrangler repair guides, check the Jeep Official Site.
Frequently Asked Questions
How Do I Know If My Jeep Wrangler Window Switch Is Bad?
A bad switch often causes one window to stop working while others function normally. If the switch feels loose or only works sometimes, it’s likely the problem.
Can I Replace The Window Switch Myself?
Yes, most owners can change the switch with simple tools. The process takes about 20 minutes for most Jeep Wrangler models.
Do I Need To Remove The Whole Door Panel?
No, you usually only need to remove the small switch panel, not the entire door panel. Always use a trim tool to avoid damaging plastic parts.
Will A Faulty Window Switch Drain My Battery?
A broken switch usually won’t drain the battery unless it causes a constant electrical draw. If you notice a dead battery, have the system checked for electrical shorts.
Are Aftermarket Window Switches Reliable?
Some aftermarket switches are reliable, but quality varies. Choose brands with good reviews and return options for best results.
Fixing your Jeep Wrangler’s window switch is a simple, rewarding repair that can save you both time and money. With the right approach and a little care, you’ll have your windows working smoothly again—ready for your next drive or off-road adventure.
