The Jeep Patriot is a compact SUV known for its affordability and rugged style. While the Patriot is popular among drivers who want a practical SUV, some owners face electrical issues, especially related to relays and fuses.
Understanding the Jeep Patriot relay box diagram can save time, money, and frustration when troubleshooting. If you’ve ever struggled to locate a relay or worried about a non-starting engine, this guide will help you identify, access, and use the relay box diagram for common repairs.
What Is A Relay Box?
The relay box is a sealed case holding key relays and fuses that manage your Jeep Patriot’s electrical systems. Relays act as smart switches, allowing small signals to control high-power devices. For instance, when you turn the ignition key, a relay sends power to the starter motor. Other relays handle the fuel pump, headlights, and air conditioning.
The relay box also contains fuses, which protect wiring from short circuits. When a fuse blows, it cuts power to prevent damage or fire.
Location Of The Relay Box In Jeep Patriot
Most Jeep Patriot models (2007–2017) have two main fuse/relay boxes:
- Power Distribution Center (PDC): Located under the hood, near the battery. This is the main relay box.
- Interior Fuse Panel: Found under the dashboard, left side, near the driver’s footwell.
For relay-related issues, focus on the PDC under the hood. Opening the PDC usually requires unclipping or unscrewing a plastic cover.
Typical Jeep Patriot Relay Box Diagram

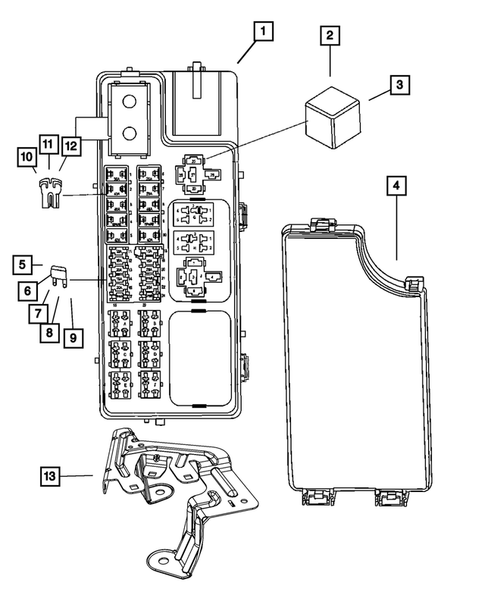

Every Jeep Patriot comes with a printed relay box diagram on the inside of the PDC lid. This diagram uses labeled boxes and numbers to indicate the position and function of each relay and fuse.
Below is a simplified example for a 2014 Jeep Patriot:
| Relay/Fuse Number | Component | Amperage |
|---|---|---|
| R1 | Starter Relay | 30A |
| R2 | Fuel Pump Relay | 20A |
| R3 | AC Compressor Relay | 10A |
| R4 | Radiator Fan Relay | 40A |
Not all models are identical. Always check the diagram on your own PDC cover.
Main Relays And Their Functions
Understanding what each relay controls makes troubleshooting faster. Here are the most important relays:
- Starter Relay: Sends power to the starter motor when you turn the key.
- Fuel Pump Relay: Activates the fuel pump to supply gasoline to the engine.
- AC Compressor Relay: Powers the air conditioning compressor.
- Radiator Fan Relay: Controls the fan that cools the engine.
A faulty relay can cause issues like “no start,” weak air conditioning, or overheating.
Step-by-step: Using The Relay Box Diagram
- Locate the PDC: Open the hood and find the black box near the battery.
- Open the Cover: Release clips or screws to access the diagram.
- Read the Diagram: Identify relays by their code (like R1, R2).
- Check Suspect Relay: Remove the relay using needle-nose pliers.
- Test or Swap: Relays of the same type can often be swapped to test function.
- Replace if Needed: Insert a new relay with the same amperage rating.
Many beginners miss the fact that swapping a working relay (e. g.
, AC compressor) with a suspect one (e. g.
, starter) is a quick way to test without special tools.
Common Electrical Problems Linked To Relays
The Jeep Patriot is known for a few recurring relay issues:
- Crank, No Start: Often caused by a failed starter or fuel pump relay.
- Blower Not Working: AC relay or fuse may be bad.
- Engine Overheating: Radiator fan relay failure.
- Random Electrical Glitches: Loose or corroded relay contacts.
If you experience these symptoms, checking the relay box is a smart first step.
Comparison: Patriot Relay Box Vs. Other Jeep Models
The Patriot’s relay box is similar to other Jeep vehicles, but not identical. Here’s how it compares to the Jeep Compass and Cherokee:
| Model | Main Relay Box Location | Number of Relays | Starter Relay Code |
|---|---|---|---|
| Patriot | Engine bay, left side | 8-12 | R1 |
| Compass | Engine bay, right side | 10-14 | R4 |
| Cherokee | Engine bay, center | 12-16 | R3 |
Never assume diagrams are interchangeable—always use your vehicle’s specific diagram.
Tips For Safe Relay Box Maintenance
- Disconnect Battery: Before removing relays, disconnect the negative battery terminal.
- Wear Gloves: Relays can get hot during operation.
- Avoid Metal Tools: Prevent accidental shorts by using plastic tools.
- Check for Corrosion: Clean contacts with electrical cleaner if needed.
- Use OEM Parts: Cheap relays may not last or fit correctly.
Example: Diagnosing A “no Start” Problem
Suppose your Patriot cranks but doesn’t start. You suspect the fuel pump relay. Here’s what to do:
- Find the relay box, open the lid, and locate the fuel pump relay (e.g., R2).
- Swap it with another identical relay (like the AC compressor relay).
- Try to start the engine.
- If it starts, the relay is bad—replace it.
Many owners overlook the simple “swap” method, wasting time on expensive diagnostics.
Jeep Patriot Relay Box Diagram Resources
If you lose your PDC cover or need more details, you can find relay box diagrams in the owner’s manual or online at the official Jeep website. A trusted external source for general automotive relay diagrams is the Wikipedia Relay Article.
Additional Data: Common Patriot Relay Ratings
To help with replacements, here’s a quick reference for typical relay ratings in the Patriot:
| Relay Position | Normal Amperage | Color Code |
|---|---|---|
| Starter | 30A | Pink |
| Fuel Pump | 20A | Blue |
| AC Compressor | 10A | Red |
| Fan | 40A | Green |
Always match both amperage and color code for best results.
Getting familiar with your Jeep Patriot relay box diagram is one of the simplest ways to avoid costly repairs. With a little practice, you’ll be able to diagnose electrical issues quickly and confidently. Always use the diagram specific to your model year, and don’t hesitate to ask for professional help if you’re unsure.
