Jeep Lug Nut Pattern: What You Need To Know
When you think about upgrading your Jeep with new wheels or replacing the current ones, you’ll often hear about the lug nut pattern. This small detail has a big impact on safety, wheel fitment, and even how your Jeep looks.
Many Jeep owners, especially those new to modifications, get confused by terms like “5×127” or “bolt circle diameter.” Understanding your Jeep’s lug nut pattern saves time, money, and frustration.
What Is A Lug Nut Pattern?

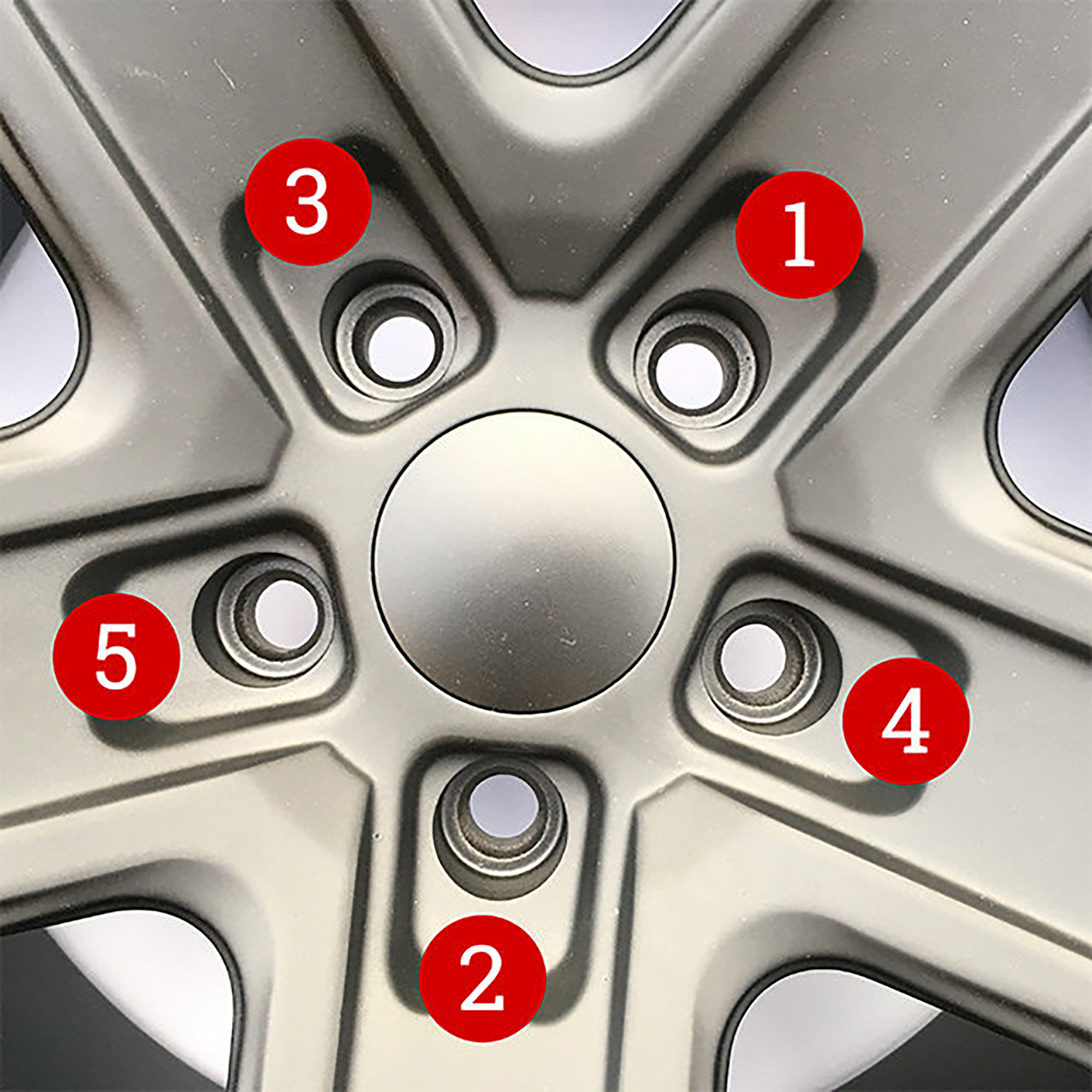

The lug nut pattern (or bolt pattern) describes the arrangement and number of wheel studs on your Jeep’s hub. You’ll see patterns written as two numbers, like 5×127. The first number is how many lugs (studs) there are, and the second is the diameter (in millimeters or inches) of the imaginary circle those lugs form.
For example, a 5×127 pattern means:
- 5 lug nuts
- 127 mm across the circle connecting all lugs
This pattern must match exactly between your Jeep’s hub and the wheel you want to install.
Common Jeep Lug Nut Patterns
Jeep has used several lug nut patterns over the years. Here’s a comparison of the most common ones on popular Jeep models:
| Model | Years | Lug Pattern | Center Bore | Lug Nut Size |
|---|---|---|---|---|
| Wrangler JK | 2007–2018 | 5×127 mm | 71.5 mm | 1/2″–20 |
| Wrangler JL | 2018–present | 5×127 mm | 71.5 mm | 14×1.5 mm |
| Wrangler TJ | 1997–2006 | 5×114.3 mm | 71.5 mm | 1/2″–20 |
| Grand Cherokee WK2 | 2011–2026 | 5×127 mm | 71.5 mm | 14×1.5 mm |
| Cherokee XJ | 1984–2001 | 5×114.3 mm | 71.5 mm | 1/2″–20 |
Insight: Some Jeep models may look similar but use different lug nut sizes or thread pitches. Always double-check before buying new wheels.
Why Lug Nut Pattern Matters
Choosing wheels with the wrong pattern can lead to:
- Unsafe fitment (wheels may not seat correctly)
- Vibration and stress on suspension parts
- Damaged wheel studs or nuts
Using the correct pattern ensures:
- Safe driving at all speeds
- Even pressure on all studs
- Longer life for wheels and hubs
Even a small mismatch (like 5×114. 3 vs 5×127) means the wheels won’t fit properly.
How To Measure Your Jeep’s Lug Nut Pattern
You can measure the pattern yourself if you’re unsure. Here’s how:
- Count the lugs: Most Jeeps have 5, but double-check.
- Measure the bolt circle diameter:
- For 5-lug wheels, measure from the center of one lug to the outer edge of the lug directly across from it.
- For 4, 6, or 8 lugs, measure from the center of one lug to the center of the opposite lug.
Example: If you measure 5 lugs and 127 mm across, your pattern is 5×127.
Tip: For best accuracy, use a tape measure in millimeters. This avoids confusion between mm and inches.
Jeep Lug Nut Pattern By Model Year
Here’s a quick reference for popular Jeep models and their typical lug nut patterns:
| Jeep Model | Year Range | Lug Nut Pattern |
|---|---|---|
| Wrangler YJ | 1987–1995 | 5×114.3 mm |
| Wrangler TJ | 1997–2006 | 5×114.3 mm |
| Wrangler JK/JL | 2007–present | 5×127 mm |
| Cherokee XJ | 1984–2001 | 5×114.3 mm |
| Grand Cherokee WJ/WK/WK2 | 1999–2026 | 5×127 mm |
| Liberty KJ/KK | 2002–2012 | 5×114.3 mm |
| Gladiator JT | 2020–present | 5×127 mm |
Other Factors To Consider
The lug nut pattern is only part of wheel fitment. Don’t forget these factors:
- Center bore: This is the hole in the center of the wheel. It must match the hub to avoid vibration.
- Offset and backspacing: These affect how far the wheel sticks out or sits in. They impact handling and tire clearance.
- Lug nut seat type: Jeep wheels use either conical or mag seat lug nuts. Using the wrong type can damage wheels.
Non-obvious insight: Some aftermarket wheels use a “universal” bolt pattern, but these rarely fit perfectly on Jeeps. Always prefer wheels designed for your specific pattern.
Common Mistakes And How To Avoid Them
- Mixing up metric and inch measurements: 5×127 mm is not the same as 5×5 inches (though they’re close, they’re not identical).
- Assuming all Jeeps use the same pattern: Different models and years can change patterns, even in the same Jeep family.
- Ignoring center bore size: If the center hole is too small, the wheel won’t fit. Too large, and you’ll need hub-centric rings.
- Using wheel adapters or spacers incorrectly: If you want to fit wheels with a different pattern, use quality adapters and double-check torque settings.
When You Need To Know Your Lug Nut Pattern
- Upgrading to aftermarket wheels
- Replacing a damaged wheel
- Ordering spare parts
- Swapping wheels with another Jeep owner
Knowing your exact lug nut pattern can save you from returns, wasted money, and safety issues.
Where To Find Reliable Jeep Lug Nut Pattern Data
Always check your owner’s manual or the inside of the driver’s door jamb for wheel specs. Many official Jeep resources and forums also list this data.
For more technical details on bolt patterns, visit the Wikipedia page on wheel stud patterns.
Frequently Asked Questions
<!– wp:rank-math/faq-block {"questions":[{"id":"faq-question-e1d609527c73","title":"What Does “5×127” Mean On My Jeep?","content":"5×127 means your Jeep has 5 lug nuts per wheel, and the circle formed by those lugs is 127 millimeters across.
“,”visible”:true},{“id”:”faq-question-3ccc9efa4aa8″,”title”:”Can I Use Wheels With A Different Lug Nut Pattern?”,”content”:”No, wheels must match your Jeep’s exact lug nut pattern. Using a different pattern can cause unsafe fitment and damage.
“,”visible”:true},{“id”:”faq-question-61a56fc5444f”,”title”:”Are Jeep Wrangler Jk And Jl Wheels Interchangeable?”,”content”:”Both use a 5×127 mm lug pattern, but other factors like lug nut size and offset may differ. Double-check all specs before swapping.
“,”visible”:true},{“id”:”faq-question-ecfe923b5519″,”title”:”How Tight Should I Torque Jeep Lug Nuts?”,”content”:”Most Jeep models require 95–115 ft-lbs of torque for lug nuts. Always use a torque wrench and follow your owner’s manual.
“,”visible”:true},{“id”:”faq-question-7ae1c2aa657b”,”title”:”Do Aftermarket Wheels Always Fit My Jeep?”,”content”:”Not always. Even if the bolt pattern matches, center bore, offset, and lug seat type must also be correct. Check all measurements before buying.
Choosing the right Jeep lug nut pattern helps you drive safely, enjoy new wheels, and avoid costly mistakes. Understanding these details gives you more control over your Jeep’s performance and style.
“,”visible”:true}]} –>What Does “5×127” Mean On My Jeep?
5×127 means your Jeep has 5 lug nuts per wheel, and the circle formed by those lugs is 127 millimeters across.
Can I Use Wheels With A Different Lug Nut Pattern?
No, wheels must match your Jeep’s exact lug nut pattern. Using a different pattern can cause unsafe fitment and damage.
Are Jeep Wrangler Jk And Jl Wheels Interchangeable?
Both use a 5×127 mm lug pattern, but other factors like lug nut size and offset may differ. Double-check all specs before swapping.
How Tight Should I Torque Jeep Lug Nuts?
Most Jeep models require 95–115 ft-lbs of torque for lug nuts. Always use a torque wrench and follow your owner’s manual.
Do Aftermarket Wheels Always Fit My Jeep?
Not always. Even if the bolt pattern matches, center bore, offset, and lug seat type must also be correct. Check all measurements before buying.
Choosing the right Jeep lug nut pattern helps you drive safely, enjoy new wheels, and avoid costly mistakes. Understanding these details gives you more control over your Jeep’s performance and style.
