The Jeep Grand Cherokee is a well-known SUV for both city and off-road driving. If you own or maintain a Grand Cherokee, understanding its undercarriage is very important. This area is where the main mechanical parts sit. Knowing these parts can help you spot problems early, keep your vehicle in good shape, and plan upgrades.
Many drivers overlook the undercarriage until an issue arises. However, damage or rust here can affect your safety and comfort. This guide breaks down the main components, explains their roles, and shows why a diagram is useful. Whether you want to do your own repairs or just learn more, this article will help you get familiar with the Grand Cherokee undercarriage.
Main Parts Of The Jeep Grand Cherokee Undercarriage
The undercarriage is not just a flat metal sheet. It is a complex system of parts that work together to support, power, and protect your SUV.

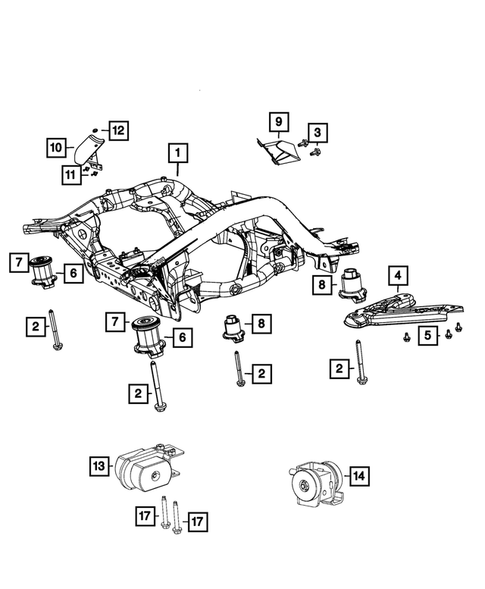

Frame And Chassis
The frame is the backbone of the Grand Cherokee. It holds everything together. Most Grand Cherokees use a unibody construction, which means the body and frame are one piece. This design gives a smooth ride but can make repairs more complex if the frame is damaged.
Suspension System
The suspension system includes springs, shocks, and control arms. It connects the wheels to the car and helps absorb bumps on rough roads. The Grand Cherokee often uses independent front suspension and a multi-link rear setup. This allows for better off-road control and more comfort on highways.
Drivetrain Components
Under the vehicle, you’ll see parts like the driveshaft, axles, and differentials. These send power from the engine to the wheels. Four-wheel-drive versions have extra components, including a transfer case, for better traction off-road.

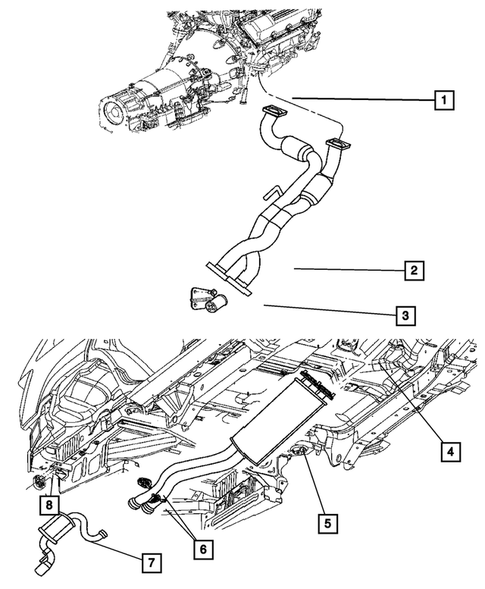

Exhaust System
The exhaust system runs from the engine to the back of the SUV. It includes pipes, the catalytic converter, and the muffler. Its job is to remove gases safely and reduce noise. Rust or holes in this system can cause leaks and may even let fumes into the cabin.
Fuel Tank And Lines
The fuel tank sits close to the rear axle, protected by skid plates in many models. Lines run under the vehicle to carry fuel to the engine. Any leak here is serious, so regular checks are important.
Brake Lines And Cables
Look for brake lines and parking brake cables running along the undercarriage. These are often metal, but sometimes have rubber sections. Damage or rust can cause brake failure, so keep an eye out for leaks or corrosion.
Skid Plates
Many Grand Cherokees come with skid plates. These are metal shields that protect the engine, transmission, and gas tank from rocks and debris, especially during off-road driving.
Typical Undercarriage Layout
Here’s a simplified overview of how these parts fit together on a Jeep Grand Cherokee:
| Component | Location | Main Function |
|---|---|---|
| Frame/Chassis | Entire length, base | Support, structure |
| Suspension | Front and rear wheel areas | Shock absorption |
| Drivetrain | Center, from front to rear | Power transfer |
| Exhaust System | Runs along one side | Gas removal, noise reduction |
| Fuel Tank | Rear, near axle | Fuel storage |
| Brake Lines | Along frame rails | Brake fluid delivery |
| Skid Plates | Under key components | Protection |
Why An Undercarriage Diagram Matters
A Jeep Grand Cherokee undercarriage diagram is more than just a picture. It’s a tool that can save you time and money. Here’s why:
- Faster Troubleshooting: If you hear a strange noise, a diagram helps you quickly locate possible problem areas.
- Easier Repairs: DIY mechanics can see where each part is, so you don’t remove the wrong component.
- Better Upgrades: Planning to add lift kits, new skid plates, or exhaust systems? A diagram helps make sure nothing will interfere.
- Safety: You can spot risks, such as low-hanging brake lines or exposed fuel lines, before they cause trouble.
Most official service manuals include detailed diagrams. You can also find clear images and interactive diagrams online, like on the Jeep Official Guides page.
Common Problem Areas To Watch
Over time, some undercarriage parts wear out or get damaged. Here are a few trouble spots:
- Rust on the frame or suspension arms: Salt and water can eat away at metal, especially in older models.
- Worn bushings and ball joints: These small parts help the suspension move smoothly but fail with age.
- Damaged skid plates: Off-road impacts can bend or break them, leaving parts exposed.
- Leaking brake or fuel lines: Even a small leak is a safety risk.
If you drive in harsh conditions, check the undercarriage every few months. Wash off mud and salt to slow rust.
Undercarriage Differences By Year And Model
Not every Grand Cherokee has the same undercarriage layout. Here’s a quick look at some differences:
| Model Year | Frame Type | Standard Skid Plates? | Drivetrain Options |
|---|---|---|---|
| 1999-2004 (WJ) | Unibody | No | 2WD, 4WD |
| 2005-2010 (WK) | Unibody | Some trims | 2WD, 4WD |
| 2011-2020 (WK2) | Unibody | Yes (Trailhawk) | 2WD, AWD, 4WD |
| 2026+ (WL) | Unibody | Yes (most trims) | AWD, 4WD |
Trailhawk and other off-road models usually have more protection and stronger parts underneath.
Tips For Inspecting And Caring For Your Undercarriage
- Use a flashlight and look for leaks, rust, or dents after off-roading or every oil change.
- Clean off mud and road salt as soon as possible, especially in winter.
- Check rubber bushings and boots for cracks. Replace if worn.
- Listen for squeaks or rattles when driving over bumps. These can point to loose or damaged parts.
- If unsure, ask a certified mechanic to inspect the undercarriage during regular service.
Many drivers miss hidden damage after minor bumps or scrapes. A small fix now can prevent a bigger repair later.
Frequently Asked Questions
<!– wp:rank-math/faq-block {"questions":[{"id":"faq-question-07fdaeee0307","title":"What Is The Main Function Of The Jeep Grand Cherokee Undercarriage?","content":"The undercarriage supports the SUV’s weight, holds key parts like the suspension and drivetrain, and protects them from road damage.
“,”visible”:true},{“id”:”faq-question-927ce9e2efd0″,”title”:”How Can I Find A Good Undercarriage Diagram For My Grand Cherokee?”,”content”:”You can find clear diagrams in the official service manual or on the Jeep website. Online Jeep forums and enthusiast sites also share helpful images.
“,”visible”:true},{“id”:”faq-question-73f779ed26d2″,”title”:”Is It Safe To Drive If I See Rust On The Undercarriage?”,”content”:”Light surface rust is common, but deep or spreading rust can weaken parts. If you see holes or flaking metal, have it checked right away.
“,”visible”:true},{“id”:”faq-question-a722fb18050f”,”title”:”Are All Grand Cherokee Undercarriages The Same?”,”content”:”No. Differences depend on model year, trim, and drive type. Off-road models have more protection and stronger parts.
“,”visible”:true},{“id”:”faq-question-b0bf006189c3″,”title”:”Can I Upgrade My Undercarriage For Off-roading?”,”content”:”Yes, you can add skid plates, lift kits, and heavy-duty suspension parts. Always check a diagram before installing new equipment to avoid conflicts.
Knowing your Jeep Grand Cherokee’s undercarriage helps you keep your SUV safe, strong, and ready for adventure. With regular care and the right information, you can enjoy more years on and off the road.
“,”visible”:true}]} –>What Is The Main Function Of The Jeep Grand Cherokee Undercarriage?
The undercarriage supports the SUV’s weight, holds key parts like the suspension and drivetrain, and protects them from road damage.
How Can I Find A Good Undercarriage Diagram For My Grand Cherokee?
You can find clear diagrams in the official service manual or on the Jeep website. Online Jeep forums and enthusiast sites also share helpful images.
Is It Safe To Drive If I See Rust On The Undercarriage?
Light surface rust is common, but deep or spreading rust can weaken parts. If you see holes or flaking metal, have it checked right away.
Are All Grand Cherokee Undercarriages The Same?
No. Differences depend on model year, trim, and drive type. Off-road models have more protection and stronger parts.
Can I Upgrade My Undercarriage For Off-roading?
Yes, you can add skid plates, lift kits, and heavy-duty suspension parts. Always check a diagram before installing new equipment to avoid conflicts.
Knowing your Jeep Grand Cherokee’s undercarriage helps you keep your SUV safe, strong, and ready for adventure. With regular care and the right information, you can enjoy more years on and off the road.
