Wiring trailer lights on your Jeep Renegade might look simple, but it’s a task where mistakes can lead to frustration or even unsafe driving.
If you’re planning to tow a trailer, connecting the lights correctly is not just about following the law it’s about keeping you and others safe.
This guide walks you through every step, explains common issues, and gives practical advice. Whether you’re new to vehicle wiring or have some experience, you’ll find clear instructions, helpful tables, and tips that make the process easier.
Understanding Trailer Light Wiring
Before you start, it’s important to know how trailer light wiring works. Most trailers use a 4-pin or 7-pin connector. These pins control different lights: brake lights, turn signals, tail lights, and sometimes reverse lights. Jeep Renegade models usually don’t come with a factory trailer wiring harness, so you’ll need to add one.
Many beginners think all wiring kits are the same, but the Renegade’s electrical system is more sensitive than some other vehicles. Using the wrong kit can cause error codes or malfunctioning lights.
Basic Wiring Functions
Here’s a table showing what each pin controls in a common 4-pin trailer wiring setup:
| Pin | Function |
|---|---|
| 1 | Ground |
| 2 | Tail Lights |
| 3 | Left Turn/Brake |
| 4 | Right Turn/Brake |

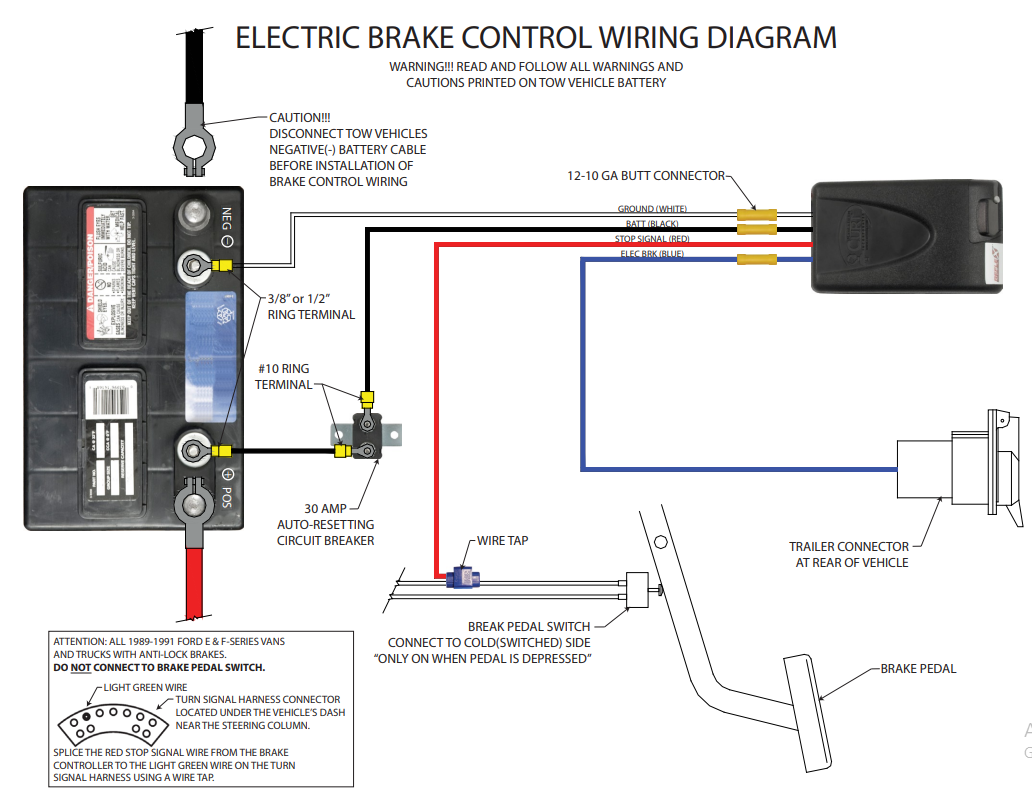

If your trailer uses a 7-pin connector, it will include extra functions like backup lights or electric brakes. Always check your trailer’s wiring before starting.
Choosing The Right Wiring Kit
The market offers many wiring kits, but not all are compatible with the Jeep Renegade’s electronics. Look for a vehicle-specific harness designed for the Renegade, usually called a “plug-and-play” kit. These connect directly to your taillights without cutting wires.
Comparing Wiring Kits
Use this table to compare popular types:
| Type | Installation | Compatibility | Cost (USD) |
|---|---|---|---|
| Universal Kit | Requires wire splicing | May cause errors | $25-$50 |
| Vehicle-Specific Kit | Plug-and-play | Fully compatible | $60-$120 |
| OEM Kit | Dealer install | Guaranteed fit | $150-$250 |
Vehicle-specific kits are usually best for the Jeep Renegade. They save time, reduce mistakes, and protect your vehicle’s warranty.
Tools And Materials Needed
Get all tools and materials ready before you begin. Here’s what you’ll need:
- Trailer wiring harness (Renegade-compatible)
- Wire cutters/strippers
- Electrical tape
- Screwdrivers
- Socket wrench set
- Test light or multimeter
- Zip ties
- Dielectric grease (optional, for weather protection)
Having the right tools prevents damage and speeds up installation.
Step-by-step Installation Guide
Follow these steps to wire trailer lights on your Jeep Renegade safely and correctly.
1. Locate Your Taillight Wiring
Open the trunk and remove the interior panels near the taillights. The Renegade’s taillight wiring is accessible from inside. Carefully unplug the taillight connectors.
2. Connect The Wiring Harness
If you’re using a plug-and-play harness, connect it to your vehicle’s taillight connectors. These harnesses usually have matching plugs, so there’s no need to cut or splice wires.
If you have a universal kit, you will need to:
- Identify the correct wires for turn signals, brake lights, and tail lights
- Cut and strip a small section of each wire
- Connect the trailer harness wires using solderless connectors or by twisting together and securing with electrical tape
Tip: Use a test light or multimeter to confirm which wire controls each function. Many beginners skip this step and end up with mismatched lights.
3. Route The Harness To The Hitch
Run the trailer harness down through the trunk and under the vehicle, toward the trailer hitch. Secure the wires with zip ties to prevent them from dragging or getting caught.
Avoid routing wires near hot parts like the exhaust or moving parts like the suspension. This protects the harness from damage.
4. Ground The System
Find a clean, bare metal spot near your hitch for the ground wire. Attach the ground wire firmly using a screw or bolt. A weak ground is a common cause of trailer light problems.
5. Attach The Trailer Connector
Connect the end of the harness to the trailer connector. Make sure the connector is mounted securely and protected from water and dirt. Some harnesses come with a dust cover.
6. Test All Functions
Plug your trailer into the connector. Ask someone to help you check:
- Brake lights
- Turn signals (left and right)
- Tail lights
If any lights don’t work, use your test light or multimeter to check connections and find the problem.
Non-obvious insight: Many Jeep Renegade owners forget to check their trailer’s fuse box. If your trailer lights don’t work but your vehicle wiring is correct, check for blown fuses in the trailer itself.
7. Weatherproof Your Connections
Apply dielectric grease to the connector pins to prevent corrosion. Wrap exposed wires with electrical tape. This step extends the life of your wiring, especially in wet climates.
Common Mistakes And How To Avoid Them
Even experienced car owners make mistakes when wiring trailer lights. Here are some to watch for:
- Wrong wiring kit: Using a universal kit can trigger Renegade error codes.
- Poor ground connection: Always use clean, bare metal for grounding.
- Skipping testing: Test each function before finishing the job.
- Loose wires: Secure wires to avoid damage from road debris.
- Overloading circuits: Don’t add extra lights without checking the Renegade’s electrical limits.
Non-obvious insight: The Jeep Renegade’s taillight circuits are monitored by the computer (CAN bus). Incorrect wiring can cause dashboard warnings or even shut down the circuit. Always use a kit designed for CAN bus vehicles.
Jeep Renegade Vs Other Suvs: Wiring Challenges
How does wiring trailer lights on the Jeep Renegade compare to other SUVs? Here’s a quick comparison:
| Vehicle | Wiring Difficulty | CAN Bus Sensitivity | Factory Hitch Option |
|---|---|---|---|
| Jeep Renegade | Moderate | High | No |
| Honda CR-V | Easy | Medium | Yes |
| Ford Escape | Easy | Low | Yes |
| Toyota RAV4 | Moderate | Medium | Yes |
The Renegade’s lack of a factory hitch and its sensitive electronics make wiring a bit more challenging. Always double-check compatibility.
Safety And Legal Requirements
Every state in the US has laws about trailer lights. Your trailer must have:
- Brake lights
- Tail lights
- Turn signals
- License plate light
If your trailer is wider than 80 inches, it may need extra marker lights. Driving with faulty trailer lights can lead to fines or accidents. For detailed legal requirements, check the National Highway Traffic Safety Administration website.
Troubleshooting Tips
If your trailer lights don’t work, try these troubleshooting steps:
- Check the ground: Most problems come from a bad ground connection.
- Inspect fuses: Both your Jeep and trailer may have blown fuses.
- Test each wire: Use your test light to confirm power to each wire.
- Check connectors: Corroded pins or loose plugs often cause issues.
- Review your work: Go back over each step if something isn’t working.
If you notice dashboard errors, unplug the harness and check wiring. Sometimes, restarting the vehicle clears minor faults.
Real-world Example
Let’s look at a real case. A Jeep Renegade owner installed a universal trailer wiring kit and saw a “Check tail lights” warning on the dashboard. The problem was caused by the kit drawing too much current from the taillight circuit. Switching to a CAN bus-compatible plug-and-play kit solved the issue, and the warning disappeared.
This shows why it’s important to choose the right kit and test carefully.
Practical Tips For A Smooth Installation
- Read instructions fully: Many owners skip this and get stuck.
- Work in daylight: Good lighting helps you spot mistakes.
- Have a helper: Someone can check the trailer lights while you operate the vehicle.
- Keep a test light handy: It’s faster and more accurate than guessing.
- Label wires: If you’re splicing, mark each wire to avoid confusion.
Frequently Asked Questions
What Type Of Trailer Wiring Kit Is Best For The Jeep Renegade?
A vehicle-specific plug-and-play kit is best. It connects without cutting wires and works with the Renegade’s sensitive electronics.
Can I Use A Universal Wiring Kit?
You can, but it often causes problems like dashboard warnings or malfunctioning lights. Universal kits require splicing and may not be compatible with the Renegade’s CAN bus system.
Why Do My Trailer Lights Only Work When The Car Is Off?
This usually means the ground connection is weak or missing. Check the ground wire and make sure it’s attached to bare metal, not painted or rusty surfaces.
Do I Need To Upgrade My Alternator Or Battery For Trailer Lights?
No, trailer lights don’t use much power. But if you add extra lights or accessories, check that your Renegade’s electrical system can handle the load.
Is It Legal To Wire Trailer Lights Myself?
Yes, you can wire trailer lights yourself, as long as they work correctly. Make sure you follow state regulations for trailer lighting and safety.
Wiring trailer lights on your Jeep Renegade doesn’t have to be difficult. With the right kit, tools, and careful attention, you can do the job safely and confidently. Avoid shortcuts, test your work, and you’ll have a reliable setup for towing.
Remember, getting the wiring right is not just about following rules it’s about safety for everyone on the road.
