Wiring trailer lights for a 2006 Jeep Liberty can look challenging if you’ve never worked with vehicle wiring before. But with a clear guide, a few tools, and some patience, you can do this job yourself. This saves money, gives you peace of mind, and helps ensure your trailer’s lights stay safe and legal on the road. Whether you’re hauling a small utility trailer or something larger, working trailer lights are essential.
This guide explains exactly how to wire trailer lights for your 2006 Jeep Liberty. You’ll learn the tools and parts you need, how to connect everything safely, and some practical tips many beginners overlook.
By the end, you’ll be ready to wire your trailer confidently and avoid common wiring mistakes.
Understanding Trailer Light Wiring Basics
Before you get your hands dirty, it’s important to know what you’re connecting. Most trailers use a 4-way flat connector, which handles basic lighting: tail, brake, left turn, and right turn signals. The 2006 Jeep Liberty, like most US vehicles, has separate wires for these functions at the rear.
The four essential trailer wires:
- Brown – Tail/running lights
- Yellow – Left turn signal and brake
- Green – Right turn signal and brake
- White – Ground
Some larger trailers may use a 5-way or 7-way connector, but for most basic towing, the 4-way works. Knowing these color codes helps you identify and connect the right wires.
Tools And Materials You’ll Need
To wire your Jeep Liberty’s trailer lights, gather these tools and supplies:
- Trailer wiring harness (4-way flat kit for 2006 Jeep Liberty)
- Wire strippers and crimpers
- Electrical tape
- Test light or multimeter
- Screwdrivers (Phillips and flathead)
- Zip ties or wire loom for securing wires
- Ground screw (if needed)

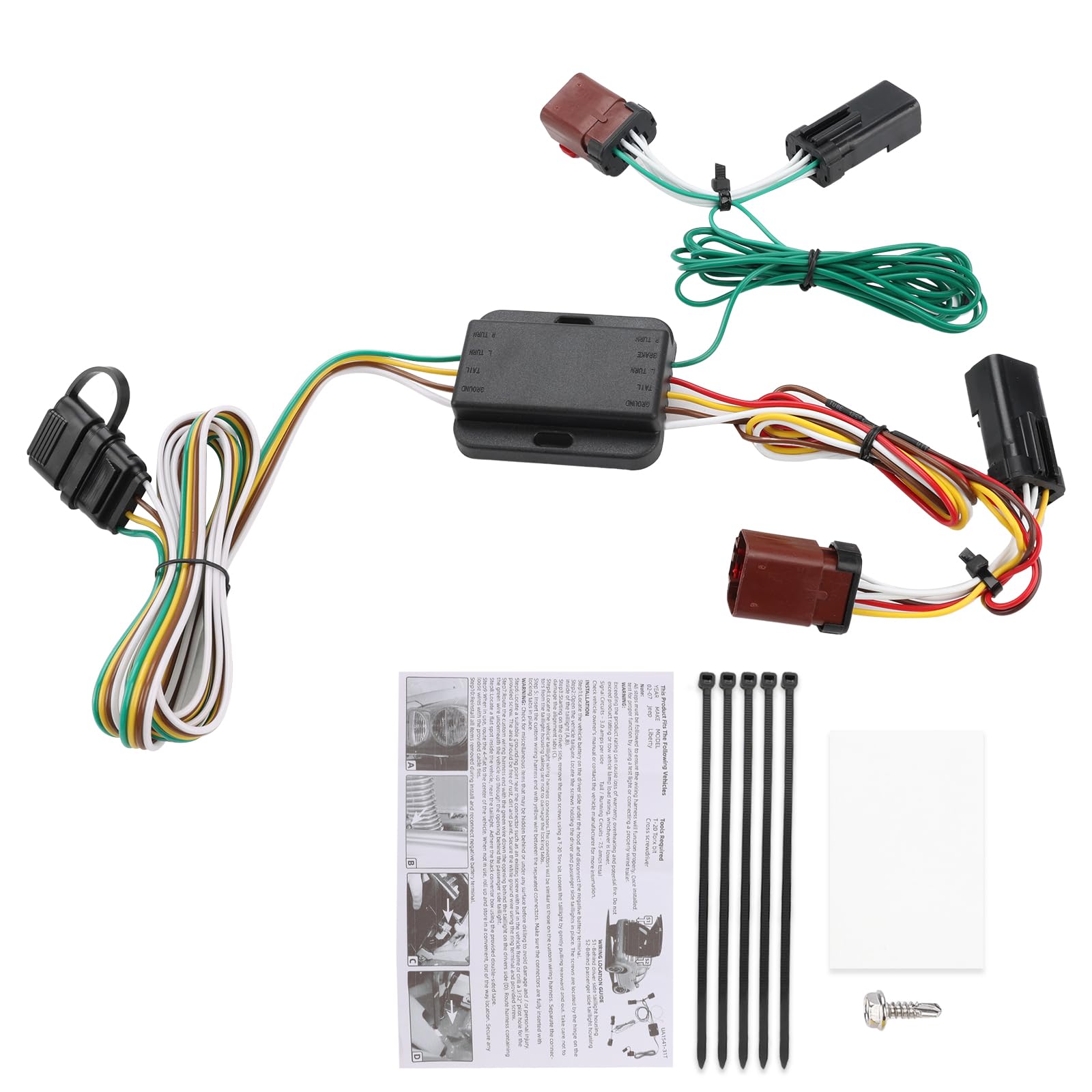

Using a T-connector harness designed for your Jeep is much safer and easier than splicing into factory wiring. These plug-and-play kits are widely available and reduce wiring mistakes. If you want to see more about wiring harnesses and color codes, etrailer.com has a helpful guide.
Locating The Wiring Connection Point
You’ll find the factory wiring harness behind the rear bumper, usually inside the cargo area or behind the tail light assemblies. The Liberty’s design makes it fairly easy to access:
- Open the rear liftgate.
- Remove the tail light assembly screws (usually two per side).
- Gently pull the tail light housing away from the vehicle.
You should see the wiring harness with separate wires for brake, turn, and tail lights. This is where you connect your trailer wiring kit.
Step-by-step Wiring Instructions
Let’s go through the key steps to wire trailer lights on your 2006 Jeep Liberty:
1. Disconnect The Jeep’s Battery
Before starting, disconnect the negative battery terminal. This keeps you safe from accidental shorts and protects the electrical system.
2. Access Tail Light Wiring
With the tail light assemblies removed, locate the vehicle wiring harness. You’ll find three wires: one for the turn signal, one for the brake, and one for the running lights on each side.
3. Plug In The T-connector Harness
Most trailer wiring kits for the Jeep Liberty use T-connectors. These snap into the factory wiring plugs with no cutting needed.
- Connect the driver-side T-connector to the vehicle harness on the left.
- Route the harness under the bumper, then connect the passenger-side T-connector.
- Secure the wires with zip ties so they don’t hang loose.
4. Ground The Harness
Look for the white wire with a ring terminal (from the trailer wiring harness). This is the ground wire. Attach it to a clean, unpainted metal surface near the tail light using a self-tapping screw. A poor ground is a common reason trailer lights don’t work.
5. Route The Trailer Connector
Feed the 4-way flat plug through the bottom of the tail light cavity and out under the bumper. Make sure the connector hangs out far enough to reach your trailer’s plug, but not so much that it drags.
6. Reattach Tail Light Assemblies
Put the tail light housings back in place and secure with screws. Double-check that no wires are pinched.
7. Reconnect The Battery And Test
Reconnect the negative battery cable. Use a test light or multimeter to check the 4-way connector:
- Brown wire should have power with the running lights on.
- Yellow and green should have power with left/right turn signals.
- Both should have power with the brake pedal pressed.
If everything checks out, you’re ready to connect your trailer.
Trailer Light Connector Pinout
Here’s a quick reference for the 4-way flat connector:
| Pin | Wire Color | Function |
|---|---|---|
| 1 | White | Ground |
| 2 | Brown | Tail/Running Lights |
| 3 | Yellow | Left Turn/Brake |
| 4 | Green | Right Turn/Brake |
This wiring standard is used for most small trailers in the US.
Common Problems And Troubleshooting Tips
Even with a correct installation, trailer lights sometimes don’t work as expected. Here are some issues and how to fix them:
- Lights don’t work at all: Check the ground connection first. Many issues are caused by a weak or missing ground.
- Only one side works: Inspect the T-connector plugs and trailer plug for corrosion or loose pins.
- Dim or flickering lights: Poor ground or a bad connection. Clean the ground point and tighten.
- Blown fuses: Using the wrong wire or a short in the harness can cause fuse problems. Check the trailer wiring for pinched or bare wires.
One insight: always check the trailer’s own wiring and bulbs before blaming your Jeep’s wiring. Many beginners overlook the trailer side, but problems there are common.
Upgrading To A 7-way Connector

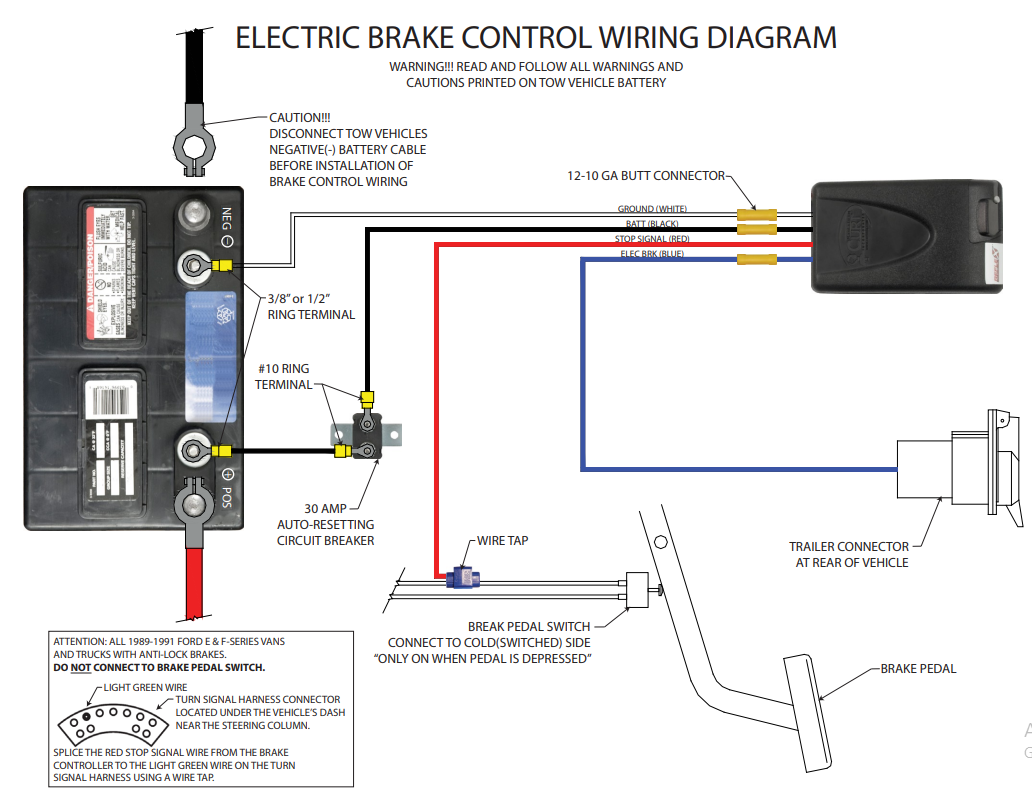

If you need electric brakes, battery charging, or backup lights, consider upgrading to a 7-way connector. This involves:
- Installing a 7-way socket at your Jeep’s bumper.
- Running additional wires for brake controller and power.
- Using a circuit tester to identify each wire.
For most small trailers, a 4-way connector is enough. But if you upgrade, make sure to follow the right diagram for a 7-way system.
Here’s a simple comparison of the two systems:
| Feature | 4-Way Flat | 7-Way Round |
|---|---|---|
| Tail/Running Lights | Yes | Yes |
| Turn Signals | Yes | Yes |
| Brake Lights | Yes | Yes |
| Electric Brakes | No | Yes |
| Backup Lights | No | Yes |
| 12V Power | No | Yes |
Safety Tips For Trailer Wiring
Wiring mistakes can cause shorts, burnt fuses, or even fires. Follow these safety tips:
- Use a harness designed for your Jeep Liberty year.
- Never cut factory wires unless absolutely necessary.
- Always secure wiring away from hot exhaust or moving suspension parts.
- Test all trailer lights before driving, every time you tow.
- Replace any damaged wires or connectors right away.
A non-obvious tip: Water is the main enemy of trailer wiring. Use dielectric grease in connectors and cover open plugs when not in use.
Essential Maintenance For Trailer Lights
Good wiring lasts longer with a bit of care. Here’s how to keep your trailer lights in top shape:
- Check connectors for corrosion every few months.
- Spray electrical contact cleaner to remove dirt and moisture.
- Replace burned-out bulbs immediately.
- Inspect wires for cracks, especially after winter or rough roads.
- Store the plug with a cover or in a dry bag when not towing.
Regular checks prevent most problems, and a little maintenance saves time and headaches later.
Cost Comparison: Diy Vs Professional Installation
Wondering if it’s worth doing yourself? Here’s a quick look:
| Installation Type | Estimated Cost | Time Required | Warranty |
|---|---|---|---|
| DIY (with Harness) | $40-$70 | 1-2 hours | No |
| Professional | $120-$200 | 1-2 hours | Yes (usually 1 year) |
Doing it yourself is more affordable and teaches valuable skills, but a professional install adds warranty and peace of mind.
When To Call A Pro
If you notice unusual electrical problems like dashboard warning lights, blown fuses, or if your Liberty has been modified consider a professional installer. Modern vehicles with advanced electronics can be sensitive, and a specialist avoids costly mistakes.
Final Thoughts
Wiring trailer lights on your 2006 Jeep Liberty is a manageable project for most DIYers. With a plug-and-play harness, basic hand tools, and careful attention, you can get safe, reliable lights in an afternoon.
Remember to test everything before hitting the road, and don’t cut corners on grounding or wire protection.
Proper wiring not only keeps you legal but also safer on every trip.
Frequently Asked Questions
How Do I Know If My Jeep Liberty Has A Factory Tow Package?
Look under the rear bumper for a pre-installed trailer wiring connector or hitch. If you see a 4-way or 7-way plug, your Liberty likely has the factory tow package. Otherwise, you’ll need an aftermarket harness.
Do I Need A Converter Box For Trailer Wiring?
Most 2006 Jeep Liberty models do not require a converter if you use a plug-and-play harness. A converter is needed if your vehicle uses separate turn and brake lights, but trailer kits for the Liberty usually include any required converters.
Can I Wire Trailer Lights Without A Kit?
It’s possible, but not recommended. Directly splicing wires can cause problems and damage your Jeep’s electrical system. A vehicle-specific harness is safer and faster.
Why Are My Trailer Lights Dim Or Flickering?
This is often due to a poor ground connection. Make sure the white ground wire is attached securely to clean, bare metal on the Jeep’s frame. Corroded or dirty connections cause most dim light issues.
Are Led Trailer Lights Compatible With The 2006 Jeep Liberty?
Yes, you can use LED trailer lights. If you notice fast-blinking signals, add a load resistor to the trailer’s light circuit. This ensures the Jeep’s flasher unit works properly with low-power LEDs.
Wiring your trailer lights the right way keeps you safe, legal, and worry-free. Take your time, test everything, and enjoy towing with confidence.
