Wiring offroad lights on a Jeep JK can change your night driving experience. With the right setup, trails become safer and obstacles stand out clearly. But many Jeep owners hesitate, worried about wiring mistakes or damaging their vehicle. The good news: you don’t need to be a professional to do this job well. With basic tools and clear steps, you can wire offroad lights yourself and enjoy a brighter adventure.
What You Need To Get Started
Before jumping in, gather the essentials. This ensures you don’t get stuck halfway through the job.

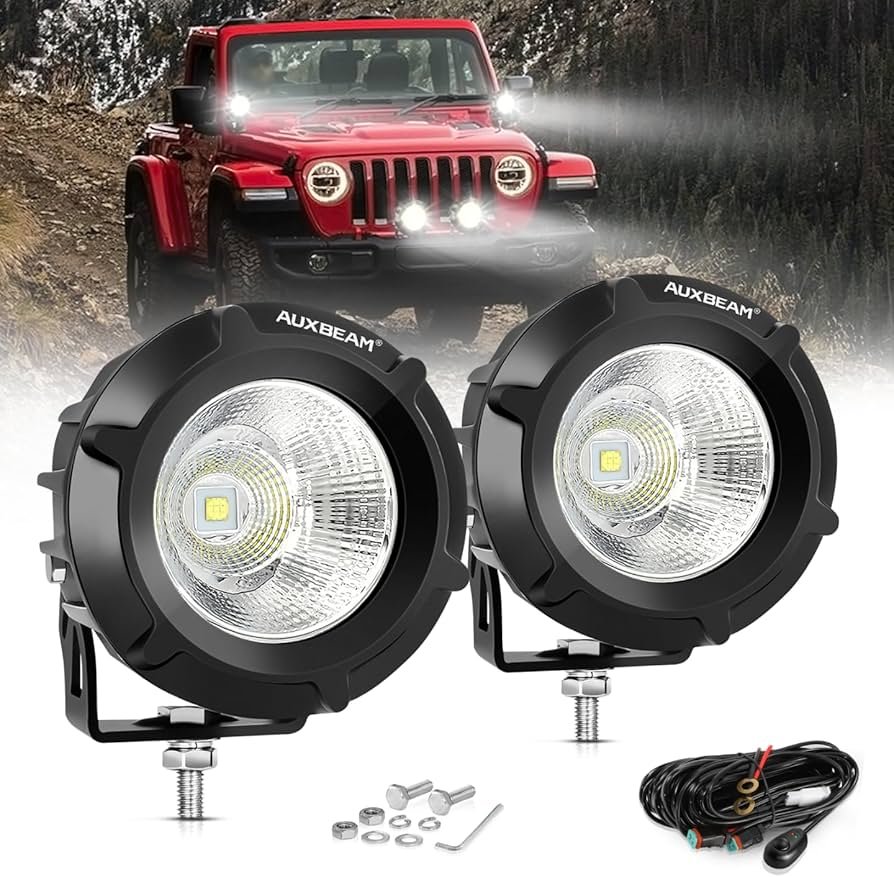

- Offroad lights (LED pods, light bars, etc.)
- Wiring harness with relay and fuse
- Switch (rocker or OEM-style)
- Inline fuse holder (if not included)
- Crimp connectors and/or soldering kit
- Wire stripper and crimper
- Socket set and screwdrivers
- Electrical tape or heat-shrink tubing
- Zip ties
Always check the amperage of your lights and buy a harness that matches or exceeds it.
Understanding Basic Jeep Jk Wiring
Jeep JKs use a 12V electrical system. Most offroad lights draw between 5 to 20 amps. Directly wiring high-power lights to the factory switch can melt wires or blow fuses. That’s why using a relay is critical. A relay acts as a remote switch: your dash button only powers the relay, while the relay connects heavy current from the battery to the lights.
Here’s a quick comparison of relay vs. non-relay setups:
| Feature | Relay Setup | Non-Relay Setup |
|---|---|---|
| Handles high current safely | Yes | No |
| Protects factory wiring | Yes | No |
| Risk of electrical fire | Low | High |
Step-by-step Guide To Wiring Offroad Lights
1. Plan Your Wiring Route
Think about where your lights and switch will go. Most Jeep JK owners mount lights on the A-pillar, bumper, or roof. Plan the shortest and safest wire path from the battery to the relay, then to the lights.
Pro Tip: Avoid sharp edges and hot spots near the engine to prevent wire damage.
2. Mount The Lights
Secure your lights to their brackets. Adjust the angle before tightening bolts fully fine-tuning later is easier this way.
3. Connect The Wiring Harness
Most wiring harnesses have:
- Red wire (power from battery to relay)
- Black wire (ground)
- Switch wires
- Output wires to the lights
Steps:
- Connect the red wire with an inline fuse to the positive battery terminal.
- Attach the black wire to a clean, unpainted metal surface (chassis ground).
- Route the output wires to your offroad lights. Plug them into the light connectors.
- Secure all wires with zip ties, keeping them clear of moving or hot parts.
4. Install The Switch
Decide where you want your switch common spots are the dash, A-pillar, or a blank switch panel. Drill a hole if necessary.
- Run the switch wires from the relay through the firewall grommet.
- Connect the wires to your switch (follow color codes in your harness manual).
- Snap the switch into place.
5. Test The System
Before buttoning everything up:
- Double-check all connections.
- Reconnect the battery.
- Flip the switch—your offroad lights should turn on instantly.
If not, check the fuse, ground, and switch connections.
Key Tips For A Reliable Installation
- Seal all connections with heat-shrink tubing or electrical tape to prevent water damage.
- Use a relay rated for at least 30 amps for most LED light bars.
- Don’t overload a single relay—use one relay per high-power light bar.
- Label your wires. It makes troubleshooting easier later.
- If you plan to run lights with the engine off, monitor battery voltage to avoid draining it.
Here’s a quick look at common mistakes and how to avoid them:
| Mistake | Consequence | How to Avoid |
|---|---|---|
| No relay used | Blown fuses, melted wires | Always install a relay |
| Poor ground connection | Lights flicker or won’t work | Sand paint off ground point |
| Loose wiring | Short circuits, unreliable lights | Use zip ties and test connections |
Common Questions Beginners Overlook
- Will extra lights drain my battery? With the engine running, LED lights use little power. But if you run them with the engine off for long periods, your battery can drain.
- Can I tap into factory fog light wiring? It’s not recommended for high-power lights. Factory wiring isn’t rated for extra amperage.
- Do I need a separate switch? Yes. A dedicated switch gives full control and avoids overloading factory circuits.
- What if I want to control multiple lights? Use a multi-switch panel with separate relays for each circuit.
Final Checks Before You Hit The Trail
After installation:
- Test your lights in the dark to fine-tune their aim.
- Check all wires and connectors after your first drive—bumps can loosen things.
- Carry spare fuses and a small tool kit on trips. Electrical issues rarely happen at home.
Wiring offroad lights on your Jeep JK is a satisfying DIY upgrade. Not only will you have better visibility, but you’ll also gain confidence in handling basic vehicle electronics. If you want even more control, consider advanced options like switch pods or wireless remotes—these are popular in the offroad community.
If you want to dive deeper into wiring basics, the Wikipedia automotive lighting page is a great resource.
Frequently Asked Questions
How Many Offroad Lights Can I Add To My Jeep Jk?
It depends on your electrical system and alternator. Most JKs can handle 2 4 LED lights without issues.
For more, consider upgrading your battery or alternator.
Can I Wire Offroad Lights Without A Relay?
Technically yes, but it’s risky. Relays prevent overheating and electrical fires. Always use a relay for safety.
What Gauge Wire Should I Use For Offroad Lights?
For most LED lights, 14-gauge wire is enough for short runs. If your lights draw more than 15 amps or wires are longer, use 12-gauge wire.
Will Adding Lights Affect My Jeep’s Warranty?
Installing lights the right way without cutting factory wires usually won’t void your warranty. Check with your dealer for details.
Are There Legal Limits For Offroad Lights?
Yes. Each state has laws on how many and how bright your lights can be on public roads.
Always cover or switch off extra lights when driving on streets.
With these steps and tips, wiring offroad lights on your Jeep JK is both achievable and rewarding. Enjoy safer night drives and stand out on the trails!
