Adding extra lights to your Jeep JK can transform night driving and trail adventures. Whether you want brighter headlights, fog lights, or off-road LED bars, wiring is a skill that saves money and keeps your ride safe. Many Jeep owners worry about damaging their electrical system or making mistakes. With careful steps and clear guidance, wiring lights on a Jeep JK becomes a manageable project—even for beginners. Here’s a practical guide to wiring lights that covers everything you need, including common mistakes and tips most tutorials miss.
Planning Your Jeep Jk Lighting Setup
Before touching wires, decide which lights you want to add. Most drivers choose between spotlights, flood lights, LED light bars, or fog lights. It’s important to know your Jeep JK’s electrical limits. The stock alternator can handle extra accessories, but avoid connecting too many high-power lights without upgrading.
Estimate the total wattage of your planned lights. For example, two 50-watt spotlights plus a 100-watt LED bar means 200 watts total.
Using the formula (Watts ÷ Volts = Amps), 200W ÷ 12V = 16. 7A.
If you add more than 20A, consider a relay or fuse upgrade.
Most factory circuits support up to 20A safely.
Here’s a quick comparison of light types:
| Light Type | Average Wattage | Best Use |
|---|---|---|
| LED Bar | 100-300W | Off-road, wide area |
| Spotlight | 30-60W | Long distance |
| Fog Light | 20-55W | Low visibility, street |
Gathering Tools And Materials
You’ll need basic tools and wiring materials. Quality matters a cheap wire can melt, and poor connectors cause shorts.

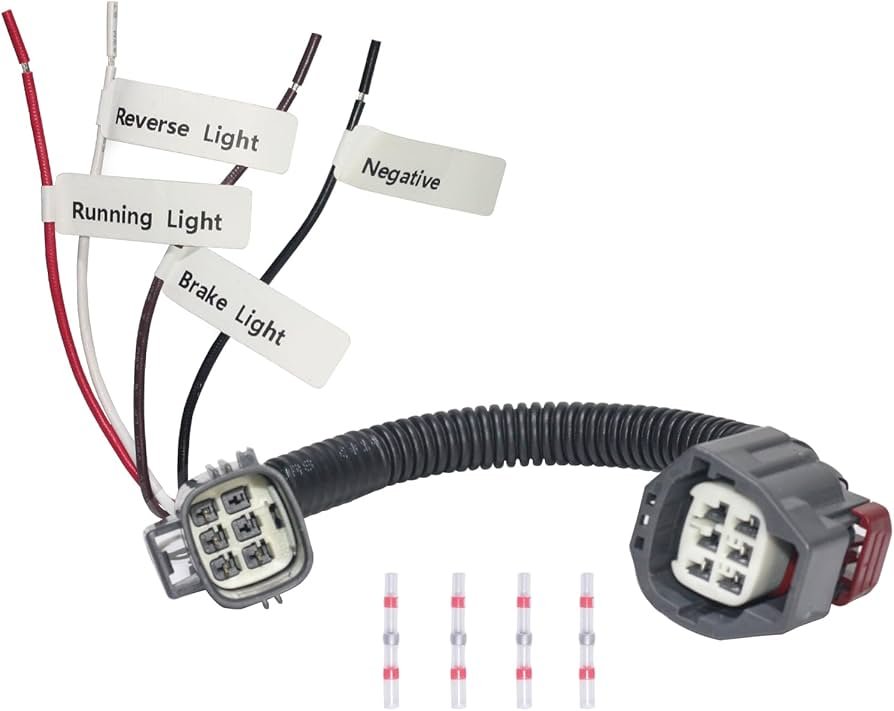

- Wire harness (with relay and fuse)
- Switch (toggle or rocker, rated for 12V)
- Electrical wire (14-16 gauge for most lights)
- Ring terminals and connectors
- Wire strippers and crimpers
- Zip ties or wire loom
- Drill (for mounting switch/light, if needed)
Always choose waterproof connectors for exterior wiring. If you’re wiring inside, regular connectors work, but seal them with electrical tape for extra protection.
Step-by-step Wiring Guide
Wiring lights on a Jeep JK is easier if you follow this logical order. Many beginners skip the relay or fuse, which can cause major electrical problems later. Here’s how to do it safely:
1. Mount The Lights
Secure your lights using brackets. Aim them before tightening so you get the best coverage.
For roof or bumper lights, make sure the mounting spot is solid and won’t shake loose.
2. Run The Wires
Route wires from the lights toward the engine bay. Avoid sharp edges and hot spots.
Use zip ties or wire loom to protect cables from heat and friction.
Non-obvious tip: Run wires above the frame rails, not below. This keeps them safe from mud and rocks.
3. Install The Relay And Fuse
A relay acts as a switch that uses low current to turn on high-power lights. Connect the relay close to the battery, not in the cabin. The fuse protects the circuit from overloads.
A typical relay wiring looks like this:
| Relay Pin | Wire Connection | Description |
|---|---|---|
| 30 | Battery (+) | Main power input |
| 85 | Ground (-) | Relay coil |
| 86 | Switch output | Turns relay on/off |
| 87 | Light (+) | Power to lights |
4. Wiring The Switch
Mount your switch inside the Jeep JK, usually on the dash. Run a wire from the switch to the relay (pin 86).
This lets you control the lights safely without running heavy wires inside.
Pro tip: Use a switch with a light indicator, so you know if the lights are on.
5. Connecting To Power And Ground
Connect the relay’s pin 30 to the battery positive terminal. Add a fuse (15-20A) within six inches of the battery to protect the circuit.
Ground the lights and relay (pin 85) to a solid metal spot bare metal works best.
6. Testing And Securing
Double-check all connections. Turn on the switch and check for light operation.
If nothing happens, check the fuse and relay. Secure all wires with zip ties, and hide excess wire behind panels.
A common mistake: Forgetting to clean the ground connection. Dirty or painted surfaces prevent proper grounding. Always sand the spot before attaching ground wires.
Safety And Troubleshooting Tips
Wiring can seem simple, but there are hidden risks. Never connect lights directly to the battery without a fuse.
If your lights flicker or don’t turn on, double-check the relay and ground. If you smell burning, stop immediately and check for short circuits.
If you want more technical details about relays and wiring, visit The12Volt for expert diagrams.
Jeep Jk Wiring Example: Two Led Spotlights
Here’s a real-world example. Suppose you’re adding two 50W LED spotlights.
- Mount lights on the bumper.
- Run 16-gauge wire from each light to a relay in the engine bay.
- Connect relay pin 30 to battery positive (with 15A fuse).
- Connect relay pin 87 to both lights’ positive wires.
- Ground each light and relay pin 85 to metal.
- Run a wire from relay pin 86 to a dash-mounted switch.
- Test the system. If both lights work, secure all wires.
Comparing Diy Vs Professional Installation
Some Jeep owners prefer shops, but DIY wiring saves money. Here’s a quick comparison:
| Method | Cost | Time Needed | Skill Level |
|---|---|---|---|
| DIY | $50-$150 (parts) | 2-4 hours | Beginner to Intermediate |
| Professional | $250-$500 | 1 day | None (shop does work) |
If you follow the steps above, wiring your Jeep JK’s lights is safe and satisfying. Always use the right parts, and double-check connections.
This project gives your Jeep more power and custom style plus, you learn useful skills for other upgrades.
Frequently Asked Questions
How Many Lights Can I Wire On My Jeep Jk?
You can wire several lights, but keep the total amperage below 20A unless you upgrade fuses and relays. For most setups, 2-4 lights are safe.
Do I Need A Relay For Every Light?
No, you can run multiple lights through one relay if the total wattage is under 200W. For high-power setups, use separate relays.
What Gauge Wire Should I Use?
For lights up to 100W, use 16-gauge wire. For higher wattage, use 14-gauge wire. Thicker wire prevents overheating and voltage drop.
Can I Use The Factory Switch Panel?
Yes, but only if your lights don’t exceed the panel’s rating (usually 10A). For bigger lights, install a separate switch and relay.
Will Wiring Lights Void My Jeep’s Warranty?
It depends. If you damage the electrical system, warranty may not cover repairs.
Always follow safe wiring practices and check with your dealer.
Wiring lights on a Jeep JK is a smart upgrade. With the right steps and attention to detail, you can enjoy safe, bright driving and trails without paying for shop labor.
