Taking off a hard top Jeep can feel intimidating if you’re new to it. But with careful steps, the process becomes straightforward and safe. Many Jeep owners enjoy the open-air driving experience, especially in warmer months. Removing the hard top is a key part of that freedom. This guide shows you how to take off a hard top Jeep, highlights important tools, safety tips, and answers common questions. If you follow these instructions, you’ll avoid mistakes that often cause damage or frustration.
What You Need Before Removing Your Hard Top
Before you start, gather everything you need. Having the right tools and preparation will make the job much easier and safer.
- Torx bit set: Most Jeep hard tops use Torx bolts, usually size T40 or T50.
- Ratchet or drill: For removing bolts quickly.
- Soft cloth or blanket: Protects the hard top and your Jeep’s paint.
- Storage area: You need a safe space for the top after removal.
- Helper: A second person is highly recommended. Hard tops are heavy and awkward to lift alone.
You’ll also want to check your owner’s manual for any model-specific instructions. For example, the Jeep Wrangler JL has slightly different bolt locations than older JK models.

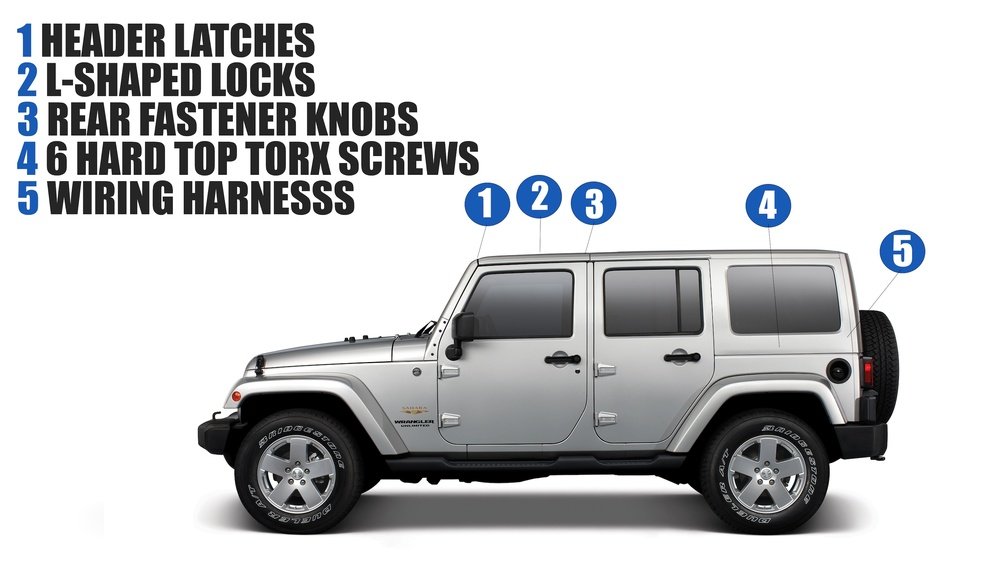

Step-by-step Guide: Taking Off A Hard Top Jeep
Follow these steps for a smooth and safe removal. Most people can complete this task in 30 45 minutes with help.
1. Remove Interior Hardware
Start inside the Jeep. Find the sun visors and fold them down. Look for latches and bolts near the front of the top. These secure the hard top to the windshield frame.
- Flip open the latches.
- Use your Torx bit to remove the bolts. Keep them in a safe place. Many Jeeps have bolt storage trays.
2. Disconnect Electrical And Washer Connections
Some hard tops have a rear wiper, defroster, or lights. These are connected with small plugs and hoses.
- Locate the electrical connector (usually near the driver’s side, inside the cargo area).
- Press the tab to release the plug.
- If you have a washer hose, gently pull it off.
Do not yank these connections doing so can break the clips or wiring.
3. Remove Rear And Side Bolts
Open the rear cargo door. Along the edge, you’ll find several Torx bolts holding the top in place.
- Remove all bolts along the sides and rear of the Jeep.
- Store the bolts together.
A common mistake is missing hidden bolts near the roll bar or inside the cargo area. Always double-check.
4. Lift Off The Hard Top
With all bolts and connections removed, it’s time to lift. This step is best done with two people.
- Stand on each side of the Jeep.
- Grip the top firmly.
- Lift straight up and away, avoiding contact with the paint.
Place the top on a soft cloth or blanket. Never set it directly on concrete or gravel.
5. Store The Hard Top Safely
Hard tops are heavy (often 100 140 lbs). Proper storage prevents scratches and warping.
- Keep the top flat and out of direct sunlight.
- Use a hard top hoist or wall mount if available.
Example: Jeep Wrangler Jk Vs Jl Removal
Here’s a quick comparison of removal steps for JK and JL models:
| Step | Wrangler JK | Wrangler JL |
|---|---|---|
| Front Latch | Manual, 2 latches | Manual, 2 latches |
| Bolts | 6 side, 6 rear | 4 side, 4 rear |
| Electrical | Single plug | Two plugs |
| Washer Hose | Yes | Yes |
Safety Tips And Common Mistakes
Many first-time Jeep owners make avoidable errors when removing the hard top. Here are some important tips:
- Don’t rush: Slow down to avoid scratches, broken connectors, or lost bolts.
- Don’t lift alone: Even strong people can drop or damage the top without help.
- Avoid tools on paint: Always use a soft cloth under tools and hardware.
- Check weather: Don’t remove the top if rain is expected.
Here’s a comparison of safe vs unsafe removal practices:
| Safe Practice | Unsafe Practice |
|---|---|
| Two-person lift | Solo lift |
| Use soft cloth for storage | Store on bare floor |
| Organize bolts | Misplace hardware |
| Disconnect plugs gently | Pull wiring forcefully |
How Long Does It Take?
Most Jeep owners can remove the hard top in 30–45 minutes with help. Solo removal takes longer and is not recommended. If you use a hoist system, the process may be faster and safer. Some Jeep dealers offer hard top removal services for a fee, usually $50–$100.
Key Benefits Of Removing Your Hard Top
- Open-air driving: Enjoy fresh air and sunshine.
- Custom look: Many owners swap for soft tops or leave the Jeep open.
- Easier cleaning: Access to the roll bars and interior.
These benefits add to the Jeep’s versatility and fun factor.
Practical Advice For Beginners
- Label your bolts with tape or bags—many look similar but are not interchangeable.
- Take a photo of wiring and connectors before you disconnect them.
- If you plan to remove your hard top often, invest in a hard top hoist or storage cart.
A non-obvious tip: Hard tops can warp if stored unevenly. Always keep them flat and supported.
For more technical details, the official Jeep site offers removal guides: Jeep.com.
Frequently Asked Questions
Can I Remove The Hard Top Jeep Alone?
It’s possible but not recommended. The top is heavy and large. You risk injury or damaging your Jeep. Always use at least two people.
Does Removing The Hard Top Void My Warranty?
No. Removing the hard top is part of normal Jeep use. Just don’t break any parts during removal or storage.
Are Hard Tops Stronger Than Soft Tops?
Yes, hard tops are more durable, secure, and weather-resistant. However, they are heavier and harder to remove.
How Do I Reconnect The Wiring After Reinstalling?
Simply plug the connectors back in. If you’re unsure, check the owner’s manual or take a photo before removal.
What’s The Best Way To Store The Hard Top?
Use a hard top hoist, storage cart, or wall mount. Always keep it flat and protected from sunlight and moisture.
Removing your Jeep’s hard top opens up a world of adventure. With careful steps and the right tools, you’ll enjoy the process and avoid common mistakes.
Whether you’re cruising the beach or heading to the mountains, this simple upgrade makes your Jeep even more fun to drive.
