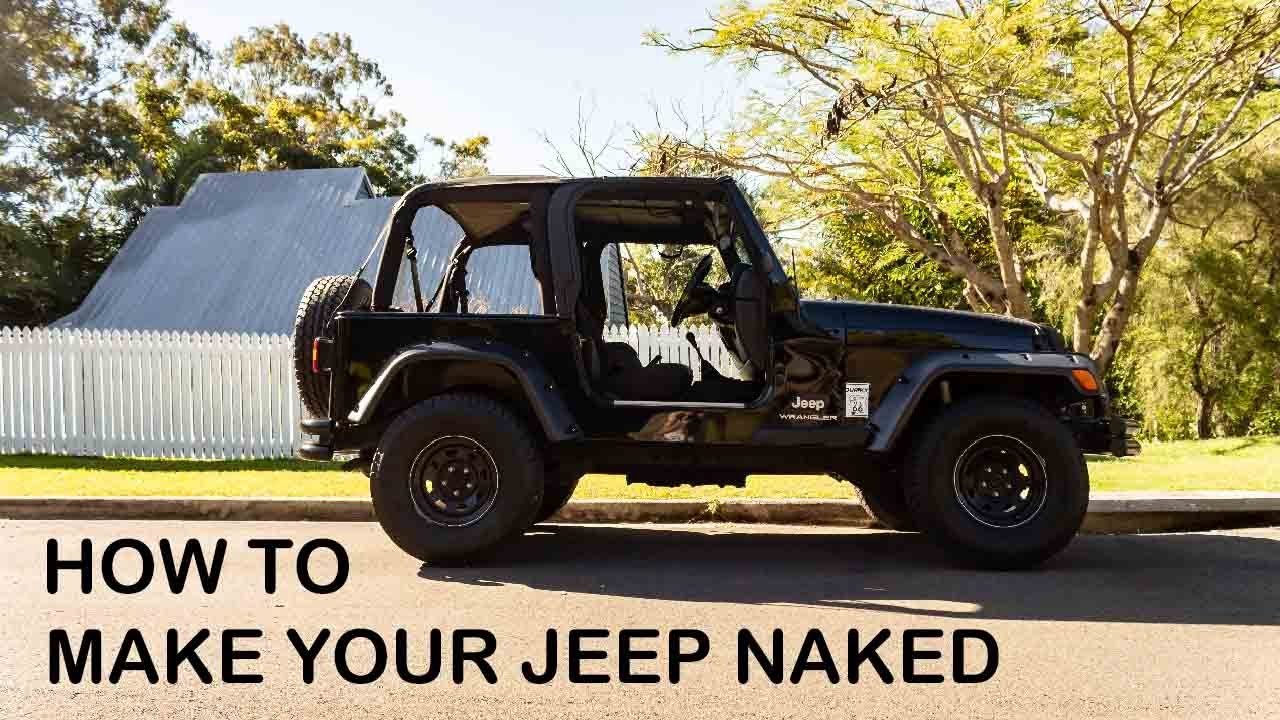

Removing the doors from your Jeep TJ can transform your driving experience. It gives you a sense of freedom and a closer connection to nature, whether you’re on the trail or cruising in town. Many Jeep owners love this simple upgrade, but if you’ve never done it before, you might feel a bit unsure.
The good news? Taking the doors off a Jeep TJ is straightforward when you know the right steps and precautions. This guide will show you exactly how to do it safely and efficiently.
Why Remove Jeep Tj Doors?
People take the doors off their Jeep TJ for several reasons:
- Better visibility on the trail.
- More airflow and an open-air feeling.
- Easier to clean after off-roading.
But remember, some local laws require side mirrors, even with doors removed. Always check your state’s rules before hitting the road.
Tools And Preparation
You don’t need many tools for this job, but a few basics will help:
- T-50 Torx bit (to remove door bolts)
- Ratchet or wrench
- Penetrating oil (if the bolts are rusty)
- Clean cloth
Before starting, park your Jeep on level ground. Turn off the engine and make sure it’s in gear with the parking brake on. Lower your windows fully—this helps protect the glass when lifting the doors.
Step-by-step: How To Take Doors Off Jeep Tj
1. Remove Door Strap
Open the door slightly. Find the door strap inside, near the lower hinge. This keeps the door from opening too far. Unhook it by sliding it off the body hook.
2. Disconnect Wiring (if Equipped)
Some Jeep TJs have power locks or windows. You’ll need to disconnect the wiring harness. Look near the lower inside part of the door for a plug. Press the tab and gently pull it apart.
3. Remove Torx Bolts
On each door, you’ll see two Torx bolts above the door hinges. Spray them with penetrating oil if they’re tight. Use the T-50 Torx bit and a ratchet to remove both bolts. Place them somewhere safe—these bolts are easy to lose.
4. Lift The Door
With the bolts out and wiring unplugged, grip the door firmly. Hold it from underneath and gently lift straight up. Jeep TJ doors can be a bit heavy (about 45 pounds), so be careful. If they’re stuck, wiggle the door back and forth while lifting.
5. Store Doors Safely
Put your doors on a soft surface to avoid scratching the paint. Some owners use towels or blankets. Never store doors on their edge, as this can bend the window frame.
Here’s a quick look at the typical weight and size of Jeep TJ doors:
| Jeep TJ Door Type | Approximate Weight | Dimensions (inches) |
|---|---|---|
| Front Door (Full) | 45 lbs | 37 x 30 |
| Front Door (Half) | 30 lbs | 37 x 24 |
Tips For First-timers
- If your doors have never been removed, they may feel stuck. Don’t force them too hard—use gentle rocking motions.
- Mark your bolts and wiring plugs with colored tape. This makes reinstallation easier.
- Lubricate the door hinges with grease before reinstalling to prevent squeaks.
A common mistake is forgetting to disconnect the wiring on powered doors. Pulling without unplugging can damage the harness, leading to costly repairs.
What To Do About Mirrors?
When you remove the factory doors, you also lose the side mirrors. Most states require at least one side mirror. Consider these options:
- Mirror relocation brackets: Move your factory mirrors to the windshield frame.
- Quick-release mirrors: These attach to the door hinges and are easy to install and remove.
Here’s a comparison of the two main mirror solutions:
| Mirror Type | Installation Time | Cost (approx.) | Stability |
|---|---|---|---|
| Relocation Bracket | 30-45 min | $40-$80 | Very stable |
| Quick-Release Mirror | 5-10 min | $25-$60 | Moderate stability |
Reinstalling The Doors
Reattaching your doors is just as simple:
- Lower the windows and align the door hinges with the body.
- Carefully slide the door down into place.
- Reinstall the Torx bolts.
- Reconnect the wiring harness and door strap.
If your doors don’t align perfectly, don’t force them. Check that the hinges are clean and lubricated. Sometimes a small adjustment is needed.
Safety And Legal Considerations
Driving without doors is fun, but safety matters. Always wear your seat belt. If you often drive doorless, you might want to install grab handles for passengers.
Legal requirements can vary. Some places require doors, mirrors, or both. The Jeep Wrangler Wikipedia page has more on vehicle regulations.
Also, remember that removing the doors makes your Jeep less secure. Don’t leave valuables inside when parked.
Common Problems And Solutions
Stuck Doors: If the doors won’t budge, spray the hinges with penetrating oil and wait a few minutes. Use gentle rocking, not brute force.
Lost Bolts: Keep a small container handy for bolts and nuts. Buying replacements can be time-consuming.
Electrical Issues: If your interior lights stay on after removing the doors, check the door switch. Some people use a simple rubber stopper or tape to press the switch.
Here’s a quick reference for troubleshooting:
| Problem | Possible Cause | Solution |
|---|---|---|
| Door stuck | Rusty hinges | Use oil and rock door gently |
| Lights won’t turn off | Door switch open | Use tape or rubber stopper |
| Wiring damaged | Not unplugged first | Repair or replace harness |
Enjoying The Jeep Tj Experience
Taking the doors off your Jeep TJ is more than just a cool look. It’s about enjoying the outdoors and making the most of your vehicle’s design. With the right tools and a little care, you can remove and reinstall your doors easily.
Always think about safety, follow local laws, and protect your Jeep’s parts for years of fun.
Frequently Asked Questions
How Long Does It Take To Remove Jeep Tj Doors?
For most people, it takes about 15–30 minutes per door the first time. With practice, you can do both doors in under 20 minutes.
Will Removing The Doors Void My Warranty?
Usually, removing the doors does not void your warranty. However, if you damage wiring or hinges, that repair may not be covered. Check your warranty terms.
Can I Drive Without Doors On Public Roads?
In many states, you can, but you must have side mirrors. Check your local vehicle laws before driving doorless.
What If My Doors Are Stuck And Won’t Come Off?
Spray the hinges with penetrating oil and use gentle rocking motions. Don’t use too much force, or you could bend the hinges.
Do I Need Special Tools To Remove Jeep Tj Doors?
You only need a T-50 Torx bit and a ratchet for most Jeep TJ doors. For some models with power windows or locks, you’ll also disconnect a wiring plug.
