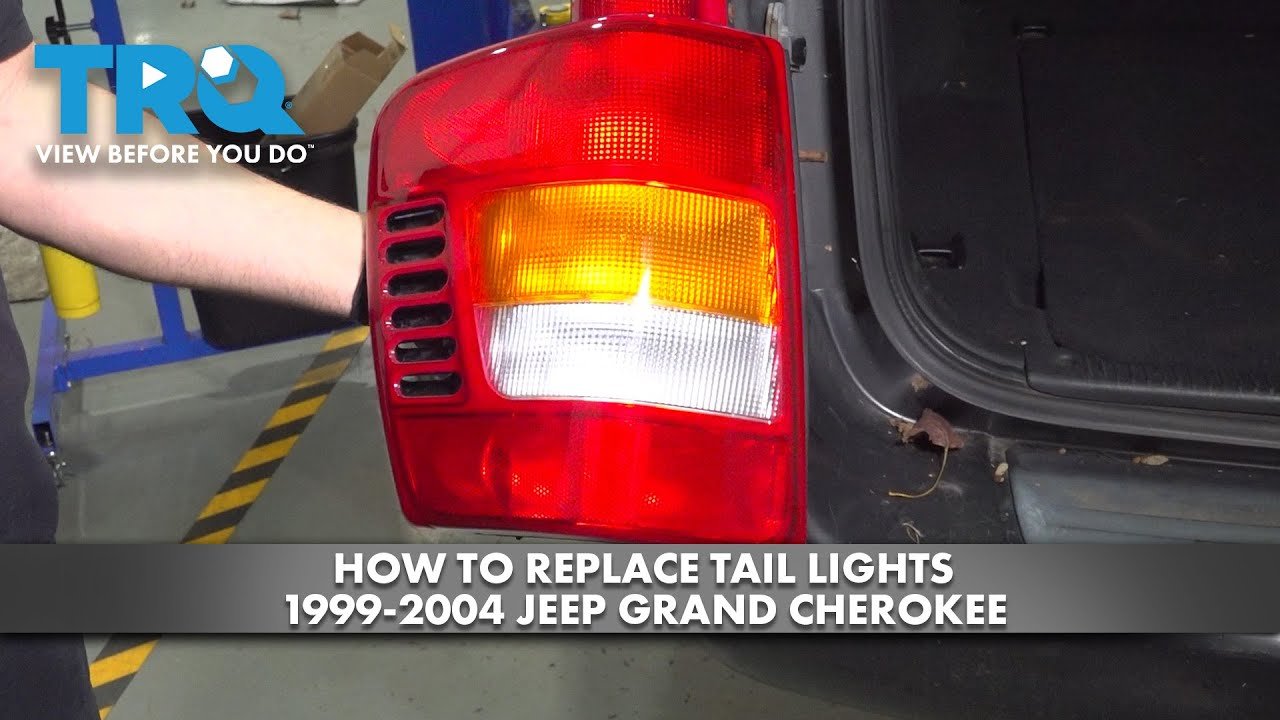

Replacing a tail light on a Jeep Grand Cherokee is a practical skill that saves you both time and money. A broken or dim tail light is not just a minor issue—it can lead to safety hazards and even tickets. Many drivers believe replacing a tail light requires special tools or a mechanic’s help, but with the right guidance, you can do it yourself in less than an hour. This guide will walk you through every step, highlight common mistakes, and share insights that even some experienced DIYers miss.
Tools And Materials Needed
Before you start, gather the necessary tools and parts. Having everything ready prevents frustration later.
- New tail light assembly or bulb (check your model year for fit)
- Phillips and flathead screwdrivers
- Socket wrench (usually 8mm or 10mm)
- Clean gloves
- Microfiber cloth
Some Grand Cherokee models use LED tail lights, while others use halogen bulbs. Always verify your model’s requirements in your owner’s manual or parts store database.
Step-by-step Guide To Replacing Your Tail Light
Replacing the tail light is straightforward, but small details matter. Follow these steps for a smooth process.
1. Open The Rear Hatch
Open the rear hatch to access the tail light housing. For most models, the tail light is secured from the inside edge, not the outside of the vehicle.
2. Locate And Remove Mounting Screws
Find the screws or bolts holding the tail light assembly. Most Grand Cherokees have two or three fasteners along the inner edge.
Use the correct screwdriver or socket wrench to remove them.
Pro tip: Place screws in a small container so you don’t lose them.
3. Gently Pry Out The Tail Light Assembly
Carefully pull the tail light assembly straight out. If it feels stuck, wiggle gently, but avoid force that could crack the plastic.
Some models have clips that release with a firm pull.
4. Disconnect The Wiring Harness
Locate the wiring connector attached to the back of the tail light. Press the tab and pull it out.
For LED models, there is usually one connector; for halogen, you may see several bulb sockets.
5. Replace The Bulb Or Assembly
- Bulb-only replacement: Twist the bulb socket counterclockwise and remove the old bulb. Insert the new one without touching the glass.
- Full assembly replacement: Align the new assembly and connect the wiring harness securely.
6. Test Before Final Assembly
Reconnect the wiring and test the lights by turning on your headlights and pressing the brake pedal. Make sure all functions (brake, turn signal, reverse) work.
7. Reinstall The Assembly
Once tested, align the tail light and press it into place. Reinsert the screws and tighten them snugly do not overtighten, or you could crack the plastic.
8. Clean And Finish
Wipe the new tail light with a microfiber cloth to remove fingerprints and check for a flush fit.

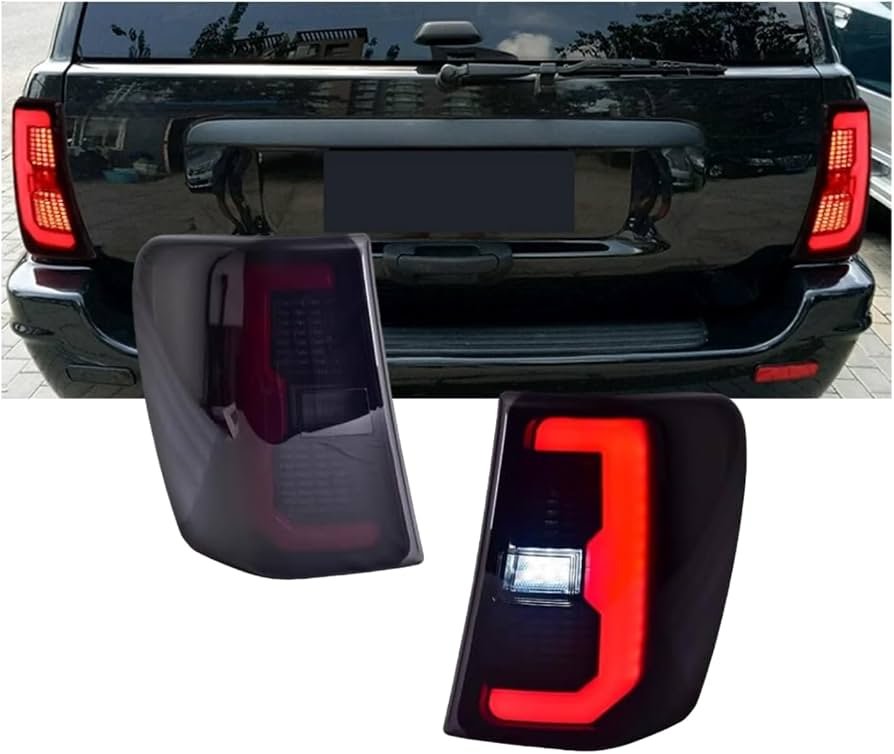

Jeep Grand Cherokee Tail Light Types
Different years and trims use different tail light designs. Here is a comparison for quick reference:
| Model Year | Tail Light Type | Notes |
|---|---|---|
| 2011-2013 | Halogen Bulb | Easy bulb replacement |
| 2014-2021 | LED | Whole assembly often replaced |
| 2022+ | Advanced LED | May need dealer programming |
Common Mistakes And How To Avoid Them
Even experienced DIYers make errors when replacing tail lights. Here are two non-obvious pitfalls:
- Not checking all lights: Many people only test the brake light, forgetting the turn signal or reverse light shares the same assembly.
- Touching halogen bulbs: Oil from your fingers can shorten the bulb’s life or cause it to fail quickly.
Always test every light function and use gloves when handling bulbs.
Cost And Time Comparison: Diy Vs. Professional
Understanding the time and cost difference helps you decide whether to do it yourself or hire a mechanic.
| Option | Cost (parts + labor) | Time Required |
|---|---|---|
| DIY | $20–$150 | 30–60 minutes |
| Dealership | $120–$400 | 1–2 hours (including wait) |
| Local Mechanic | $80–$250 | 1 hour |
DIY saves significant money, especially if you only need to replace a bulb.
How To Choose The Right Replacement Part
Not all tail lights are the same even within the same Grand Cherokee generation. Use your VIN or compare your existing part numbers before buying online or in-store.
If you buy aftermarket, look for DOT or SAE-certified parts for legal use on US roads. Avoid the cheapest options, as they may not fit well or last long.
Extra Tips For A Successful Replacement
- Bring your old part to the store to match it exactly.
- Watch for broken clips or seals—these can cause water leaks and electrical problems.
- If you see condensation inside the tail light, consider replacing the seal or the entire assembly.
Some advanced LED tail lights need programming to work correctly. If your replacement doesn’t light up, check your vehicle’s manual or ask a dealer.
When To Seek Professional Help
If your tail light still does not work after replacement, you may have a wiring or fuse problem. Also, if your model has advanced features like adaptive lighting, consider a professional to avoid software issues.
Frequently Asked Questions
How Do I Know If My Jeep Grand Cherokee Uses Led Or Halogen Tail Lights?
Check your owner’s manual or look at the tail light itself. LED lights have many small diodes, while halogen uses a single replaceable bulb. Your vehicle’s year and trim also affect which type you have.
Can I Replace Only The Bulb, Or Do I Need To Change The Whole Assembly?
Older models usually allow bulb-only replacement. Most newer models with LED require replacing the whole tail light assembly, as individual LEDs are not serviceable.
Where Can I Buy A Replacement Tail Light For My Grand Cherokee?
You can find replacement parts at auto parts stores, dealerships, or online retailers. For compatibility, use your VIN or bring your old part for comparison. NHTSA’s lighting page offers more information on lighting safety standards.
Is It Legal To Drive With A Broken Tail Light?
No, it’s illegal and unsafe. You can receive a ticket, especially if the light is not visible at night or during bad weather.
Replace broken tail lights as soon as possible.
Why Does My New Tail Light Fog Up Or Get Water Inside?
Moisture often enters if the seal is damaged or the assembly isn’t installed tightly. Check the seal and mounting area for cracks and replace if needed.
Replacing a tail light on your Jeep Grand Cherokee is a task most owners can handle with basic tools and a little patience. By following these steps and tips, you’ll keep your vehicle safe, legal, and looking great on the road.
