If your tail light bulb goes out on your 2008 Jeep Grand Cherokee, you might feel concerned about safety or getting a ticket. The good news is, you don’t need to be a mechanic to fix this problem. With a few simple tools and a bit of time, you can replace the bulb yourself and save money.
What You Need Before Starting
Before you begin, gather these basic items:
- Replacement bulb (Check the owner’s manual for the right bulb type—usually 3157 for most 2008 Jeep Grand Cherokees)
- Phillips-head screwdriver
- Work gloves (optional, for hand protection)
- Clean cloth (to wipe the new bulb)
You may also want a small flashlight if you’re working in a dim garage.
Step-by-step Guide To Replacing The Tail Light Bulb
1. Open The Rear Hatch
First, park your Jeep on a flat surface and turn off the ignition. Open the rear hatch to access the tail light assembly from the inside.
Make sure the vehicle is in park and the keys are out of the ignition for safety.

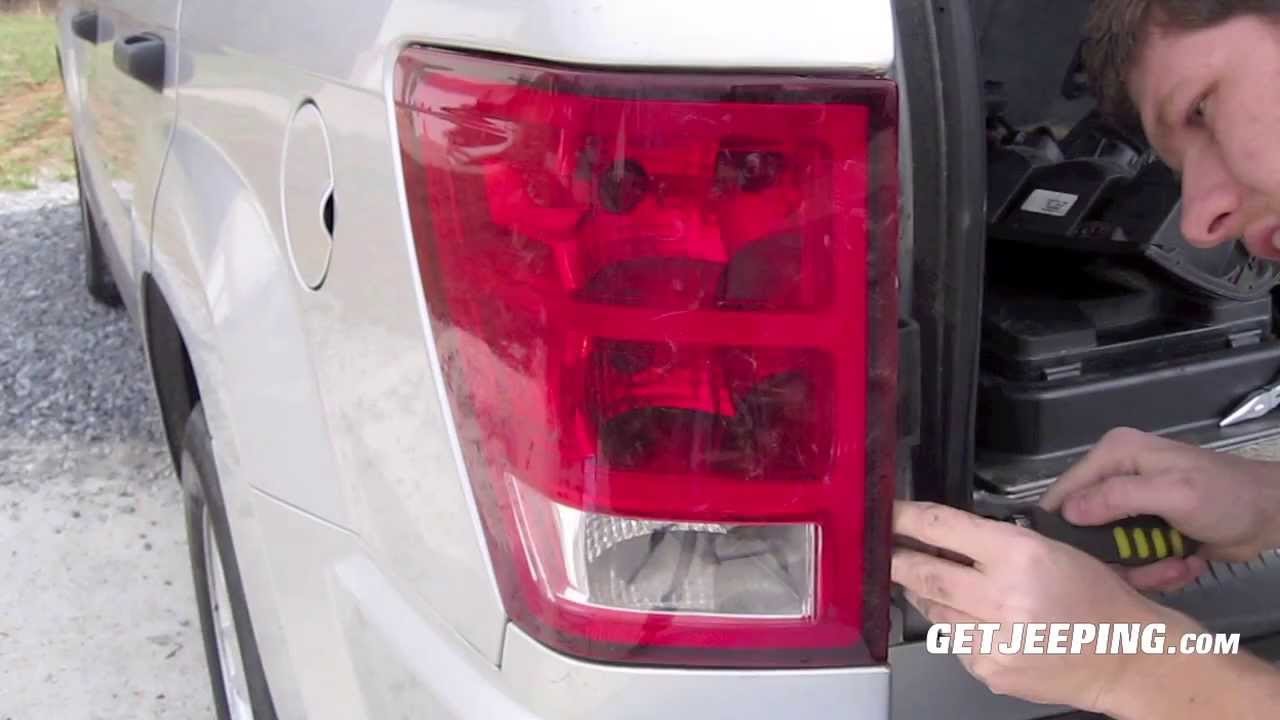

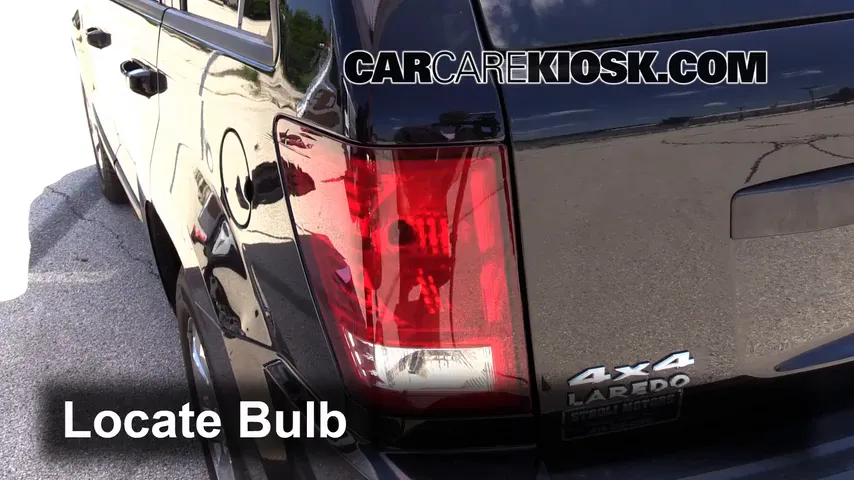

2. Locate And Remove The Tail Light Housing
Look for the two Phillips-head screws on the side of the tail light assembly. These are visible once you open the hatch.
Unscrew them and keep them in a safe spot. Gently pull the entire tail light assembly straight out.
Avoid twisting or forcing it, as the plastic tabs can break.
3. Disconnect The Wiring Harness
With the assembly loose, you’ll see a wiring harness attached to the back. Press the tab or clip and gently pull the connector out.
This disconnects the power so you can safely replace the bulb.
4. Remove The Old Bulb
Locate the bulb socket that controls the tail light (not the turn signal or reverse light). Turn the socket counterclockwise about a quarter-turn and pull it out.
Gently pull the old bulb straight out. If it’s stuck, wiggle it slightly, but don’t use too much force.
5. Install The New Bulb
Take the new 3157 bulb and insert it into the socket. It should fit snugly. Use a clean cloth or gloves to avoid getting oil from your hands on the bulb, which can cause it to burn out faster.
6. Reconnect And Test
Insert the bulb socket back into the tail light housing and turn it clockwise to lock it in place. Plug the wiring harness back into the tail light assembly.
Before reattaching everything, ask a friend to turn on the lights so you can check if the new bulb works.
If it lights up, you’re good to go.
7. Reattach The Tail Light Assembly
Carefully push the tail light housing back into place, lining up the plastic tabs. Screw the two Phillips-head screws back in. Close the hatch, and you’re done.
Helpful Tips And Common Mistakes
- Always double-check the bulb type before buying a replacement.
- Don’t overtighten the screws—this can crack the plastic.
- If the new bulb doesn’t work, check the fuse or wiring harness.
- Some people forget to test the bulb before reassembling everything—don’t skip this step.
- Avoid touching the glass part of the new bulb with bare fingers.
Data: Comparing Bulb Types
Here’s a quick comparison of common replacement bulbs for the 2008 Jeep Grand Cherokee:
| Bulb Type | Brightness (Lumens) | Average Lifespan (Hours) | Cost (USD) |
|---|---|---|---|
| 3157 Standard Halogen | 400 | 1,200 | 3-5 |
| 3157 LED | 800 | 30,000 | 10-20 |
| 3157 Long Life Halogen | 380 | 2,000 | 5-7 |
LED bulbs cost more but last much longer and are brighter. Standard halogen bulbs are cheaper but need replacing more often.
Example: Time And Cost Breakdown
Let’s look at how much time and money you might spend:
| Step | Time (Minutes) | Cost (USD) |
|---|---|---|
| Buying Bulb | 20 | 5-20 |
| Replacing Bulb | 10 | 0 |
| Total | 30 | 5-20 |
Most people spend less than $20 and about half an hour.
When To Consider Professional Help
If the bulb is still not working after replacement, the problem might be with the fuse, the wiring, or the socket itself. It’s rare, but sometimes water can get inside the tail light and cause corrosion. In these cases, a professional mechanic can diagnose the issue faster.
Non-obvious Insights
- Many people don’t realize that LED bulbs can fit in the same socket as halogen bulbs, but some LED bulbs may cause a “bulb out” warning or blink too fast. You might need a resistor to fix this.
- If your tail light keeps burning out, check for moisture inside the housing. Even a small crack can let water in and shorten bulb life.
Environmental Tip
Dispose of old bulbs properly. Halogen and LED bulbs should not go in the regular trash.
Many auto parts stores have recycling bins for bulbs.
Frequently Asked Questions
What Type Of Tail Light Bulb Does A 2008 Jeep Grand Cherokee Use?
The most common type is the 3157 bulb. Check your manual or the old bulb to confirm before buying a replacement.
Can I Use An Led Bulb Instead Of A Halogen?
Yes, you can use an LED bulb as long as it’s the correct type (3157). Some LEDs are brighter and last longer, but may require a resistor to avoid warning messages.
How Do I Know If My Tail Light Bulb Is Out?
Check for warning lights on your dash or ask someone to look at the rear lights while you press the brake and turn on the headlights. If one side doesn’t light up, the bulb is likely out.
Is It Safe To Drive With A Broken Tail Light Bulb?
No. Driving with a burnt-out tail light makes you less visible and could get you a ticket. Replace the bulb as soon as possible.
Where Can I Find More Information About Automotive Lighting?
You can learn more about car lighting standards from the Automotive Lighting Wikipedia page for detailed explanations.
Replacing a tail light bulb on your 2008 Jeep Grand Cherokee is a simple, quick task that can save you money and keep you safer on the road. With these steps and tips, you can handle the job with confidence.
