Removing the Jeep Freedom Top is a key part of enjoying your Wrangler or Gladiator. It lets you switch from a closed cabin to open-air driving in just a few minutes. Many Jeep owners love this feature, but if you’ve never taken the top off before, it can feel a bit intimidating. This guide will show you exactly how to remove the Freedom Top safely and quickly, and will highlight tips that most beginners miss. Whether you’re preparing for summer or just want to understand your Jeep better, you’ll find all you need here.
What Is The Jeep Freedom Top?

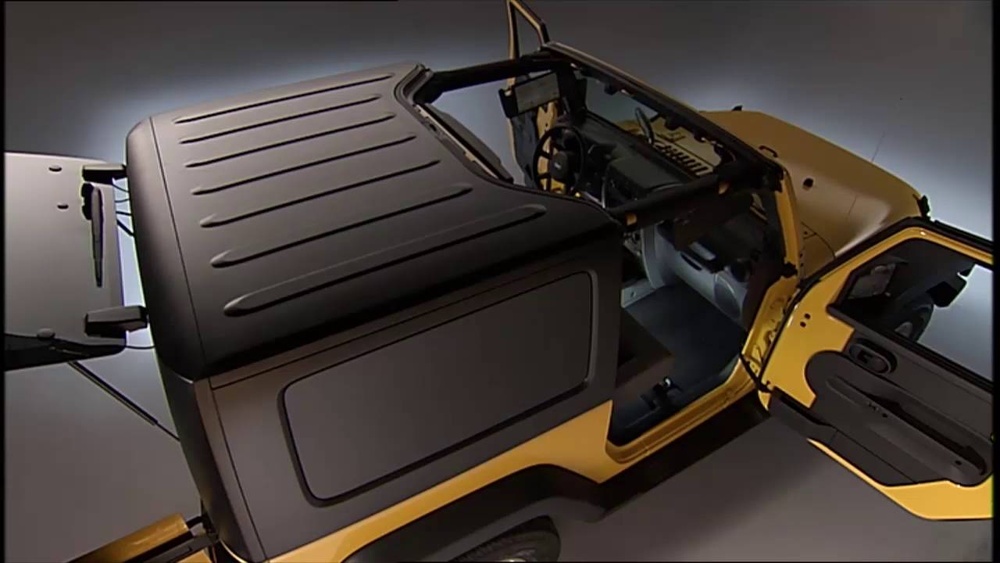

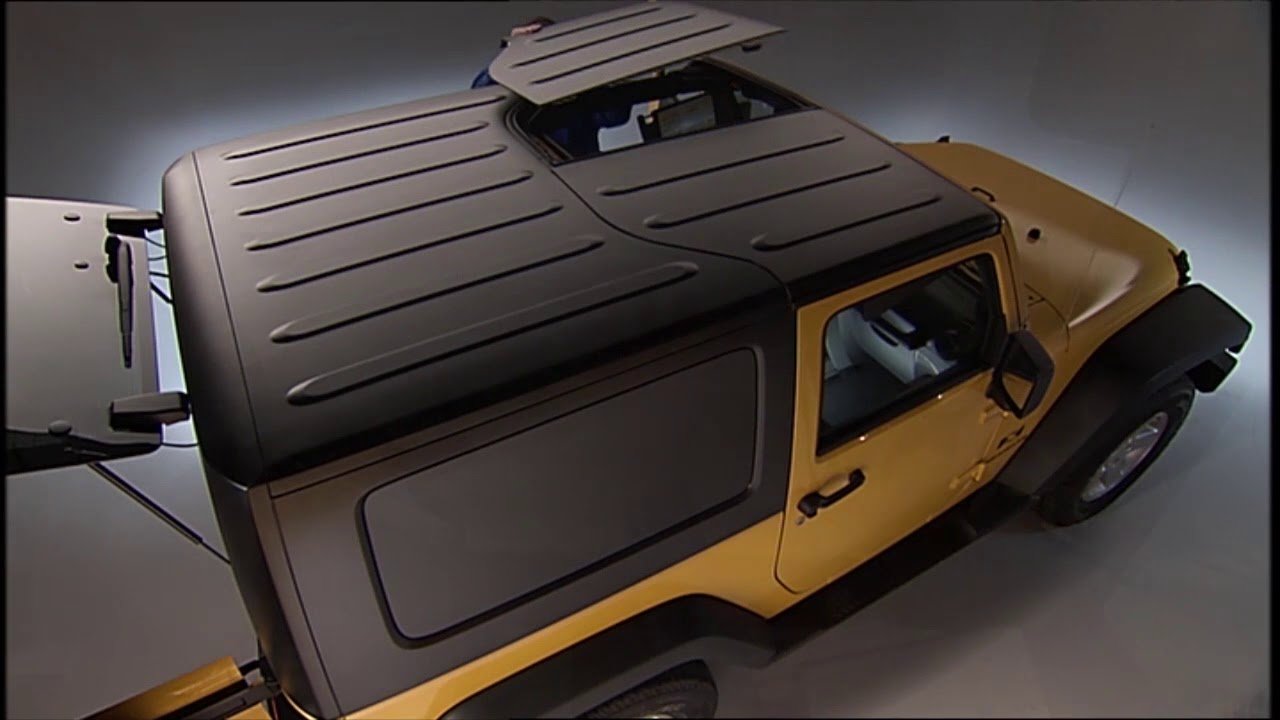

The Freedom Top is a modular hardtop found on Jeep Wrangler JK, JL, and Gladiator models. It consists of three pieces: two lightweight panels over the front seats (called “freedom panels”) and a larger rear section. This design allows you to remove just the front panels for a sunroof effect, or take off the entire top for a fully open ride.
| Part | Weight (approx.) | Number of People Needed |
|---|---|---|
| Freedom Panel (each) | 11-13 lbs | 1 |
| Rear Hardtop Section | 70-100 lbs | 2 |
Tools And Preparation
You don’t need many tools to remove the Freedom Top, but having the right ones makes the job much easier.
- Torx bit set (usually T40; included with new Jeeps)
- Ratchet or driver handle
- Storage bags or blankets to protect panels
- A friend for the rear section
Before you start, park your Jeep on a flat surface and make sure the weather is dry. Removing or storing panels in the rain can lead to damage or water inside your cabin.
Step-by-step: How To Remove The Jeep Freedom Top
1. Remove Sun Visors And Release Latches
Flip down both sun visors. You’ll see several latches along the top front edge. Unclip them all—usually two over the passenger seat and three over the driver seat.
2. Unscrew Center Latch
In the middle of the roof, between the two front seats, there’s a center latch. Release this as well. This step is easy to miss and can make panel removal harder if skipped.

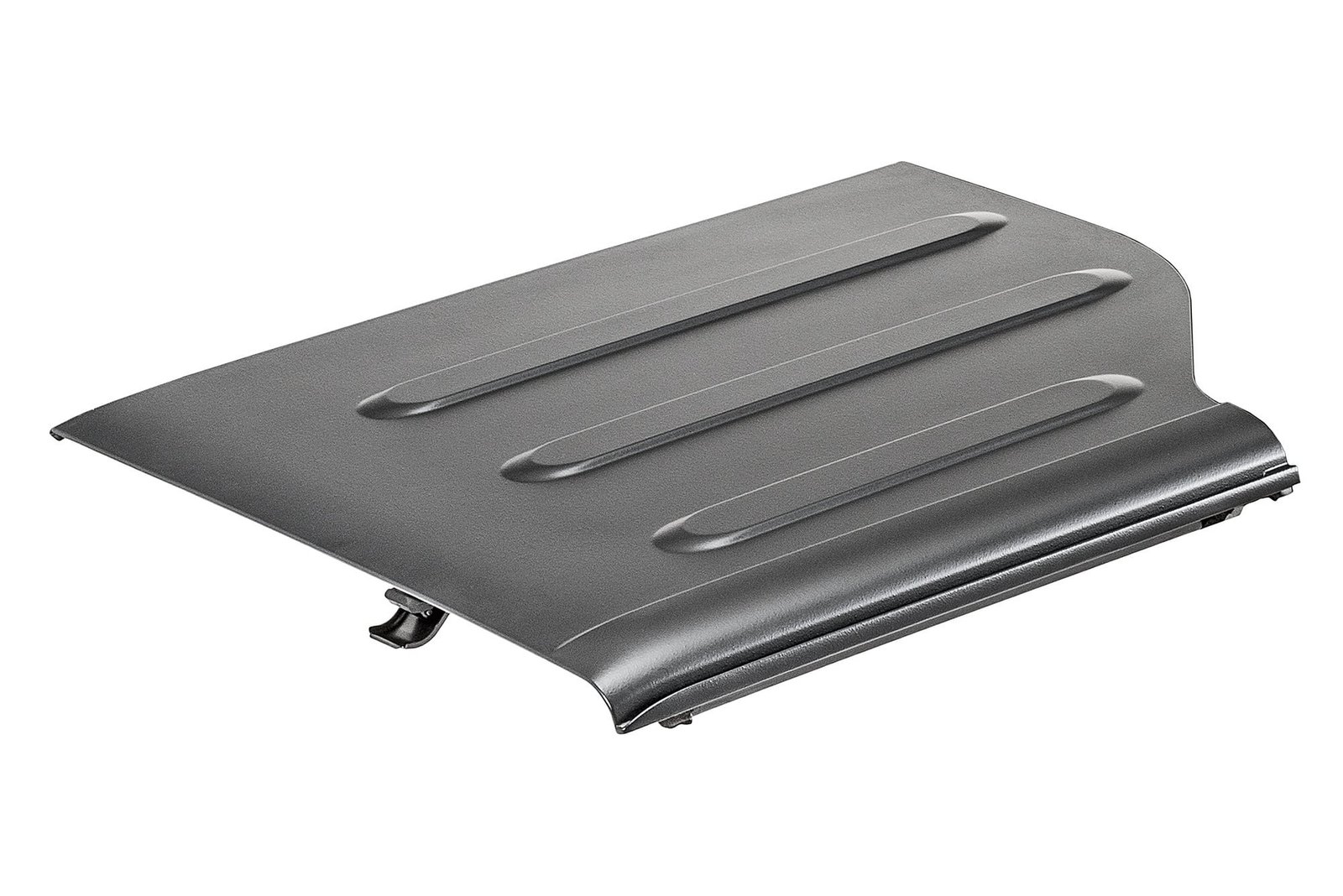

3. Remove Front Freedom Panels
Lift the driver’s side panel up and away, then do the same for the passenger’s side. Each panel weighs about 12 pounds and can be removed by one person. Place them in a storage bag or lay them on a soft surface to avoid scratches.
4. Unscrew Rear Section Bolts
Open your rear doors. Using a T40 Torx bit, unscrew the six bolts on each side of the rear Freedom Top section (three per side for four-door Wranglers, two per side for two-door models). There are also two bolts inside the cargo area, above the tailgate.
| Jeep Model | Number of Rear Bolts |
|---|---|
| Wrangler 2-Door | 6 |
| Wrangler 4-Door | 8 |
| Gladiator | 8 |
Keep all bolts in a labeled bag so you don’t lose them.
5. Disconnect The Electrical And Washer Connections
At the rear driver side, open the tailgate and locate the electrical connector and washer hose for the rear window. Press the release tab and disconnect both. This is crucial—forgetting this can lead to broken wires or washer lines.
6. Lift Off The Rear Hardtop
With a friend, carefully lift the rear section straight up and off the Jeep. The rear piece weighs around 90 pounds and is awkward to handle alone. Move it to a safe, dry spot.
Tips And Common Mistakes
- Never force the panels—if they stick, check for missed latches or bolts.
- Always disconnect the electrical and washer connections before lifting the rear top.
- Store panels on soft surfaces to prevent scratches.
- Consider a hoist system if you’ll remove the top often.
- Rain can damage the interior during removal; check the weather first.
One insight many new owners miss: the front panels can be reinstalled independently from the rear section. This means you can enjoy partial open-air driving even if you leave the rear top off for weeks.
Reinstalling The Freedom Top
Reinstalling is just the reverse of removal, but it’s important to tighten bolts evenly and reconnect the wires and washer hose securely. Test the rear window washer before finishing—if it doesn’t work, the hose might not be fully connected.
How The Freedom Top Compares To The Soft Top
Some owners wonder if the Freedom Top is worth the effort compared to a soft top. Here’s a quick look at differences:
| Feature | Freedom Top (Hardtop) | Soft Top |
|---|---|---|
| Noise Level | Quieter | Louder |
| Security | High | Lower |
| Weight | Heavier | Lighter |
| Ease of Removal | Moderate | Easy |
| Weather Protection | Excellent | Good |
Storage And Care
Store your panels in a clean, dry place. If you remove the top for the season, consider using a Freedom Top storage bag or padded rack. Avoid stacking heavy items on the panels, as they can warp or crack.
Check the weatherstripping for dirt or damage before reinstalling. Clean it with mild soap and water to maintain a tight seal.
Frequently Asked Questions
How Long Does It Take To Remove The Freedom Top?
Most people can remove the front panels in under five minutes. The full top usually takes 20-30 minutes, especially the first time.
Can I Drive With Just The Front Panels Off?
Yes, you can drive with only the front Freedom panels removed. This gives you an open-air experience while keeping the rest of the cabin covered.
Will Removing The Freedom Top Affect My Jeep’s Warranty?
No, removing the Freedom Top as designed will not void your warranty. However, damage caused by incorrect removal or storage may not be covered.
Is There A Way To Make Removal Easier?
Many owners use a hoist system in their garage to lift and store the rear section. This makes solo removal much easier and protects the top from damage.
Where Can I Find Official Instructions?
You can find official removal instructions in your owner’s manual or on the Jeep official website.
Taking off your Jeep’s Freedom Top is a simple way to enjoy the outdoors and connect with your vehicle. With the right tools and a little practice, you’ll be able to switch between open and closed in minutes. Just remember to go slow, protect your panels, and double-check connections before you hit the road.
