Removing the IOD fuse from a Jeep Wrangler is a task many owners encounter, especially when dealing with battery drain, electronic resets, or during vehicle storage. While the process is straightforward, it’s important to understand why and how to do it safely. This guide will walk you through each step, explain its purpose, and help you avoid common mistakes, ensuring you protect your vehicle’s electrical system.
What Is The Iod Fuse?
The IOD (Ignition Off Draw) fuse is designed to protect your Jeep’s battery from draining when the vehicle is not in use. It controls power to several non-essential systems, such as the clock, radio, and interior lights. Jeep started using this fuse in the late 1990s to help dealerships and owners reduce battery drain during shipping or long-term storage.
Why Remove The Iod Fuse?
Most owners remove the IOD fuse for these reasons:
- Prevent battery drain during long storage
- Reset electronic modules after repairs or updates
- Diagnose electrical issues without disconnecting the battery
A common beginner mistake is thinking the IOD fuse disables all electrical systems—it does not. Critical systems like the security system and engine controls stay powered.
Locating The Iod Fuse
The IOD fuse is typically found in the power distribution center (PDC) under the hood of your Jeep Wrangler. Here’s a comparison of its location in different model years:
| Model Year | Fuse Box Location | IOD Fuse Marking |
|---|---|---|
| 1997–2006 (TJ) | Front passenger side, under hood | “IOD” or “Fuse 15” |
| 2007–2017 (JK) | Engine bay, near battery | “IOD” or “M13” |
| 2018+ (JL/JLU) | Engine compartment, left side | “IOD” |
Always check your owner’s manual for the exact location and labeling for your model.
Tools And Preparation
Before you begin, gather these items:
- Gloves (to protect your hands)
- Fuse puller or needle-nose pliers
- Owner’s manual (for reference)
Make sure your Jeep is turned off, and the key is out of the ignition. For extra safety, disconnect the negative battery terminal if you’re not experienced with automotive electrical work.

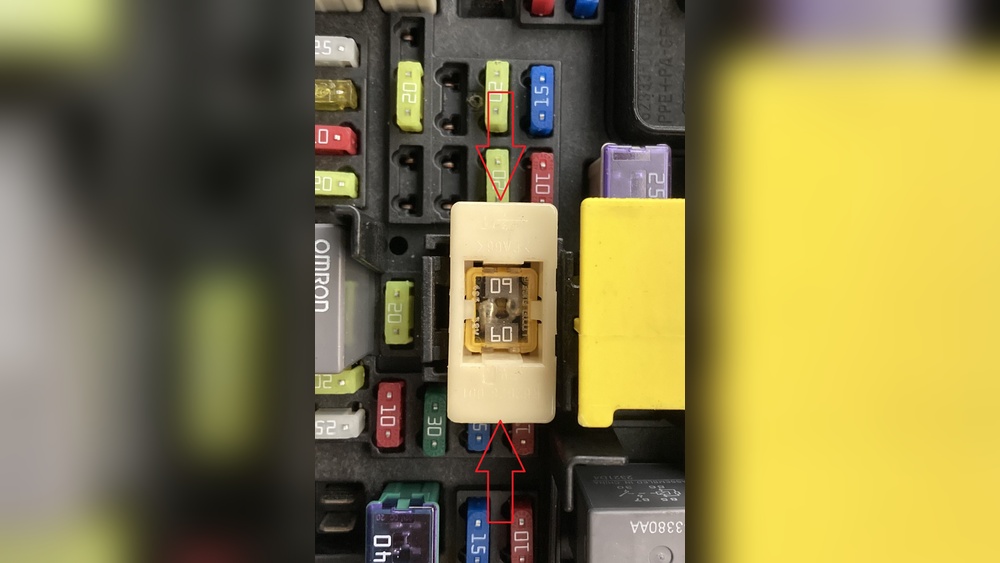

Step-by-step: How To Remove The Iod Fuse
- Open the hood and locate the power distribution center.
- Remove the cover of the fuse box. The inside cover usually has a diagram.
- Find the IOD fuse using the diagram or your manual. It is often a 10A or 15A mini-blade fuse, sometimes with a yellow or clear top.
- Use a fuse puller or pliers to grip the fuse. Pull it straight out—do not twist.
- Inspect the fuse for damage. If you plan to reinstall it, avoid touching the metal prongs.
- Store the fuse safely if you’re leaving it out for an extended time.
Most Jeep Wranglers use a “fuse storage slot” in the fuse box to keep the removed fuse from getting lost. This is especially useful during storage or shipping.
Common Mistakes To Avoid
- Pulling the wrong fuse: Double-check the diagram and labeling.
- Removing with the ignition on: This can cause electrical surges.
- Touching both fuse prongs: Oils from your fingers can cause corrosion.
After Removing The Iod Fuse
With the fuse out, you’ll notice some functions are disabled, such as the clock, radio presets, and dome lights. The vehicle will still start and drive, but you may see warning lights or lose saved settings.
When you reinstall the fuse, electronic modules will reset. This can clear minor glitches but may also erase certain customizations.
When Should You Remove The Iod Fuse?
Here are the main scenarios:
| Situation | Remove IOD Fuse? | Alternative |
|---|---|---|
| Long-term storage (2+ weeks) | Yes | Disconnect battery |
| Resetting electronic modules | Yes | Scan tool reset |
| Diagnosing battery drain | Yes | Use an ammeter |
| Normal driving | No | Keep IOD fuse in |
Key Tips And Insights
- The IOD fuse is not a kill switch: It only disables non-critical circuits.
- Always keep a spare fuse: If the original is damaged, replace with the correct amperage.
- Be aware of anti-theft systems: Some Wranglers may trigger alarms or require a radio code after the fuse is reinstalled.
Many owners overlook the importance of resetting the clock and radio presets after reinstalling the fuse. These small steps can save time and confusion later.
What To Do If Problems Occur
If your Jeep shows warning lights, will not start, or you lose radio function after removing or reinstalling the IOD fuse:
- Check fuse seating: Make sure the fuse is fully inserted.
- Inspect for blown fuses: Replace if needed.
- Consult your manual: Some features may need manual reset.
- Seek professional help: If electrical issues continue, consult a certified Jeep technician.
Frequently Asked Questions
What Does Iod Mean On A Jeep Wrangler?
IOD stands for Ignition Off Draw. It’s a fuse that controls power to systems that draw small amounts of current when the ignition is off, such as the clock and radio memory.
Will Removing The Iod Fuse Reset My Jeep’s Computer?
Removing the IOD fuse can reset some electronic modules, like the radio or power windows. However, it does not fully reset the main engine computer. For a full reset, disconnect the battery or use a scan tool.
Is It Safe To Remove The Iod Fuse For Storage?
Yes, it’s a safe way to reduce battery drain during long storage. Make sure the vehicle is off before removing the fuse. Store the fuse in the provided slot to avoid losing it.
What Happens If I Drive Without The Iod Fuse?
Your Jeep will run, but you’ll lose non-essential features, such as interior lights and radio presets. Important systems, like the engine and security, remain active.
Where Can I Find More Information About Jeep Wrangler Fuses?
For detailed fuse diagrams and specifications, check your owner’s manual or visit the official Jeep maintenance website.
Removing the IOD fuse is a simple but useful skill for any Jeep Wrangler owner. With care and the right information, you can protect your battery, reset modules, and keep your vehicle running smoothly.
