Installing fog lights on a 2002 Jeep Liberty can make night driving safer and give your vehicle a more modern look. Many owners struggle with unclear instructions or missing details. This guide will take you step by step, showing you how to add fog lights without confusion. Even if you have little experience with car electronics, you’ll find clear explanations, practical advice, and answers to common questions. By following each stage carefully, you’ll avoid common mistakes and enjoy the benefits of better visibility in poor weather.

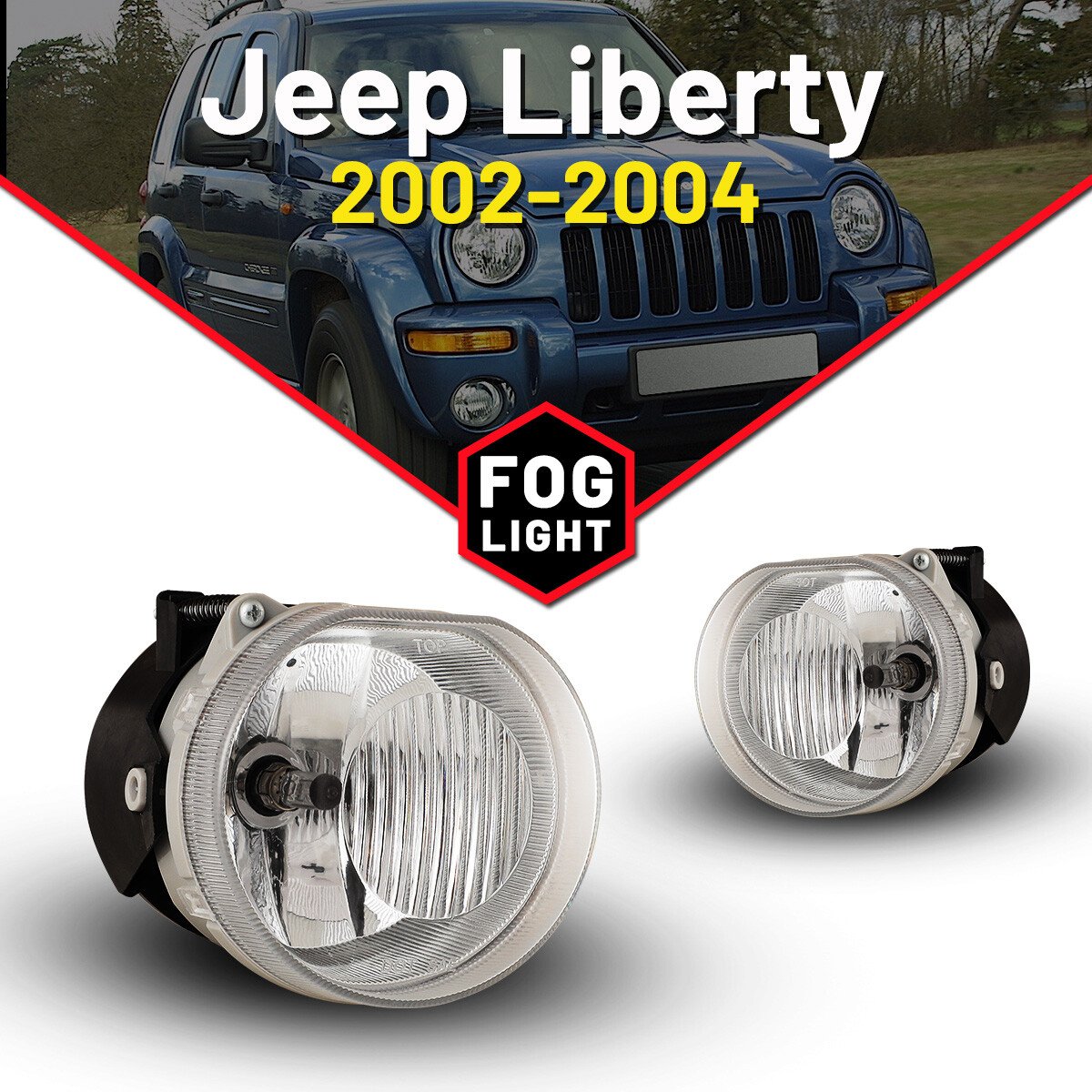

Choosing The Right Fog Lights
Before starting, select fog lights that fit your Jeep Liberty. Some lights are universal, while others are designed for your model. Look for:
- OEM compatibility for easy fitment
- Weather resistance (IP65 or higher)
- Lumens output (1000–1500 lumens per light is ideal)
- Color temperature (yellow for fog, white for clear conditions)
OEM lights are designed for your Jeep’s existing mounting points, so they fit exactly and match the look of your vehicle. Universal lights may be cheaper but often require extra work.
For example, you might have to trim the bumper or use extra hardware to get them to fit.
If you buy universal lights, you may need to modify brackets or wiring. Using OEM or direct-fit kits saves time and avoids mistakes.
Some owners don’t consider the wiring harness that comes with the lights. Check if the kit includes a quality relay and switch.
A poor switch can wear out quickly or fail to handle the current, making your new lights unreliable.
| Feature | OEM Fog Lights | Universal Fog Lights |
|---|---|---|
| Fit | Direct | May require modification |
| Installation | Easy | Moderate-Difficult |
| Warranty | Usually included | Varies |
Tools And Materials Needed
Gather these tools before you start:
- Fog light kit (lights, brackets, wiring)
- Screwdriver set
- Socket wrench
- Wire stripper/crimper
- Electrical tape
- Zip ties
- Drill (only if new mounting holes are needed)
Using the right tools makes installation faster and prevents damage. If you don’t already own a wire stripper or crimper, these are simple, affordable tools that make clean connections and avoid future electrical issues.
Also, have a flashlight handy for working in tight spaces.
A small mirror can help you see behind the bumper, making it easier to check your work.
Preparation Steps
- Park your Jeep on a flat surface.
- Disconnect the battery to avoid shocks.
- Remove the front bumper or access panel for easier installation.
Many beginners forget to disconnect the battery. This is a common mistake and can lead to short circuits.
If your Jeep has wheel well liners, removing part of them can give you more space to work. Take a photo of the front area before you start, so you can remember how everything fits back together.
Place all screws and clips in a small container to avoid losing them this small step saves time during reassembly.
Mounting The Fog Lights
To mount fog lights:
- Identify the factory mounting points behind the bumper. If your Jeep didn’t come with fog lights, use the supplied brackets.
- Secure the lights with bolts or screws. Make sure they are tight and aligned.
If you use universal lights, you may need to drill new holes. Always double-check placement so the beam angle is correct.
If you’re unsure about alignment, sit in the driver’s seat and check the light position before tightening everything. Some mounting brackets allow small adjustments even after installation, which helps you fine-tune the angle later.
Avoid overtightening bolts, which can crack plastic parts or strip threads.
Many first-timers rush this part, but spending a few extra minutes will give you a cleaner, more professional look.
| Mounting Type | Difficulty | Tools Needed |
|---|---|---|
| Factory points | Easy | Screwdriver, socket wrench |
| Custom brackets | Moderate | Drill, wrench |
Wiring The Fog Lights
Correct wiring is important for safety and performance.
- Connect the positive wire from each fog light to the relay in your kit.
- Run the ground wire to a clean, metal part of the chassis.
- Attach the relay’s power wire to the battery’s positive terminal.
- Connect the relay’s control wire to the dash switch or factory fog light switch.
If your Jeep has a factory fog light harness, use it for easier installation. Otherwise, follow the instructions for your aftermarket kit.
Secure all connections with electrical tape, and consider using heat-shrink tubing for added protection from moisture.
Common Wiring Mistakes
- Using thin wires that cannot handle the current
- Forgetting to ground the relay
- Not protecting connections with electrical tape
A beginner often skips testing connections before finishing. Always test the lights before reassembling the bumper.
Another common error is running wires near moving parts, which can cause rubbing and eventually a short circuit. Route wires along existing harnesses and secure them with zip ties.
If you notice any wires feel hot to the touch during testing, stop and inspect your connections.
Testing And Adjusting The Lights
After wiring, reconnect the battery. Turn on the fog lights using the switch. Check:
- Light output (should be bright but not blinding)
- Beam angle (should light up the road close to the ground)
- No flickering or inconsistent brightness
Adjust the beam using the screws on the housing. Proper alignment is important for effectiveness and legal compliance.
Shine the lights against a garage door or wall to see the pattern. The top edge of the beam should be just below the headlights’ beam.
If one light is higher than the other, adjust until they match.
If you notice shadows or uneven light, double-check for obstacles in front of the lens, such as bumper trim. Some fog light housings need the bulb to be seated correctly, so make sure it is fully locked in place.
| Problem | Solution |
|---|---|
| Lights too high | Lower beam angle with adjustment screw |
| Dim output | Check wiring and connections |
| Flickering | Secure ground wire |
Final Steps And Practical Tips
- Reinstall the bumper or access panel securely.
- Use zip ties to keep wires organized and away from heat.
- Check all bolts and brackets for tightness.
- Clean the fog light lenses before first use.
Many people forget to check for wire clearance, which can lead to melted insulation or shorts. Take an extra minute to inspect the area around the lights.
After you’re done, test the fog lights in different weather conditions to see how they perform.
If you notice condensation inside the lens, remove the bulb and let the housing dry this prevents long-term damage.
Don’t ignore strange smells or sounds after installation. If you notice something unusual, recheck your wiring and mounts before driving.
It’s better to fix a small problem now than to deal with bigger issues later.
If you want more information about fog light regulations and installation tips, visit NHTSA.
Frequently Asked Questions
How Long Does Installation Take?
Most people need 1–2 hours if using OEM kits. Universal kits may take longer because of bracket and wiring adjustments. If it’s your first time, allow extra time for careful wiring and alignment.
Do I Need Professional Help?
If you are comfortable with basic tools and wiring, you can install yourself. For complex wiring or custom brackets, consider asking a mechanic.
It’s also a good idea to have a friend help with holding lights or checking alignment.
Will Fog Lights Drain My Battery?
Fog lights use low power (often less than 40 watts each). When installed correctly, they will not drain your battery. Just make sure you turn them off when not needed, especially if you park for long periods.
Are Fog Lights Legal Everywhere?
Most states allow fog lights, but beam angle and color must meet local regulations. Always check your area’s requirements before installation.
Using the wrong color or aiming lights too high can lead to fines or failed inspections.
Can I Use Led Fog Lights?
Yes, LED fog lights are popular for their brightness and efficiency. Make sure they are compatible with your Jeep Liberty’s wiring and mounting points. Some LED kits come with extra resistors—read the instructions carefully to avoid flickering.
Adding fog lights to your 2002 Jeep Liberty is a practical upgrade that improves safety and style. With the right tools, clear instructions, and attention to detail, you can complete the installation yourself. Always take time to test your lights and check local laws. Now your Jeep is ready for safer drives in foggy conditions or at night, making your journeys less stressful and more enjoyable.
