Making your Jeep Patriot head lights mod is more than just a style upgrade. It can improve night visibility, help you stand out, and even increase safety. Many Jeep Patriot owners want brighter, more modern lights or unique designs. But the process can feel complicated if you’re new to car modifications.
This guide will walk you through everything—planning, choosing the right parts, step-by-step installation, and what to watch out for. You’ll learn practical advice, common mistakes, and expert insights so your mod goes smoothly. Let’s get started so you can enjoy your upgraded headlights with confidence.
Understanding Jeep Patriot Head Lights Mod
Modifying your Jeep Patriot headlights means changing or upgrading them for better performance or style. There are several types of modifications you can make:
- Bulb upgrades: Switching to LED or HID bulbs for brighter light.
- Housing swaps: Installing new headlight housings for a custom look.
- Projector retrofits: Adding projector lenses for sharper, focused beams.

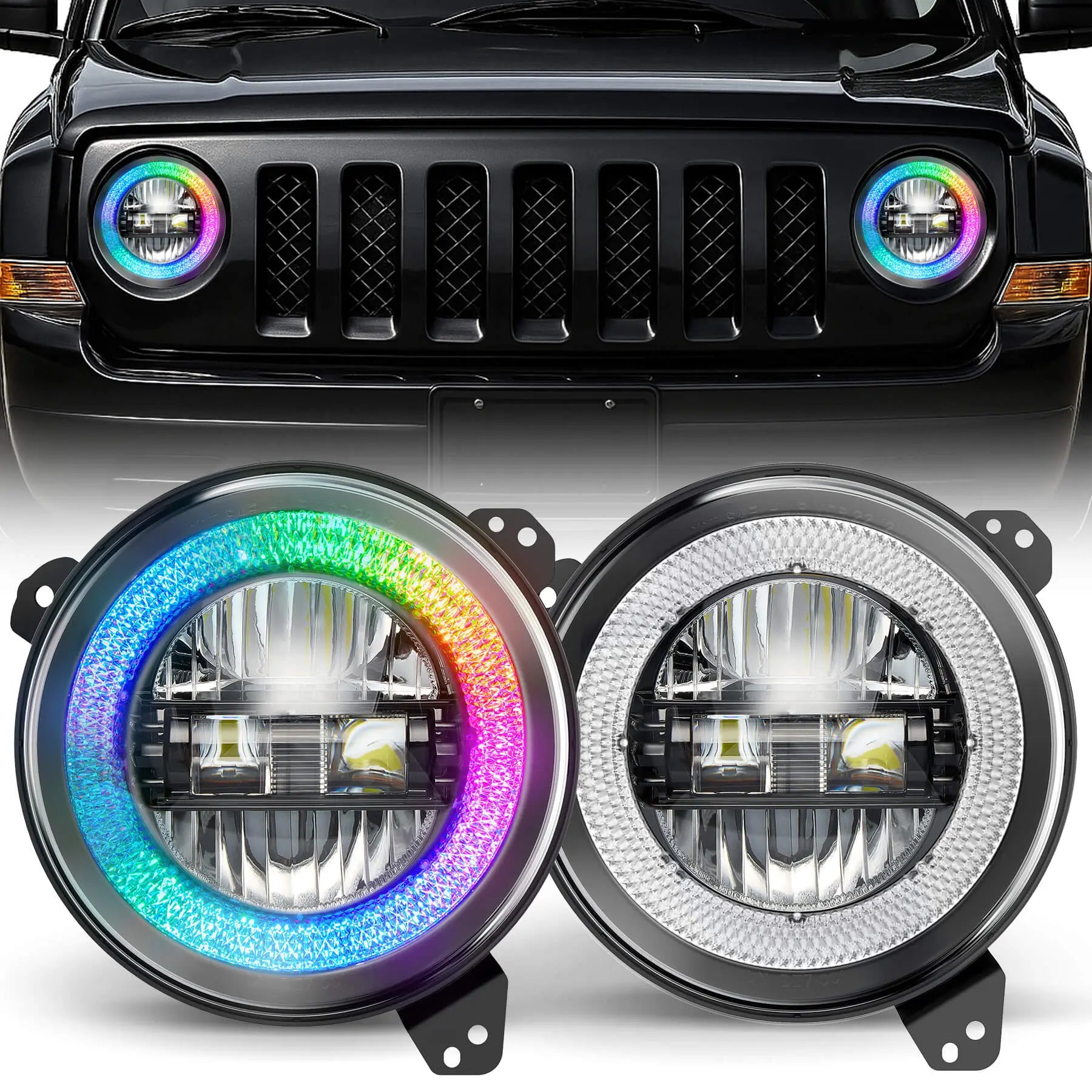

- Halo rings: Adding glowing rings for modern style.
- Tinting: Darkening the headlight lens for a sporty look.
Each mod serves a different purpose. For example, LED bulbs can be up to 50% brighter than factory halogen bulbs. Projector lenses help reduce glare and improve beam shape, making night driving safer. Meanwhile, halo rings don’t affect performance but give your Jeep Patriot a unique look.
Before you start, decide what’s most important: brightness, style, or both. Also, check your local laws. Some modifications, like heavy tinting, may be illegal in certain states.
Choosing The Right Headlight Mod Parts
Selecting the correct parts is crucial for a successful mod. Here are factors to consider:
- Compatibility: Make sure any bulb or housing is made for the Jeep Patriot (model years 2007–2017).
- Bulb type: The Patriot uses H13 bulbs for low/high beams. If upgrading, choose bulbs with the same base.
- Housing design: Some aftermarket housings come with built-in projectors or halos. Check dimensions and mounting points.
- Light color: White (5000–6000K) is best for visibility. Blue or other colors might look cool but can reduce clarity.
- Quality: Cheaper parts often fail quickly. Look for brands with good reviews and warranties.
Here’s a comparison of common bulb types:
| Bulb Type | Brightness (Lumens) | Color Temp (Kelvin) | Expected Lifespan | Cost Range |
|---|---|---|---|---|
| Halogen | 1,000–1,500 | 3,000–4,000 | 500–1,000 hrs | $10–$30 |
| LED | 3,000–4,000 | 5,000–6,000 | 10,000–30,000 hrs | $40–$120 |
| HID | 3,000–5,000 | 4,500–6,000 | 2,000–5,000 hrs | $70–$150 |
If you want both style and performance, consider housings with projector lenses and LED bulbs. These offer the best balance for most Jeep Patriots.
Tools And Materials Needed
Before you begin, gather these tools and materials:
- Headlight mod kit (bulbs, housings, halos, etc.)
- Screwdrivers (flat and Phillips)
- Socket set
- Trim removal tools (optional)
- Electrical tape
- Wire connectors
- Gloves
- Safety glasses
- Multimeter (for checking circuits)
Buying a complete kit often saves time because you get everything matched for your vehicle. If you’re retrofitting projectors or halos, you’ll need extra wiring and possibly a relay harness.
Preparing Your Jeep Patriot For The Mod
Park your Jeep Patriot on a flat surface and turn off the engine. Open the hood and disconnect the negative battery terminal. This prevents electrical shocks and protects the vehicle’s electronics.
Remove the front grille by unscrewing the fasteners. Most Jeep Patriots have 6–8 screws holding the grille. Use trim tools to gently pop the grille off without breaking clips. Next, locate the headlight mounting bolts. There are usually two bolts per headlight—one on top and one on the side.
Carefully unscrew these and pull the headlight assembly forward. Disconnect the wiring harness at the back. Place the assembly on a clean work surface.
Step-by-step Jeep Patriot Head Lights Mod
1. Bulb Upgrade
If you’re switching to LED or HID bulbs, remove the old H13 bulb by twisting it counterclockwise. Insert the new bulb and secure it. For HID kits, mount the ballast near the headlight and connect wires as instructed.
Check for fit and make sure the bulb is seated correctly. Poor installation can cause flickering or weak light. Test the new bulbs before reattaching the housing.
2. Housing Swap
If installing new housings, transfer the bulbs and wiring from your old assembly. Place the new housing into the mounting slot and reconnect the harness. Secure the bolts and check alignment.
3. Projector Retrofit
For projectors, you may need to open the headlight assembly. Use a heat gun to soften the sealant and carefully pry the lens apart. Mount the projector lens inside, secure it, and reseal with fresh adhesive.
Wiring projectors can be tricky. Use the multimeter to check voltage and ensure proper connections. If unsure, consult a wiring diagram or seek professional help.
4. Halo Ring Installation
Halo rings usually require tapping into the parking light circuit. Mount the rings inside the housing using adhesive or clips. Connect wires to the parking light harness using wire connectors.
Test the rings before sealing the housing. If they don’t light up, check your connections and polarity.
5. Tinting The Lens
If you want to tint the headlight lens, use a film or spray tint. Clean the lens thoroughly and apply tint evenly. Avoid dark tints as they can reduce light output and may be illegal.
Let the tint dry completely before reassembly. Check visibility at night to ensure safety.
Reinstalling And Testing
After finishing your mod, reconnect the headlight assembly to the Jeep Patriot. Attach the wiring harness and secure all bolts. Reinstall the front grille.
Reconnect the battery terminal. Turn on the headlights and check all functions: low beam, high beam, parking lights, and halos (if installed).
Adjust headlight aim if needed. Poorly aimed lights can blind other drivers or reduce your own visibility. Most Jeep Patriot headlights have an adjustment screw behind the housing.
Here’s a quick comparison of factory vs. modded headlights:
| Feature | Factory Headlights | Modded Headlights |
|---|---|---|
| Brightness | Low (Halogen) | High (LED/HID) |
| Beam Shape | Scattered | Focused (Projector) |
| Style | Standard | Custom (Halos/Tint) |
| Durability | 2–3 Years | 5–10 Years |
Common Mistakes And How To Avoid Them
Many beginners make errors that can cause problems later. Watch out for these:
- Wrong bulb type: Always check your Jeep Patriot’s year and bulb base before buying.
- Poor wiring: Loose or incorrect connections lead to flickering, shorts, or failure.
- Skipping headlight aim: Misaligned lights reduce visibility and can annoy other drivers.
- Over-tinting: Heavy tints can get you a ticket and make night driving dangerous.
- Cheap parts: Low-quality bulbs and housings often fail early and may not fit well.
A non-obvious insight: Avoid touching new bulbs with bare hands. Skin oils can cause bulbs to overheat and fail. Use gloves for installation.
Another tip: If you’re unsure about wiring, use quick-connects or harness adapters designed for your model. This reduces risk and saves time.
Safety And Legal Considerations
Before you drive with your new headlights, check local rules. Many states limit headlight color and brightness. For example, headlights above 6,000K color temperature (very blue) may be illegal in some areas.
Always keep receipts and product documentation. If stopped by police, you can show your mod is DOT-approved.
If you notice condensation inside the housing after the mod, reseal the assembly. Moisture can damage bulbs and wiring.
Maintenance Tips For Modded Headlights
To keep your modded Jeep Patriot headlights performing well:
- Clean lenses regularly: Dirt and bugs reduce brightness.
- Check wiring every few months: Look for corrosion or loose connectors.
- Replace bulbs promptly: If a bulb dims or flickers, swap it out.
- Avoid harsh chemicals: Use mild soap and water for cleaning.
If you install halos, check for moisture buildup. Halos can fail if water gets inside the housing.
Real-world Example
In 2022, Jeep Patriot owner Mike F. upgraded his headlights with LED bulbs and projector housings. He reported a 70% improvement in night visibility and received compliments on the new look. The total cost was $210, and installation took about 2 hours with basic tools.
Mike’s advice: “Take your time, double-check connections, and test before closing everything up.”
Cost And Value: Is The Mod Worth It?
A typical headlight mod for the Jeep Patriot costs between $150 and $400, depending on parts and complexity. Here’s a breakdown:
| Mod Type | Parts Cost | Labor Cost (DIY) | Labor Cost (Shop) | Total |
|---|---|---|---|---|
| Bulb Upgrade | $50–$120 | $0 | $60–$100 | $50–$220 |
| Housing Swap | $100–$250 | $0 | $80–$160 | $100–$410 |
| Projector Retrofit | $120–$300 | $0 | $150–$250 | $120–$550 |
| Halo Rings | $40–$90 | $0 | $60–$120 | $40–$210 |
DIY installation saves money and lets you customize the mod. However, if you’re unsure, professional installation is safer.
Where To Find Reliable Parts And Guides
Buy parts from trusted sources. Look for DOT-approved products and brands with good reviews. Online forums and YouTube videos offer step-by-step guidance. For official specs and compatibility, check the Jeep Patriot Official Site.
Frequently Asked Questions
How Long Does A Headlight Mod Take?
Most mods can be done in 1–3 hours, depending on complexity. Simple bulb swaps take 30 minutes, while projector retrofits may take up to 3 hours.
Can I Use Led Bulbs In My Jeep Patriot?
Yes, LED bulbs fit the H13 socket. Make sure to buy high-quality, CANbus-compatible LEDs to avoid error codes.
Will Modded Headlights Void My Warranty?
Headlight mods can affect warranty if they cause electrical issues. Check your warranty terms or ask your dealer before making changes.
Are Tinted Headlights Legal?
Light tint is legal in some states, but heavy tinting is often banned. Always check local laws before applying tint.
What If My New Headlights Flicker Or Don’t Work?
Flickering usually means a loose connection or incompatible bulb. Double-check wiring and use a multimeter to test voltage. If problems persist, consult a professional.
Upgrading your Jeep Patriot headlights is a rewarding project that combines style and safety. With careful planning, quality parts, and attention to detail, you can transform your driving experience and make your vehicle stand out on the road.
