Installing trailer lighting on your Jeep Liberty 2008 is a smart move if you plan to tow. Proper trailer lights keep you legal, safe, and visible on the road. Many owners worry it’s too complex, but with clear steps and a few tools, you can do it yourself. You’ll save money, gain confidence, and avoid common mistakes. This guide explains everything—from selecting the right kit to connecting wires and checking your lights. Let’s make your Jeep ready for towing.
Choosing The Right Trailer Lighting Kit
Before you begin, you need a trailer wiring harness that matches your Jeep Liberty. Most 2008 models use a standard 4-way flat connector, which controls tail lights, brake lights, and turn signals. Double-check your vehicle’s trim and tow package, as some models may require a 7-way round connector for extra features.
Here’s a quick comparison of connector types:
| Connector Type | Functions | Best For |
|---|---|---|
| 4-way flat | Brake, turn, tail | Small trailers |
| 7-way round | Brake, turn, tail, reverse, electric brakes | Large trailers, RVs |

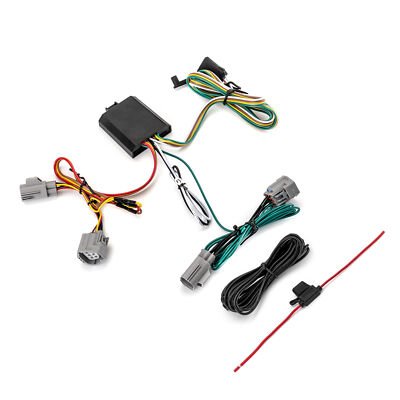

For most Jeep Liberty owners, a plug-and-play kit is easiest. This connects to your rear tail light wiring, so you don’t need to cut or splice wires. Look for kits from trusted brands like Curt or Hopkins.
Tools And Materials Needed
Gather these before starting:
- Trailer wiring harness (compatible with Jeep Liberty 2008)
- Flathead and Phillips screwdriver
- Wire strippers (if your kit needs splicing)
- Electrical tape
- Zip ties
- Socket set (8mm or 10mm for tail light removal)
- Test light or multimeter (for checking connections)
Having everything ready prevents delays and mistakes. If you lack any tool, borrow or buy before beginning.
Step-by-step Installation Guide
Installing trailer lighting on your Jeep Liberty takes about one hour. Work in daylight and wear gloves for safety.
1. Access The Tail Light Area
Open your Jeep’s rear hatch. Locate the screws holding the tail light assemblies on both sides. Usually, you’ll find two screws per light.
Unscrew and gently pull out the tail light housing. Don’t force it wiring is attached behind. Set the screws aside.
2. Connect The Wiring Harness
Most plug-and-play harnesses have T-connectors that fit between your Jeep’s wiring and the tail light bulb socket.
- Unplug the tail light connector.
- Insert the harness T-connector in between.
- Repeat for both left and right lights.
If your kit needs splicing, use wire strippers and connectors. Match colors: brown for tail lights, yellow for left turn, green for right turn, and white for ground.
| Wire Color | Function | Location |
|---|---|---|
| Brown | Tail lights | Both sides |
| Yellow | Left turn | Driver side |
| Green | Right turn | Passenger side |
| White | Ground | Chassis |
3. Route The Harness
Once connected, route the harness out the back. Most kits let the wires exit through the hatch seal.
Avoid pinching wires use zip ties to secure the harness along the frame.
Make sure the connector is easy to reach when you attach your trailer.
4. Reinstall Tail Light Assemblies
Put the tail lights back in place. Screw them in securely.
Double-check that no wires are pinched or exposed.
5. Test The Trailer Lights
Connect your trailer’s plug to the Jeep’s new connector. Turn on your Jeep’s headlights, brake, and turn signals. Use a test light or have someone watch the trailer lights.
- All lights should work: Tail, brake, left and right turn.
- If any don’t, check the harness connection or grounding.
Here’s a quick troubleshooting table for common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| No lights | Loose connector, blown fuse | Reconnect, check fuse box |
| One side doesn’t work | Bad connection, wrong wire | Check harness, re-match wires |
| Dim or flickering | Poor ground | Secure white wire to chassis |
Practical Tips And Common Mistakes
Many Jeep Liberty owners rush the process and miss key steps. Here’s how to avoid problems:
- Always test your trailer lights before driving. Even a small wiring mistake can make your trailer invisible at night.
- Secure wires with zip ties. Loose wires can catch on moving parts or get damaged.
- Don’t rely on electrical tape alone. Use proper connectors for lasting strength.
- If your trailer lights flicker, check the ground wire. It must touch bare metal, not painted surfaces.
- Keep your wiring dry and clean. Moisture can cause corrosion and electrical failure.
A non-obvious insight: If you tow often, consider adding a powered converter. This prevents Jeep tail light circuits from overloading, especially with multiple trailer lights.
Another tip: If your trailer uses LED lights, some older Jeep Liberty models may show “bulb out” warnings. A resistor or special adapter fixes this.
Safety And Legal Considerations
Proper trailer lighting is not just about convenience it’s the law. The US Department of Transportation requires working lights for all trailers.
Police can stop and ticket you for missing or broken lights.
Check your state’s rules for trailer light colors and placement. Most require:
- Red tail and brake lights
- Amber turn signals
- White license plate light
If you’re unsure, visit the NHTSA Lighting Regulations for official guidance.
Frequently Asked Questions
How Long Does Installation Take?
Most Jeep Liberty owners finish in 45–60 minutes. Plug-and-play kits are faster. Splicing wires may add 20 minutes.
Can I Install Trailer Lighting Without Professional Help?
Yes, with basic tools and patience, you can do it yourself. Follow instructions closely and test your lights after finishing.
What If My Trailer Uses A 7-way Connector?
Buy an adapter that converts 4-way to 7-way. This is common for larger trailers. Make sure the adapter supports all functions you need.
Will Trailer Lights Drain My Jeep Liberty’s Battery?
Trailer lights use minimal power. If your trailer has many lights, a powered converter helps protect your Jeep’s wiring and battery.
Are There Jeep Liberty-specific Kits?
Yes, many brands make harnesses for the 2008 Jeep Liberty. Search for “Jeep Liberty trailer wiring harness 2008” to find compatible options.
Installing trailer lighting on your Jeep Liberty 2008 is a simple project with big benefits. You’ll drive safer, avoid fines, and tow with confidence.
Take your time, follow each step, and double-check your work. If you ever feel unsure, ask a friend or a mechanic for help.
Your Jeep is now ready for any adventure day or night.
