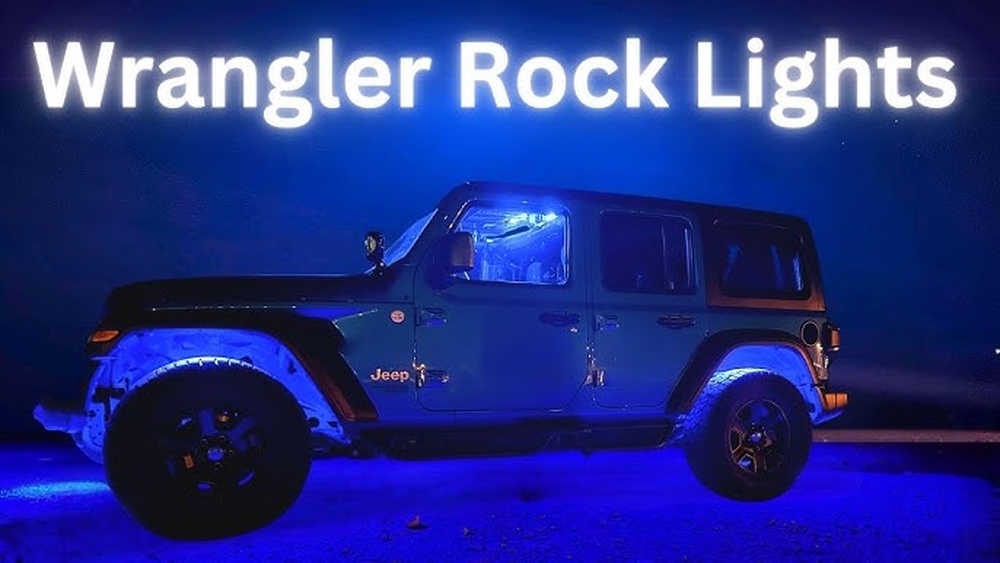

Installing rock lights on your Jeep is a great way to improve visibility when off-roading at night and enhance your vehicle’s look. These small LED lights are mounted under the Jeep to illuminate the ground, making it easier to spot rocks, obstacles, and rough terrain. A quality installation can make your next adventure safer and more exciting. If you’re new to vehicle modifications, this guide will help you install rock lights on your Jeep step-by-step, avoid common mistakes, and choose the best setup for your needs.
Why Install Rock Lights?
Rock lights aren’t just about style. They serve several practical purposes:
- Improved visibility: Lighting up the ground helps you see hazards that headlights and fog lights miss.
- Enhanced safety: Spotting obstacles under your Jeep reduces the risk of damage.
- Easy night repairs: If you need to work under your Jeep in the dark, rock lights make it easier.
- Customization: Many rock lights offer color-changing features for a unique look.
According to a 2022 survey by Off-Road. com, over 60% of Jeep owners who frequently off-road use some form of underbody lighting.
Choosing The Right Rock Lights
Before you start installing, it’s important to pick the right lights for your Jeep. Here’s a quick comparison:
| Type | Brightness (Lumens) | Durability | Price Range |
|---|---|---|---|
| LED Rock Lights | 1,200-3,000 | High | $40-$150 |
| Halogen Rock Lights | 800-1,000 | Medium | $25-$70 |
| RGB LED Rock Lights | 1,200-2,500 | High | $60-$200 |
LED rock lights are the most popular due to their brightness, energy efficiency, and long lifespan. RGB LED options allow color customization via a smartphone app. Make sure your lights are waterproof and shock-resistant for rough trails.
Tools And Materials Needed
You’ll need these basic tools and materials for installation:
- Rock light kit (includes lights, wiring harness, mounting hardware)
- Drill and drill bits
- Screwdriver or wrench set
- Wire strippers and crimpers
- Electrical tape or heat shrink tubing
- Zip ties
- Multimeter (optional, for checking connections)
Some kits include everything, but others require you to buy extra wiring or mounting hardware. Always check your kit before starting.
Step-by-step Installation Guide
Follow these steps to install your rock lights safely and efficiently.
1. Plan Your Layout
Decide where you want to mount each light. Common locations are:
- Front wheel wells
- Rear wheel wells
- Under the frame rails
- Behind bumpers
Four to eight lights are standard. Mark each spot with tape so you don’t forget the layout.
2. Mount The Lights
- Use the drill to make holes for the mounting screws.
- Position each light so it points downward or slightly outward.
- Secure lights using screws or bolts included in your kit.
Tip: Avoid mounting lights directly on moving suspension parts. They should be fixed to the frame or body for stability.
3. Run The Wiring
- Route wires from each light to the engine bay, avoiding hot or sharp areas.
- Use zip ties to keep wires neat and away from moving parts.
- Connect all wires to the supplied harness.
Here’s a basic wiring comparison for different setups:
| Wiring Type | Ease of Installation | Durability | Common Issues |
|---|---|---|---|
| Plug-and-play | Easy | Medium | Loose connectors |
| Hardwired | Moderate | High | Requires tools |
| Wireless (Bluetooth) | Easy | Medium | Signal interference |
Hardwired connections are more reliable for off-road use.
4. Connect To Power
- Locate the Jeep’s battery and connect the main harness power wire to the positive terminal.
- Attach the ground wire to a clean, unpainted metal surface.
- If your kit has a switch, mount it inside the cabin for easy access.
Always disconnect the battery before working with electrical parts.
5. Test The System
- Reconnect the battery.
- Turn on the switch and check each light.
- Use a multimeter to check voltage if any light doesn’t turn on.
If you have an RGB system, test color-changing functions. Check for flickering or dim spots, which often mean loose connections.
Practical Tips For A Smooth Install
- Use heat shrink tubing for waterproofing connections.
- Plan wiring routes before drilling to avoid mistakes.
- Test each light before final mounting.
- Protect wires from mud and rocks by securing them above the frame.
Many beginners forget to waterproof connections. Even small gaps can let in moisture, leading to corrosion and electrical problems.
Common Mistakes To Avoid
- Skipping wire protection: Unprotected wires can get cut or damaged on rough trails.
- Mounting on moving parts: Lights installed on suspension arms or axles may break quickly.
- Poor grounding: A weak ground connection causes flickering or failure.
Another mistake: Not checking local laws. Some states restrict colored underbody lighting. Always confirm regulations before installation.
Maintenance And Longevity
Proper care extends the life of your rock lights:
- Inspect wiring and connections every few months.
- Clean lights after muddy trips; dirt can reduce brightness.
- Replace damaged lights immediately.
High-quality kits often last over 3 years with regular maintenance. If your Jeep sees harsh weather, check more often.
Cost Breakdown
Installing rock lights can range from DIY to professional. Here’s a cost comparison:
| Installation Type | Estimated Cost | Time Required |
|---|---|---|
| DIY | $60-$250 | 2-4 hours |
| Professional | $250-$600 | 1-2 hours |
DIY saves money, but professional installation ensures expert wiring and mounting.
Frequently Asked Questions
How Many Rock Lights Should I Install?
Four to eight lights are common. Four cover basic wheel wells, while eight illuminate the entire underside.
Can I Install Rock Lights Without Drilling?
Some kits offer adhesive mounts, but drilling provides a more secure fit, especially for off-road conditions.
Are Rock Lights Legal Everywhere?
Laws vary by state. Check local regulations before choosing colored lights. White or amber are usually allowed.
What Is The Best Power Source For Rock Lights?
Directly wiring to the Jeep’s battery is safest. Avoid tapping into fuse boxes unless you know your vehicle’s electrical system.
Do Rock Lights Drain The Battery?
LED rock lights use minimal power. If you use them for hours with the engine off, they may drain the battery. Turn them off when not needed.
Installing rock lights on your Jeep is a rewarding project. It improves safety, adds style, and gives you confidence on night trails. Careful planning, proper mounting, and waterproof wiring are key to a successful job. For more details on vehicle lighting upgrades, visit Jeep Official Site. With the right tools and a bit of patience, your Jeep will be ready for any adventure, day or night.
