If you love taking your Jeep TJ off-road at night, you know how dark trails can get. Installing rock lights is a simple way to boost your visibility and make your adventures safer and more exciting. Rock lights are small, bright LEDs you mount under your Jeep to light up the ground, spot obstacles, and even give your vehicle a custom look. While many people think the installation is hard, you can do it yourself with basic tools and a little patience. This guide will show you exactly how to install rock lights on a Jeep TJ, step by step, so you can enjoy better trail visibility and style.
Why Install Rock Lights On A Jeep Tj?
Rock lights are not just for show. They have several practical benefits, especially for Jeep TJ owners who enjoy off-roading:
- Improved visibility: See rocks, logs, and deep ruts under your Jeep.
- Safety: Avoid damaging your undercarriage or getting stuck.
- Easier repairs: Light up your suspension or tires if you need to fix something on the trail.
- Unique appearance: Many rock lights let you choose colors to match your style.
In fact, a 2022 off-road survey found that 68% of Jeep owners with rock lights reported fewer undercarriage scrapes and better night driving confidence.
What You Need Before You Start
Gather these items before starting the installation. Having everything ready will save time and frustration.
Tools And Supplies
- Rock light kit (preferably waterproof and dustproof, with at least 4-8 pods)
- Drill with metal bits
- Screwdriver set
- Wire stripper/crimper
- Electrical tape or heat shrink tubing
- Zip ties
- Self-tapping screws or bolts (usually included in kits)
- Fuse tap or add-a-circuit kit
- Multimeter (to check power and ground)
- Basic socket set
- Protective gloves and safety glasses
Choosing The Best Rock Light Kit
Not all rock lights are the same. Here’s a quick comparison of features to consider:
| Feature | Basic Kit | Advanced Kit |
|---|---|---|
| Number of Pods | 4 | 8+ |
| Color Options | Single color (white) | RGB multi-color |
| Control Method | Manual switch | Smartphone app/remote |
| Waterproof Rating | IP65 | IP68 |
| Warranty | 1 year | 2+ years |
For most Jeep TJ owners, an 8-pod RGB kit with smartphone control is ideal. It lights up all key areas and offers color customization.

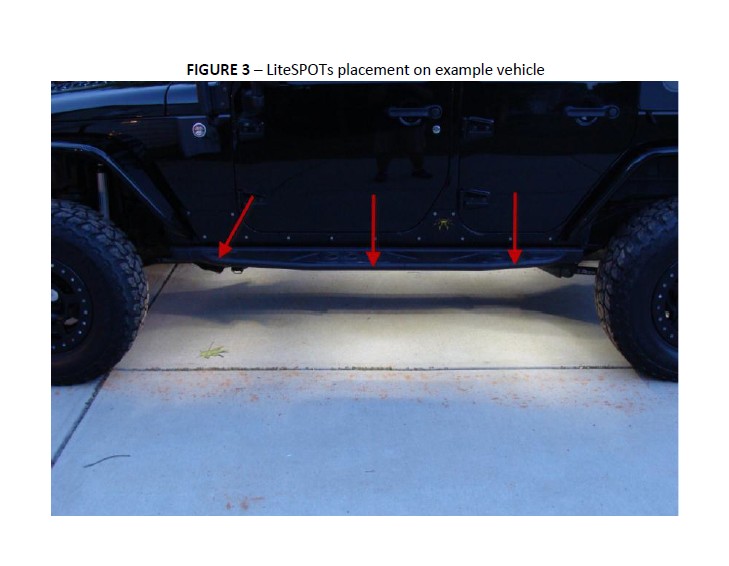

Planning Your Rock Light Placement
Before drilling, decide where to mount each pod. Good placement is essential for full ground coverage and to avoid damaging wires.
- Front wheel wells: Light up the front tires and ground.
- Rear wheel wells: Cover the back tires and suspension.
- Mid-chassis: Mount pods near the doors for underbody coverage.
- Bumpers or corners: For extra visibility at the Jeep’s ends.
Most people use 6-8 pods for full coverage. Mark each location with masking tape before starting.
Common Mistake To Avoid
Don’t mount pods too low they can get hit by rocks. Place them higher in the wheel well, angled down for best protection and light spread.
Step-by-step Installation Guide
Let’s break down the installation process so you get great results and avoid problems.
1. Disconnect The Battery
Always disconnect your Jeep’s negative battery terminal before working with wiring. This prevents electrical shorts and keeps you safe.
2. Mount The Rock Lights
- Use the provided brackets, screws, or bolts.
- Drill pilot holes if needed, but avoid fuel lines or brake lines.
- Secure each pod tightly. Double-check the angle—point the lights at the ground, not outwards.
- Run the wires through factory holes or along the frame to keep them safe.
Pro tip: Wrap wires in split loom tubing for extra protection against mud and rocks.
3. Route The Wiring
Carefully run all wires toward the engine bay. Use zip ties to keep wires away from hot or moving parts.
- Join the pod wires together using the connectors or a weatherproof junction box.
- If your kit comes with extension wires, connect them now and secure all joints with heat shrink tubing or electrical tape.
4. Connect To Power And Ground
You’ll need a strong 12V power source and a reliable ground. Here’s how to do it safely:
- Connect the main power wire to an accessory fuse in your Jeep’s fuse box using a fuse tap. This ensures the lights only get power when the ignition is on.
- Ground the system to a clean, bare metal spot on the frame or firewall.
- If your kit has a control box, mount it under the hood away from heat and water.
Beginner insight: Never tap into headlight or taillight circuits—they can cause electrical problems or void your warranty.
5. Install The Switch Or Controller
- Most kits include a waterproof switch. Mount it inside the cabin, near the driver’s seat.
- Run the switch wire through a factory grommet in the firewall.
- For smartphone or remote control kits, mount the receiver in a dry, accessible spot.
6. Test The System
Reconnect your battery. Turn on the ignition and test the rock lights using the switch or app. Check each pod for brightness and color (if RGB). If any pod fails, recheck the wiring and connections.
7. Finalize And Secure
Once everything works, secure all wires with zip ties. Clean up any loose wires under the Jeep this prevents damage from debris or moving parts.
Extra tip: After your first off-road trip, check all connections again. Off-road vibrations can loosen hardware.
Common Installation Issues (and How To Solve Them)
Even with careful planning, problems can happen. Here are common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| One light not working | Loose wire or bad pod | Check connections and swap pods to isolate issue |
| All lights dim or flicker | Poor ground or weak power | Re-ground system; use a better power source |
| Lights stay on after ignition off | Wrong fuse tap | Use accessory fuse, not constant power |
| App won’t connect to controller | Receiver mounted too deep | Move receiver closer to firewall or dash |
Maintenance And Care Tips
After installation, keeping your rock lights in good shape is simple but important.
- Wash lights after each off-road trip to remove mud and debris.
- Inspect wiring every few months for damage or wear.
- Check mounting hardware to make sure pods are still tight.
- Update app firmware (for smart kits) for best performance.
With proper care, quality rock lights can last 3-5 years or more.
Real-world Example: Night Wheeling In Moab
Imagine crawling over rocks in Moab, Utah, with your Jeep TJ. The trail is dark, but your new rock lights make every obstacle clear. You spot a hidden log under your rear tire and avoid a blowout that could ruin your trip. Many Jeep clubs recommend rock lights for this reason—they help you see dangers before they become problems.
Legal And Safety Notes
While rock lights are great for trails, laws about colored lights on public roads vary. In most states, it’s illegal to use red or blue lights while driving on highways. Always turn off or set your lights to white when driving on public roads.
Safety reminder: Never wire rock lights to your main headlight circuit. Use a separate, fused circuit for best safety.
Cost Breakdown: Diy Vs. Professional Installation
Wondering whether to install rock lights yourself or pay a shop? Here’s a side-by-side cost estimate:
| Item | DIY Cost | Pro Install Cost |
|---|---|---|
| 8-pod RGB kit | $80–$180 | $80–$180 |
| Labor | Free (your time) | $150–$400 |
| Extra tools/wires | $20–$50 | Included |
| Total | $100–$230 | $230–$630 |
Doing it yourself saves money and gives you full control. Most Jeep owners find DIY rewarding, especially with clear instructions.
Final Thoughts
Installing rock lights on your Jeep TJ might seem challenging at first, but with the right tools, a little patience, and careful planning, you can do it in a few hours. The payoff is huge—better night vision, safer off-roading, and a unique look that turns heads. Take your time, double-check each connection, and enjoy your new setup on your next adventure. If you need more technical info, you can always check resources like Wikipedia’s off-roading page.
Frequently Asked Questions
How Many Rock Lights Do I Need For A Jeep Tj?
Most Jeep TJ owners use 6 to 8 pods for full underbody coverage. Four pods cover the wheel wells, but six or eight give better light along the frame and under the doors.
Can I Connect Rock Lights To My Jeep’s Interior Lights?
It’s not recommended. Rock lights draw more power and need a dedicated circuit. Connecting to interior lights can cause electrical problems and void warranties.
Are Rock Lights Waterproof?
Most quality rock lights are IP67 or IP68 rated, meaning they’re waterproof and dustproof. Always check the rating before buying, as cheaper kits may not survive mud or river crossings.
Do Rock Lights Drain My Battery?
Rock lights use LEDs, which are low power. A full 8-pod kit usually draws less than 3 amps. If installed on an accessory circuit, they should not drain your battery when off.
Can I Install Rock Lights Myself If I Have No Wiring Experience?
Yes! Most kits include simple instructions. Take your time, watch video guides, and use basic tools. If you get stuck, many online forums and local off-road clubs are happy to help.
By following this guide, you’ll have a safer, brighter, and more stylish Jeep TJ ready for any nighttime trail adventure.
