Many Jeep Wrangler owners love adventure. Off road lights make night driving safer and more fun.
But installing them can feel confusing if you’re new to car upgrades. This guide explains how to install off road lights on your Jeep Wrangler, step by step.
You’ll learn what tools you need, where to mount the lights, and how to wire them safely. Even beginners can follow these instructions and avoid common mistakes.
Let’s help you make your Jeep ready for any trail, day or night.
Choosing Off Road Lights For Your Jeep Wrangler
Before you start, decide which off road lights fit your needs. There are several options:
- LED light bars: Bright, energy efficient, and popular for wide area lighting.
- Spotlights: Focused beams for distance visibility.
- Flood lights: Wide beams for close-range illumination.
- Fog lights: Useful for low visibility conditions.
Check the light’s wattage, size, and mounting style. For example, a 20-inch LED light bar is common on Jeep Wranglers. Make sure the lights are weatherproof and compatible with your Jeep’s voltage (usually 12V).
| Type | Beam Pattern | Best For |
|---|---|---|
| LED Light Bar | Wide/Combo | General off road use |
| Spotlight | Narrow | Long-distance |
| Flood Light | Wide | Near-field |
| Fog Light | Low/Wide | Foggy conditions |
Tools And Materials You Will Need
Gather all the tools and materials before starting. This saves time and prevents mistakes.
- Off road lights (LED bar, spot, or flood)
- Mounting brackets (usually included)
- Wiring harness (with relay and switch)
- Drill with metal bits
- Screwdrivers (flat and Phillips)
- Socket wrench set
- Electrical tape
- Zip ties
- Wire strippers and crimpers
- Fuse (10-30 amps depending on light size)
Some kits come with most items. If not, buy them separately.
Always use a relay and fuse for safety.
Where To Mount Off Road Lights
Mounting location affects visibility and safety. Jeep Wranglers have several spots:

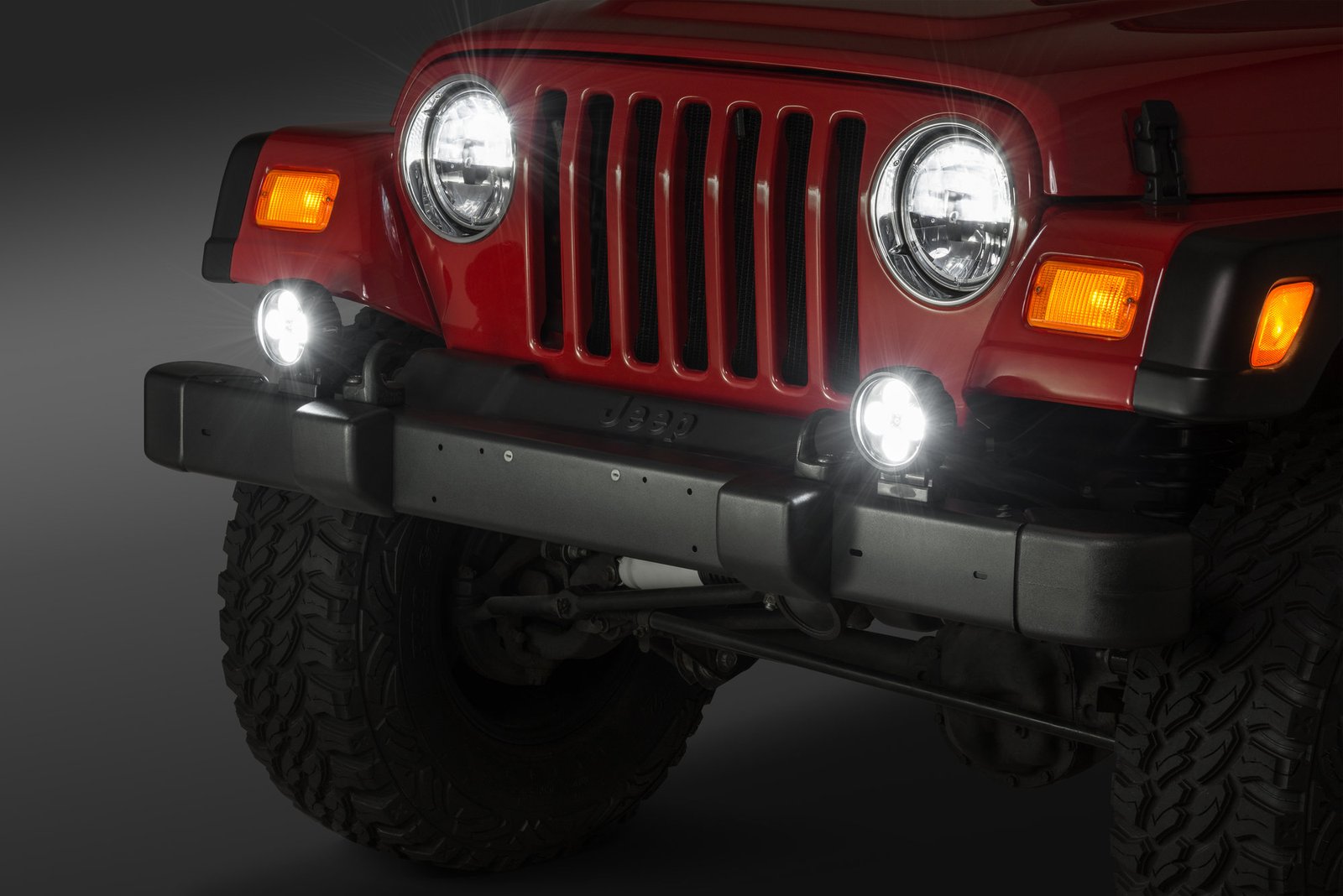

- Front bumper: Easy to install, good for wide lighting.
- A-pillars (windshield corners): Popular for spot or flood lights.
- Roof: Great for maximum visibility, but harder to wire.
Think about your needs and local laws. Some states limit roof-mounted lights. For most beginners, the bumper or A-pillars are best.
| Location | Ease of Install | Visibility | Legal Considerations |
|---|---|---|---|
| Bumper | Easy | Good | Few |
| A-Pillar | Medium | Great | Few |
| Roof | Hard | Excellent | Some |
Step-by-step Installation Guide
1. Plan Your Installation
Decide where to mount the lights and route the wires. Avoid hot areas and moving parts. Mark mounting points with a marker.
2. Attach Mounting Brackets
Use the drill to make holes if needed. Secure brackets with bolts and tighten them.
For A-pillar lights, some brackets use factory holes.
3. Mount The Lights
Align the lights and fasten them onto the brackets. Adjust the angle for best coverage. Don’t overtighten this can crack the housing.
4. Wiring The Lights
Follow these wiring steps:
- Connect the light’s positive wire to the relay harness.
- Connect the relay’s power wire to the battery’s positive terminal.
- Attach ground wires to a clean, bare metal spot on the chassis.
- Run the switch wire into the cabin (usually through a firewall grommet).
- Mount the switch where you can reach it easily.
Always use a fuse between the battery and relay. This protects your Jeep from electrical fires.
5. Test The System
Turn on the switch. If the lights work, check for flickering or dimming. If not, double-check connections and grounds.
6. Final Adjustments
Aim the lights as needed. Use zip ties to secure wires away from heat and moving parts.
Common Mistakes To Avoid
- Skipping the relay or fuse: Direct wiring can cause overheating or fire.
- Poor grounding: Always use a clean, bare metal spot.
- Loose wires: Secure all wires to prevent damage while driving.
- Wrong mounting angle: Test at night to avoid blinding other drivers.
One non-obvious tip: If you drive in rain or mud, seal wire ends with silicone. This prevents corrosion and electrical shorts.
Legal And Safety Tips
Many states limit where you can use off road lights on public roads. Check local laws before installation. Cover roof lights when driving on highways.
A safety insight most beginners miss: Some cheap light kits have thin wires. Always use the wiring harness provided, or upgrade to thicker wires for high-watt lights.
Maintenance After Installation
Good maintenance keeps your lights reliable. Clean lenses regularly.
Check wiring for wear every month. Replace fuses if they blow.
If you notice water inside the light housing, remove it and dry thoroughly. Water can cause electrical shorts and reduce light lifespan.
Off Road Lighting Statistics
Over 65% of Jeep owners use LED light bars for off road driving. LED bars last up to 50,000 hours—much longer than halogen or HID lights. Proper installation can increase your lights’ lifespan by 20% compared to poor wiring.
Cost Comparison
Here’s a quick look at cost ranges for Jeep Wrangler off road lights:
| Type | Average Price (USD) | Lifespan |
|---|---|---|
| LED Light Bar | $80-$350 | 50,000 hrs |
| Halogen Spot | $25-$80 | 1,000 hrs |
| HID Flood | $70-$180 | 3,000 hrs |
Frequently Asked Questions
Can I Install Off Road Lights Myself, Or Do I Need A Professional?
Most Jeep owners can install lights themselves with simple tools. If you feel unsure, consult a mechanic or follow a video tutorial for extra guidance.
Are Off Road Lights Legal For Use On Public Roads?
In many states, off road lights must be covered when driving on highways. Always check local laws before using them on public roads.
How Do I Prevent My Lights From Draining The Battery?
Use a relay and fuse. Turn off the lights when not needed.
Proper wiring ensures your battery does not drain quickly.
What’s The Best Place To Mount Lights For Trail Driving?
The bumper and A-pillars give good visibility and easy wiring. Roof lights are best for wide coverage but can be harder to install.
How Long Do Led Off Road Lights Last Compared To Halogen?
LED lights last up to 50,000 hours, while halogen lights last about 1,000 hours. LEDs are more durable and energy efficient.
Installing off road lights on your Jeep Wrangler is simple with the right tools and planning. Always follow safety steps and check your local laws. With proper installation, you’ll enjoy safer, brighter trails and night adventures. For more details on off road lighting regulations, visit NHTSA.
