Upgrading the gauge cluster lights in your YJ Jeep to LEDs is a smart move. You get brighter, clearer illumination and less power draw—great for older Jeeps with weak electrical systems. Many owners are surprised at how much this simple change modernizes the interior. If your dash is dim or unevenly lit, new LEDs will make a major difference every time you drive at night. This guide explains exactly how to install LED lights in the gauge cluster of a YJ Jeep, step by step, with tips to avoid common mistakes.
What You Need Before Starting
Upgrading to LED cluster lights is a quick project, but you’ll need the right tools and materials. Gather these items first:
- LED bulbs (194/T10 type—choose quality, warm white for best results)
- Small Phillips screwdriver
- Flathead screwdriver or plastic pry tool
- Needle-nose pliers
- Disposable gloves (optional, keeps oils off bulbs)
- Clean rag
- Flashlight
It’s important to double-check your Jeep’s model year, as some late YJs switched to different bulb sockets. Most 1987 1995 YJs use the same type, but always confirm before you order.

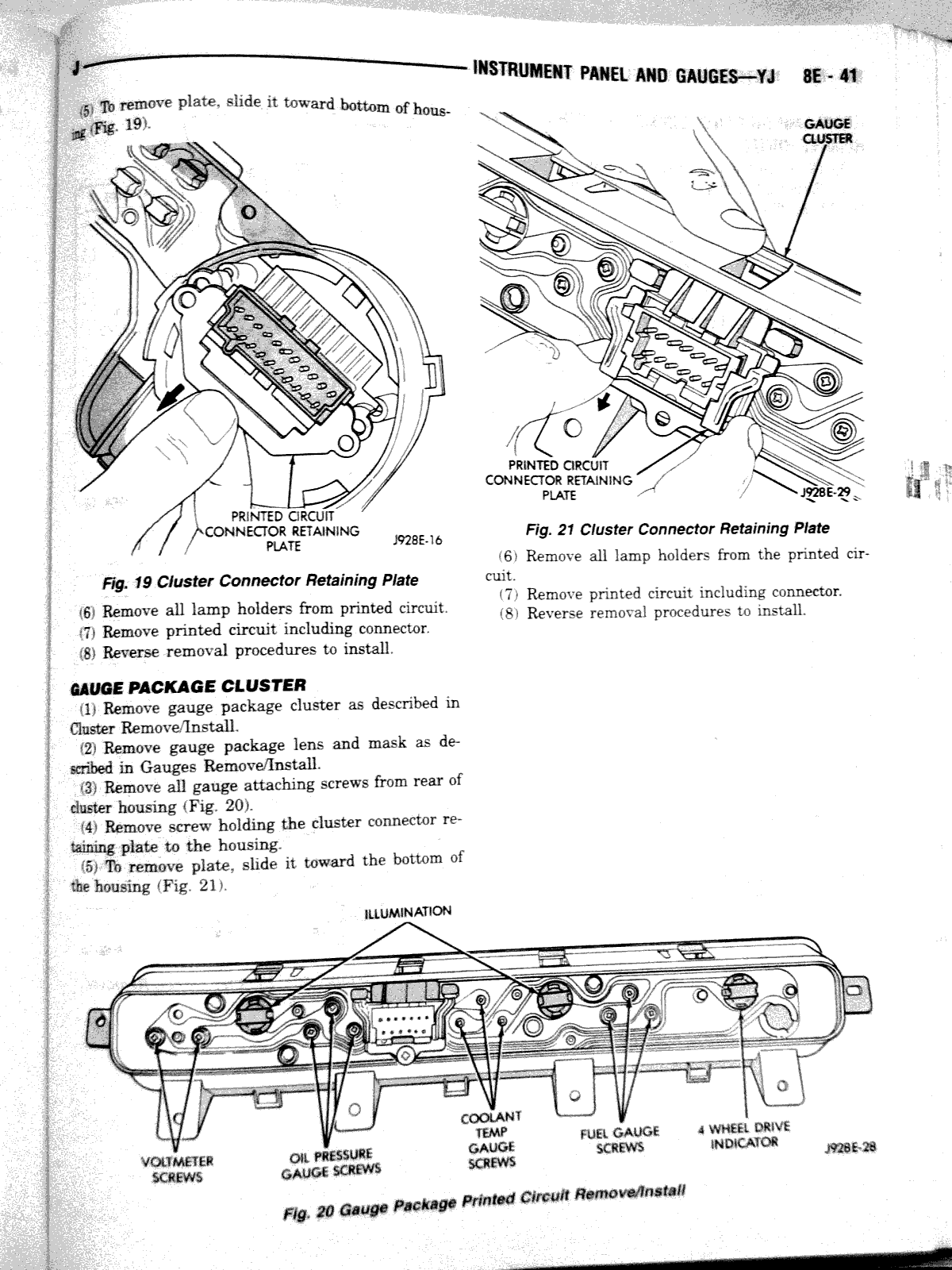

Removing The Gauge Cluster
Taking out the gauge cluster is the only way to access the backlight bulbs. This step can feel intimidating, but it’s straightforward if you go slow.
- Disconnect the battery. This prevents short circuits and protects your Jeep’s electronics.
- Remove the lower dash panel under the steering column with a screwdriver.
- Take off the trim bezel around the gauge cluster. Use a flathead or trim tool to gently pry it off.
- Remove the screws securing the gauge cluster to the dash.
- Carefully pull the cluster forward, just enough to reach the bulb sockets on the back.
The cluster will have several wiring connectors. You don’t need to fully disconnect them to change bulbs, but if you do, label each one with tape for easy reassembly.
Changing To Led Bulbs
Once you have access, swapping the bulbs is simple.
- Find the backlight bulb sockets on the back of the cluster (usually gray or black twist-lock holders).
- Twist each socket counterclockwise to remove.
- Pull out the old incandescent bulb. Insert the new LED bulb, making sure it’s snug.
- Test-fit the sockets back into the cluster but don’t reassemble yet.
Pro tip: LEDs are polarized. If the bulbs don’t light up when you test them, take them out, rotate 180 degrees, and reinstall. This is a common beginner mistake.
Led Vs. Stock Bulbs
Here’s a quick comparison of LED and stock bulbs for your YJ Jeep:
| Feature | Stock Bulb | LED Bulb |
|---|---|---|

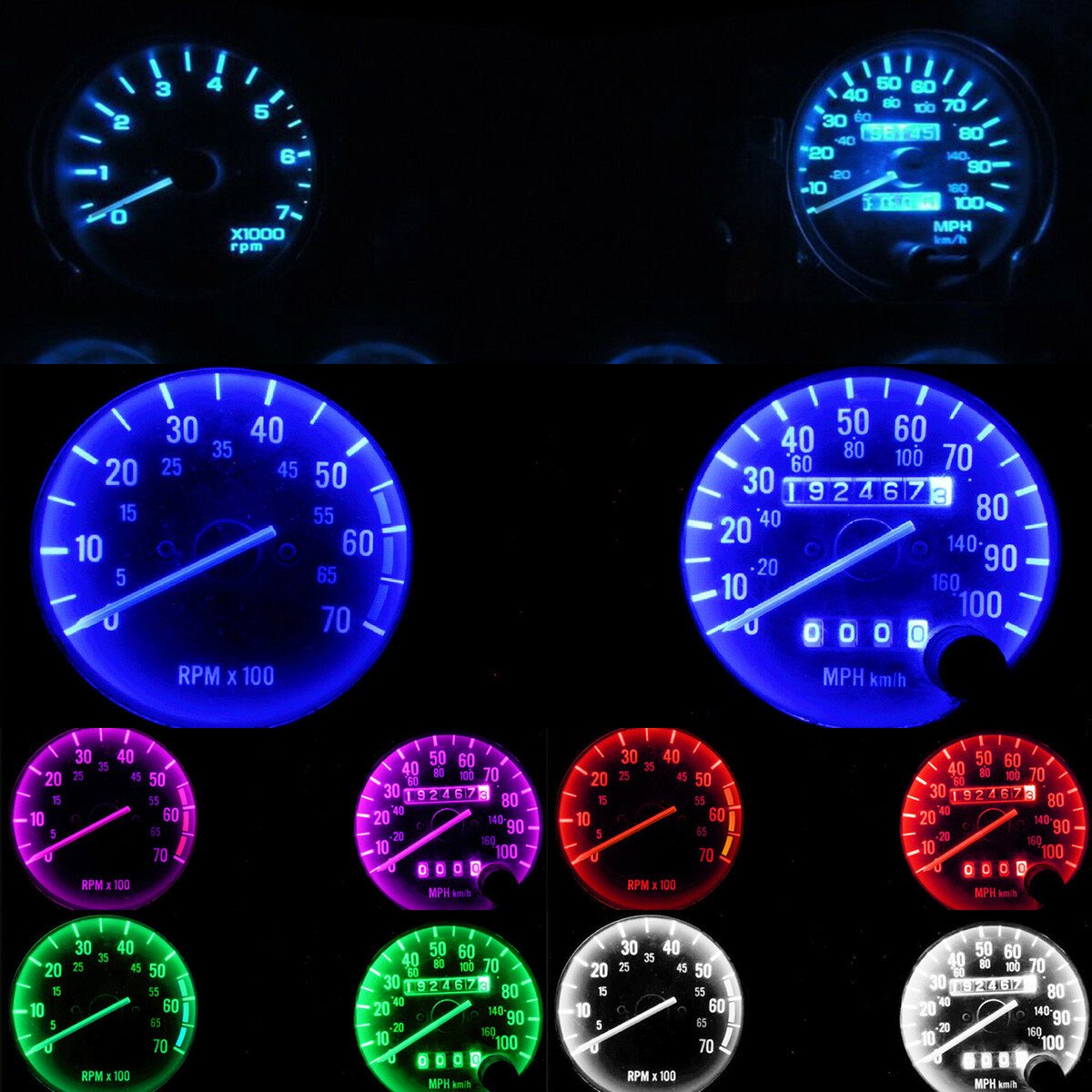

| Brightness | Dim, yellowish | Bright, white/blue/green |
| Power Use | Higher | Much lower |
| Lifespan | 500-1,000 hrs | 10,000+ hrs |
Testing The Lights
Before you put everything back, test your new LEDs.
- Reconnect the battery.
- Turn on the headlights to power the cluster.
- Check each gauge for even illumination.
If some bulbs don’t light up, remove and flip them as explained above. It’s easier to do this now than after reassembly.
Reinstalling The Gauge Cluster
Once all bulbs are working:
- Secure the bulb sockets into the cluster.
- Slide the cluster back into place. Ensure no wires are pinched.
- Reinstall all screws and the trim bezel.
- Put back the lower dash panel.
- Reconnect the battery.
Turn on your headlights again to confirm everything works. If you see any dark spots or flickering, double-check bulb seating and socket connections.
Common Problems And Solutions
Even simple jobs like this can run into small issues. Here are a few to watch for:
- Flickering bulbs: Usually a loose socket or poor contact. Remove, clean, and re-seat.
- No light at all: Bulb is reversed or dead. Try flipping or replacing.
- Dash lights too bright or dim: Some LEDs aren’t dimmable with stock Jeep dimmer switches. Look for “dimmable” LEDs or try a different brand.
Cost And Time Estimates
Most YJ Jeep owners finish this project in about 1 hour. Here’s a quick look at what to expect:
| Item | Estimated Cost | Time Required |
|---|---|---|
| LED bulb set | $10–$25 | — |
| Basic tools | Already owned | — |
| Installation | — | 45–90 mins |
Two Advanced Tips Most Beginners Miss

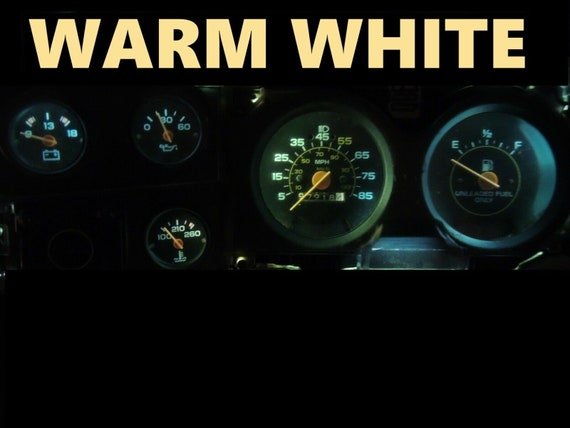

- Choose the right color temperature: Many cheap LEDs are too blue or harsh. Aim for 4000–5000K “natural white” for the easiest reading and a modern look.
- Clean the cluster lens: Dust and haze on the inside of the plastic lens reduce light output. While the cluster is apart, gently wipe the lens with a soft, damp cloth for the brightest results.
When To Call A Pro
If your cluster has electrical issues or broken connectors, it’s wise to ask for help. Damaged wiring can cause problems beyond just dim lighting.
A professional can fix or replace dash parts and ensure safe operation.
Wrapping Up
Installing LED lights in your YJ Jeep’s gauge cluster is a simple upgrade with big benefits. You’ll see your gauges more clearly, enjoy modern lighting, and save on battery power. Take your time, check polarity, and don’t rush. Many Jeep enthusiasts say this is one of the most satisfying, low-cost interior upgrades you can do. For more on vehicle electrical systems, check out this Automotive Lighting overview.
Frequently Asked Questions
What Type Of Led Bulbs Fit A Yj Jeep Gauge Cluster?
Most YJ Jeeps use 194/T10 wedge LED bulbs for the gauge cluster. Always check your manual or remove a bulb to confirm before buying.
Will The New Leds Dim With My Stock Dash Dimmer?
Some LEDs are not dimmable with the factory dimmer switch. Look for “dimmable” LEDs or test before fully reassembling your cluster.
Do I Need To Solder Or Cut Any Wires?
No. LED bulbs are plug-and-play for the YJ gauge cluster—just swap them into the existing sockets.
Are All Colors Of Led Bulbs Legal?
White and amber are generally legal for dash lighting. Avoid bright blue or red, which may not be allowed in some regions.
Can I Upgrade Other Jeep Interior Lights To Led?
Yes, you can upgrade courtesy, dome, and indicator lights to LED in your YJ Jeep. Just match the correct bulb type for each location.
