Jeep Wranglers are built for adventure, but sometimes the stock headlights just aren’t enough—especially when you’re off-roading at night or tackling foggy trails. That’s where a LED light bar comes in. It gives you more visibility, boosts your Jeep’s rugged look, and makes night driving much safer. But many Jeep owners feel nervous about installing one themselves. The good news? With the right steps and a bit of patience, you can install an LED light bar on your Jeep Wrangler—even if you’re new to car mods.
This guide explains everything you need to know, from choosing the right light bar to wiring and mounting it. You’ll learn tips that save you time, avoid mistakes, and help you get the best performance from your new lights.
Why Install A Led Light Bar On Your Jeep Wrangler?
A LED light bar is more than just a cool accessory—it’s a major upgrade for your Jeep’s functionality. Here’s why many owners make the switch:
- Better Visibility: LED light bars shine much brighter and further than standard lights. This helps you spot obstacles or wildlife on dark trails.
- Lower Power Draw: Modern LED bars use less power than traditional halogen or HID lights. That means less strain on your Jeep’s electrical system.
- Longer Life: LED lights can last up to 50,000 hours, so you’ll rarely need to replace them.
- Improved Safety: More light means you can react faster to hazards, keeping you and your passengers safer.
- Custom Look: A light bar gives your Wrangler a tough, off-road-ready appearance.
A common mistake is choosing a light bar just for looks. Always consider function and fit for your Jeep.
Choosing The Right Led Light Bar
Not all LED light bars are the same. Picking the right one is critical for safety, performance, and fit. Here’s what to look for:
Key Factors To Consider

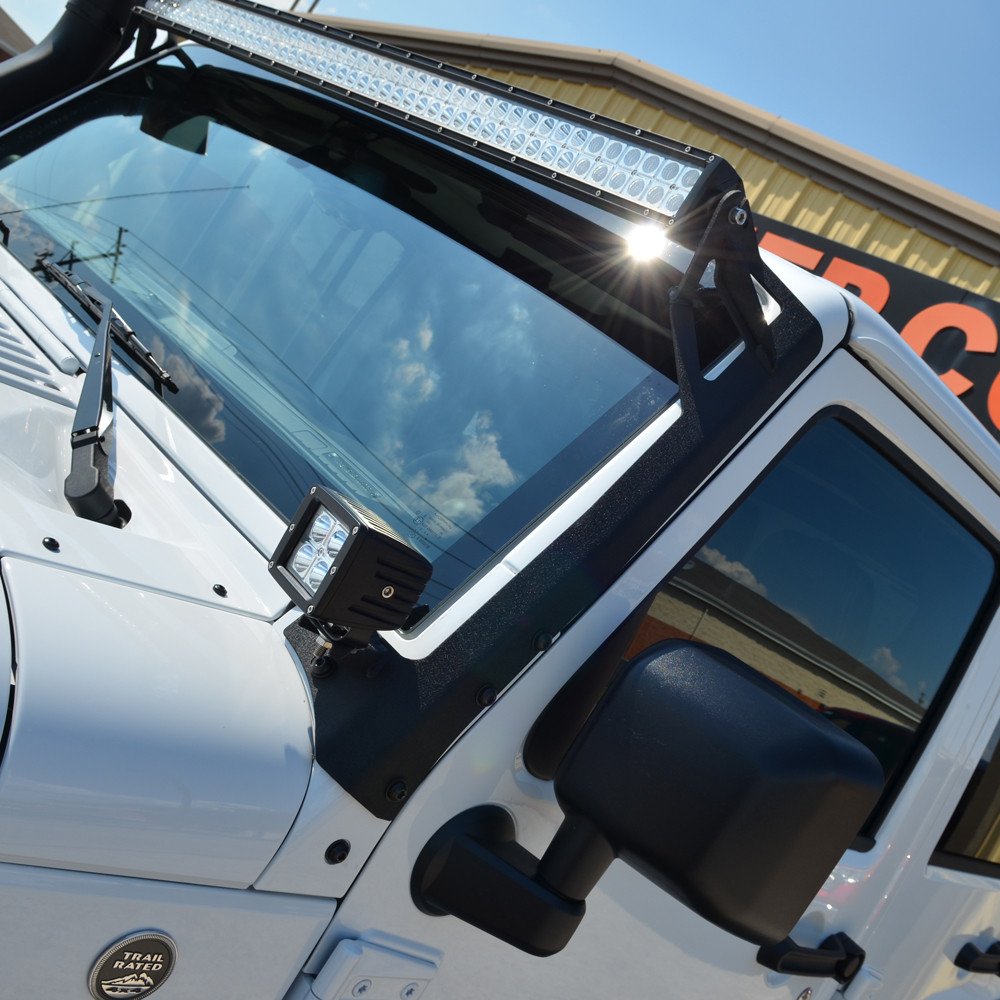

- Size: Measure your Jeep to see what will fit. Common sizes are 20″, 30″, and 50″. A 50″ bar fits above the windshield, while smaller ones work on the bumper or hood.
- Beam Pattern: Spot beams focus light far ahead, while flood beams spread light wide. Many bars offer a combo pattern (spot + flood) for all-around use.
- Waterproofing: Look for a light bar with an IP67 or IP68 rating. This means it’s safe for rain, mud, and even shallow water crossings.
- Lumens and Power: More lumens mean more light. For off-roading, 10,000+ lumens is usually enough. Check wattage to avoid overloading your Jeep’s electrical system.
- Mounting Options: Some bars come with mounts for the windshield or bumper. Make sure the bar includes all brackets and hardware.
- Warranty: Reputable brands offer at least a 1-year warranty. This protects you from defects.
Comparing Popular Sizes
Here’s a quick look at common light bar sizes and where they fit best:
| Size | Best Location | Pros | Cons |
|---|---|---|---|
| 20″ | Bumper, hood | Easy install, subtle look | Less total light |
| 30″ | Bumper, roof | Good balance of size and output | May block airflow if on hood |
| 50″ | Above windshield | Maximum coverage and brightness | Most visible, may increase wind noise |
Tip: Check local laws before buying. Some places limit use of high-output auxiliary lights on public roads.
Tools And Materials Needed
Before you start, gather these items:

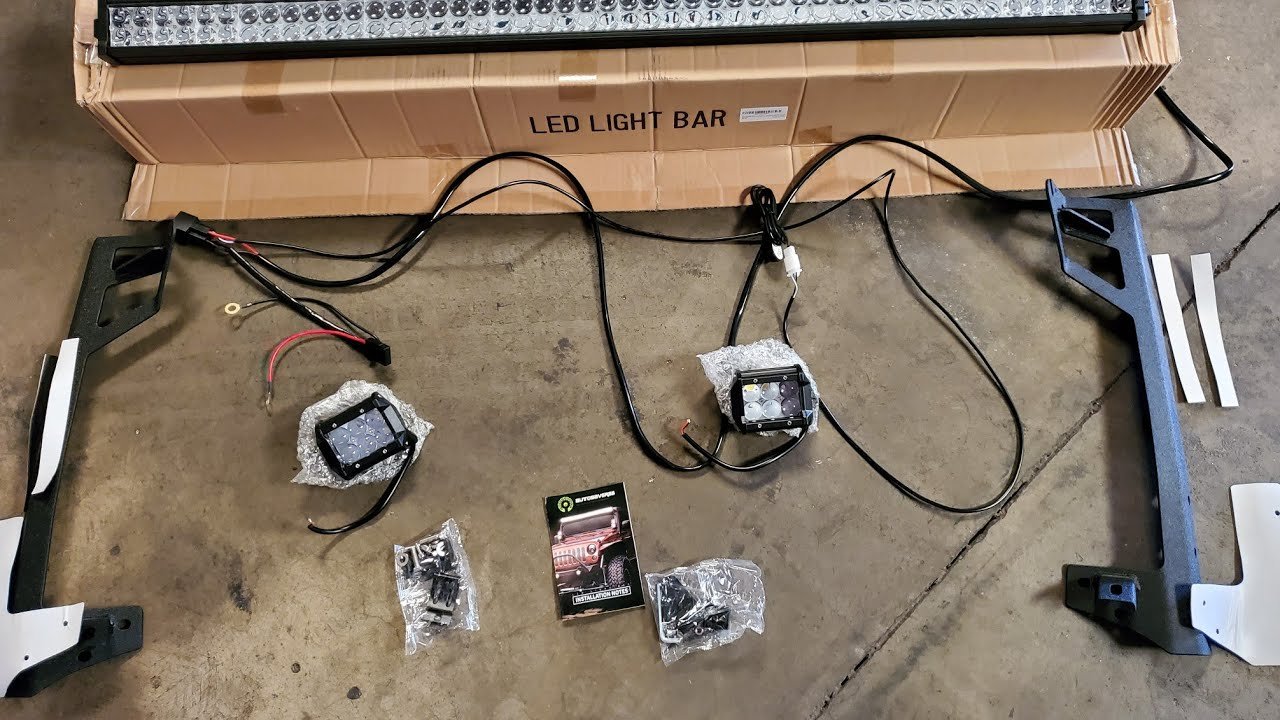

- LED light bar kit (includes wiring harness and mounting brackets)
- Socket set and wrench
- Screwdrivers (Phillips and flathead)
- Wire cutters/strippers
- Electrical tape or heat shrink tubing
- Drill and bits (if you need to make new holes)
- Zip ties
- Multimeter (helpful for checking connections)
- Protective gloves and safety glasses
Some kits include extra parts like relay switches or waterproof connectors. Read the instructions before you buy more.
Pre-installation Steps
Preparation is key for a smooth install. Here’s what to do first:
1. Plan Your Mounting Location
Decide where you want the light bar. The windshield is most popular for maximum light. The bumper is also a good choice if you want less wind noise. Hold the light bar up to your Jeep to check alignment and make sure the brackets fit.
2. Disconnect The Battery
Safety first! Always disconnect the negative terminal of your Jeep’s battery before working with electrical parts. This prevents shorts or accidental shocks.
3. Lay Out The Wiring
Unpack the wiring harness and lay it along your Jeep’s frame. Plan the route from the battery to the light bar, and inside the cab if you’re adding a switch.
Beginner mistake: Not planning your wiring path can lead to wires getting pinched or exposed to heat, which may cause failures later.
Step-by-step Installation
Now you’re ready for the main event. Here’s how to install your LED light bar on a Jeep Wrangler:
1. Mount The Brackets
- Attach the mounting brackets to the light bar first, but do not tighten all the way.
- Hold the bar up to the Jeep at your chosen spot. Mark the holes for drilling, if needed.
- Drill holes only if your Jeep does not have factory mounting points. Always check what’s behind before you drill.
- Attach the brackets to the Jeep. Use the provided bolts or your own hardware if stronger bolts are needed. Tighten firmly, but don’t over-tighten.
2. Install The Light Bar
- Place the light bar on the brackets.
- Adjust the angle so the light points where you need it—usually just above horizontal.
- Tighten all bolts evenly to avoid stressing the light bar’s housing.
3. Route The Wiring Harness
- Run the wires from the light bar to the battery, following your planned route.
- Avoid sharp edges, moving parts, and hot surfaces (like the exhaust or engine).
- Use zip ties to secure the wiring neatly along the frame or under the hood.
4. Connect The Wiring
Most kits include a wiring harness with a relay and a switch. Here’s a basic connection method:
- Red wire: Connect to the positive battery terminal.
- Black wire: Connect to the negative battery terminal or a good ground point.
- Switch wire: Run through the firewall into the cab, then connect to the switch.
- Relay: Mount near the battery, away from direct water spray.
If your bar has multiple wires (for spot and flood), follow the color code in the instructions. Use heat shrink tubing or electrical tape to seal all connections.
5. Mount The Switch
- Pick a location inside your Jeep that’s easy to reach but not in the way.
- Drill a small hole if needed, and snap the switch into place.
- Connect the switch wires according to the wiring diagram.
Pro tip: Use a factory switch blank if your Jeep has one. It looks cleaner and is easier to wire.
6. Test The System
- Reconnect the battery’s negative terminal.
- Flip the switch and check if the light bar works.
- If it doesn’t turn on, use a multimeter to check for power at each connection.
- Adjust the light bar’s angle if needed.
Common Mistakes And How To Avoid Them
Even experienced DIYers can make mistakes. Here’s how to dodge the most frequent problems:
- Skipping waterproofing: Always seal all wire connections. Water can cause corrosion and shorts.
- Loose mounting: Recheck all bolts after a test drive. Off-road bumps can loosen hardware.
- Wrong wiring gauge: Thin wires can overheat and fail. Use the gauge recommended by the light bar’s instructions.
- Poor grounding: A bad ground connection is the top cause of flickering lights. Sand down to bare metal if needed.
- Blocking airflow: Avoid mounting the light bar where it blocks air to the radiator, especially on the hood.
Extra Tips For A Professional Install
- Use a relay to protect your Jeep’s electrical system. Most kits include one, but if not, add it.
- Add split loom tubing for extra wire protection against rocks and heat.
- Consider amber covers for your light bar if you drive in fog or snow—amber cuts glare and improves visibility.
- Keep your receipt and document the install with photos. This helps with warranty claims or if you sell your Jeep.
Example Wiring Diagram
Here’s a basic overview of how the wiring should look for a single light bar with a switch:
| Component | Connection | Notes |
|---|---|---|
| Light Bar | To relay output | Main power to light |
| Relay | Battery (+), switch, ground | Protects switch and wiring |
| Switch | Relay trigger, ground | Inside cab, turns light on/off |
| Battery | Power for system | Use fused connection |
Many kits include a similar diagram in the manual. Always double-check your connections before turning on the light.
Cost And Time Estimate
Knowing what to expect helps you plan better. Here’s a breakdown:
| Task | Time Needed | Estimated Cost |
|---|---|---|
| Choosing & buying light bar | 1 hour | $80–$300 |
| Prepping tools & workspace | 30 minutes | Most tools already owned |
| Mounting light bar | 1 hour | Included in kit |
| Wiring & switch install | 1–2 hours | Minimal—$10 for extra wire or connectors |
Most Jeep owners can finish the job in a half day. Professional install at a shop may cost $100 $200 extra.
Frequently Asked Questions
How Do I Know What Size Led Light Bar Will Fit My Jeep Wrangler?
Measure the width of your mounting area (windshield, bumper, or hood). Most Wranglers fit a 50-inch bar above the windshield and 20–30 inch bars on the bumper. Check your Jeep model year, as bracket sizes can change.
Can I Wire The Led Light Bar To My Factory Fog Light Switch?
In most cases, yes, but you’ll need a relay and possibly a different wiring harness. Connecting directly can overload the switch.
Using a relay keeps the factory wiring safe and allows your new light bar to work with the original switch.
Are Led Light Bars Legal On Public Roads?
Rules vary by state and country. Many places allow LED light bars but require them to be off on public roads. Always check local laws. For more details, see the Automotive Lighting page on Wikipedia.
What Do I Do If My Light Bar Flickers Or Won’t Turn On?
Check all wire connections for tightness and corrosion. Make sure your ground is secure and touching bare metal.
Test the relay and fuse. If the problem continues, try connecting the light bar directly to the battery to see if it works.
Can I Install More Than One Led Light Bar On My Jeep?
Yes, many Jeep owners add multiple light bars (roof, bumper, pillar). Each bar should have its own relay, wiring, and switch. Avoid overloading your battery or alternator by checking the total amp draw.
Upgrading your Jeep Wrangler with an LED light bar gives you better night vision, safety, and style. Careful planning and following these steps will help you get a clean, reliable install.
Take your time, double-check your work, and soon you’ll be lighting up the trail like a pro.
