If you drive a Jeep Wrangler, you probably know how important good lighting is, especially during foggy mornings or nights. Installing fog lights not only improves visibility but also makes your Jeep safer. Many Wrangler owners want to upgrade or add fog lights themselves, but worry about the steps, wiring, and compatibility. This guide will show you exactly how to install fog lights on a Jeep Wrangler, including tools, step-by-step instructions, and expert tips. Whether you’re a beginner or have some DIY experience, you’ll find clear advice for getting the job done right.
Why Add Fog Lights To Your Jeep Wrangler?
Fog lights help you see the road better when weather is bad, like fog, heavy rain, or snow. Unlike regular headlights, fog lights are mounted lower and spread light wide but not far. This reduces glare and helps you spot obstacles and lane markings. Statistics from the National Highway Traffic Safety Administration show that more than 20% of weather-related crashes happen in foggy conditions. Upgrading your Jeep’s lighting can make a real difference.
Many Jeep Wrangler models come with fog lights, but some trims do not. Even factory fog lights can be weak or outdated. Aftermarket options are often brighter, more durable, and stylish. If you off-road or drive rural roads, fog lights are almost essential.
Choosing The Right Fog Lights
Before you start installing, pick the right fog lights for your Jeep Wrangler. There are many types, so consider these factors:
- Compatibility: Check if the lights fit your Jeep model and year. For example, JK, JL, and TJ Wranglers have different mounting and wiring.
- Light Type: Choose between LED, halogen, or HID. LEDs are popular because they last longer and use less power.
- Brightness: Look at lumens (brightness) and color temperature (Kelvin). Most Wrangler owners prefer 3000K–6000K for clear, white or yellow light.
- Durability: Pick lights with waterproof, dustproof ratings. Look for IP67 or IP68.
- Warranty: Good brands offer at least 1-year warranty.
Here’s a simple comparison to help you pick:
| Type | Average Lifespan | Power Use | Brightness (Lumens) | Price Range |
|---|---|---|---|---|
| LED | 30,000 hrs | Low | 2000–4000 | $50–$250 |
| Halogen | 2,000 hrs | High | 1000–2000 | $25–$100 |
| HID | 10,000 hrs | Medium | 3000–5000 | $80–$200 |
If you want the best mix of brightness and lifespan, LED fog lights are usually the top choice for Jeep owners.
Tools And Parts You Will Need
Before starting, gather these tools and parts:

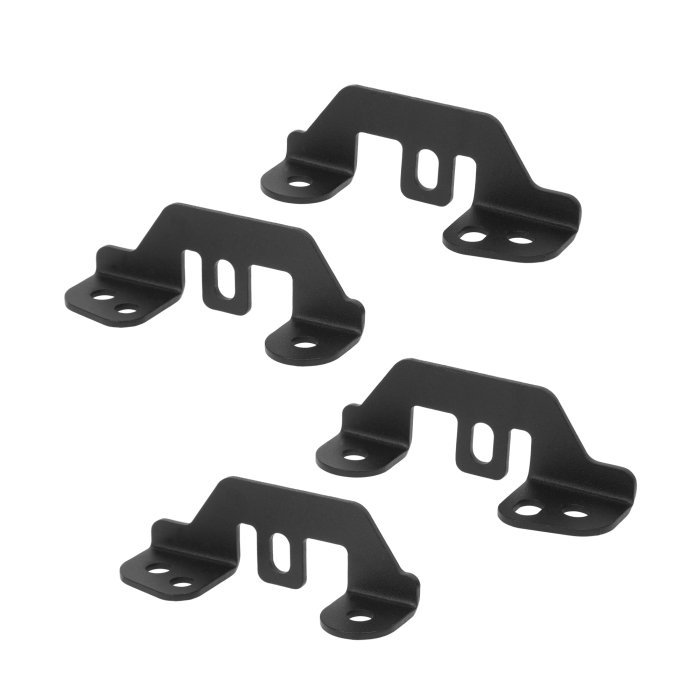

- Fog light kit (with brackets, harness, and switch)
- Screwdrivers (Phillips and flathead)
- Socket wrench set
- Wire stripper and crimper
- Electrical tape
- Zip ties
- Test light or multimeter
- Drill (if new mounting holes are needed)
- Owner’s manual (for wiring diagram)
- Safety gloves
For most installations, you won’t need advanced tools. However, if your Jeep doesn’t have fog lights already, you may need to drill holes or run new wires.
Step-by-step Jeep Wrangler Fog Light Installation
Ready to install? Follow these steps for a smooth job. These instructions work for most Wrangler models, but always check your kit’s manual.
1. Prepare Your Jeep
Park your Jeep on a flat surface. Turn off the engine and remove the key. Disconnect the negative battery cable using a socket wrench. This prevents electrical shocks or short circuits.

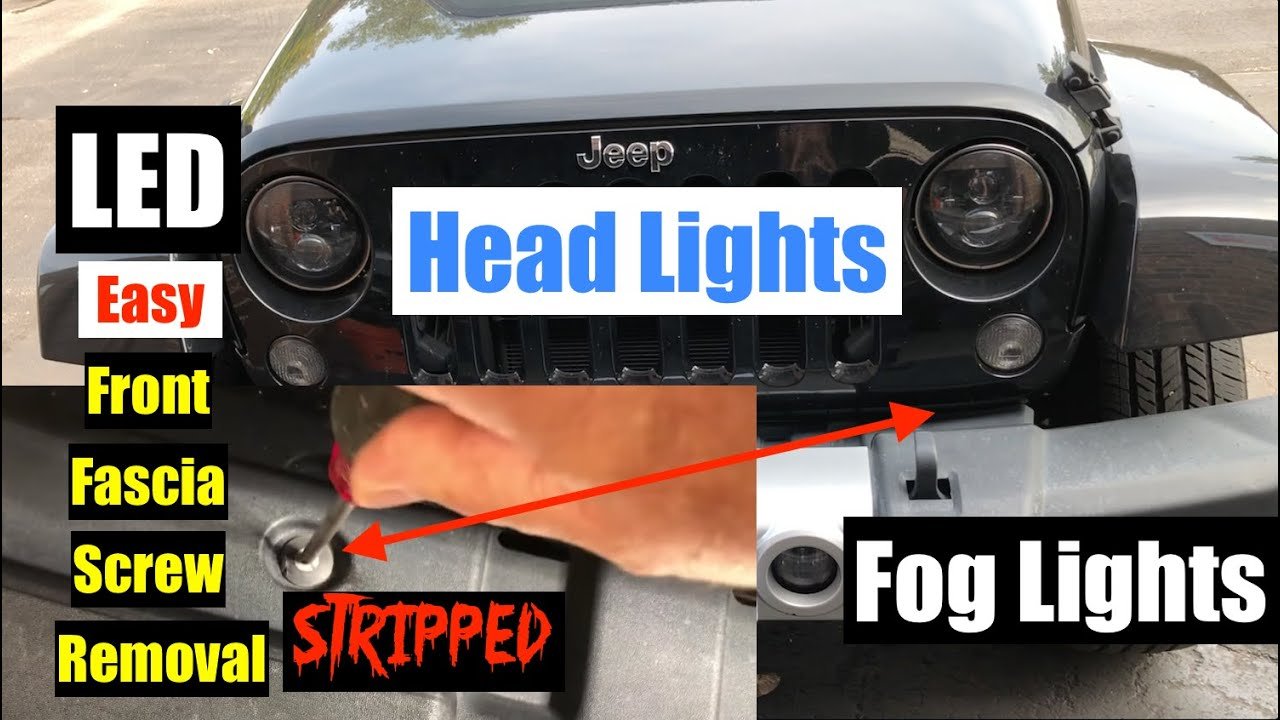

2. Remove The Old Fog Lights (if Upgrading)
If your Jeep already has fog lights, remove them first.
- Unscrew the mounting bolts using a socket wrench.
- Unplug the wiring harness.
- Carefully pull out the old lights.
If you’re adding fog lights for the first time, skip this step.

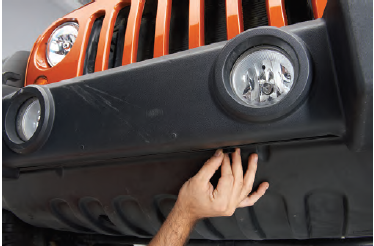

3. Mount The New Fog Lights
Fit the new fog lights into the factory holes or brackets. For most JK and JL models, the bumper has pre-cut holes.
- Place the fog light in the opening.
- Secure with bolts or screws.
- Make sure the lights are straight and tight.
If your Jeep doesn’t have holes, measure and mark the bumper. Drill holes carefully, avoiding wires and sensors.
4. Connect The Wiring
This is the most important step. Good wiring prevents problems and keeps your Jeep safe.
- Plug the fog light wires into the harness.
- If your kit has a relay and switch, connect as shown in the diagram.
- Use wire strippers to remove insulation, then crimp connectors.
- Wrap connections with electrical tape.
- Run wires along the frame, away from moving parts and heat.
Most kits include a switch for the dashboard. Drill a small hole and mount the switch where you can reach it easily. Connect the switch wire to the fuse box or battery, as directed.
Here’s a quick comparison of wiring options:
| Method | Difficulty | Reliability | Best For |
|---|---|---|---|
| Plug-and-play | Easy | High | Recent Wranglers |
| Custom wiring | Medium | High | Older models |
| Splice into existing | Hard | Medium | DIY upgrades |
Most beginners prefer plug-and-play kits. They require less work and reduce mistakes.
5. Test The Lights
Reconnect the battery. Turn on the fog lights using the switch. Check both lights for brightness and color. If one doesn’t work, check the wiring and fuse.
Use a test light or multimeter to check voltage. If needed, adjust the aim of the lights so they point low and wide. This prevents glare and helps you see better.
6. Secure And Finish
Use zip ties to keep wires neat and away from moving parts. Double-check all bolts and connectors. Clean the area and replace the bumper cover if you removed it.
Common Mistakes To Avoid
Many beginners make errors that cause problems later. Here are two mistakes most people overlook:
- Skipping fuse protection: Always use the fuse provided or add one if your kit doesn’t have it. This protects your Jeep from electrical fires.
- Poor wire routing: Don’t let wires hang loose or touch hot engine parts. Use zip ties and keep wires under the hood, away from sharp edges.
Some also forget to aim the lights correctly. Fog lights should point slightly downward and outward. This gives the best coverage without blinding other drivers.
Practical Tips For A Smooth Installation
Experienced Jeep owners know a few tricks that save time and trouble:
- Read your owner’s manual for wiring diagrams. Even if your kit has instructions, factory diagrams show the safest routes.
- Use dielectric grease on connectors to prevent corrosion.
- If you’re unsure about drilling, use masking tape to mark the spot and prevent paint chips.
- Test the lights before closing the bumper or panels. It’s easier to fix wiring with everything open.
- Record your installation with photos. This helps if you need to troubleshoot or upgrade later.
Some Jeep clubs and forums offer advice and videos. You can check ExtremeTerrain for Wrangler-specific guides and reviews.
Data: Jeep Wrangler Fog Light Performance
Many people wonder how much fog lights improve visibility. Here’s a simple comparison:
| Lighting Type | Visibility Distance (ft) | Coverage Angle | Effect in Fog |
|---|---|---|---|
| Stock Headlights | 120 | 30° | Poor |
| Factory Fog Lights | 80 | 60° | Fair |
| LED Fog Lights | 100 | 70° | Good |
| Premium Aftermarket | 110 | 75° | Excellent |
Upgrading to LED fog lights increases both the width and clarity of your vision, especially in foggy conditions.
Troubleshooting: If Fog Lights Don’t Work
Sometimes, you finish the installation and the lights don’t turn on. Here’s how to fix common issues:
- Check the fuse: Replace if blown.
- Inspect connectors: Make sure all wires are tight.
- Test voltage: Use a multimeter to check power at the fog light.
- Look for ground faults: Bad ground connections stop lights from working.
- Switch problems: Try swapping the switch or relay.
If your Jeep has a CAN bus system, aftermarket fog lights may need an adapter to avoid errors. Ask your supplier for a compatible module.
How To Upgrade To Smart Fog Lights
Some newer fog lights offer smart features like automatic on/off, color changes, or Bluetooth control. These require extra wiring and a control module. If you want this upgrade:
- Buy a kit with a smart controller.
- Follow the installation steps, but connect the module to your phone via app.
- Make sure your Jeep’s electrical system supports the extra load.
Smart fog lights are more expensive, but add convenience and style. They are popular for off-road builds and show Jeeps.
Frequently Asked Questions
What Jeep Wrangler Models Support Fog Light Installation?
Most Jeep Wranglers, including TJ, JK, JL, and Gladiator, support fog light installation. Older models may need custom brackets, but factory holes are common in newer Wranglers.
Can I Install Fog Lights Myself Without Professional Help?
Yes, most fog light kits are designed for DIY installation. If you have basic tools and follow the instructions, you can complete the job in 1–2 hours. Only complex wiring or drilling may require a mechanic.
How Much Does It Cost To Install Fog Lights On A Jeep Wrangler?
DIY installation costs from $50 to $250 for parts, depending on the type and brand. If you hire a mechanic, add $80–$150 for labor. LED kits are more expensive but last longer.
Will Installing Fog Lights Void My Jeep’s Warranty?
If you use factory-approved parts and follow safe wiring methods, your warranty is usually safe. However, improper wiring or damage can void some warranties. Always check your Jeep’s warranty policy.
What Are The Best Fog Light Brands For Jeep Wrangler?
Top brands include KC HiLiTES, Rigid Industries, Mopar, and Oracle Lighting. Look for models with waterproof ratings and at least 1-year warranty.
Installing fog lights on your Jeep Wrangler is a smart upgrade for safety and style. With clear steps, the right tools, and attention to detail, you can complete the job in an afternoon. Remember to choose the best lights for your needs, follow wiring diagrams, and aim the lights correctly. Whether you drive city streets or muddy trails, good fog lights make every trip brighter and safer.
