If you drive a Jeep Wrangler YJ, you know how important good lighting is especially in fog, rain, or low-visibility conditions. Fog lights help you see the road when standard headlights struggle, making your trips safer and more comfortable.
Many Jeep YJ models didn’t come with fog lights from the factory, but installing them isn’t difficult if you follow the right steps.
In this guide, you’ll learn how to install fog lights on your Jeep Wrangler YJ, what tools you’ll need, and how to avoid common mistakes. By the end, you’ll feel confident tackling this upgrade, even if you’re new to vehicle modifications.
Why Add Fog Lights To Your Jeep Wrangler Yj?
Jeep Wranglers are built for adventure, but even the toughest vehicle needs help in poor weather. Fog lights are designed to shine below the mist, lighting the road without blinding drivers. They’re especially useful in these situations:
- Driving in thick fog or heavy rain
- Traveling on rural or unlit roads
- Off-roading in muddy or dusty environments
According to the National Highway Traffic Safety Administration, fog lights can reduce accidents in low-visibility conditions by up to 12%. For Jeep YJ owners, they not only boost safety, but also add a rugged look to your vehicle.
Choosing The Right Fog Lights
Before you start, you need to pick the right fog lights for your Jeep Wrangler YJ. Not all lights are equal, and the wrong choice can lead to poor performance or legal trouble.
Key Factors To Consider
1. Brightness And Beam Pattern
Fog lights should produce a wide, low beam. Look for lumens ratings between 800–1200 per light.
- Bulb Type
- Halogen: Cheap and easy to find, but not as bright as LED.
- LED: Brighter, last longer, and use less power. Most modern upgrades are LED.
- HID: Very bright, but usually overkill for fog lights.
- Color Temperature
Lights between 3000K 4000K (yellowish-white) work best in fog.
4. Build Quality
Choose lights with waterproof housing and strong brackets. Your Jeep may see mud, rain, and rough roads.
5. Legal Compliance
Some states limit fog light brightness or color. Check your local regulations before purchasing.
Popular Brands
- KC HiLiTES
- Rigid Industries
- PIAA
- Hella
These brands are known for durability and reliable performance.
| Brand | Bulb Type | Average Price | Warranty |
|---|---|---|---|
| KC HiLiTES | LED | $110 | 5 years |
| Rigid Industries | LED | $140 | Limited Lifetime |
| PIAA | Halogen/LED | $95 | 1 year |
| Hella | Halogen | $65 | 2 years |
Tools And Materials You’ll Need
Getting the right tools makes the job easier and safer. Here’s what you’ll need:
- Fog lights kit (includes lights, wiring, switches, and mounting hardware)
- Screwdrivers (Phillips and flathead)
- Socket wrench set
- Wire strippers and crimpers
- Electrical tape
- Zip ties
- Drill and bits (if mounting holes aren’t pre-drilled)
- Multimeter (for testing connections)
- Protective gloves
Some kits include everything except tools. Double-check before you start.
Preparing Your Jeep Wrangler Yj
Before installing, take these steps to make the process smooth:
1. Disconnect The Battery
Always unplug the negative terminal to avoid electrical shock.
2. Clean The Mounting Area
Dirt or rust can cause poor connections. Wipe down the bumper and brackets.
3. Lay Out Your Parts
Check that you have all hardware and wires. Missing pieces can stall your project.
Step-by-step Installation Guide
Installing fog lights on a Jeep Wrangler YJ can take 2–3 hours. Here’s a breakdown of the steps:
1. Mounting The Fog Lights
Most Jeep YJs have space on the front bumper for fog lights. If yours doesn’t, you may need to drill new holes.
- Hold the fog light bracket in place and mark the spots for screws.
- Drill holes if needed, but avoid damaging existing wiring or parts.
- Attach brackets securely using bolts and washers.
- Place the fog lights in the brackets and adjust their angle. Aim them low and wide for best results.
2. Running The Wiring
Fog lights need their own wiring harness. Most kits come with a relay, fuse, and switch.
- Route wires from the lights to the engine bay, keeping them away from hot parts or moving objects.
- Use zip ties to secure wires and prevent them from hanging loose.
- Connect the positive wire from the lights to the relay.
- Connect the relay to the battery’s positive terminal, using the included fuse.
- Ground the negative wire from each light to a solid metal part (like the frame).
3. Installing The Switch
You need to control the fog lights from inside the Jeep.
- Find a spot on the dashboard for the switch. Many people use the area next to the headlight switch.
- Drill a hole if needed, and mount the switch securely.
- Connect the switch wire to the relay, following your kit’s instructions.
4. Testing The System
Before finishing, check all connections.
- Reconnect the battery.
- Turn on the fog light switch. The lights should come on.
- Use a multimeter to check voltage and ensure proper grounding.
- If lights don’t work, check the fuse, relay, and all connections.
5. Final Adjustments
- Aim the fog lights so they shine just above the ground.
- Tighten all bolts and brackets.
- Clean up any wires and use zip ties to keep things neat.
| Step | Estimated Time | Difficulty |
|---|---|---|
| Mounting Lights | 30 minutes | Easy |
| Running Wires | 45 minutes | Medium |
| Installing Switch | 25 minutes | Medium |
| Testing | 20 minutes | Easy |
| Final Adjustments | 15 minutes | Easy |
Common Mistakes And How To Avoid Them
Installing fog lights isn’t hard, but mistakes can cause frustration or damage. Here are two errors many beginners make:
1. Skipping The Relay And Fuse
Direct wiring to the battery is risky. Always use the relay and fuse to prevent electrical fires.
2. Poor Grounding
If the ground wire isn’t connected to clean, bare metal, your lights may flicker or fail. Sand the area before attaching the wire.
A third mistake is forgetting to aim the lights. Misaligned fog lights can blind other drivers or be useless in fog.
Practical Tips For A Smooth Installation
- Test lights before final mounting
Connect them temporarily and check brightness before you bolt everything down.
- Label wires
Use colored tape or markers so you remember which wire goes where.
- Read your kit’s instructions
Every kit is a bit different. Don’t assume your setup matches online guides.
- Take photos
Snap pictures of your wiring as you work. If you need to troubleshoot later, photos help.
- Check local laws
Some states require fog lights to be wired so they only work with low beams.
Jeep Wrangler Yj Fog Light Placement Options
Where you put your fog lights affects performance and appearance. Here are common choices:

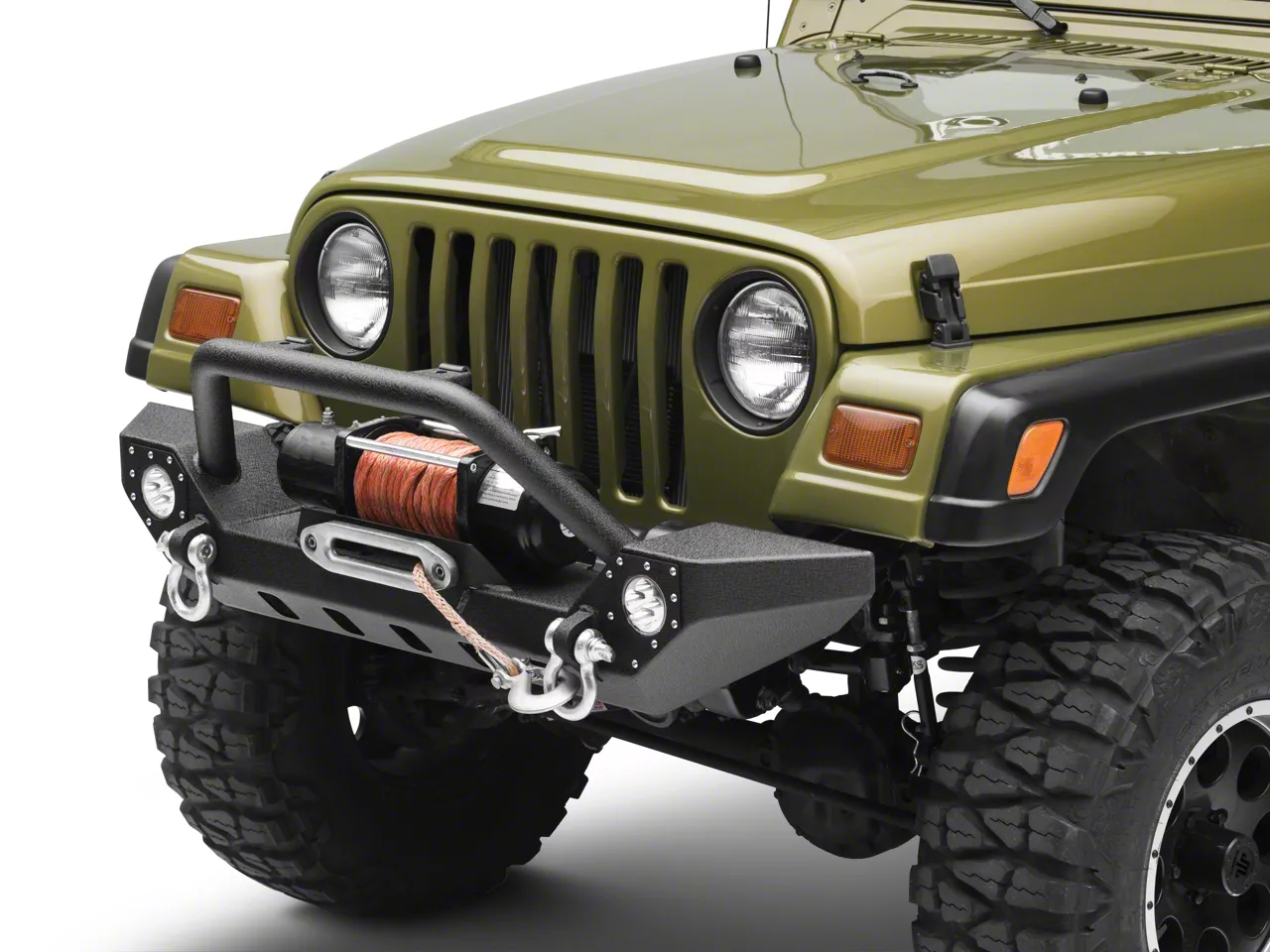

- Front bumper: Most popular and easiest to wire.
- Grille area: Gives a custom look, but needs careful mounting.
- Below the bumper: Good for off-road, but less protected from rocks.
| Placement | Visibility | Protection | Installation Ease |
|---|---|---|---|
| Front Bumper | High | Medium | Easy |
| Grille Area | Medium | High | Medium |
| Below Bumper | Low | Low | Medium |
Maintaining Your Fog Lights
Once installed, fog lights need regular care:
- Clean the lenses every few weeks, especially after off-roading.
- Check brackets and wires for rust or damage.
- Replace bulbs as soon as they dim or burn out.
- Look for condensation inside the housing. If you see moisture, reseal the lights.
Most LED fog lights last up to 50,000 hours, but halogen bulbs may need changing every 1–2 years.
Real-world Example
Jake, a Jeep Wrangler YJ owner from Colorado, installed LED fog lights before his trip through the Rocky Mountains. He found visibility improved by 30% in foggy valleys and noticed less eye strain during night driving. He mounted his lights on the bumper and wired them with a relay and switch next to his headlight controls. His advice: “Don’t rush, and always double-check your grounds. It’s worth the effort for safer adventures.”
Frequently Asked Questions
How Long Does It Take To Install Fog Lights On A Jeep Wrangler Yj?
Most people can finish the job in 2–3 hours if they have basic tools and follow instructions. It may take longer if you need to drill new holes or run wires through the firewall.
Are Led Fog Lights Better Than Halogen For The Jeep Yj?
LED fog lights are usually brighter, last longer, and use less energy. They’re a good choice for most Jeep YJ owners, but cost more than halogen bulbs.
Can I Wire Fog Lights To Come On With My Headlights?
Yes, many kits let you wire fog lights so they turn on with the low beams. This is legal in most states, but always check your local rules before wiring.
Do I Need A Professional To Install Fog Lights?
Most Jeep YJ owners can do the job themselves with basic tools and patience. However, if you’re unsure about wiring, a mechanic can help for a small fee.
Will Adding Fog Lights Drain My Battery?
No, as long as you use a relay and fuse. LED fog lights use very little power. If you wire directly to the battery without a relay, it could cause problems.
If you need more information on vehicle lighting laws or fog light types, visit NHTSA Lighting Standards for official guidance.
Adding fog lights to your Jeep Wrangler YJ is a smart, practical upgrade. With the right tools, a careful approach, and a bit of patience, you’ll enjoy safer, brighter drives in any weather.
This project is a great way to learn more about your Jeep and improve your driving experience whether you’re on city streets or mountain trails.
