Many Jeep owners enjoy the freedom and adventure these vehicles offer. But when it comes to repairs or upgrades, knowing your Jeep’s transmission type is critical.
The transmission is the heart of your Jeep’s drivetrain, controlling how power moves from the engine to the wheels.
Whether you’re planning to buy parts, swap transmissions, or just want to understand your vehicle better, identifying your Jeep’s transmission is an essential skill.
Why Transmission Identification Matters
Choosing the wrong transmission parts can lead to expensive damage or wasted money. Each Jeep model may use different transmissions, even within the same year. Understanding what’s under your hood helps you:
- Order the correct replacement parts
- Check compatibility for upgrades
- Communicate accurately with mechanics
Knowing your transmission type also helps when looking up service manuals or technical bulletins.
Common Jeep Transmissions
Jeeps have used a wide range of transmissions over the years. Here are some of the most common:

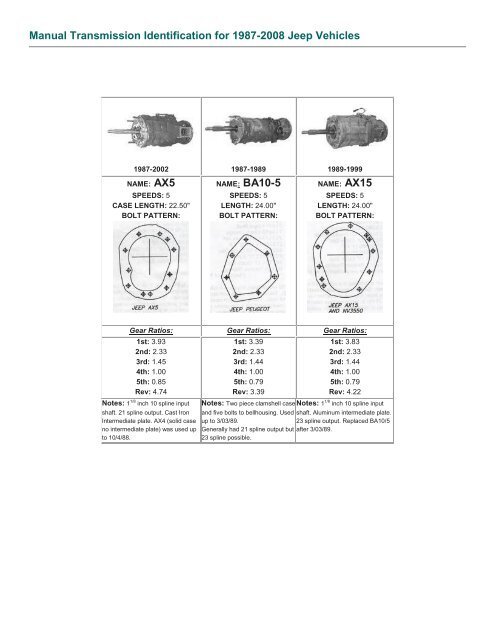

- AX5 – 5-speed manual, used in smaller Jeeps like early Wranglers (YJ, TJ)
- AX15 – Stronger 5-speed manual, found in 1989-1999 Wranglers and Cherokees
- NV3550 – 5-speed manual, used in 2000-2004 Wranglers
- NSG370 – 6-speed manual, found in 2005-2018 Wranglers
- TF999/32RH – 3-speed automatic, 1980s-2002 models
- 42RLE – 4-speed automatic, 2003-2011 Wranglers
- 545RFE – 5-speed automatic, used in Grand Cherokees
This is just a sample there are more, especially in older or special edition Jeeps.
How To Identify Your Jeep Transmission
1. Check The Owner’s Manual
Start with the owner’s manual. Most manuals list the transmission type under “Specifications” or “Drivetrain.” If you don’t have the manual, many are available online through Jeep’s official site or forums.
2. Look For The Transmission Tag
Every transmission has a metal identification tag or sticker, usually attached to the main body. This tag has a code with letters and numbers. The tag is often found:
- On the side of the transmission case
- Near the oil pan (for automatics)
- On top of the transmission (for manuals)
Write down everything on the tag. Even small details can make a big difference.
3. Decode The Vin
Your Vehicle Identification Number (VIN) can reveal a lot. The VIN is found on the dashboard near the windshield or inside the driver’s door. The eighth digit often tells the engine type, and sometimes the transmission. You can use online VIN decoders or ask a Jeep dealer for a full build sheet.
4. Count The Gears
You can often identify the transmission by the number of gears:
- 3-speed automatics are usually older models
- 4-speed automatics came in the early 2000s
- 5-speed/6-speed manuals appeared in later models
Shift through the gears (engine off, key in “On” position for automatics, clutch in for manuals) and count the positions.
5. Inspect The Transmission Pan Or Case
The shape of the transmission pan is unique for each model. The number of bolts and the design can help you match it to known types. For example, the 42RLE has a rectangular pan with 13 bolts, while the 32RH pan is more square.
Here’s a quick comparison:
| Transmission | Pan Shape | Bolt Count |
|---|---|---|
| 42RLE | Rectangular | 13 |
| 32RH | Square | 14 |
| 545RFE | Irregular | 15 |
6. Match To Model And Year
Each Jeep model and year may use specific transmissions. For example:
| Jeep Model | Years | Likely Transmission |
|---|---|---|
| Wrangler TJ | 1997-2002 | AX15, 32RH |
| Wrangler JK | 2007-2011 | NSG370, 42RLE |
| Grand Cherokee | 2005-2010 | 545RFE |
7. Use Online Resources
Websites like the Jeep Transmission List on Wikipedia give detailed specs. Forums often have photos and guides for your exact Jeep.
Tips For Accurate Identification
- Clean the area around the transmission tag before reading—it’s often dirty.
- Use a flashlight and mirror to see hard-to-reach tags.
- If in doubt, take a clear photo of the transmission and share it on Jeep forums.
- Be aware that some Jeeps may have aftermarket swaps. Previous owners might have changed the transmission.
Two Insights Most Beginners Miss
First, many new Jeep owners think the VIN always tells the full transmission type. In fact, the VIN usually gives the engine code but not the exact transmission so always double-check the tag or manual.
Second, some transmission types look almost identical from the outside, but use different internal parts or sensors. Mixing these up can cause major problems, especially with electronic controls in newer Jeeps.
When To Ask A Professional
If you’re unsure after checking the tag, VIN, and model, it’s best to ask a certified mechanic. They have tools and databases for accurate identification. This is especially important before ordering expensive parts or starting a transmission swap.
Frequently Asked Questions
What If My Transmission Tag Is Missing Or Unreadable?
If the tag is gone or rusted, use the VIN, count the gears, and match the pan shape and bolt count. Jeep forums can help with photos if you upload your transmission details.
Can I Swap My Jeep’s Transmission For A Different Type?
Many swaps are possible, but it depends on compatibility with your engine and electronics. Always check if the new transmission fits your Jeep’s year and model.
How Do I Know If My Jeep Has An Automatic Or Manual Transmission?
Look at the gear shifter. Manuals have a clutch pedal and a stick with an H-pattern. Automatics have a PRNDL pattern (Park, Reverse, Neutral, Drive, Low).
Are Aftermarket Transmissions Reliable For Jeeps?
Some aftermarket transmissions are high quality, but always buy from a trusted brand. Poor-quality swaps can cause problems with shifting or durability.
Do Jeep Transmissions Have Common Problems I Should Watch For?
Yes. The AX5 is known for weak synchronizers, and the 42RLE sometimes has shifting issues. Regular fluid checks and maintenance help prevent most problems.
Knowing how to identify your Jeep’s transmission saves time, money, and headaches. With the right steps and attention to detail, you’ll always know what’s under the hood and how to keep your Jeep running strong.
