Removing your Jeep’s doors can add freedom and fun to your adventures. But before you drive doorless, you must safely disconnect the Jeep door wiring harness. If you rush or skip a step, you risk damaging wires, triggering warning lights, or losing important features like power mirrors and locks. The process is simple if you know what to look for—this guide will show you the safest, fastest way to disconnect your Jeep’s door wiring harness, with tips only experienced Jeep owners know.
Why Disconnecting The Wiring Harness Matters
Jeep doors aren’t just metal and glass. Inside, they house connections for power windows, locks, side airbags, and speakers. The wiring harness is the bundle that links all these features to your Jeep’s main computer. If you disconnect it incorrectly, you could:
- Damage the harness pins or clips
- Cause electrical errors
- Make it harder to reconnect later
Understanding your Jeep’s wiring is essential. For example, a 2022 Jeep Wrangler may have extra wiring for proximity sensors, while an older TJ model has simpler connectors.
Tools And Preparation
Before starting, gather these basic tools:
- A flathead screwdriver or trim removal tool
- A T50 Torx bit and ratchet (for door bolts)
- Gloves (optional, for grip)
- Small container (for holding bolts)
Preparation steps:
- Park the Jeep on flat ground. Turn off the ignition and remove the key.
- Roll down the windows. This helps with handling and avoids glass breakage.
- Open the door fully for easy access.
Extra tip: Take a quick photo of the harness before disconnecting. This reference helps if you forget the orientation when reinstalling.
Step-by-step: How To Disconnect Jeep Door Wiring Harness
1. Locate The Wiring Harness

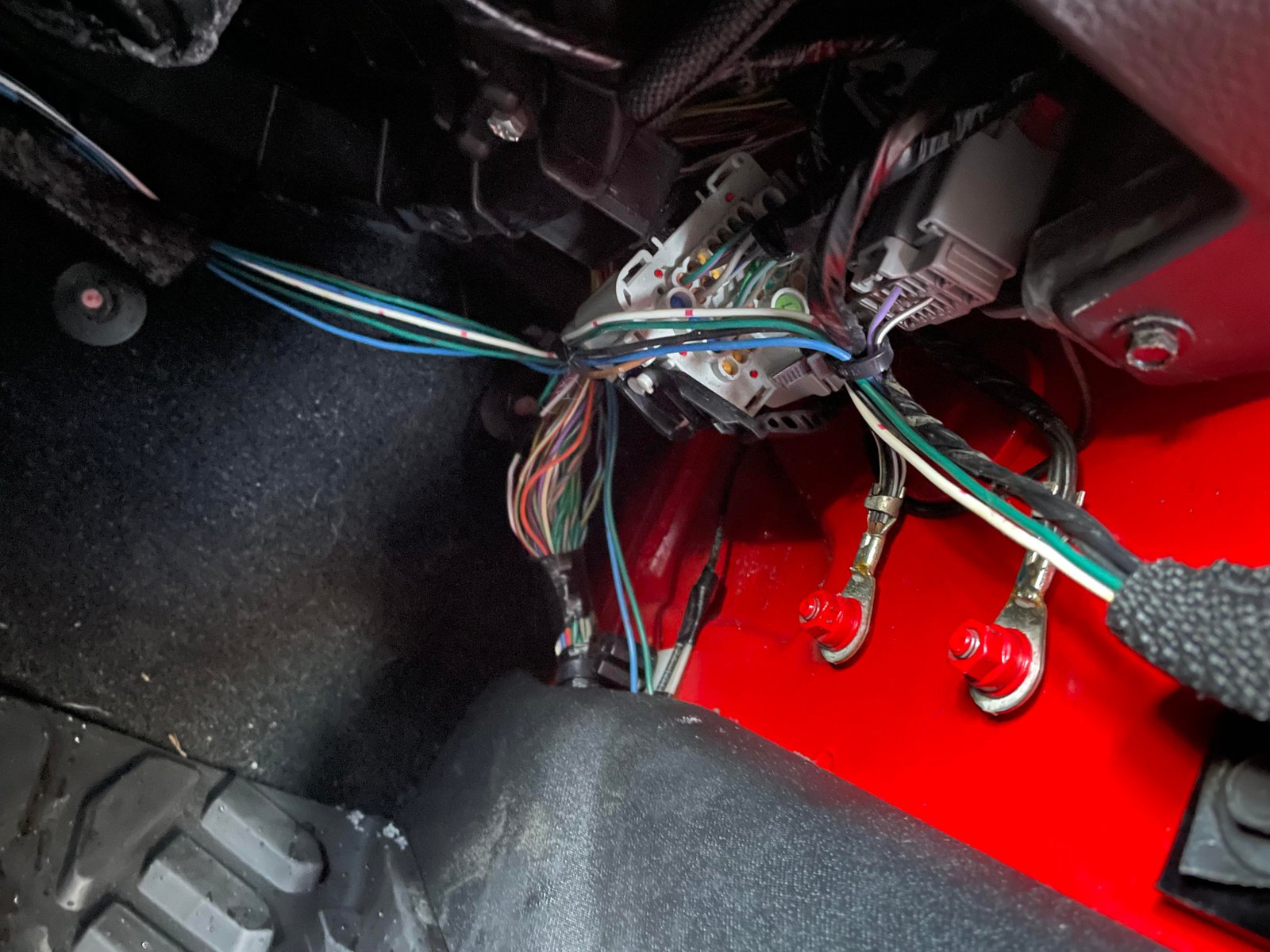

The wiring harness is usually found near the door hinge, behind a rubber boot or plastic cover. On a Jeep Wrangler JL or Gladiator, open the door and look for a black plug above the door strap.

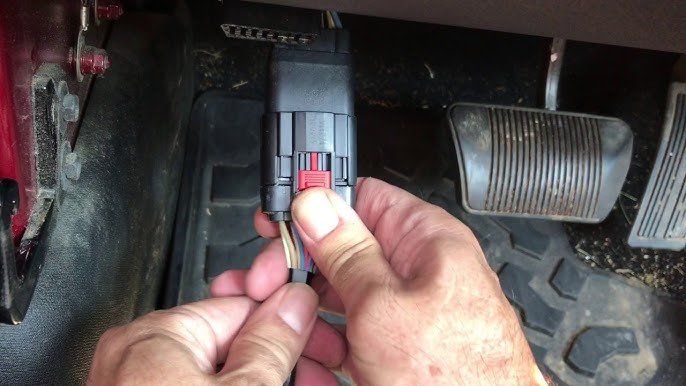

2. Release The Harness Lock
Most Jeeps use a lever lock or a sliding tab:
- For lever locks: Gently press the small release tab and rotate the lever to unlock.
- For sliding tabs: Press the colored tab (often red or yellow) and slide it out to release.
Never force the connectors wiring pins can bend easily.
3. Disconnect The Wiring Plug
Once unlocked, gently pull the harness plug straight out. Avoid twisting or yanking, as this can damage the pins.
4. Secure The Wiring
Tuck the disconnected harness into the Jeep’s body opening. If your Jeep has a rubber cover, snap it into place to protect the contacts from dust and water.
5. Remove The Door (if Needed)
With the wiring free, you can now remove the door bolts using your T50 Torx bit. Lift the door straight up and off the hinges.
6. Store Everything Safely
Keep all hardware (bolts, covers, and the wiring plug) in your container. This prevents lost parts and makes reinstallation much easier.
Comparing Jeep Models: Wiring Harness Differences
Understanding which Jeep model you have is key. Some Jeeps have simple wiring, while newer ones are more complex.
| Jeep Model | Harness Location | Lock Type | Extra Features |
|---|---|---|---|
| Wrangler TJ (1997-2006) | Lower door hinge | Simple tab | Manual windows/locks |
| Wrangler JK (2007-2018) | Near door strap | Lever lock | Power locks/windows |
| Wrangler JL/Gladiator (2018+) | Above door strap | Lever & tab | Airbags, sensors |
Common Mistakes And How To Avoid Them
Even experienced Jeep owners make mistakes. Here are the most frequent ones:
- Forcing the plug: If it won’t move, double-check for hidden tabs or locks.
- Losing hardware: Always use a container for small parts.
- Skipping window roll-down: Leaving windows up makes doors heavier and harder to handle.
- Disconnecting with ignition on: This can trigger warning lights or error codes.
- Mixing up connectors: On four-door models, each door has a unique plug. Only reconnect each plug to its original door.
Pro tip: Lubricate the door hinges with silicone spray before reinstalling. It makes future removal smoother and prevents squeaks.
Reconnecting The Wiring Harness
When you’re ready to put the doors back on, reverse the process:
- Line up the harness plug with the body-side connector.
- Gently push until you hear or feel a click.
- Secure any levers or locking tabs.
- Check all features (windows, locks, mirrors) before driving.
If a feature doesn’t work, remove and reconnect the plug. Sometimes a pin isn’t fully seated.
Quick Reference: Door Wiring Harness Steps
This comparison highlights the main points for disconnecting and reconnecting the harness.
| Step | Disconnect | Reconnect |
|---|---|---|
| Find Harness | Open door, locate plug | Align plug with socket |
| Release Lock | Press tab or lever | Secure lock/lever |
| Remove/Insert Plug | Pull plug straight out | Push plug in firmly |
| Secure Harness | Tuck into body, cover | Test functions |
Safety And Legal Considerations
Removing your doors and disconnecting the wiring harness can affect safety features like airbags and mirrors. In some US states, driving without side mirrors is illegal.
Always check your local laws before heading out. If your Jeep has side airbags in the doors, removing them will disable that protection.
For more on Jeep modifications and safety, see the official Jeep Wrangler Wikipedia page.
Frequently Asked Questions
How Long Does It Take To Disconnect The Jeep Door Wiring Harness?
Most people can complete the process in 5–10 minutes per door after some practice. The first time may take longer as you learn the lock and plug style.
Will Disconnecting The Harness Affect My Jeep’s Electronics?
If you follow the correct steps and turn off the ignition first, you should not have any long-term issues. Reconnect all plugs before restarting the Jeep to avoid warning lights.
Can I Drive My Jeep Without The Door Wiring Harness Connected?
Yes, but you will lose power features (windows, locks, mirrors) on that door, and possibly airbags or speakers. Some states require side mirrors for legal driving.
What If My Harness Plug Is Stuck Or Damaged?
Never force the plug. Spray a little electrical contact cleaner and gently wiggle it.
If it’s still stuck, consult a Jeep dealer or qualified mechanic.
Do All Jeep Models Have The Same Door Wiring Harness?
No. Each generation and trim may use different plugs, lock mechanisms, and feature sets. Always check your owner’s manual for details about your specific Jeep.
Disconnecting your Jeep’s door wiring harness is a simple task, but a little patience and care make all the difference. With these steps, you can enjoy the open-air Jeep experience and avoid common pitfalls.
