If you love music while driving your Jeep Wrangler, you know how much a good subwoofer can improve the experience. But buying a ready-made subwoofer box often means it won’t fit your Jeep well or doesn’t give you the deep bass you want. Building your own subwoofer box lets you get the best sound, use your space smartly, and even save money.
A DIY subwoofer box project is easier than you might think. With the right tools, materials, and a clear plan, you can create a box that fits your Jeep Wrangler perfectly and brings your music to life.
Let’s go step by step through the process.
Planning Your Subwoofer Box
Before you start building, you need a plan. The right box size and design will give your subwoofer the best sound.
- Choose Your Subwoofer: Most Jeep Wrangler owners pick a 10-inch or 12-inch subwoofer. A 10-inch sub fits better in tight spaces but gives less bass than a 12-inch.
- Measure Your Space: Use a tape measure to check the space where you want to put the box. The cargo area or under the rear seats are common spots.
- Pick Box Type: Sealed boxes give tight, accurate bass. Ported boxes are louder but need more space. For Jeep Wranglers, sealed boxes are popular because they’re compact.
- Calculate Box Volume: Subwoofers need a certain box volume (in cubic feet) to sound best. Check your subwoofer’s manual for the recommended size.
Here’s a simple comparison for popular subwoofer sizes:
| Subwoofer Size | Recommended Box Volume (cu. ft.) | Best For |
|---|---|---|
| 10-inch | 0.7 – 1.0 | Compact space, tight bass |
| 12-inch | 1.0 – 1.5 | Deeper bass, more space |
Pro Tip: Beginners often forget to subtract the thickness of the wood when measuring internal volume.
Gathering Materials And Tools
To build a subwoofer box, you’ll need some basic materials and tools. Quality matters—using the right wood and hardware will make your box last longer and sound better.
Materials:
- 3/4-inch MDF (medium-density fiberboard)
- Wood screws (1 5/8-inch)
- Wood glue
- Silicone sealant
- Speaker wire terminals
- Carpet or vinyl wrap (optional)
Tools:
- Circular saw or jigsaw
- Drill and drill bits
- Screwdriver
- Tape measure
- Pencil
- Sander or sandpaper
MDF is the best choice for subwoofer boxes because it’s dense and doesn’t flex much. Never use regular plywood it can vibrate and hurt your sound quality.
Cutting And Assembling The Box
Now it’s time to cut your MDF and put the box together. Work slowly and carefully.
Even small mistakes can cause air leaks or rattles.
- Cut the Panels: Mark and cut the front, back, sides, top, and bottom panels. Remember to cut an opening in the front panel for your subwoofer.
- Test Fit Everything: Before gluing or screwing, fit all the pieces together to check for gaps.
- Assemble the Box: Use wood glue along every joint, then screw the panels together. This makes a strong, airtight box.
- Seal the Seams: After assembly, use silicone sealant inside all seams. This prevents air leaks that can ruin bass.
- Install Speaker Terminals: Drill a hole for the terminal cup, then secure it with screws and seal around the edges.
- Sand the Edges: Smooth sharp edges with sandpaper for safety and a better look.
Here’s a quick look at the steps and time needed:
| Step | Estimated Time | Difficulty (1-5) |
|---|---|---|
| Cut panels | 30 min | 3 |
| Assemble box | 45 min | 4 |
| Seal & finish | 15 min | 2 |
Non-Obvious Insight: Many beginners forget to pre-drill screw holes. This prevents MDF from splitting.
Finishing Touches
Making your box look good is almost as important as making it sound good, especially in a Jeep Wrangler where space is limited.
- Carpet or Vinyl Wrap: Covering your box with carpet or vinyl not only looks better but also protects the wood. Spray adhesive makes it stick well.
- Mounting Hardware: Use L-brackets or velcro straps to secure the box so it doesn’t move while driving.
- Check Fit: Before you install the subwoofer, test the box in your Jeep. Make sure it fits and leaves space for other gear.

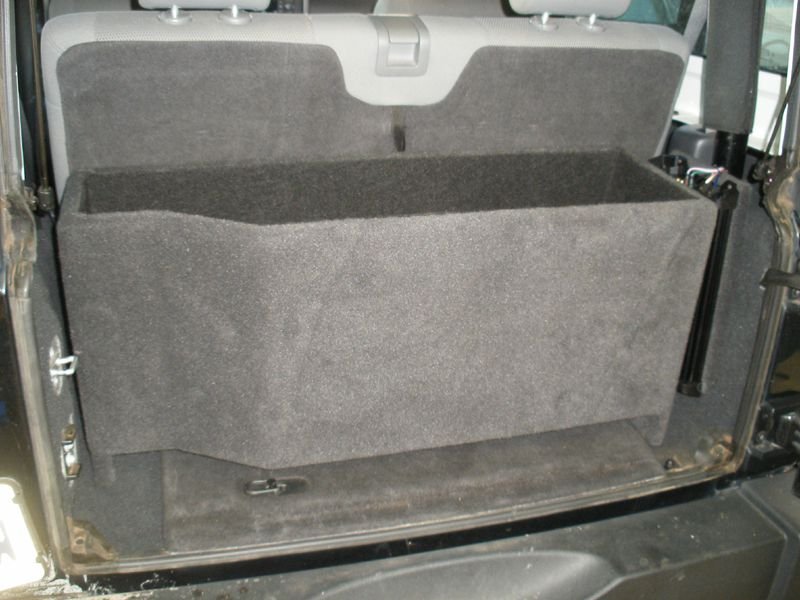

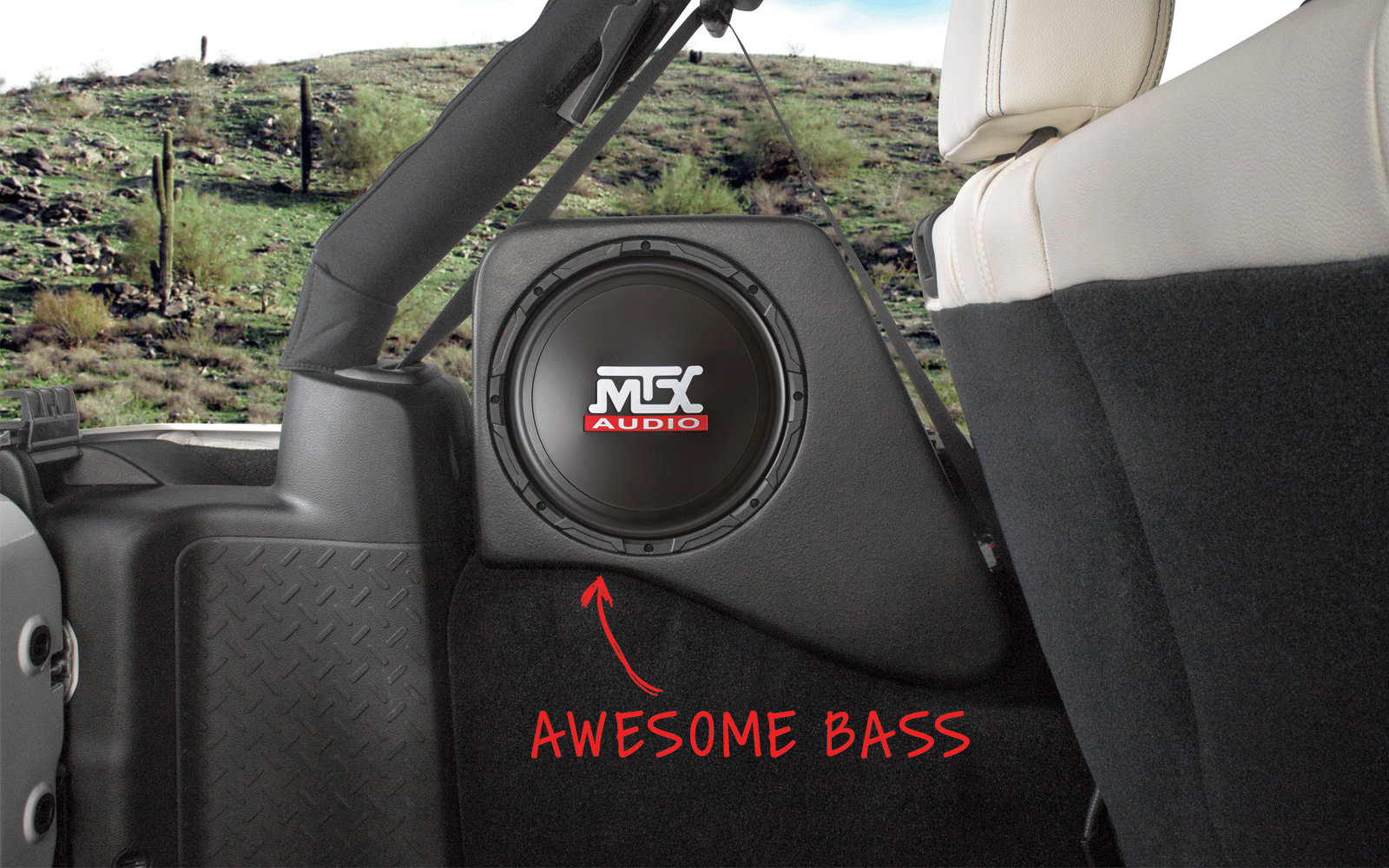

Extra Tip: If you want to save cargo space, build a box that fits snugly along one side or behind a seat.
Installing And Wiring Your Subwoofer
With your box finished, it’s time to install the subwoofer and connect it to your car audio system.
- Install the Subwoofer: Place the subwoofer into the cutout, then use the screws provided. Make sure you get a tight fit—air leaks reduce bass.
- Connect the Wires: Attach the speaker wires to the subwoofer, then run them through the terminal cup.
- Seal Around the Subwoofer: If your subwoofer doesn’t have a gasket, use a thin bead of silicone to seal it.
- Secure the Box: Mount the box in your Jeep. Double-check that it doesn’t block seat movement or access to tools.
Here’s a simple wiring comparison:
| Wiring Type | Pros | Cons |
|---|---|---|
| Parallel | Louder sound, lower impedance | May overload some amps |
| Series | Safer for amps, less strain | Slightly less output |
Common Mistake: Don’t forget to check the polarity (+ and -) on your speaker wires—reversed wires will make your bass sound weak.
Enjoying Your New Sound
A well-built subwoofer box transforms your Jeep Wrangler’s music. Expect tighter bass, more volume, and a custom look that fits your style.
The best part? You made it yourself, and you can always tweak it if you want even more bass or a different look.
For more advanced design tips, check out guides from the Crutchfield Learning Center.
Frequently Asked Questions
How Big Should My Subwoofer Box Be For A Jeep Wrangler?
The size depends on your subwoofer. Most 10-inch subs need around 0.7 to 1.0 cubic feet, while 12-inch subs need 1.0 to 1.5 cubic feet. Always check your subwoofer’s manual for the best volume.
What Material Is Best For Building A Subwoofer Box?
3/4-inch MDF is the best choice. It’s strong, dense, and doesn’t vibrate. Avoid plywood or particle board, as they can hurt sound quality.
Can I Put The Subwoofer Box Under A Jeep Wrangler Seat?
Yes, if you measure carefully. Low-profile or “shallow mount” subwoofers are made for tight spaces like under seats.
Make sure to allow enough air volume for your sub.
Do I Need To Seal The Box?
Absolutely. Use wood glue and silicone on every seam. Even small air leaks will reduce bass and make rattling noises.
Will Building My Own Box Void My Jeep’s Warranty?
No, as long as you don’t cut into the vehicle or change factory wiring. Using mounting hardware and plug-in connections is safe.
Building your own subwoofer box is a smart way to get the best bass and make your Jeep Wrangler truly yours. With some planning and careful work, you’ll enjoy the deep, rich sound on every drive.
