Owning a Jeep Cherokee means embracing adventure, but even the best journeys can be ruined by poor visibility at night. Headlight alignment directly affects how much of the road you see and how safely you can drive. Many drivers overlook this simple maintenance task, but adjusting your Jeep Cherokee’s headlights is easier than you might think. With a few tools and clear steps, you can improve your night driving in less than an hour.
Why Headlight Adjustment Matters
When your headlights point too high, they can blind other drivers. Too low, and you won’t see obstacles in time. According to the National Highway Traffic Safety Administration, nearly 50% of all traffic deaths happen at night, even though only 25% of travel occurs after dark. Proper headlight aim is a small change that can prevent accidents and keep you and others safe.
Tools And Preparation
Before you start, gather these basic tools:
- Phillips screwdriver or a Torx driver (check your Cherokee model)
- Measuring tape
- Masking tape
- Flat, level ground (garage or driveway)
- Blank wall or garage door
Make sure your Jeep’s tires are inflated properly and there’s no heavy cargo inside. Headlights should be clean, and the fuel tank about half full for the most accurate adjustment.

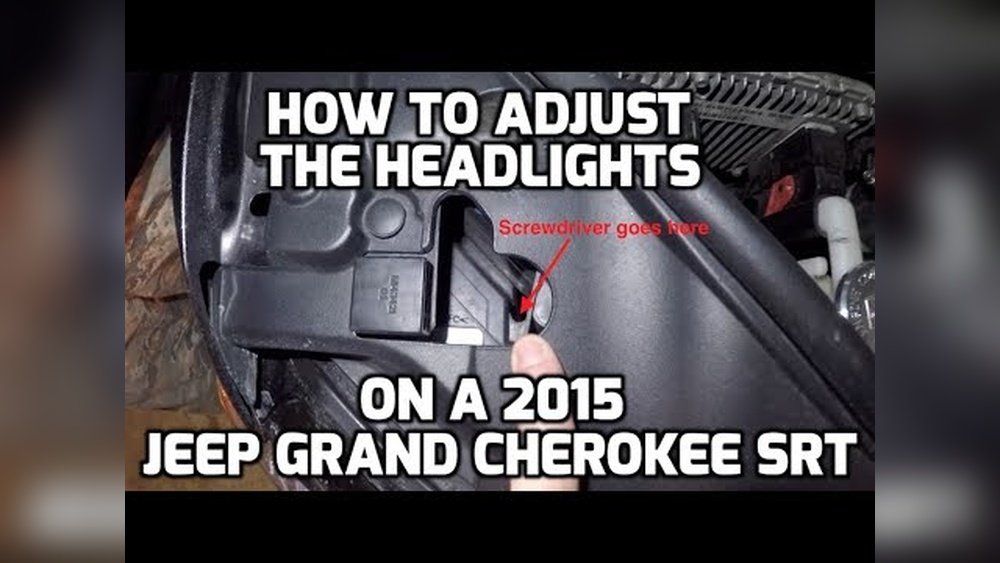

Finding The Adjustment Screws
Each Cherokee model can be a little different, but the adjustment screws are usually behind the headlight assembly. Most recent models (2014 and newer) have two screws per headlight:
- Vertical adjustment screw (up and down)
- Horizontal adjustment screw (left and right)
Check your owner’s manual if you have trouble locating them.
Step-by-step Headlight Adjustment
Follow these steps for accurate results:
- Position your Jeep: Park it 25 feet from a flat wall or garage door. Make sure the ground is level.
- Mark the headlight centers: Turn on your low beams. Use masking tape to mark the center of each beam’s brightest spot on the wall. Make a horizontal line at the same height as the headlight centers.
- Check your model’s specs: Most Jeep Cherokees require the top edge of the low beam’s brightest spot to be about 2 inches below the headlight center mark at 25 feet.
- Adjust vertical aim: Open the hood. Turn the vertical adjustment screw until the beam’s top edge lines up with your marked line.
- Adjust horizontal aim: Align the brightest part of the beam with the vertical tape line you made.
- Test your work: Back up and check the beam pattern. Both headlights should be even and not pointing to the sky or into the ground.
| Adjustment | Ideal Result | Common Mistake |
|---|---|---|
| Vertical | 2″ below center at 25 ft | Beam too high, blinding others |
| Horizontal | Beam center matches tape line | Beam too far left/right |
Special Tips For Jeep Cherokee Owners
- Check after bulb replacement: New bulbs can sit differently than old ones. Always re-aim your headlights after changing them.
- Upgrade smartly: If you install LED or HID bulbs, adjustment becomes even more important. These bulbs can be much brighter and more sensitive to aiming errors.
- Headlight leveling systems: Some newer Cherokees have auto-leveling headlights. If yours does, check that the system works before manual adjustment.
- Don’t skip nighttime testing: After your first adjustment, drive at night to see how the beams behave. Adjust again if you spot dark patches or blinding glare.
| Bulb Type | Adjustment Needed? | Brightness (Lumens) |
|---|---|---|
| Halogen | Yes | 700-1200 |
| LED | Yes, more critical | 2000-4000 |
| HID | Essential | 3000+ |
Common Mistakes And How To Avoid Them
Many drivers make errors that reduce the effectiveness of their headlights:
- Ignoring tire pressure: Low or uneven tires tilt your Jeep, changing headlight aim.
- Skipping weight checks: A loaded trunk or uneven cargo changes your Jeep’s angle and affects alignment.
- Measuring from the wrong spot: Always measure from the actual center of the headlight lens, not the Jeep’s body or emblem.
- Using high beams for alignment: Adjust with low beams only. High beams have a different pattern and can mislead your adjustments.
When To Seek Professional Help
If you can’t get the beams aligned, or the pattern looks odd, your headlights may be damaged. Cracked lenses or bent mounts can cause uneven light. In these cases, a mechanic or dealership should inspect your Jeep. Professional shops use special aiming equipment for perfect results.
If you live in a state with regular safety inspections, misaligned headlights can cause a failed test. A quick alignment can save you from a return trip and extra fees.
Real-world Example
Sarah, a 2019 Jeep Cherokee owner, noticed dim lighting after a bulb change. She followed the steps above and found her beams were aiming too low. After adjustment, she reported clearer night vision and less eye strain on rural roads.
Many owners miss this simple fix and blame poor lighting on the bulbs themselves.
Headlight Adjustment Myths
Some believe you never need to adjust factory headlights, but even small bumps or new tires can cause misalignment. Another myth: brighter bulbs solve all problems. In reality, incorrect aim will waste even the best bulbs and may get you a ticket.
For more details on vehicle lighting safety, visit this NHTSA resource.
Frequently Asked Questions
How Often Should I Adjust My Jeep Cherokee Headlights?
Check alignment at least once a year, and always after changing bulbs, tires, or after a collision.
Can I Use A Headlight Adjustment Kit?
Yes, kits can help with precision, but most Jeep Cherokees can be adjusted with standard tools and careful measuring.
Why Do My Headlights Look Uneven After Adjustment?
Possible reasons include uneven tire pressure, a loaded trunk, or damaged headlight mounts. Double-check all these factors first.
Does Headlight Alignment Affect High Beams?
Primarily, alignment impacts low beams, but high beams can also be affected. Always adjust using low beams for best results.
Are Led Headlights Legal On Jeep Cherokee?
LEDs are legal if they are DOT-approved and correctly aimed. Poor alignment can make even legal bulbs a safety hazard.
Taking the time to adjust your Jeep Cherokee’s headlights is one of the easiest ways to improve your safety and driving comfort at night. Clear vision means fewer surprises and more confidence on every road, whether you’re commuting or exploring.
