2008 Jeep Patriot Engine Diagram: Complete Visual Guide

If you own a 2008 Jeep Patriot or plan to repair one, understanding the engine diagram is essential. The Patriot is a popular compact SUV, known for its practical design and reliability. However, engine repairs and maintenance can be confusing if you don’t know where each part is located. This guide will help you find, identify, and understand the main components under the hood, with practical insights for both beginners and DIY mechanics.

Overview Of The 2008 Jeep Patriot Engine

The 2008 Jeep Patriot typically comes with a 2.0L or 2.4L inline-4 engine. Both engines share many components and a similar layout. The engine compartment is designed for easy access to service items, but some parts can still be tricky to locate.

Key engine components include:

• Cylinder head
• Intake manifold
• Exhaust manifold
• Spark plugs
• Alternator
• Serpentine belt
• Air filter housing
• Throttle body
• Battery
• Fuse box

Let’s break down where these parts are and what you need to know about them.

Main Components In The Engine Diagram

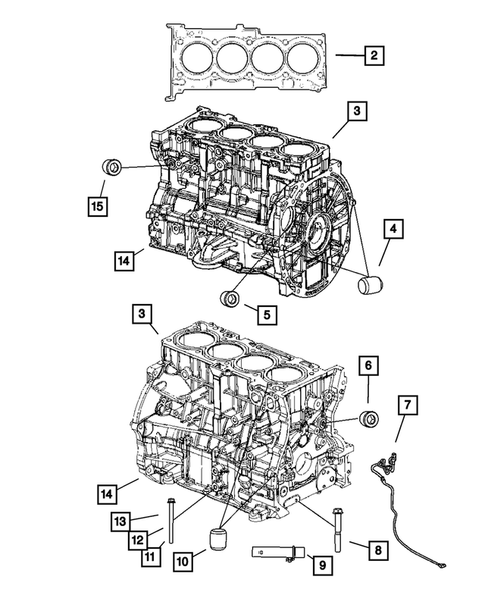

Cylinder Head And Block

The cylinder head sits at the top of the engine block, sealed with a head gasket. It houses the spark plugs and valves. Below it is the engine block, which contains the pistons and crankshaft.

• The head is usually aluminum, while the block is cast iron or aluminum.
• Spark plug wires connect directly into the top of the head.

Intake And Exhaust Manifolds

• The intake manifold is at the front of the engine, connecting to the throttle body. It brings air into the engine.
• The exhaust manifold is on the opposite side, collecting exhaust gases from cylinders and routing them to the exhaust pipe.

Serpentine Belt And Pulleys

On the passenger side, you’ll see the serpentine belt looping around several pulleys. This belt drives the alternator, water pump, and air conditioning compressor.

• Check for cracks or wear on the belt for preventive maintenance.

Alternator And Battery

• The alternator is near the top right (passenger side), just under the serpentine belt.
• The battery sits on the driver’s side, towards the front corner.

Fuse Box And Air Filter Housing

• The fuse box is a black rectangular box near the battery.
• The air filter housing is a large plastic box with hoses, usually at the front center.

2008 Jeep Patriot Engine Diagram Table

Here’s a simple reference for key parts and their locations:

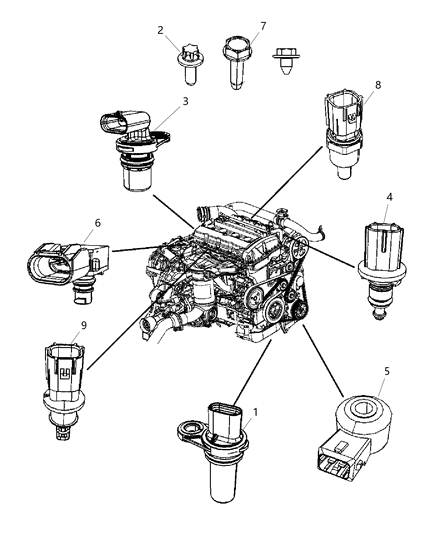

Key Sensors And Their Importance

Modern engines use several sensors to keep everything running smoothly. The Patriot’s engine includes:

• Mass Air Flow (MAF) sensor: Measures air going into the engine.
• Oxygen (O2) sensors: Monitor exhaust gases.
• Crankshaft position sensor: Tracks engine speed and position.
• Coolant temperature sensor: Monitors engine temperature.

If your check engine light comes on, these sensors are often the reason.

Wiring And Hoses

The engine compartment contains many wiring harnesses and hoses. Most wires are bundled together for protection, running to sensors, the battery, and the fuse box.

• Vacuum hoses are usually black rubber and connect the intake manifold to various parts.
• Coolant hoses are thicker, carrying coolant between the radiator and engine.

A common beginner mistake is mixing up vacuum and coolant hoses—always follow diagrams for correct routing.

Quick Comparison: 2.0l Vs. 2.4l Engine Layout

Although both engines look similar, there are small differences. This comparison highlights the key distinctions:

Common Issues Seen In The 2008 Jeep Patriot Engine

Some problems are more likely to occur in this model:

• Oil leaks: Often from the valve cover gasket or oil filter housing.
• Intake manifold leaks: Can cause rough idle or check engine lights.
• Sensor failures: Especially O2 and crankshaft position sensors.
• Serpentine belt wear: Squealing noise means it’s time to replace.

A non-obvious issue: Sometimes, a rough idle is caused by a dirty throttle body, not a major part failure. Cleaning it can solve the problem without expensive repairs.

Practical Tips For Diy Repairs

• Always disconnect the battery before working on sensors or wiring.
• Use a flashlight to spot hidden bolts, especially near the intake manifold.
• Label hoses and wires with tape to avoid confusion during reassembly.
• Take photos as you go—this helps when putting everything back together.

When you’re unsure, refer to a factory service manual or a trusted guide for diagrams and torque specs.

Maintenance Schedule Reference

Keeping your engine in shape is easier with regular checks. Here’s a quick schedule:

Where To Find Detailed Engine Diagrams

While this guide covers the basics, you may need more detailed, vehicle-specific diagrams. The best sources are:

• The official Jeep service manual
• Reputable auto repair websites
• Forums where Patriot owners share photos and advice

For in-depth diagrams and step-by-step guides, visit Wikipedia’s Jeep Patriot page.

A final tip: Always double-check part numbers before buying replacements, as small engine variations can mean different components.

Frequently Asked Questions

What Type Of Oil Does The 2008 Jeep Patriot Engine Use?

The 2.0L and 2.4L engines both use 5W-20 synthetic oil for best performance. Always check your manual for confirmation.

How Often Should The Serpentine Belt Be Replaced?

It’s recommended to inspect the serpentine belt every 30,000 miles and replace it around 60,000 miles, or sooner if you hear squealing.

Where Is The Crankshaft Position Sensor Located?

The crankshaft position sensor is mounted low on the back side of the engine block, close to the transmission.

Can I Use Regular Gas In My 2008 Jeep Patriot?

Yes, regular unleaded gasoline is fine for both engine options in the 2008 model.

What Causes The Check Engine Light To Come On Most Often?

The most common causes are a loose gas cap, faulty O2 sensors, or a misfiring spark plug. Always scan for error codes to diagnose the problem.
