If you drive a Jeep Wrangler, there’s a good chance you love customizing or repairing it yourself. One of the most common tasks is removing the doors—maybe to enjoy an open-air drive or to do maintenance. But before you start, you need the right tool: the correct size Torx bit. Picking the wrong size could strip the bolt, delay your work, or even damage your Wrangler. This guide will help you find the exact Torx size you need, avoid common mistakes, and make the process smooth and safe.
Why Torx Bits Matter For Jeep Wrangler Doors

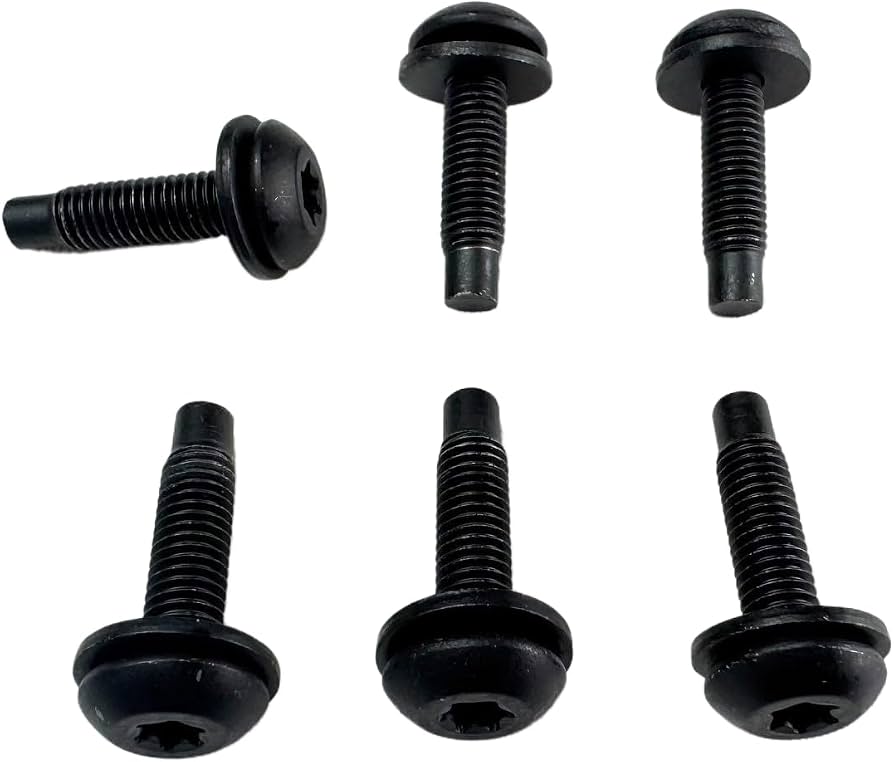

Jeep uses Torx bolts instead of standard screws for the doors. These six-pointed star-shaped bolts are designed to prevent slipping and to allow for higher torque. However, they need special tools called Torx bits or star bits. Using the right size ensures you don’t damage the bolt or your tools.
Many Jeep owners think any star-shaped bit will work. In reality, using the wrong size even by one step can strip the bolt, making it very hard to remove. That’s why knowing the correct Torx size is important.
What Size Torx For Jeep Wrangler Doors?
For most Jeep Wrangler models—TJ, JK, JL, and Gladiator—the door hinge bolts use a T50 Torx bit. This size fits perfectly and will not slip. If you have an older Wrangler (YJ or CJ), check your owner’s manual, but most newer models stick with T50.
Here’s a quick reference:
| Jeep Model | Years | Door Hinge Torx Size |
|---|---|---|
| Wrangler YJ | 1987–1995 | T40 |
| Wrangler TJ/LJ | 1997–2006 | T50 |
| Wrangler JK | 2007–2018 | T50 |
| Wrangler JL | 2018–Present | T50 |
| Gladiator JT | 2020–Present | T50 |
Pro tip: Jeep often includes a small tool kit with a T50 Torx bit when you buy the vehicle. Check under the back seat or in your glove box before buying a new bit.
Other Torx Sizes You Might Need
While the door hinges use a T50, other parts of your Wrangler also need Torx bits. For example, the hardtop bolts usually require a T40, and the windshield bolts use T30 or T40, depending on the model.
Here’s a quick comparison:
| Part | Common Torx Size |
|---|---|
| Door Hinges | T50 |
| Hardtop | T40 |
| Windshield | T30/T40 |
| Seat Bolts | T45 |
Always check your specific Jeep’s manual, as there are sometimes small changes between years.
How To Remove Jeep Wrangler Doors Safely
Removing your Wrangler doors is simple if you follow the right steps and use the correct Torx bit.
- Roll down the windows to prevent glass damage.
- Disconnect the wiring harness (usually under the door or dash).
- Remove the safety strap attached to the frame.
- Use a T50 Torx bit and ratchet to carefully remove the door hinge bolts.
- Lift the door straight up—Wrangler doors are heavier than they look.
A common mistake is not supporting the door’s weight. Doors can scratch the paint or bend the hinges if dropped. Place a towel under the door or ask someone to help.

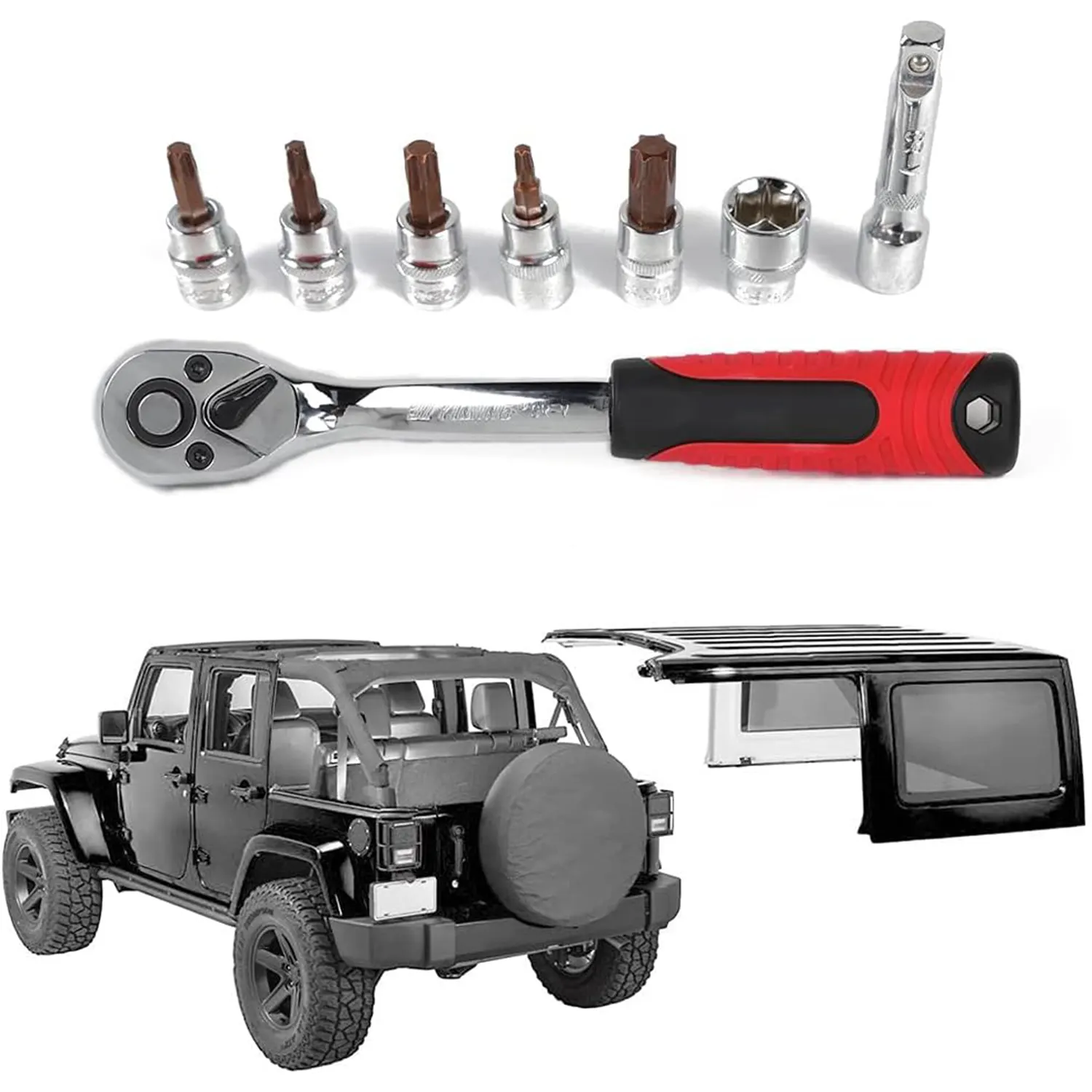

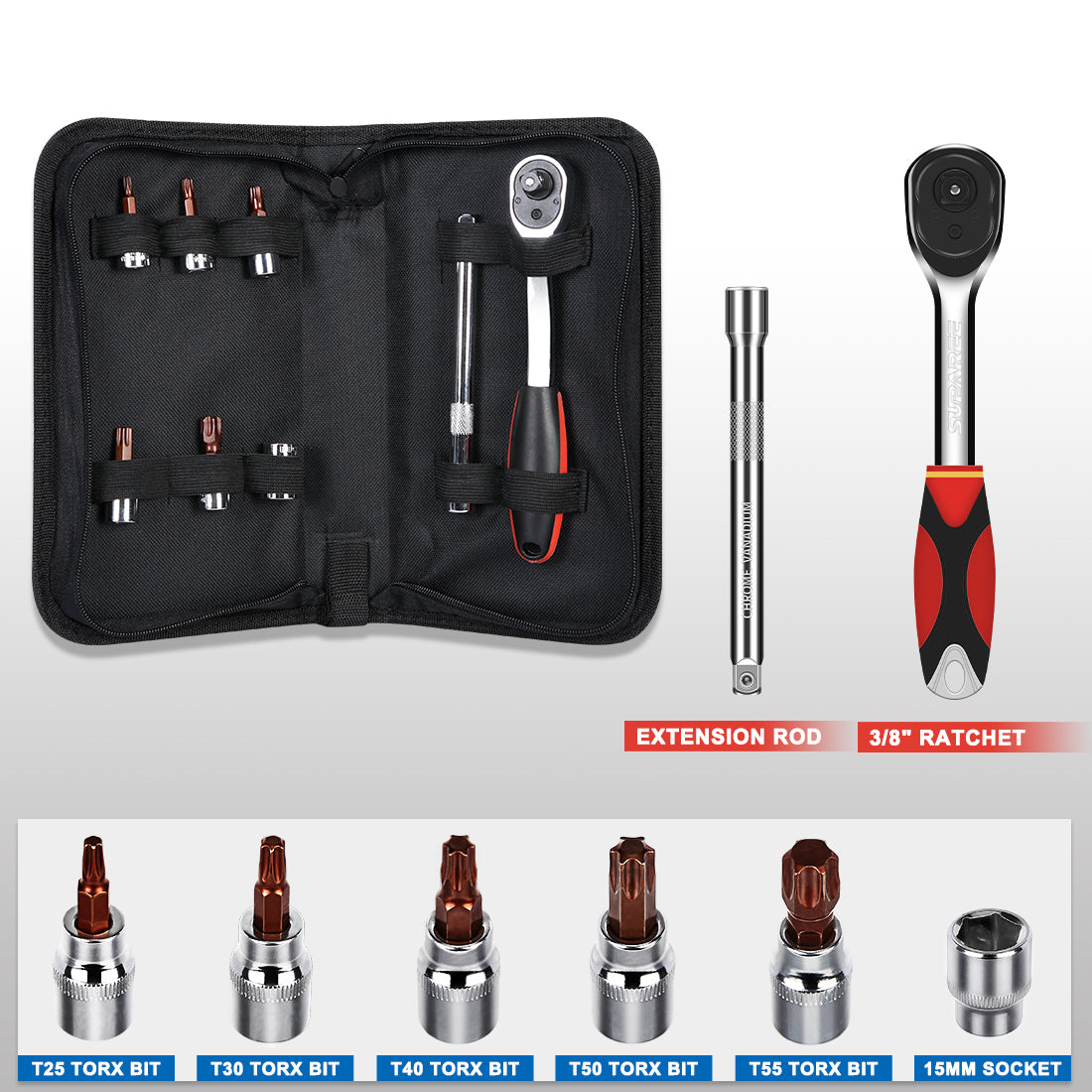

Choosing The Right Torx Bit And Tools
Not all Torx bits are made the same. Cheap tools can round off or snap. For the best results:
- Buy a high-quality T50 bit—hardened steel is best.
- Use a good ratchet or breaker bar for leverage.
- Make sure the bit is fully seated in the bolt before turning.
Here’s a comparison of tool types:
| Tool Type | Best For | Common Mistake |
|---|---|---|
| Socket Torx Bit | High torque jobs | Using with weak ratchet |
| Handheld Torx Driver | Light tightening | Trying to break stuck bolts |
| Impact Torx Bit | Stubborn/rusty bolts | Using with weak impact wrench |
Non-obvious tip: Sometimes the factory Torx bolts are painted over. Tap the bit lightly with a mallet before turning. This helps seat the bit and prevents stripping.
Mistakes To Avoid When Removing Wrangler Doors
- Using the wrong size bit: Even a T47 or T55 can round a T50 bolt head.
- Forgetting to disconnect wiring: Modern Wranglers have power mirrors or locks. Pulling the door without disconnecting can break wires.
- Losing the bolts: The factory bolts are unique. Store them in a bag or small container.
- Overtightening when reinstalling: Too much force can strip the bolt or crack the hinge.
- Not lubricating bolts: If the bolts feel stiff, add a bit of penetrating oil and let it sit for 10 minutes.
Extra insight: If you’re in a humid climate, corrosion is common. Removing the doors once every few months and adding a little anti-seize to the bolts can make your next removal much easier.
Where To Buy Torx Bits For Jeep Wrangler
You can find Torx bits at most auto parts stores or online. Look for brands like Wiha, Snap-on, or Craftsman. Avoid no-name brands, especially for high-torque jobs. For more information on Torx tools, visit the official Torx Wikipedia page.
Frequently Asked Questions
What Size Torx Bit Do I Need For A Jeep Wrangler Door Hinge?
You need a T50 Torx bit for most Jeep Wrangler door hinges from the TJ, JK, JL, and Gladiator models. Older YJ models often use a T40.
Can I Use A Regular Star Bit Instead Of A Torx Bit?
No. Torx bits are designed with specific angles and depths. Star bits may slip or damage the bolt. Always use the exact Torx size.
Where Is The Torx Tool Kit In My Jeep Wrangler?
It’s often stored under the back seat or in the glove box. Check your owner’s manual for the exact location in your model.
Are Torx Bolts On Jeep Doors The Same Size As Hardtop Bolts?
No. Door hinge bolts use T50, while hardtop bolts usually use T40. Always check before starting work.
How Do I Prevent Stripping The Torx Bolts?
Make sure the bit is fully seated in the bolt and use steady pressure. If the bolt is stuck, apply penetrating oil and tap the bit lightly before turning.
Removing your Jeep Wrangler doors should be fun and easy with the right Torx bit. Take your time, use the proper tools, and you’ll avoid damage or frustration.
Whether you’re preparing for summer or maintaining your vehicle, knowing the correct Torx size keeps your Jeep in top shape.
