If you’re thinking about changing wheels or tires on your Jeep Compass, the bolt pattern is one detail you cannot ignore. Many owners and buyers get confused about this technical term, but it’s essential for safety and wheel compatibility. In this article, you’ll discover exactly what the Jeep Compass bolt pattern is, how it affects your wheel choices, and what else you need to know before making a swap. Whether you drive an older model or a newer Compass, you’ll get clear answers here.
What Is A Bolt Pattern?
A bolt pattern (also called a lug pattern or PCD – Pitch Circle Diameter) refers to the arrangement of lug holes on a wheel. It’s described by two numbers:
- Number of lug holes: How many bolts hold the wheel.
- Diameter of the circle: The distance across an imaginary circle that passes through the center of each bolt hole.
For example, a “5×110” bolt pattern means five lug holes arranged in a circle with a diameter of 110 millimeters.

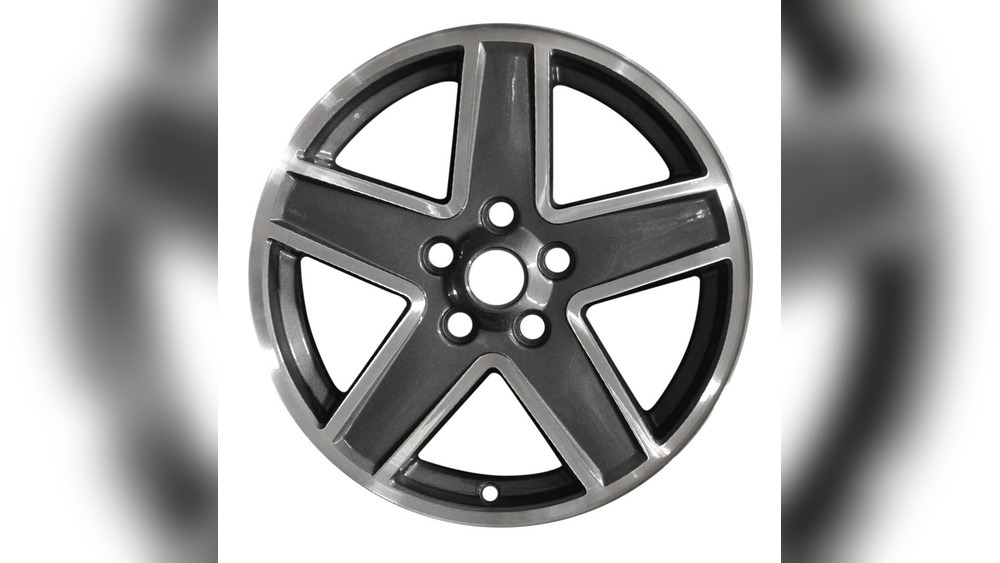

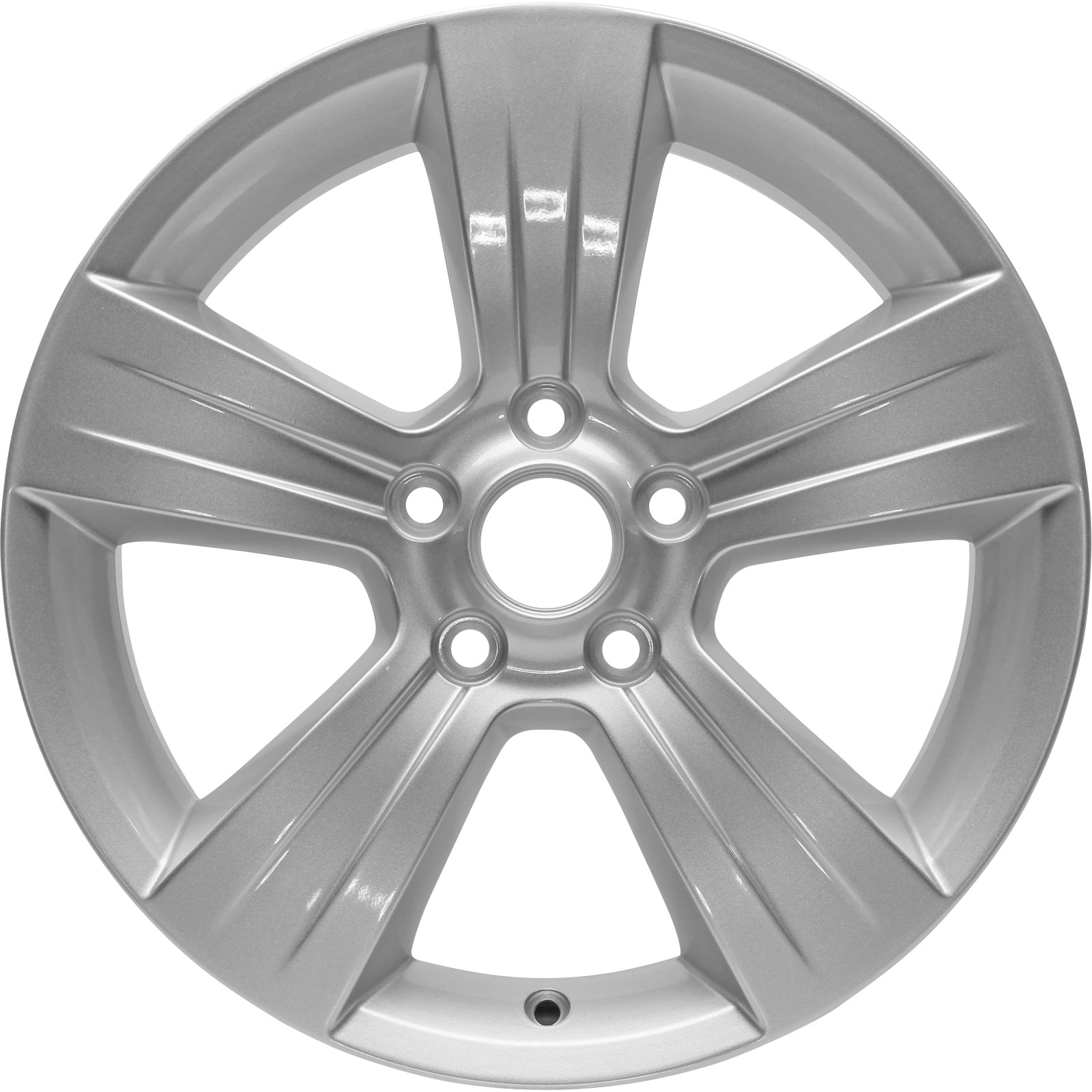

Jeep Compass Bolt Pattern By Year
The Jeep Compass has gone through two generations since its launch. The bolt pattern differs slightly depending on the model year.
| Model Year | Bolt Pattern | Number of Lugs | Center Bore | Lug Nut Size |
|---|---|---|---|---|
| 2007–2016 (First Gen) | 5×114.3 mm | 5 | 67.1 mm | 1/2″-20 |
| 2017–2024 (Second Gen) | 5×110 mm | 5 | 65.1 mm | M12x1.25 |
Key point: Most modern Jeep Compass models (2017 and newer) use a 5×110 bolt pattern, while older models use 5×114.3.
Why Bolt Pattern Matters
A wheel’s bolt pattern must match your vehicle’s hub exactly. If it doesn’t:
- The wheel will not fit, or it might be unsafe.
- You risk vibration, poor handling, and even wheel detachment.
It’s not just about the number of bolts. The diameter (the second number) is just as important.
Non-obvious insight: Even if a wheel seems to “almost fit,” a small difference in bolt pattern can stress your wheel studs and cause failure over time.
Other Key Wheel Specs For Jeep Compass
Besides bolt pattern, you need to check:
- Center bore: The hole in the center of the wheel must match the hub.
- Offset: How far the wheel’s mounting surface sits from the centerline. Wrong offset can affect handling and suspension.
- Lug nut size: Different years use different lug nuts. Using the wrong size can strip threads or fail to hold the wheel securely.
Here’s a quick comparison of specs for both generations:
| Generation | Bolt Pattern | Center Bore | Offset Range |
|---|---|---|---|
| First Gen (2007–2016) | 5×114.3 mm | 67.1 mm | 35–40 mm |
| Second Gen (2017–2024) | 5×110 mm | 65.1 mm | 38–43 mm |
Can You Swap Wheels From Other Vehicles?
Many people wonder if they can use wheels from other cars. Sometimes, yes—but only if:
- The bolt pattern matches exactly (e.g., 5×110 for newer models).
- The center bore is the same or larger (smaller won’t fit).
- The offset is within the safe range for your Compass.
Some cars, like certain Alfa Romeo or Dodge models, may use the same 5×110 pattern. However, don’t assume fitment without checking all specs. Even one mismatch can cause problems.
Another tip: If you find a wheel with a larger center bore, you can use hub-centric rings. But never use wheels with a smaller bore than your hub.
Common Mistakes When Choosing Wheels
Beginners often make errors that cost time and money—or worse, compromise safety.
- Ignoring the bolt pattern: Even a small difference (like 5×112 vs 5×110) makes wheels incompatible.
- Forgetting about offset: Wrong offset can make tires rub or stick out too far.
- Not checking the center bore: If the wheel doesn’t sit centered, you’ll feel vibrations.
- Mixing lug nut types: Older and newer Compass models use different thread sizes. Always match the lug nut to the wheel and vehicle.

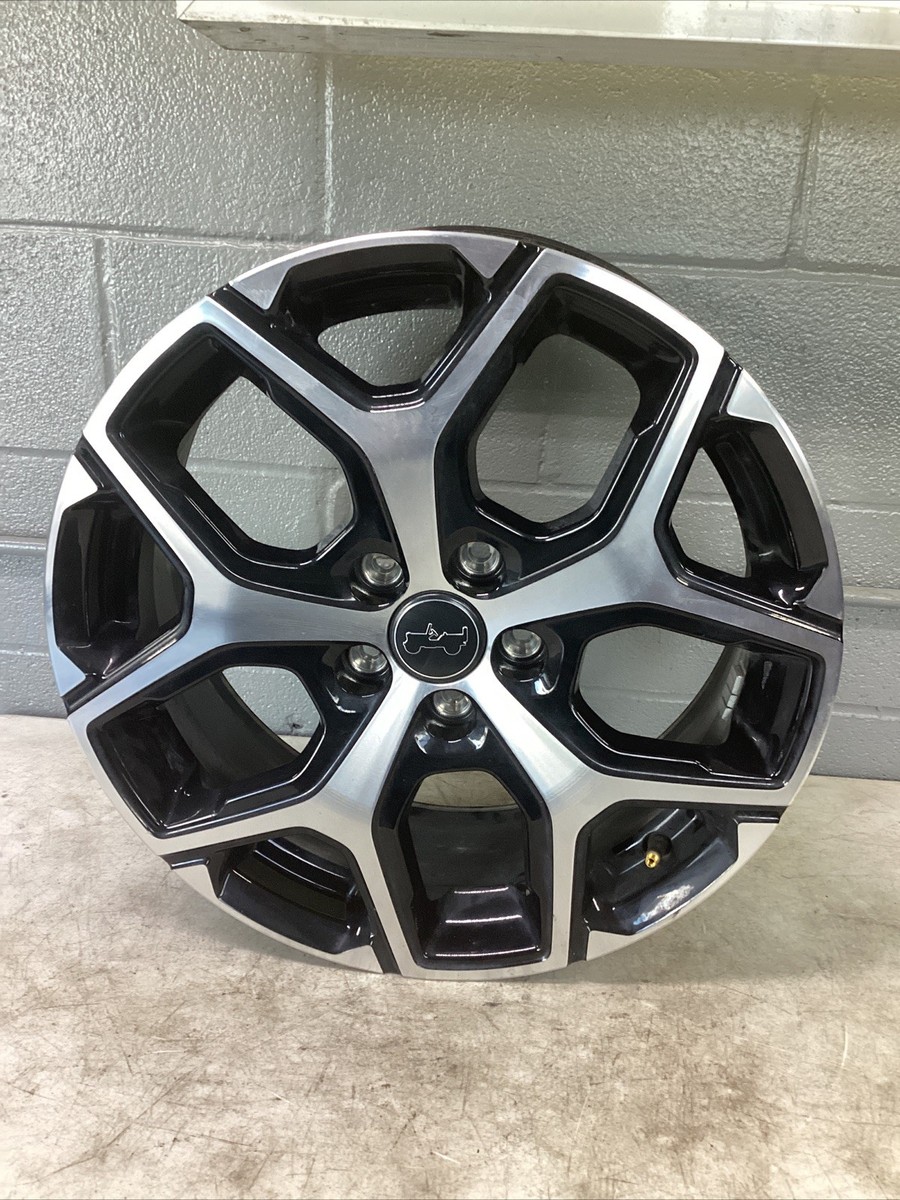

Jeep Compass Wheel And Tire Upgrades
If you want to upgrade your wheels, stick to sizes close to stock specs. For example, the second-generation Compass usually comes with 16”, 17”, or 18” wheels.
Here’s a quick look at factory options:
| Trim Level | Wheel Size | Tire Size |
|---|---|---|
| Sport | 16” | 215/65R16 |
| Latitude | 17” | 215/60R17 |
| Limited/Trailhawk | 18” | 225/55R18 |
When upgrading, keep the overall tire diameter close to stock to prevent speedometer errors and rubbing.
How To Measure Your Bolt Pattern
If you’re not sure of your Jeep Compass’s bolt pattern, you can measure it:
- Count the number of lug nuts (should be 5).
- Measure from the center of one lug hole, straight across to the far edge of the opposite lug hole.
For a 5-lug pattern, this gives you the diameter in millimeters. Most people find it easier to check their owner’s manual or the sticker inside the driver’s door.
Where To Find Reliable Wheel Fitment Data
Always confirm with trusted sources. The official Jeep website or certified parts catalogs are best. Online fitment guides, like those on Wheel-Size.com, provide quick references but always double-check before buying.
Final Thoughts
Understanding the Jeep Compass bolt pattern is more than just a technical detail—it’s the foundation for safe, reliable wheels. Whether you’re swapping to custom rims or just replacing a damaged wheel, always match the bolt pattern, center bore, and offset. Don’t rush the process. A few minutes double-checking specs can save you money and keep you safe on the road.
Frequently Asked Questions
What Is The Bolt Pattern For A 2023 Jeep Compass?
The 2023 Jeep Compass uses a 5×110 mm bolt pattern. This means five lug nuts arranged in a circle with a 110 mm diameter.
Can I Use Wheels From A Jeep Cherokee On My Compass?
Most Jeep Cherokee models use a different bolt pattern (often 5×114. 3 mm), especially older ones. Always check both vehicles’ specs before swapping wheels.
What Happens If I Use The Wrong Bolt Pattern?
Using the wrong bolt pattern can cause dangerous wheel vibrations, poor fitment, and even cause the wheel to detach while driving. Always ensure an exact match.
Do I Need Special Lug Nuts For Aftermarket Wheels?
Sometimes, yes. Aftermarket wheels may require different lug nuts or bolts, especially if the seat type (cone, ball, or flat) is different from factory wheels.
Where Can I Find My Jeep Compass’s Bolt Pattern?
You can find it in your owner’s manual, the sticker inside the driver’s door, or on trusted fitment websites like Wheel-Size.com. Always verify before buying new wheels.
