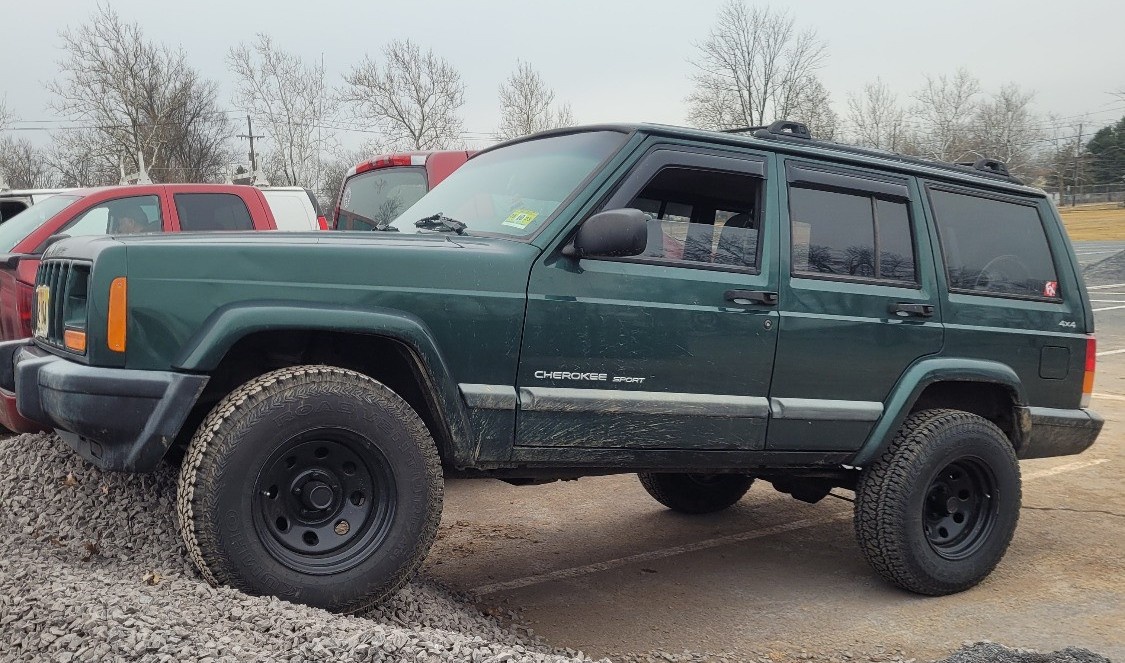

The Jeep XJ Cherokee is one of the most popular off-road vehicles ever made. When you upgrade wheels or tires, knowing the correct Jeep XJ lug pattern is essential.
This guide will help you understand the lug pattern, how it affects your choices, and what you should look out for if you want to swap wheels or improve your ride.
What Is A Lug Pattern?
A lug pattern (also called bolt pattern) is the arrangement of the bolts on a wheel that attach it to your vehicle. It includes two numbers:
- The number of lug holes (bolts)
- The distance between those holes (measured in millimeters or inches)
For example, a 5×4. 5″ pattern means there are five bolts, and the circle they form is 4. 5 inches across.
Jeep Xj Lug Pattern Explained
The Jeep XJ Cherokee (produced from 1984 to 2001) uses a lug pattern of 5×4.5 inches. This is sometimes shown as 5×114.3 mm (since 4.5 inches equals 114.3 mm). Both measurements refer to the same size.
Here’s a quick reference:
| Year | Lug Pattern | Stud Size | Center Bore |
|---|---|---|---|
| 1984–2001 | 5×4.5″ (5×114.3mm) | 1/2″-20 | 71.5 mm |
Understanding this pattern is important if you want to change wheels, buy aftermarket rims, or use wheels from other vehicles.
Why The Right Lug Pattern Matters
Using the correct lug pattern ensures your wheels fit safely and perform well. If you choose the wrong pattern, your wheels will not mount properly, which can cause:
- Vibration or wobbling
- Poor handling
- Damaged wheel studs or hubs
- Safety risks while driving
Many beginners assume that “close enough” is safe. In reality, even a small mismatch can create big problems over time.
You might want to know if other vehicles use the same 5×4.5″ pattern. This is helpful if you’re looking for used wheels or want more choices.
Common vehicles with a 5×4.5″ pattern include:
- Jeep YJ Wrangler (1987–1995)
- Jeep TJ Wrangler (1997–2006)
- Ford Ranger (some years)
- Ford Mustang (older models)
- Mazda B-Series (some years)
However, other factors like center bore and offset may differ. Always double-check these before swapping wheels.
Offset And Center Bore: What You Need To Know
Besides the lug pattern, two other factors affect wheel fitment:
Offset is how far the wheel sits in or out relative to the hub. The XJ’s factory offset is usually +31 mm. If you use wheels with a much different offset, you might have rubbing issues or handling changes.
Center bore is the hole in the middle of the wheel that fits over the hub. The Jeep XJ uses a center bore of 71.5 mm. If the new wheel’s center bore is smaller, it won’t fit. If it’s larger, you’ll need hub-centric rings to prevent vibration.
Here’s a comparison:
| Vehicle | Lug Pattern | Center Bore | Typical Offset |
|---|---|---|---|
| Jeep XJ Cherokee | 5×4.5″ | 71.5 mm | +31 mm |
| Ford Mustang (1994–2004) | 5×4.5″ | 70.6 mm | +30 mm |
| Jeep TJ Wrangler | 5×4.5″ | 71.5 mm | +25 mm |
How To Measure Your Lug Pattern
If you’re unsure, you can measure the Jeep XJ lug pattern yourself:
- Count the lug holes on the wheel (should be 5).
- Measure from the center of one lug hole to the center of the hole directly across from it (skip one hole when counting).
- The distance should be 4.5 inches.
For a more accurate result, use a ruler with both inches and millimeters.
Common Mistakes When Swapping Wheels
Many Jeep XJ owners make these mistakes when changing wheels:
- Ignoring offset: A wheel with the wrong offset can rub on suspension or stick out too far.
- Wrong center bore: Too small won’t fit; too large needs a hub ring.
- Assuming all 5-lug wheels fit: The bolt circle must match exactly.
- Forgetting about load rating: Off-road wheels need to be strong enough for rough terrain.
Always check all measurements before buying.
Adapters And Spacers: When And Why To Use
Wheel adapters let you change your lug pattern to fit different wheels. For example, you can use an adapter to change from 5×4.5″ to 5×5″. Wheel spacers push the wheels out for more clearance or a wider stance.
While these can help, only use high-quality adapters with proper installation. Cheap or poorly made spacers can cause vibrations or even fail, especially off-road.
Upgrading Wheels For Off-road Or Street
If you want bigger tires or a different look, many owners upgrade from the stock XJ wheels. Here are some things to consider:
- Maximum tire size: The XJ can fit up to 31″ tires with a small lift.
- Backspacing: Less backspacing means the wheel sits further out, which can help clear larger tires.
- Aftermarket wheels: Choose ones with 5×4.5″ lug pattern, 71.5 mm center bore, and similar offset.
Here’s a quick look at popular upgrade sizes:
| Wheel Size | Tire Size | Lift Needed | Notes |
|---|---|---|---|
| 15×7″ | 30×9.5″ | 0–2″ | Common upgrade, fits most XJs |
| 15×8″ | 31×10.5″ | 2–3″ | Good for off-road; may need trimming |
| 16×8″ | 265/75R16 | 2–3″ | Larger wheel, modern look |
Practical Tips For Choosing The Right Wheels
- Always match the 5×4.5″ pattern.
- Check the center bore is at least 71.5 mm.
- Keep the offset close to stock for best handling.
- If buying used wheels, inspect for cracks or bends.
- Consider wheel weight—heavier wheels can affect acceleration and braking.
Many experts recommend sticking with reputable wheel brands for safety.
Where To Find More Information
For more technical details and Jeep wheel charts, you can check the Jeep Cherokee (XJ) Wikipedia page.
Frequently Asked Questions
<!– wp:rank-math/faq-block {"questions":[{"id":"faq-question-6e06a5219270","title":"What Is The Jeep Xj Lug Pattern?","content":"The Jeep XJ uses a 5×4.5″ (5×114.3 mm) lug pattern with five lug nuts in a circle 4.5 inches across.
“,”visible”:true},{“id”:”faq-question-bf5e9def5b63″,”title”:”Can I Use Wheels From A Ford Ranger On My Jeep Xj?”,”content”:”Some Ford Rangers use the same 5×4.5″ pattern, but always check the center bore and offset before swapping.
“,”visible”:true},{“id”:”faq-question-a19e48915e0c”,”title”:”Do I Need Hub-centric Rings For Aftermarket Wheels?”,”content”:”If your new wheels have a larger center bore than 71.5 mm, use hub-centric rings to prevent vibration.
“,”visible”:true},{“id”:”faq-question-0030e70b3fc3″,”title”:”What Is The Stock Wheel Offset For The Jeep Xj?”,”content”:”The stock offset is usually +31 mm. Try to match this for best fit and handling.
“,”visible”:true},{“id”:”faq-question-ffa8773dbe0e”,”title”:”Is It Safe To Use Wheel Spacers Or Adapters?”,”content”:”High-quality spacers and adapters are safe if installed correctly, but low-quality ones can cause problems. Always use trusted brands and follow torque specs.
“,”visible”:true}]} –>What Is The Jeep Xj Lug Pattern?
The Jeep XJ uses a 5×4.5″ (5×114.3 mm) lug pattern with five lug nuts in a circle 4.5 inches across.
Can I Use Wheels From A Ford Ranger On My Jeep Xj?
Some Ford Rangers use the same 5×4.5″ pattern, but always check the center bore and offset before swapping.
Do I Need Hub-centric Rings For Aftermarket Wheels?
If your new wheels have a larger center bore than 71.5 mm, use hub-centric rings to prevent vibration.
What Is The Stock Wheel Offset For The Jeep Xj?
The stock offset is usually +31 mm. Try to match this for best fit and handling.
Is It Safe To Use Wheel Spacers Or Adapters?
High-quality spacers and adapters are safe if installed correctly, but low-quality ones can cause problems. Always use trusted brands and follow torque specs.
